Product Description
Upsen Mini Wheel Tire Mobile Jaw Crusher | Model U-TC503 | Stock Bin Volume 0.8 Cubic Meter | Capacity 10-30t/h | Diesel Engine 40 KW
Description

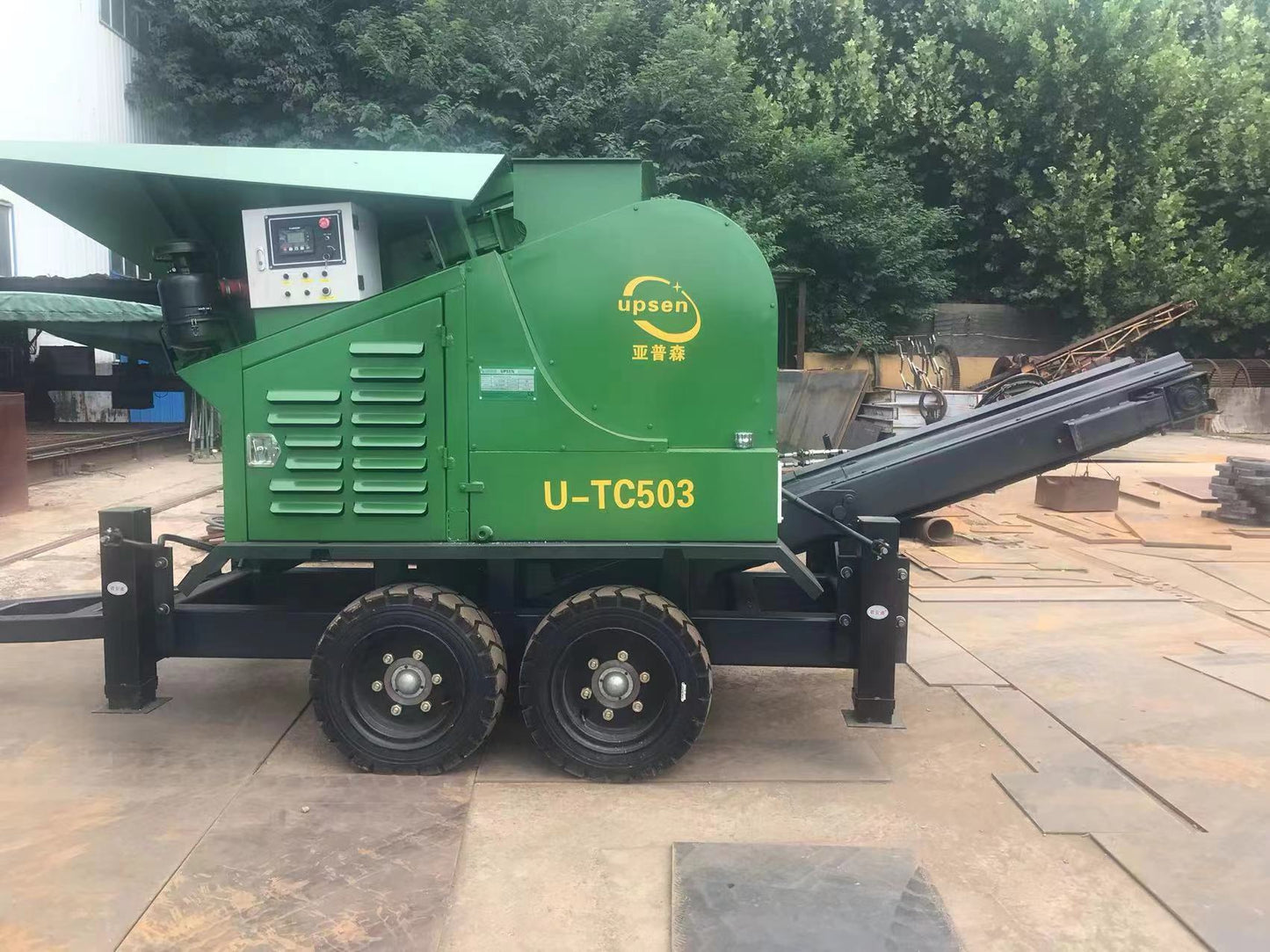

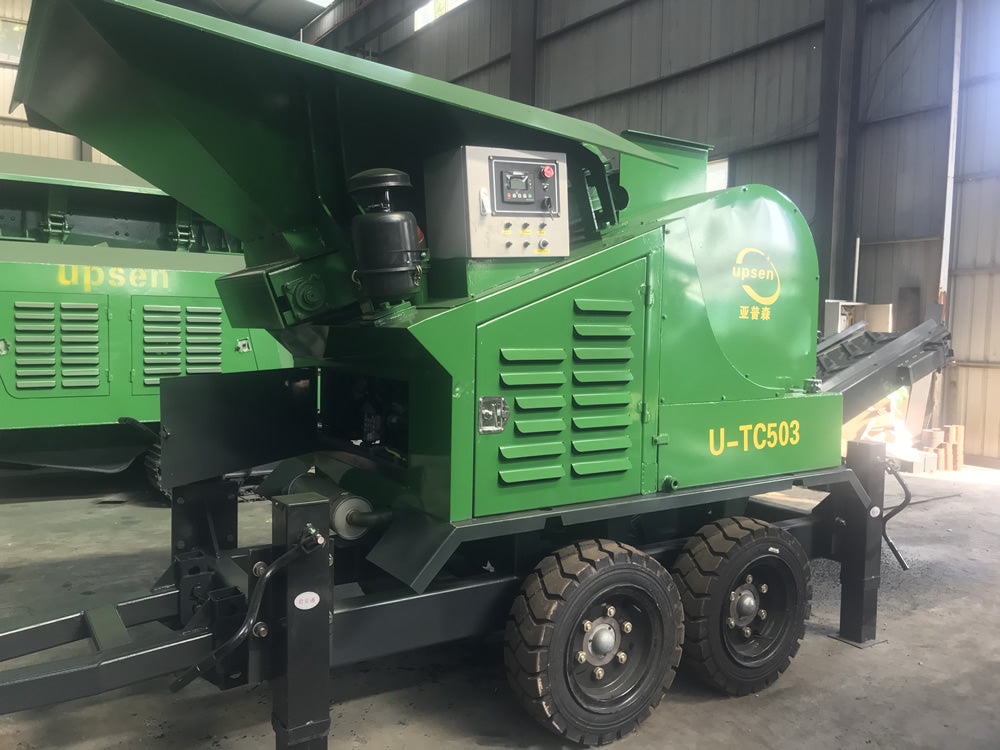

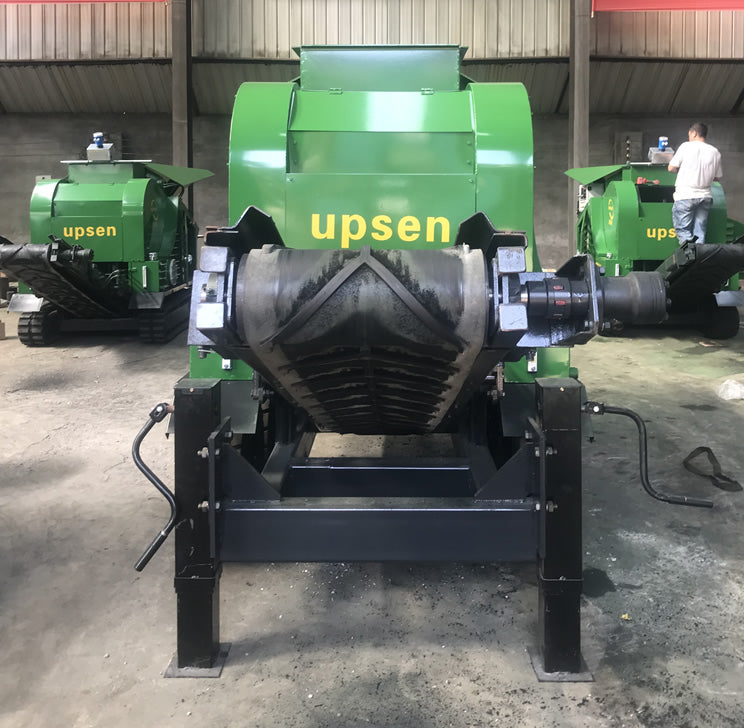

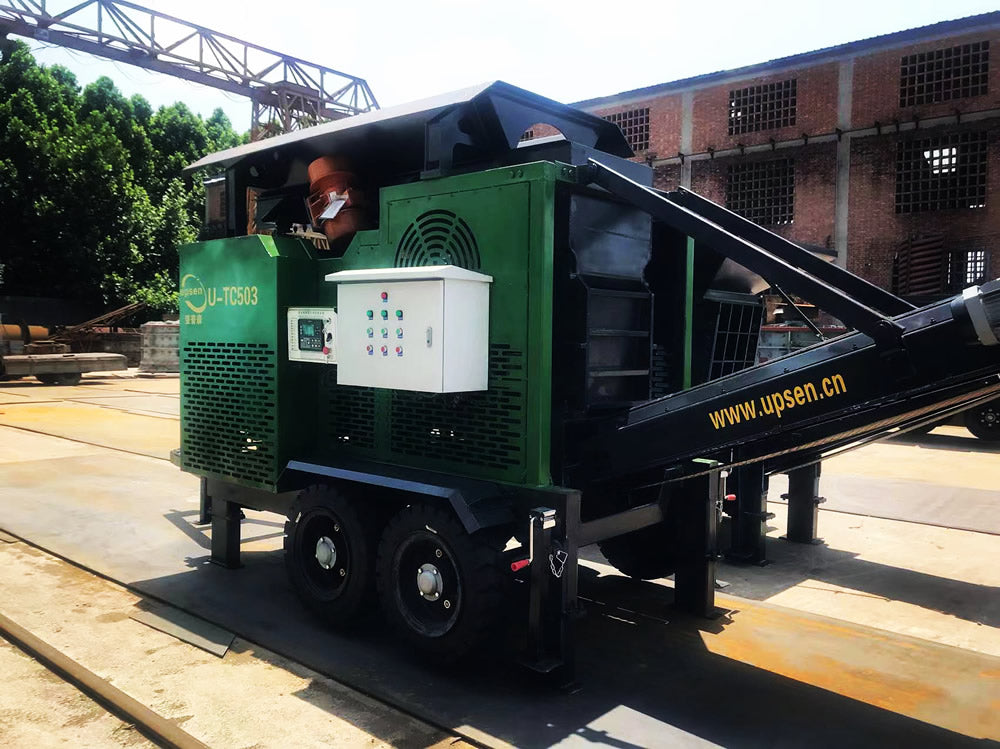

The UPSEN U-TC503 Mini Wheel Tire Mobile Jaw Crusher is a compact, highly portable crusher designed for efficiently processing concrete and hard stones. This versatile machine is ideal for small to medium-sized projects, delivering reliable performance with a production capacity of 10-30 tons per hour. Powered by a 40KW diesel engine, the U-TC503 offers mobility and flexibility with its wheel-tire configuration, making it easy to transport and set up in various locations.
Equipped with a JC503E jaw crusher, this unit has a maximum feeding size of 250mm and can discharge materials at adjustable sizes between 0-50mm. The 2.5m belt conveyor ensures efficient material handling, while its compact dimensions make it suitable for confined job sites. Whether you're crushing concrete, asphalt, or natural stone, the U-TC503 delivers precise and effective results, making it a valuable addition to your machinery fleet.
Key Features
- Compact design for easy transport and setup in confined spaces.
- Powered by a 40KW diesel generator for reliable performance.
- JC503E jaw crusher capable of crushing materials up to 250mm in size.
- Adjustable discharge size from 0-50mm to suit various project needs.
- Production capacity of 10-30 tons per hour for efficient material processing.
- Includes a 2.5m discharge conveyor for streamlined material handling.
- Lightweight and portable, weighing only 3.8 tons.
- Designed for crushing concrete, hard stone, and other tough materials.
- Versatile for small to medium-scale construction and demolition projects.
- Simple operation and low maintenance requirements.
Detailed Specifications
| Component | Specification |
|---|---|
| Stock Bin Volume | 0.8m³ |
| Hopper Size | 3000mm x 1350mm |
| Feed Port Size | 480mm x 250mm |
| Max Feeding Size | 250mm |
| Discharge Size | 0-50mm |
| Production Capacity | 10-30t/h |
| Diesel Generator | 4100ZD 40KW |
| Belt Conveyor Model | B400 x 2500mm |
| Stacking Height | 1.3m |
| Total Weight | 3800kg |
| Working Dimensions (LxWxH) | 5700mm x 1930mm x 2000mm |
| Transport Dimensions (LxWxH) | 3200mm x 1930mm x 2300mm |
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

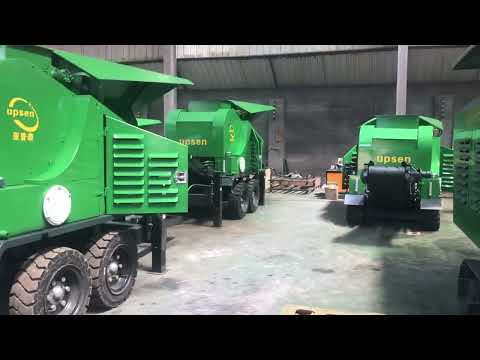

Videos
