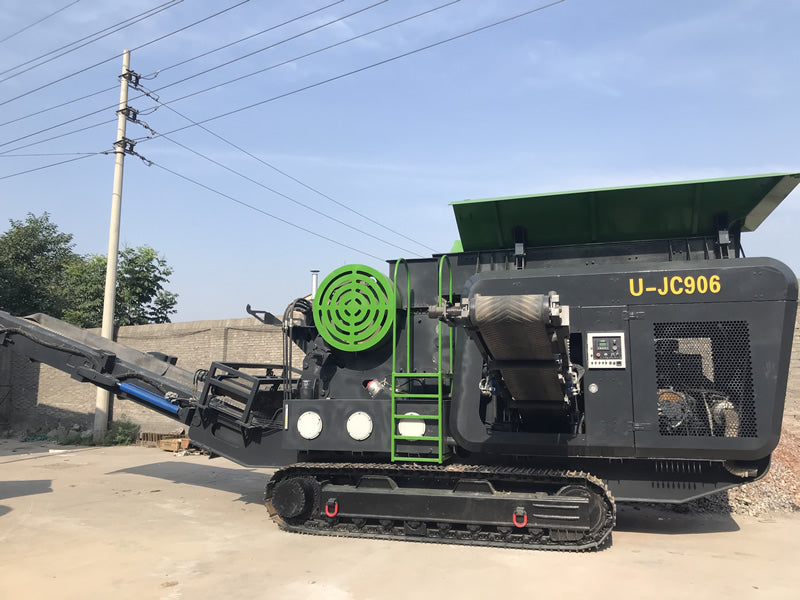

Upsen Mobile Jaw Stone Crusher | Model U-JC906 | Capacity 80-150t/h | Engine Horsepower 125 HP

Upsen Mobile Jaw Stone Crusher | Model U-JC906 | Capacity 80-150t/h | Engine Horsepower 125 HP

Regular price $236,000.00
Regular price Sale price $236,000.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Crushing capacity of 80-150 tons per hour, ideal for concrete and stone crushing.
  • 600x900mm feed port size with a maximum feeding size of 520mm for large materials.
  • Powered by a 93KW (125 HP) Cummins engine, delivering reliable performance.
  • Includes B800x8000 belt conveyor and RCY0820 iron separator for efficient material handling.
  • Compact and mobile design with a total weight of 35,000kg for easy transportation and on-site operations.
View full details

Product Description

Upsen Mobile Jaw Stone Crusher | Model U-JC906 | Capacity 80-150t/h | Engine Horsepower 125 HP

DESCRIPTION

The UPSEN U-JC906 Mobile Jaw Stone Crusher is a powerful, versatile solution for on-site crushing of concrete, stones, and various construction materials. This equipment features a 5m³ stock bin and GZD9638 vibrating feeder, making it ideal for handling large materials up to a maximum feeding size of 520mm. With a crushing capacity of 80-150 tons per hour, the U-JC906 is equipped with a robust 600x900mm feed port, ensuring efficient and high-quality processing. Driven by a 93KW Cummins Stage IIIA engine, this mobile jaw crusher is designed to deliver reliable performance on diverse job sites.

Its auxiliary equipment includes a B800x8000 belt conveyor and an RCY0820 iron separator for efficient material handling and sorting. Weighing 35,000kg, the U-JC906 is compact enough for transportation, yet durable for intensive applications in mining, construction, and demolition projects.

Key Features

  • High-capacity crushing with a production rate of 80-150 tons per hour.
  • Equipped with a large 5m³ stock bin and a GZD9638 vibrating feeder for smooth material intake.
  • 600x900mm feed port size for handling materials up to 520mm.
  • Powered by a 93KW Cummins engine for reliable operation.
  • Adjustable CSS range of 60-140mm for customized output sizes.
  • Includes a B800x8000 belt conveyor for efficient material transport.
  • Integrated RCY0820 iron separator for effective material sorting.
  • Compact design with easy setup and on-site mobility.
  • Ideal for concrete, stone, and other hard materials in construction and mining.
  • User-friendly operation and low maintenance requirements.

Detailed Specifications

Component Specification
Stock Bin Volume 5m³
Hopper Size 2500mm x 4200mm
Vibrating Feeder Model GZD9638
Feed Port Size 600mm x 900mm
Max. Feeding Size 520mm
Production Capacity 80-150t/h
CSS Range 60-140mm
Engine Model Cummins 93KW (125HP), Stage IIIA
Belt Conveyor Model B800 x 8000
Stacking Height 2.5m
Side Belt Model B500 x 3000
Iron Separator Model RCY0820
Equipment Weight 35,000kg
Working Dimensions (LxWxH) 11500mm x 3800mm x 3250mm
Transportation Dimensions (LxWxH) 8500mm x 2900mm x 2850mm



Manuals & Documents

General Warranty Info:

  • Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
  • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
  • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
  • Please reach out to us for any specific warranty information needed about products and parts you can’t find!

Videos

Shipping

General Shipping Info

  • Instantly calculate shipping quotes to the lower 48 states by 1. adding this product to your cart, 2. click continue to the checkout page and 3. enter your shipping address to check rates. Contact us for quotes for shipping to Hawaii, Alaska, Canada, Mexico and Internationally.
  • Complimentary lift gate service on all freight shipments where it’s possible. We guarantee safe delivery!
  • Low shipping rates for customers. We have negotiated the best possible rates for customers from our trusted carriers (ODFL, ESTES, UPS, and FedEx).
  • Negotiate shipping rates if you think we can do better please reach out. Keep in mind some shipping rates also include assembly & configuration as well!
