Upsen Mobile Stone Jaw Crusher | Model U-JC704 | Yanmar Engine 74 HP | Capacity 30–80 t/h
DESCRIPTION

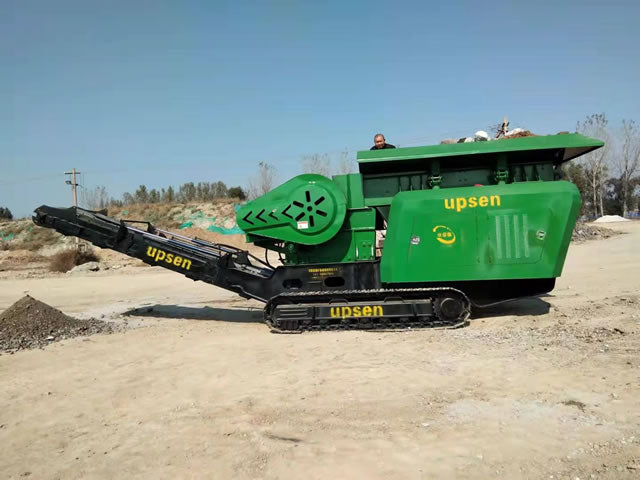

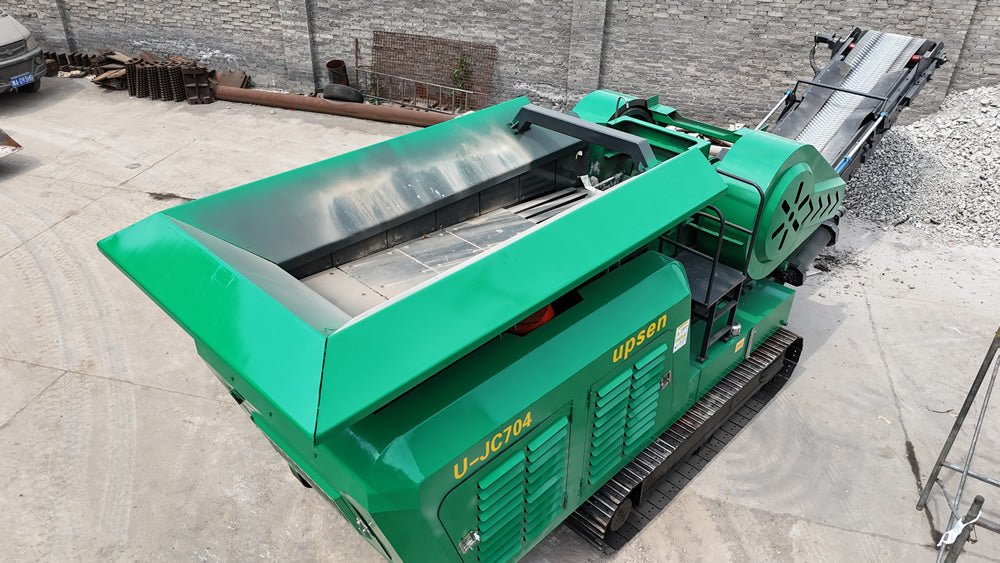

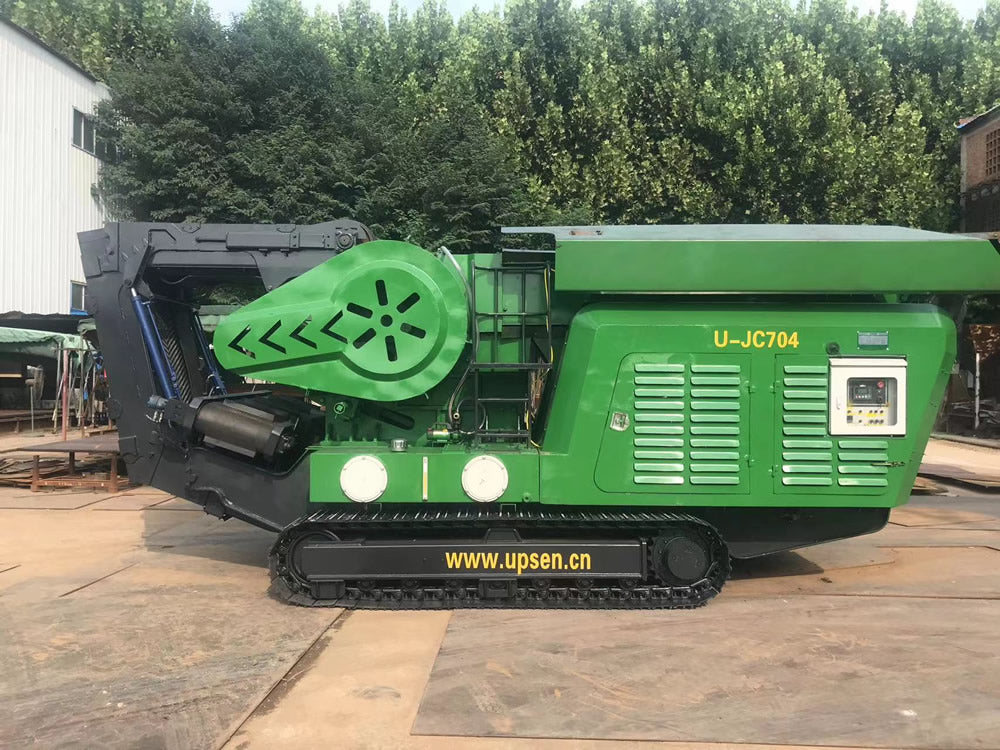

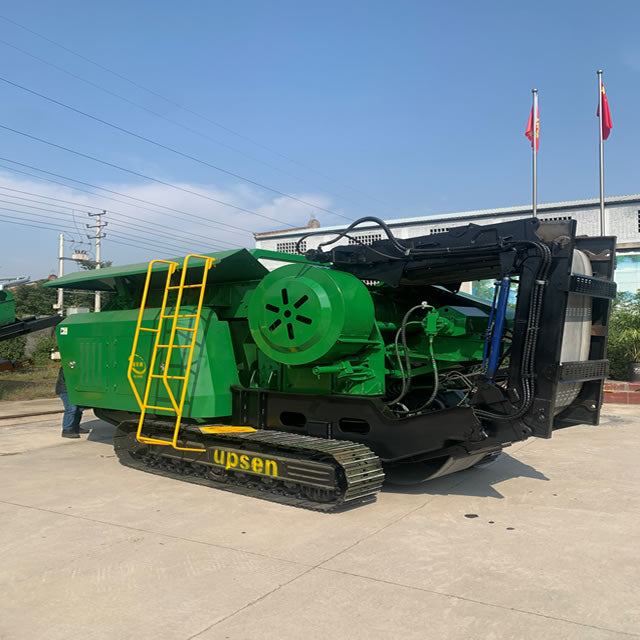

The UPSEN U‑JC704 is a compact, tracked mobile jaw crusher designed for urban demolition waste recycling, concrete crushing, and small‑to‑medium hard stone processing. Its 3 m³ feed bin and 680 × 430 mm jaw inlet handle feed up to 350 mm, producing 30–80 t/h of aggregate with a CSS range of 20–80 mm.
Powered by 66 kW Stage IIIA Cummins or 54 kW Stage V/Tier 4 Final Yanmar diesel engines, the U‑JC704 offers low fuel consumption and compliance with Euro V and EPA standards. The belt‑type iron separator removes rebar and metal contaminants, while the compact transport dimensions make it easy to move between urban job sites.
Key Features
- Compact Design: Easily transportable and highly flexible for various job sites.
- High Capacity: Can process 30-50 tons of material per hour.
- Fuel Efficiency: Low fuel consumption of 10 liters per hour for cost-effective operation.
- Adjustable Jaw Plate Gap: Customizable output sizes with a CSS range of 20-80mm.
- Ideal for Urban Construction Waste Processing: Reduces transportation costs and promotes recycling in sustainable construction.
- Efficient Vibrating Feeder: GZD0625 for consistent material flow and processing.
- Auxiliary Equipment: Includes a belt conveyor and iron separator for efficient material handling and sorting.
- Powerful Engine: Available with a 66KW Cummins engine or a 54KW Yanmar engine, meeting Stage IIIA, Tier 4 Final, and Stage V standards.
- Versatile Applications: Suitable for construction waste treatment, small aggregate factories, and demolition concrete recycling.
Detailed Specifications
| Attribute | Specification |
|---|---|
| Stock Bin Volume | 3 m³ |
| Hopper Size | 2200 × 3000 mm |
| Vibrating Feeder | GZD0625 |
| Feed Port Size | 680 × 430 mm |
| Max. Feed Size | 350 mm |
| Production Capacity | 30–80 t/h |
| CSS Range | 20–80 mm |

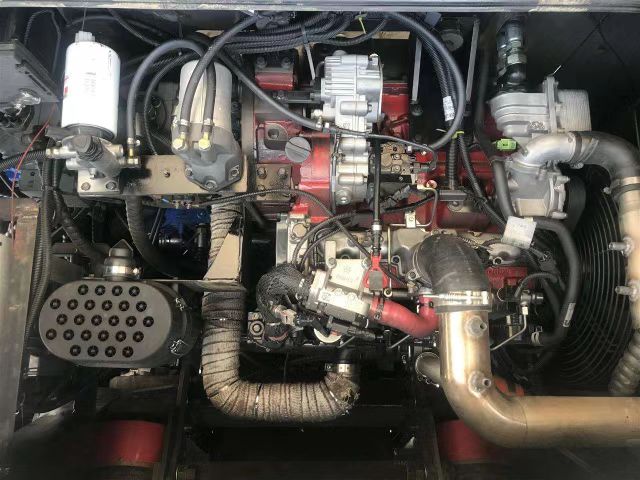

| Engine Options | Stage V/Tier 4 Final Yanmar: 54 kW (74 HP) |
| Belt Conveyor | B650 × 6500 mm — stacking height 2.1 m |
| Iron Separator | Belt type RCY0515 |
| Weight | 13,500 kg |
| Working Dimensions | 8500 × 2200 × 2700 mm |

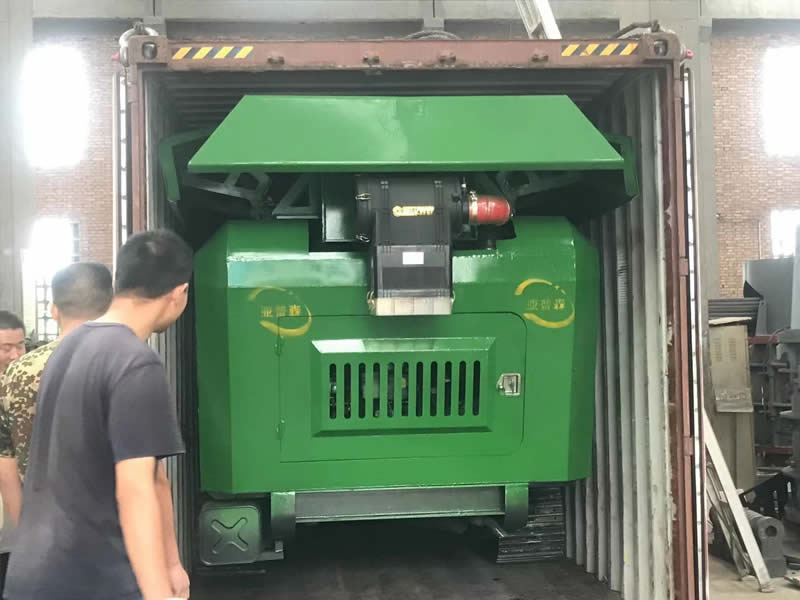

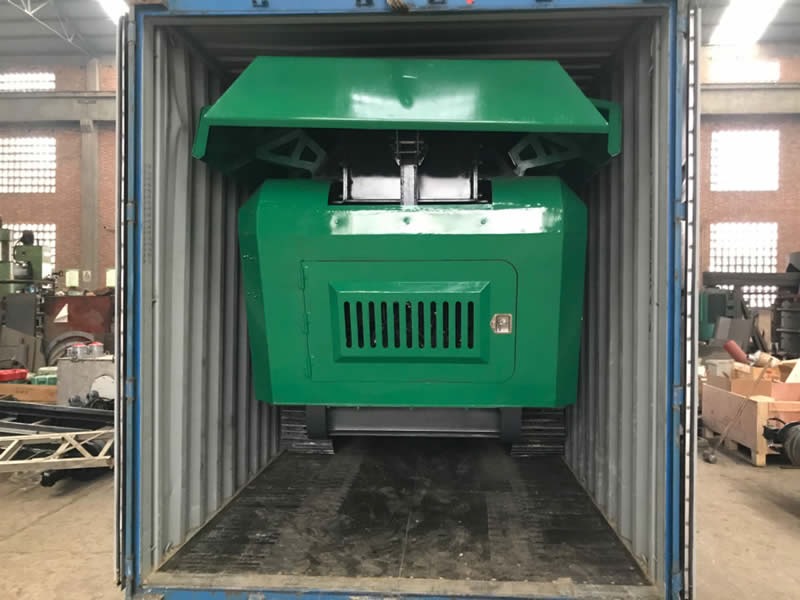

| Transport Dimensions | 5950 × 2200 × 2600 mm |
| Applications | Demolition waste, concrete recycling, small‑to‑medium stone crushing |
