Product Description
Upsen Mobile Vibrating Screener 3 Way Portable Screener | Model U-YK1235 | Diesel Engine 48 HP | Stock Bin Volume 1.5 Cubic Meter
DESCRIPTION

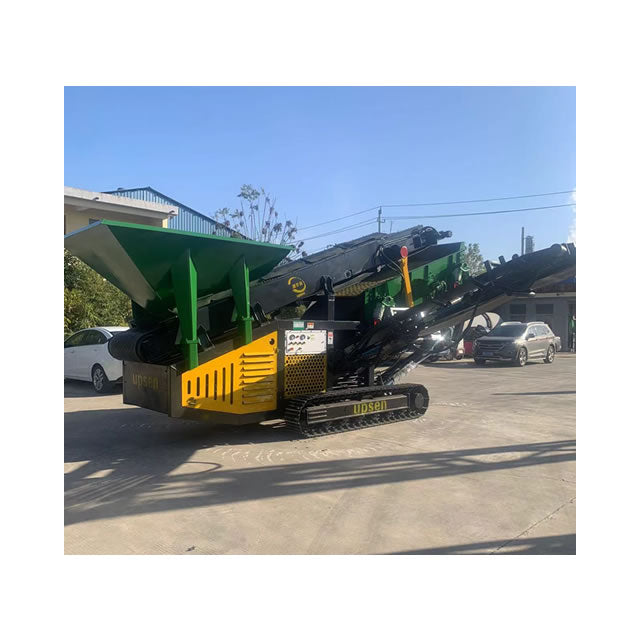

The UPSEN U‑YK1235 is a compact, crawler‑mounted 2‑deck, 3‑way mobile screener designed for small to medium‑scale operators and contractors. With a 1.5 m³ feed hopper and B800 belt feeder, it delivers consistent material flow to the 2YK1200×3600 double‑deck vibrating screen, producing up to three product sizes in a single pass.
Capable of handling feed up to 200 mm and delivering 30–80 t/h throughput (50–100 t/h peak), the U‑YK1235 is ideal for sand & gravel, aggregates, topsoil, and recycling applications. Its compact transport dimensions and rapid setup make it easy to relocate between job sites, while the 36 kW (48 HP) diesel engine ensures reliable performance in the field.
Key Features
- Compact, mobile design — Easy transport and rapid setup for multi‑site operations.
- Versatile screening — 2‑deck, 3‑way separation for multiple product sizes in one pass.
- Medium‑scale capacity — Handles 30–80 t/h with feed up to 200 mm.
- Reliable power — 36 kW (48 HP) diesel engine for consistent field performance.
Detailed Specifications
| Attribute | Specification |
|---|---|
| Stock Bin Volume | 1.5 m³ |
| Feeder Type | Belt feeder — B800 × 4500 mm |
| Screen Model | 2YK1200 × 3600 |
| Screen Layers | 2 |
| Mesh Size | 5 mm / 40 mm (customizable) |
| Max Feed Size | 200 mm |
| Throughput | 30–80 t/h (50–100 t/h peak) |
| Side Conveyor | B500 × 5000 mm |
| Under‑Screen Conveyor | B800 × 6000 mm |
| Engine | 36 kW (48 HP) diesel |
| Weight | 8,500 kg |
| Working Dimensions | 8,900 × 7,520 × 3,200 mm |
| Transport Dimensions | 8,100 × 2,250 × 2,650 mm |
| Applications | Sand & gravel, aggregates, topsoil, recycling |
