Product Description
Upsen Portable Track Mobile Jaw Crusher | Model U-JC604 | Hopper Size 1650 × 1300 mm | Yanmar Engine 55 HP
DESCRIPTION

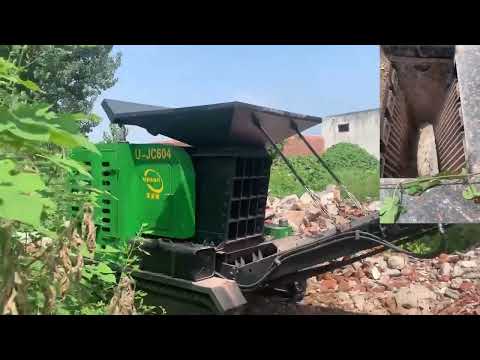

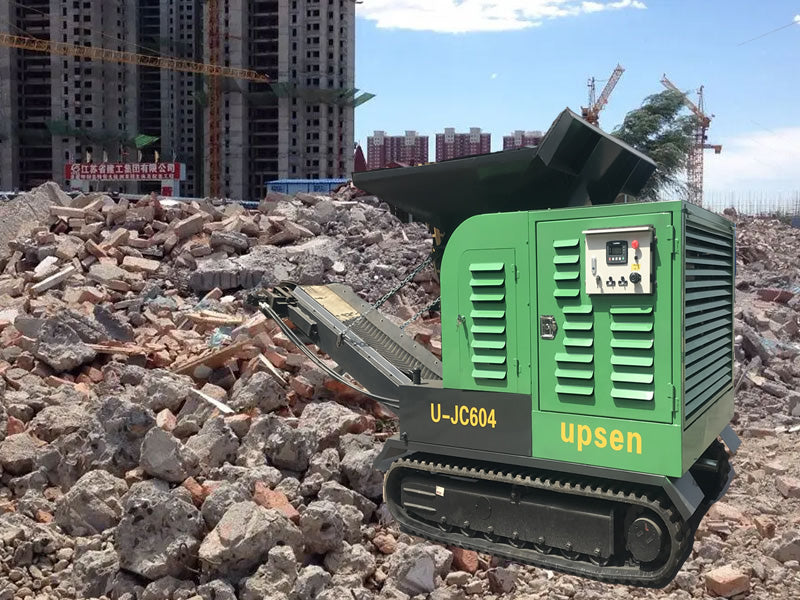

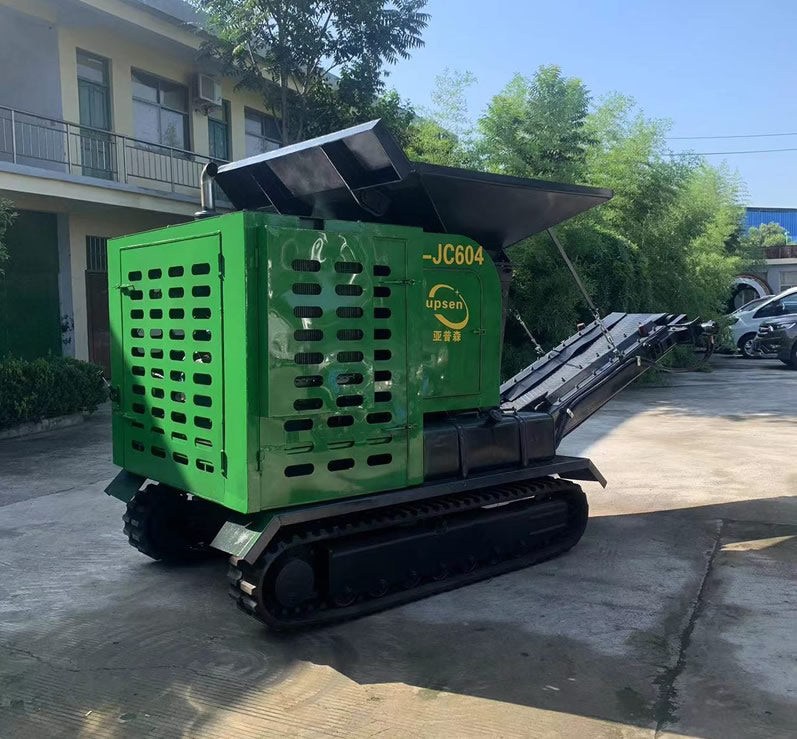

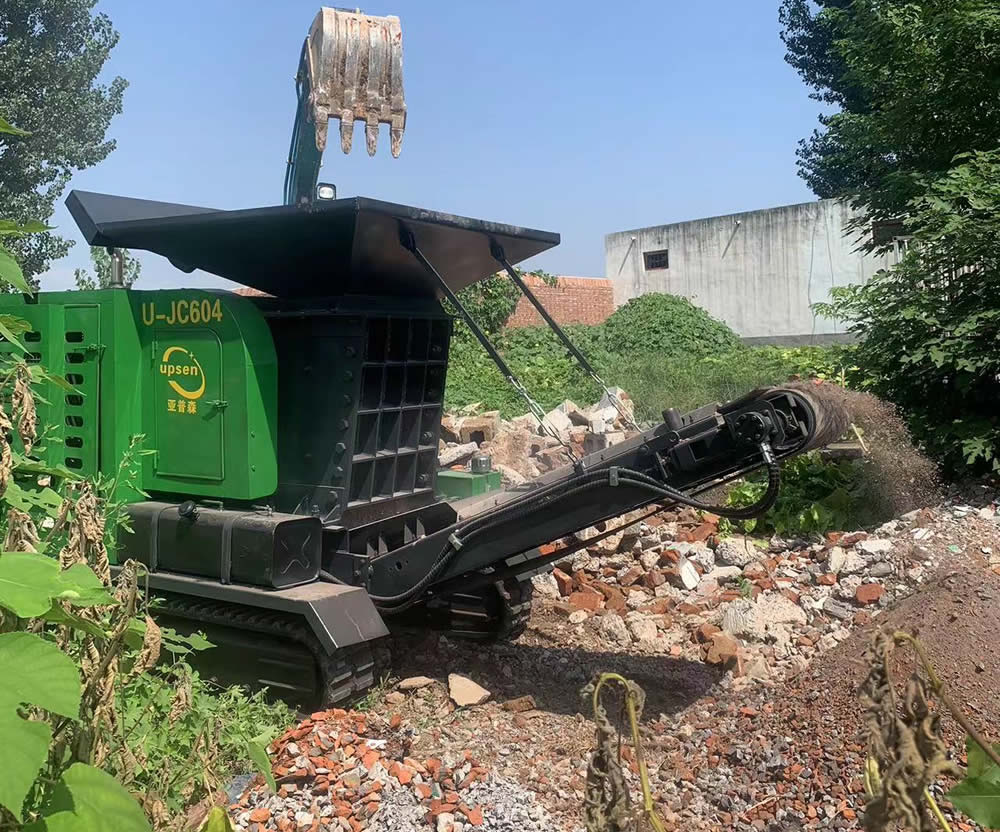

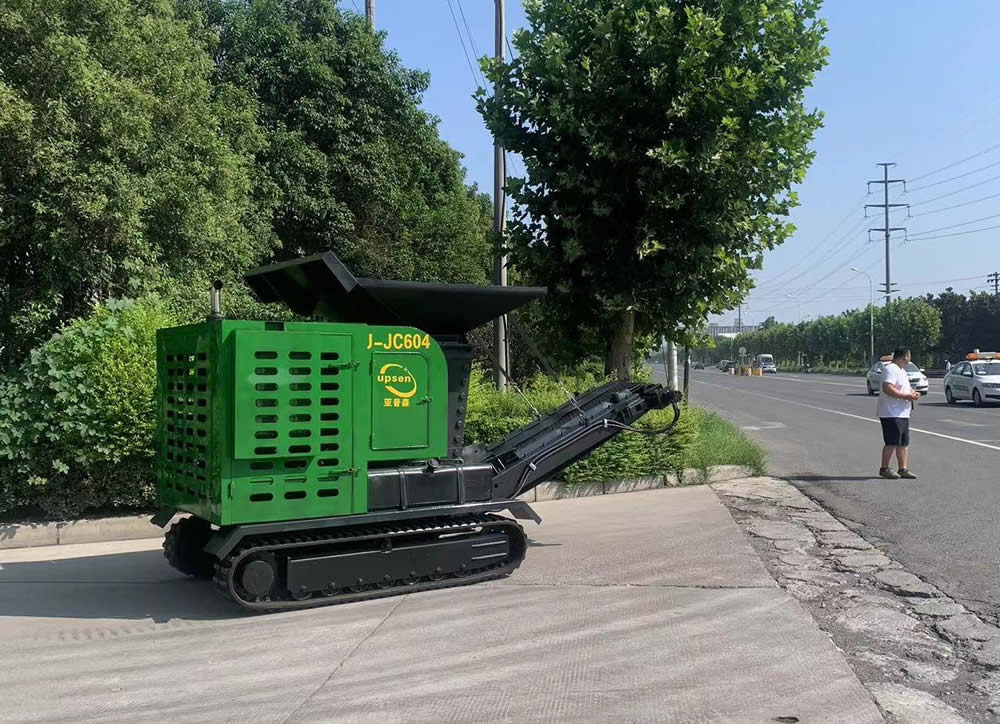

The UPSEN U-JC604 Portable Track Mobile Jaw Crusher is a compact and highly efficient crushing machine designed for on-site crushing operations. Powered by a 40KW Yanmar diesel engine, this mobile crusher is built to handle construction waste, concrete, and other materials, providing flexible and cost-effective crushing solutions. With a feed port size of 650x350mm and the ability to process materials up to 500mm in size, the U-JC604 can deliver an output of 30-50 tons per hour. Its track mobility offers excellent maneuverability on-site, reducing transportation costs and improving overall operational efficiency.
This crusher is ideal for construction waste recycling, demolition projects, and other applications requiring mobility and ease of use. The adjustable output size range of 20-80mm allows for tailored material production based on project needs.
Key Features
- Compact and portable design for on-site crushing.
- Powered by a Yanmar 4TNV98C 44KW (55HP) diesel engine for reliable performance.
- 650x350mm jaw crusher inlet size, handling input sizes up to 500mm.
- Output capacity of 30-50 tons per hour for high efficiency.
- Adjustable output size range of 20-80mm for customized material production.
- Built-in track mobility for easy on-site movement and transport.
- Discharge conveyor (B500 x 3m) for efficient material handling.
- Ideal for construction waste recycling and demolition projects.
- Lightweight design at 4.3 tons, easy to transport and set up.
- Reduces transportation costs and improves operational flexibility.
Detailed Specifications
| Attribute | Specification |
|---|---|
| Hopper Size | 1650 × 1300 mm |
| Jaw Crusher Inlet | 650 × 350 mm |
| Max Input Size | ≤ 500 mm |
| Output Size Range | 20–80 mm (adjustable) |
| Jaw Unit Weight | 1.6 t |
| Engine | Yanmar 4TNV98C — 44 kW (55 HP) |
| Hydraulic Pump | Rebox — 28 |
| Discharge Conveyor | B500 × 3 m |
| Machine Weight | 4.3 t |
| Dimensions (L×W×H) | 4.2 m × 1.6 m × 1.9 m |
| Applications | Concrete, demolition waste, small aggregates |
