Product Description

Upsen Track Mobile Hammer Crusher | Model U-HC600 | Feeding System 500x2000mm | Yanmar Engine 73 HP

Included Options:

• Customizable output sizes.
• Additional dust suppression systems.
• Upgraded engine options for higher capacity

DESCRIPTION

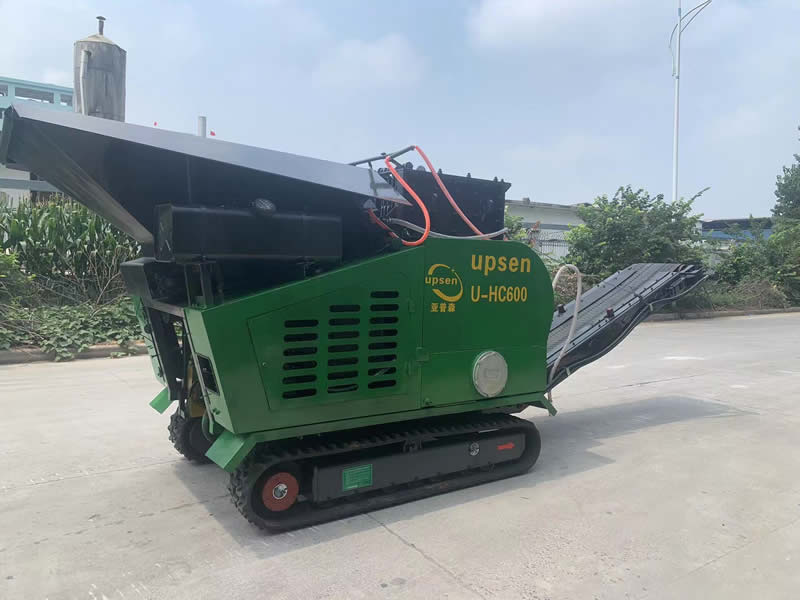

The UPSEN U-HC600 Crawler Mobile Hammer Crusher is a robust and efficient mobile crushing unit designed for versatility in handling various materials. Powered by a 73hp Yanmar engine, this crusher is capable of processing up to 20 tons per hour, making it ideal for both large-scale and smaller projects. Its feeding system measures 500x2000mm, leading to the hammer crusher (600x600), ensuring efficient material handling. The U-HC600 is equipped with a dust moving system, enhancing its environmental friendliness by minimizing dust production during operation.

Compact yet powerful, the U-HC600 operates at 60kW of power, with overall dimensions of 4500x1600x2200mm and a weight of 5 tons. Capable of crushing input sizes up to 300mm and delivering output sizes as fine as 10mm, this machine is suitable for a wide range of applications, from construction to mining and demolition. Its crawler mobility allows for easy relocation, making it a highly adaptable solution for on-site crushing needs.

Key Features

• Feeding System — 500 × 2000 mm heavy‑duty feed hopper for consistent material flow.
• Primary Crushing Unit — 600 × 600 mm hammer crusher for efficient reduction of ≤ 300 mm feed material.
• Engine & Drive — Yanmar diesel engine, 73 HP (60 kW) output, delivering reliable on‑site mobility and crushing power.
• Crawler Undercarriage — Self‑propelled track system for easy relocation across rough terrain.
• Auxiliary Equipment — Integrated dust‑removal system for cleaner operation and reduced airborne particles.
• Throughput Capacity — Up to 20 t/h, depending on material hardness and feed size.
• Output Size — Adjustable discharge, standard ≤ 10 mm for fine product.
• Compact Transport Dimensions — 4500 × 1600 × 2200 mm for easy loading and site access.
• Operating Weight — 5 t for stable operation without excessive ground pressure.
• Application Scope — Ideal for small to medium‑scale crushing of construction waste, aggregates, and soft to medium‑hard rock.

Detailed Specifications
