Upsen UJC-106 Portable Mobile Jaw Crusher | Hopper Capacity 7 Cubic Meter | Diesel Engine 250 kW
Upsen UJC-106 Portable Mobile Jaw Crusher | Hopper Capacity 7 Cubic Meter | Diesel Engine 250 kW
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Upsen UJC-106 Portable Mobile Jaw Crusher | Hopper Capacity 7 Cubic Meter | Diesel Engine 250 kW
DESCRIPTION

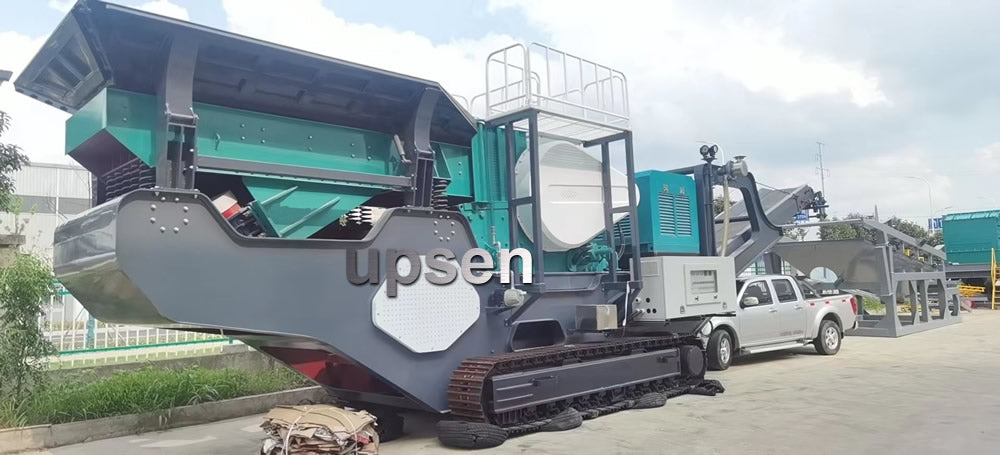

The UPSEN UJC-106 Portable Mobile Jaw Crusher is a highly efficient and versatile piece of equipment designed for on-site material crushing. Its portability and user-friendly design make it ideal for crushing materials such as concrete, asphalt, and natural stones, making it perfect for construction, demolition, and recycling projects. Equipped with a dual power system, it can easily switch between oil and electricity, reducing operational costs and enhancing efficiency. The machine’s high-power motor ensures reiable and powerful performance, while its environmental features, including low noise and energy-saving motors, make it a sustainable choice.
The U-JC106 is designed with a steel bar cutting device to prevent clogging and a sturdy all-steel chassis for strength and stability. With a capacity of 150-300 tons per hour, this mobile jaw crusher is capable of handling large loads and delivering high-quality output. Its compact design allows for easy transportation, making it a go-to solution for on-site crushing requirements.
Key Features
- Portable design for easy transportation and setup at different locations.
- High-efficiency crushing capability for various materials including concrete, asphalt, and natural stones.
- Dual-use system that switches between oil and electricity for flexible operation and cost reduction.
- Equipped with a steel bar cutting device to prevent clogging during crushing.
- All-steel chassis for enhanced strength and stability.
- Powerful diesel generator (250 KW) for reliable operation.
- Low noise and energy-saving motors for environmentally-friendly performance.
- Capable of crushing materials up to 630mm in size.
- User-friendly controls for ease of operation.
- Production capacity of 150-300 tons per hour, suitable for large-scale projects.
Detailed Specifications
| Component | Specification |
|---|---|
| Feed Bin Size | 4200mm x 2500mm |
| Hopper Capacity | 7 m³ |
| Vibrating Feeder Model | GZD4211 |
| Vibrating Feeder Power | 2 x 5.5 KW |
| Jaw Crusher Model | JC106 |
| Feed Port Size | 750mm x 1060mm |
| Max. Feeding Size | 630mm |
| Discharging Port Range (CSS) | 80-180mm |
| Crushing Capacity | 150-300 t/h |
| Jaw Crusher Power | 110 KW |
| Diesel Generator Power | 250 KW (WEICHAI, CUMMINS) |
| Main Belt Conveyor Model | B1000 x 9500mm |
| Iron Remover Belt Model | B800 |
| Walking Track Model | TM50 |
| Production Capacity | 150-300 t/h |
| Total Weight | 43268 kg |
| Dimensions (L x W x H) | 14.5m x 3.0m x 3.8m |
