Product Description

Vacuworx Solar Panel Lifter & Pallet Curler System | Model SPL Series | Width 30.1" | 300 lb Capacity | Up To ~8 Ton | For Mini Excavator

DESCRIPTION

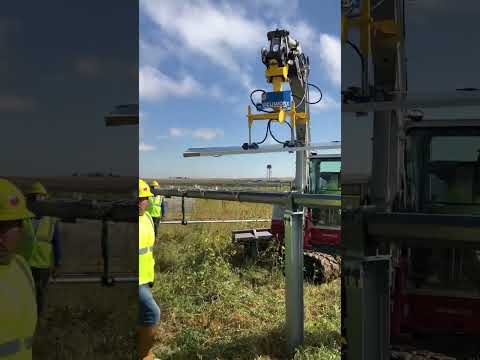

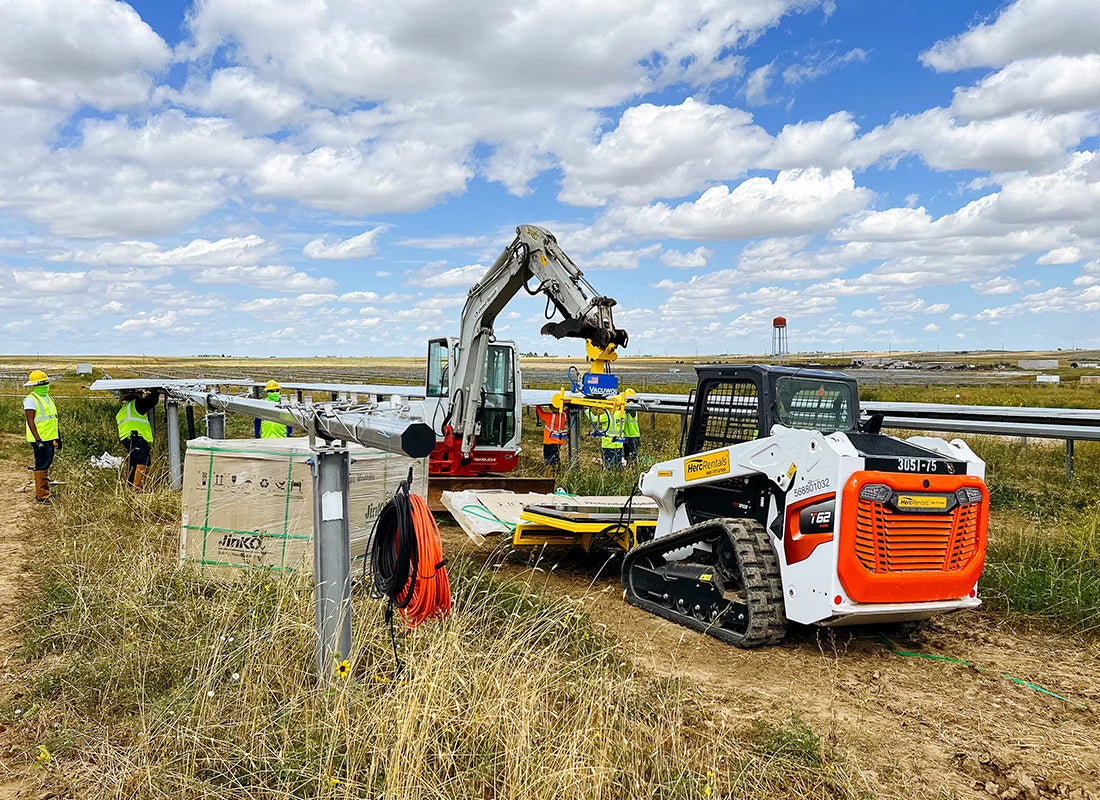

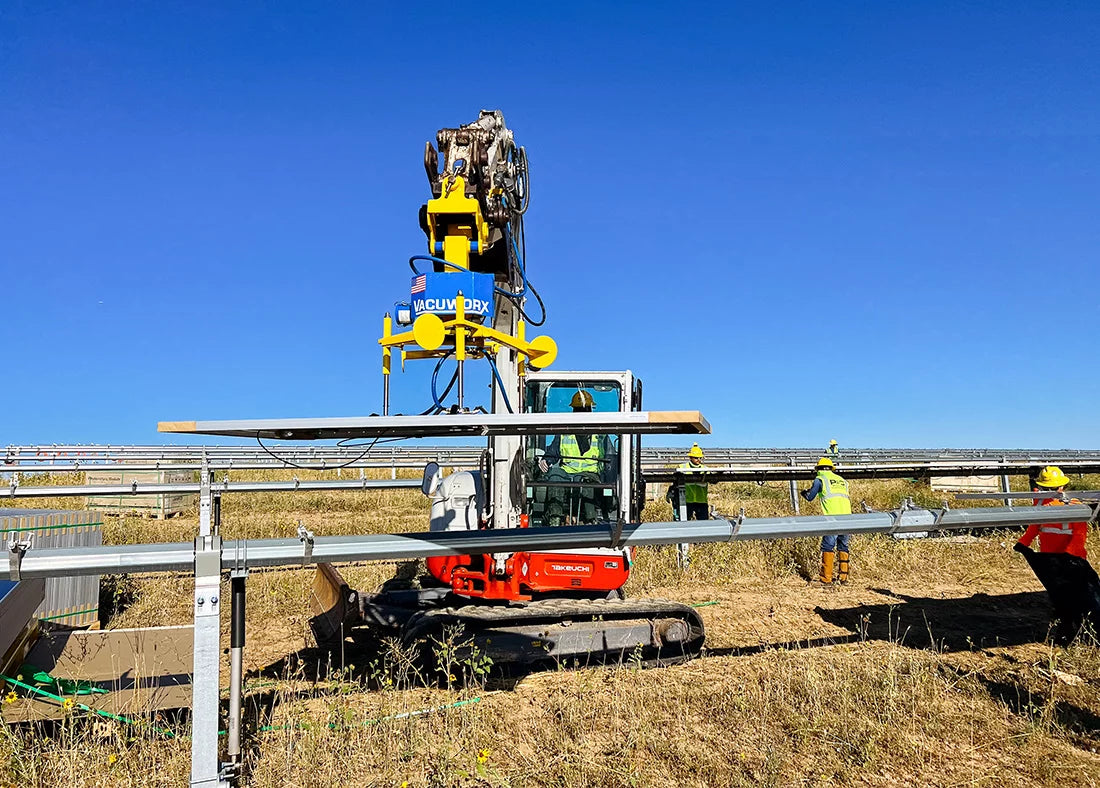

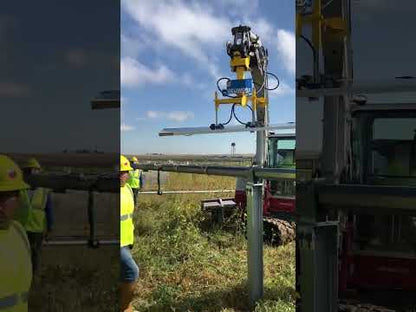

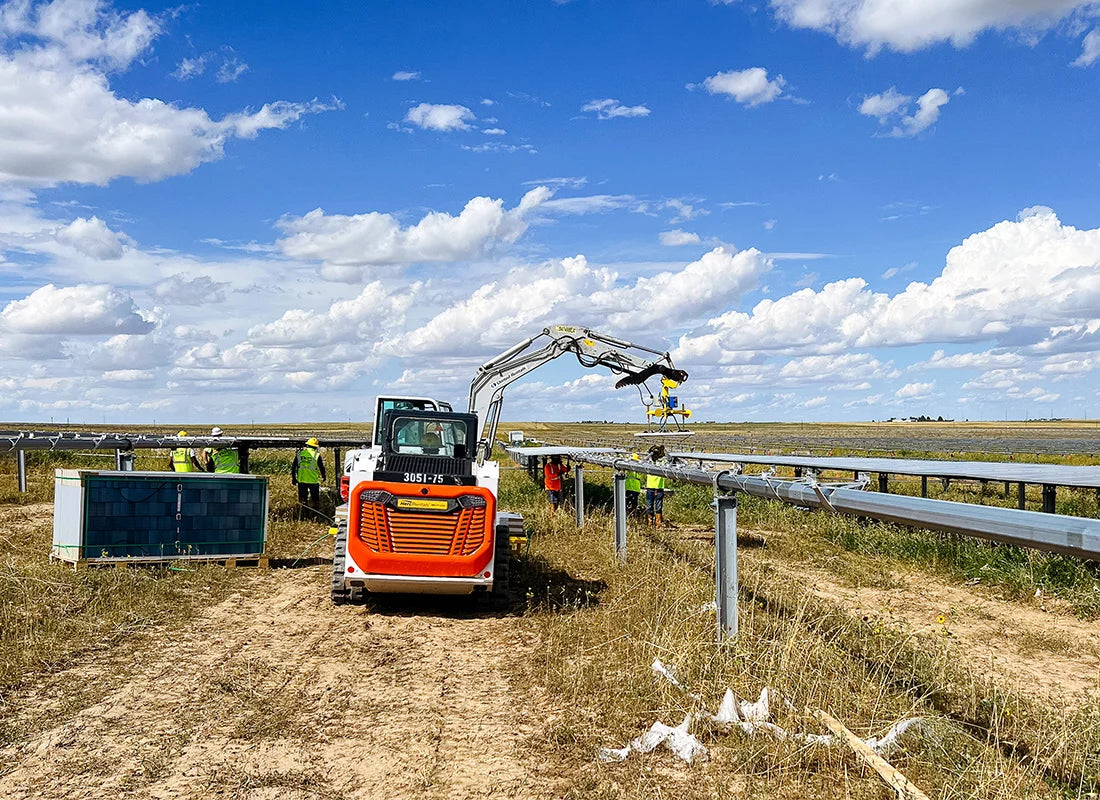

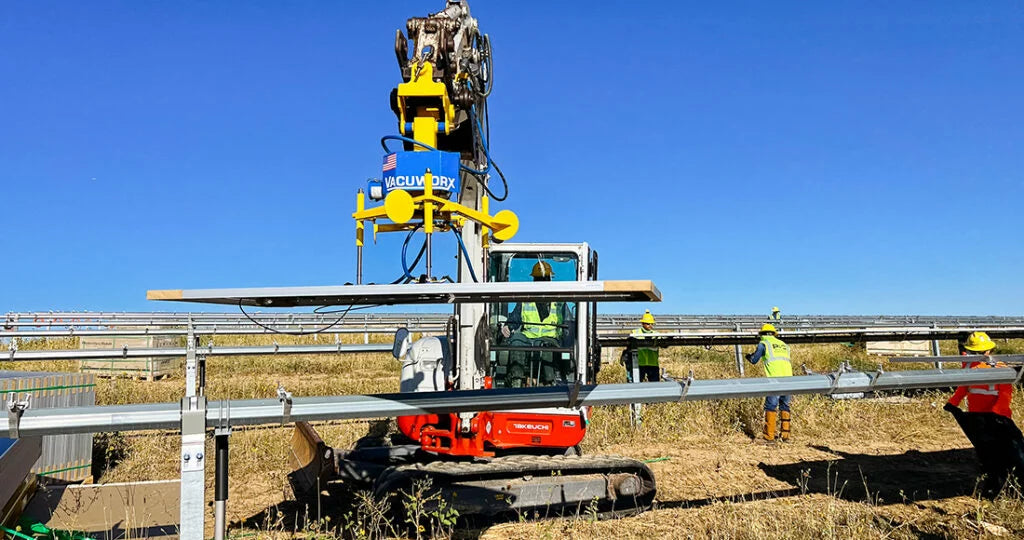

The Vacuworx Solar Panel Lifter SPL Series is a cutting-edge vacuum lifting and handling system designed to transform solar panel installation efficiency in the field. Engineered for mini excavators up to ~8 tons, this advanced solution delivers a 300 lb (136 kg) lifting capacity, ensuring safe, precise, and damage-free handling of delicate solar modules.

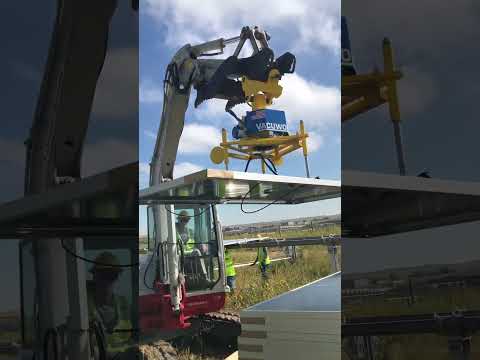

Featuring a 360° rotating vacuum pad system, 5 inches of vertical travel, and soft silicone pads, it minimizes panel stress while maximizing installation accuracy even in challenging conditions. The integrated 12V excavator-powered system eliminates the need for external power sources, improving operational efficiency.

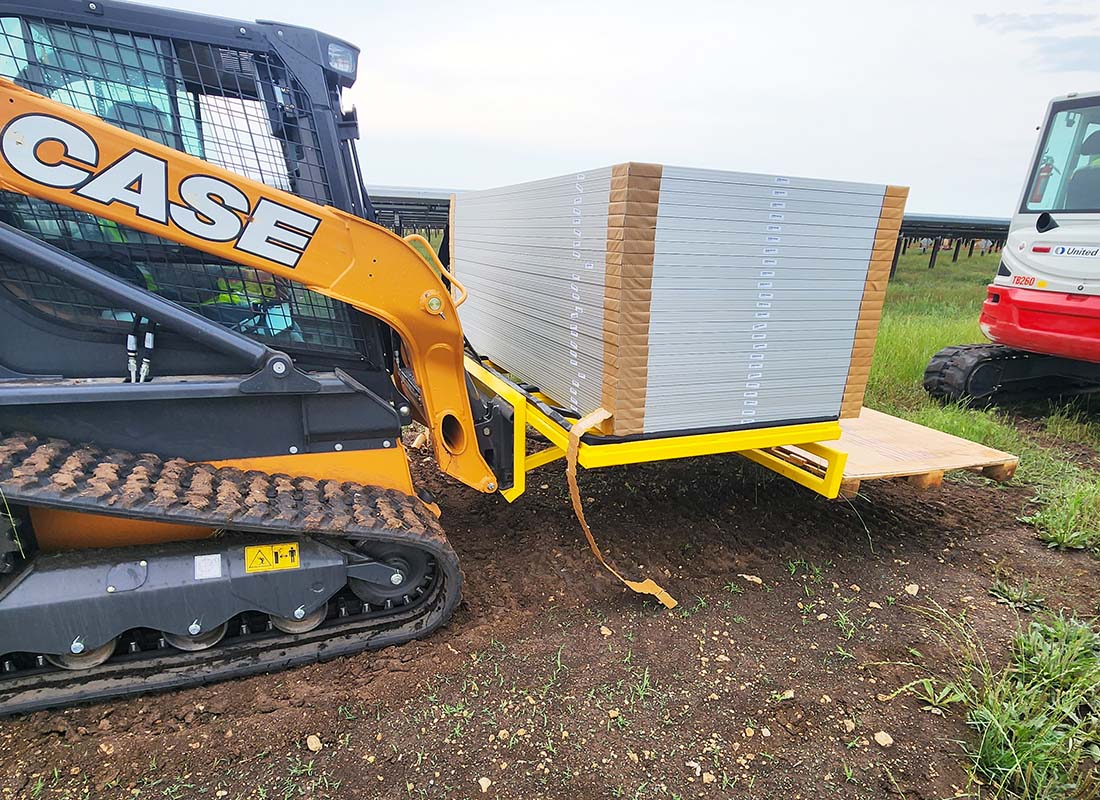

Paired with the powerful Pallet Curler, which supports up to 3,000 lb rotation capacity, operators can effortlessly position and relocate solar panel pallets with 90° hydraulic rotation control. Designed for safety, productivity, and reduced labor fatigue, this system is the ultimate solution for modern solar energy installation projects.

Key Features

• High-Efficiency Solar Handling System Designed specifically for solar panel installation, this system enables fast, safe, and controlled lifting of modules, reducing manual labor and increasing productivity in large-scale solar field operations.
• 300 lb Vacuum Lifting Capacity Handles up to 300 lb (136 kg) with precision vacuum technology, ensuring secure grip and smooth transport of fragile solar panels without cracks, stress, or surface damage during installation.
• 360° Rotating Vacuum Pads Allows full circular rotation for perfect panel alignment in any direction. This flexibility ensures accurate placement even in uneven terrain or tight installation spaces on-site.
• 5-Inch Vertical Pad Travel Protects panels from impact and misalignment by allowing vertical cushioning movement. This reduces breakage risk and enhances safe handling during uneven lifting or placement conditions.
• Soft Silicone Vacuum Pads Engineered with non-abrasive silicone material, these pads ensure gentle contact with solar surfaces, eliminating scratches and preserving panel integrity during lifting and positioning operations.
• Mini Excavator Compatibility Optimized for mini excavators up to ~8 tons, making it ideal for compact construction and solar installation sites where maneuverability and precision equipment are essential.
• 12V Integrated Power System Powered directly from the excavator’s electrical system, eliminating external batteries or generators. This ensures continuous operation and reduces equipment setup complexity.
• Quick Change Adapter System Compatible with a wide range of host machines using quick hitch adapters, allowing fast installation and interchangeability across different job site equipment setups.
• Folding Storage Legs Design Compact folding legs make transportation and storage easier, reducing space requirements while improving portability and on-site operational convenience.
• Captured Ball Joint Connections Ensures stable vacuum pad alignment and flexibility during operation, improving suction consistency and enhancing control over delicate solar panels.
• Pallet Curler 90° Rotation System Enables controlled rotation of solar panel pallets up to 90°, ensuring optimal horizontal positioning for efficient installation workflow and reduced handling time.
• 3,000 lb Pallet Handling Capacity Built for heavy-duty solar pallet movement, supporting up to 3,000 lb (1,360 kg) for efficient relocation and rotation of fully loaded solar panel stacks.
• Hydraulic PTO Operation Pallet Curler runs directly on the host machine’s hydraulic power take-off, ensuring smooth, responsive, and fully integrated operation during field use.
• Safety Bumper Protection System Integrated protective bumper safeguards solar panels during movement and rotation, reducing risk of impact damage and improving job-site safety standards.
• Reduced Worker Fatigue Design Engineered to minimize manual lifting, twisting, and carrying, significantly reducing operator fatigue and injury risk while increasing installation speed and efficiency.
