Product Description

Vacuworx Vacuum Lifting System | Model VT/VRT | Width 18" | Vacuum Cup 4 To 8 | 640 To 1,280 lb Capacity | 90° Tilt & 360° Rotation | 1 To 5 Ton | For Crane

DESCRIPTION

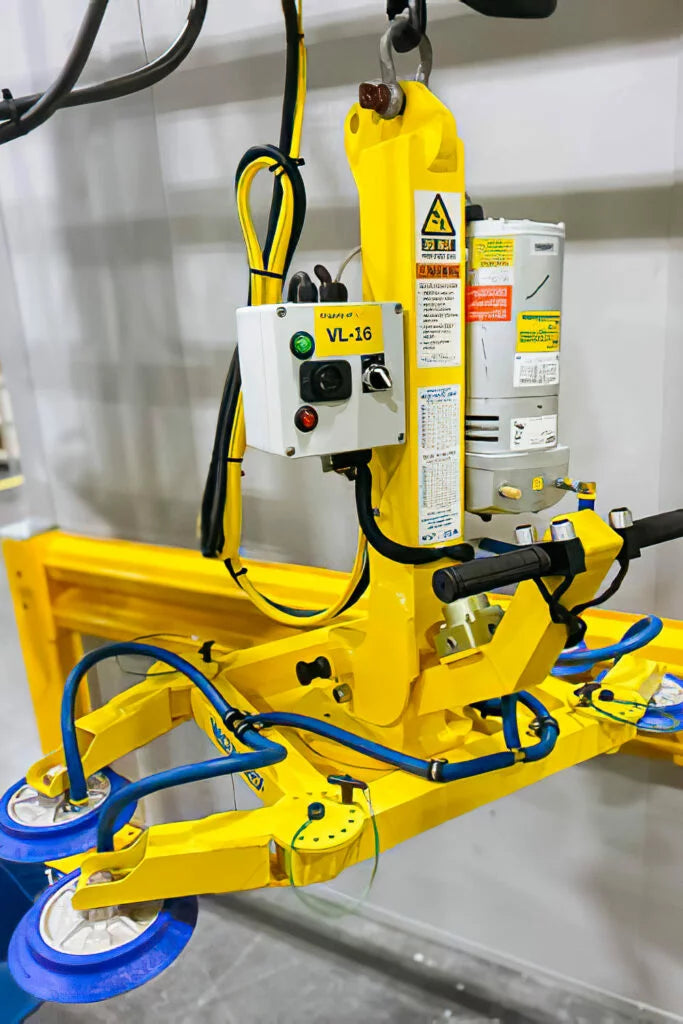

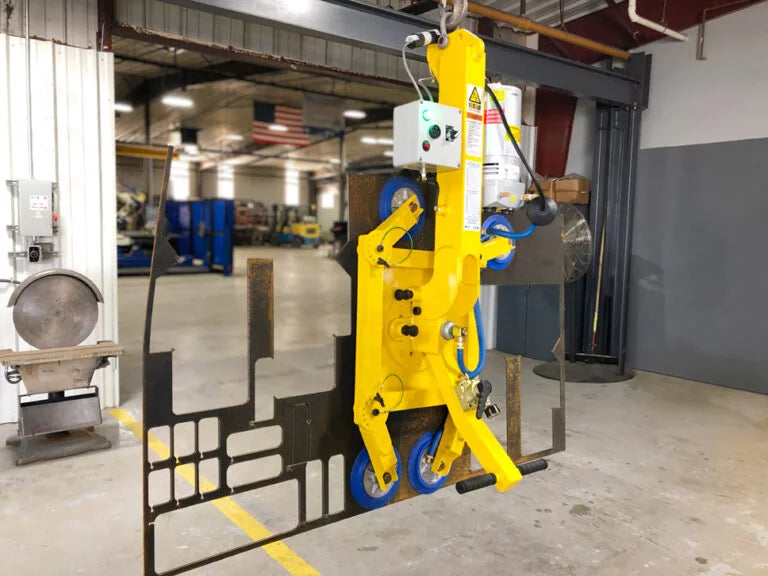

The Vacuworx VT/VRT Vacuum Lifting Systems are high-performance electric material handling solutions designed for precision lifting in industrial manufacturing environments. Built for crane-mounted operation (1–5 ton host machines), these systems efficiently handle lightweight loads ranging from 640 lb to 1,280 lb, delivering reliable and controlled lifting performance.

Engineered for versatility, both VT and VRT models feature up to 90° tilt capability, allowing accurate load positioning in multiple orientations. The VRT model enhances operational flexibility with 360° continuous rotation and 45° pin-stop indexing, ensuring precise alignment during installation and assembly tasks.

With 4 or 8 vacuum cup configurations (7.75-inch cup diameter), the system ensures strong, stable suction across various flat surfaces. Compact yet powerful, with a frame length ranging from 20.5 in to 72.5 in, this vacuum lifter is ideal for improving safety, reducing manual handling, and increasing efficiency in demanding industrial workflows.

Key Features

• High-Capacity Lifting Range: Supports 640 lb to 1,280 lb lifting capacity, making it ideal for controlled industrial material handling. Designed for lightweight yet stable load management in manufacturing and assembly operations using crane systems.
• Electric Powered Operation: Fully electric system eliminates hydraulic dependency, ensuring cleaner, quieter, and low-maintenance performance. Provides consistent vacuum power for safe lifting in indoor industrial environments and precision-based manufacturing applications.
• Crane Compatibility Design: Specifically engineered for 1–5 ton crane systems, enabling seamless integration with overhead, gantry, or light mobile cranes. Enhances workflow efficiency and ensures safe, stable lifting operations in industrial facilities.
• 90° Tilt Functionality: Advanced tilting mechanism allows loads to be positioned up to 90 degrees. Improves flexibility in material handling, stacking, assembly, and installation tasks requiring precise angular control.
• 360° Rotation Control (VRT): VRT model offers full 360-degree continuous rotation with 45-degree pin stops. Enables accurate load alignment, reducing repositioning time and improving productivity in complex industrial workflows.
• Vacuum Cup System: Equipped with 4 or 8 vacuum cups measuring approximately 7.75 inches in diameter. Ensures strong grip, even load distribution, and secure handling of flat or semi-flat materials.
• Compact Frame Design: Adjustable frame length from 20.5 in to 72.5 in with 18 in width and 35 in height. Compact structure allows easy crane integration while maintaining strong lifting capability and stability.
• Industrial Manufacturing Use: Ideal for production lines, fabrication plants, and assembly operations. Enhances material handling efficiency while reducing manual labor risks and improving workplace safety standards.
• Precision Load Handling: Engineered for accurate placement of materials with controlled movement. Ensures minimal load swing, stable positioning, and reduced risk of surface damage during lifting operations.
• Enhanced Operator Safety: Vacuum technology eliminates direct manual lifting, significantly reducing injury risks. Provides secure handling of delicate or heavy flat materials in controlled industrial environments.
• Multi-Orientation Capability: Supports horizontal and vertical load positioning with tilt and rotation functions. Offers exceptional versatility for complex manufacturing and installation requirements.
• Durable Industrial Construction: Built with heavy-duty components for continuous industrial use. Designed to withstand demanding manufacturing environments while maintaining long-term operational reliability and performance.

Detailed Specifications
