Product Description

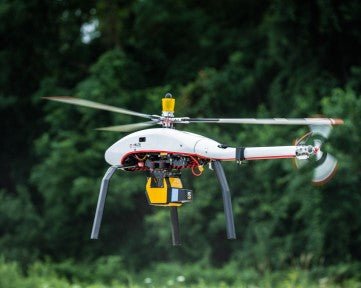

Velos Rotors V3 High Capacity Aviation Grade UAV Helicopter
DESCRIPTION
The Velos V3 UAV Helicopter redefines reliability, safety, and performance in mission-critical applications. Equipped with a fully redundant twin-engine design and IP65-rated weather resistance, it is purpose-built for demanding operations such as public safety, inspections, geographic mapping, cargo delivery, and more. With a payload and battery capacity of 35 lbs. (15.9 kg) and a flight endurance of up to 80 minutes, Velos V3 stands as the ultimate UAV helicopter for professionals requiring efficiency and precision.
Unlike typical UAV helicopters, Velos V3 boasts redundancy in all major components, including motors, batteries, ESCs, belts, and gears, ensuring uninterrupted performance even under extreme conditions. Its payload-over-rotor (POR) design supports advanced integrations like ballistic parachutes and multi-sensor setups, offering unparalleled versatility.
Key Features
- Twin Motor Configuration: Ensures continuous operation even with component failures.
- Weather Resilience: Operates reliably in extreme weather conditions, including rain and high winds.
- Long Flight Time: Up to 80 minutes of flight endurance for extended missions.
- Precision Control: Equipped with a laser altimeter for accurate navigation and safety.
- Flexible Payload Options: Supports a range of sensors, cameras, and parachute systems.
- Autonomous Navigation: Fully automated takeoff, navigation, and landing for ease of use.
- Compact and Portable: Lightweight design with a backpack for easy transport.
- Long-Range Operations: Wireless connectivity up to 50 km (31 miles).
- High Payload Capacity: Supports combined payload and battery weight of up to 35 lbs. (15.9 kg).
- Safety Features: Auto-return home and auto-land ensure secure operations.
Detailed Specifications
| Category | Specifications |
|---|---|
| Payload Capacity | Up to 15.9 kg (35 lbs.) |
| MTOW | Under 25 kg (55 lbs.) |
| Endurance | Up to 80 minutes |
| Cruise Speed | 8-18 m/s (28-65 km/h) |
| Min/Max Speed | 1-33 m/s (1-120 km/h) |
| Rotor Diameter | 1950 mm (76.5 in) |
| Length | 1720 mm (67.7 in) |
| Height | 730 mm (28.75 in) |
| Width | 620 mm (24.4 in) |
| Fuselage Width | 230 mm (9 in) |
| Empty Weight | 8.5 kg (19 lbs.) |
| Battery Weight | 4-10 kg (9-22 lbs.) |
| Ingress Protection | IP65 – Dust and water-resistant |
| Connectivity Range | Up to 50 km (31 miles) |
In Package
- Velos V3 UAV Helicopter: Fully assembled and ready for use.
- Battery Sets: Two sets of batteries (each under 100Wh).
- Battery Charger: ISDT Dual Battery Charger (60 minutes per pair).
- Navigation Software: Atmos Navigator for flight planning and telemetry.
- Geo-Referencing Software: Atmos GeoTagger for precision mapping.
- Portability Accessories: Lightweight backpack and accessories case for transport.
- Maintenance Kit: Tools for field repairs and servicing.
