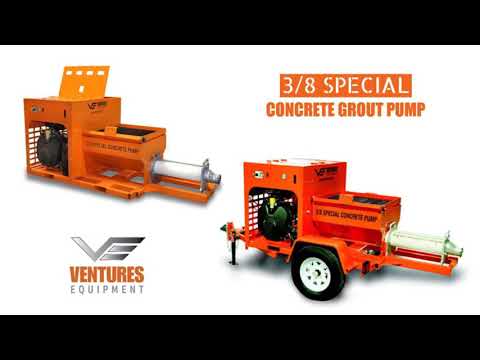

VENTURE 3/8 SPECIAL SKID MOUNTED 220V UNIT (SSE MINI) WITH ELECTRIC MOTOR
DESCRIPTION
The Ventures Equipment 3/8 Special Skid Mounted Unit (SSE Mini) is built to be rugged, robust and reliable. Utilizing the latest technology in progressive cavity pumping, combined with proven variable speed hydraulics, the 3/8 Special offers simple and reliable operation.
The SSE Mini is designed for small rock, concrete and grout applications. It was engineered for powerful performance and rugged reliability. Depend on the SSE Mini to pump a variety of materials and tackle difficult applications with ease.
Accessories such as hoses, couplings, spray nozzles, clamps, reducers can be easily added. Designed for safe and simple operation, Easy clean up and low maintenance.
Key Features
- 10 HP Variable Speed Right Angle Electric Motor: Provides powerful and adjustable performance
- 220V, 3 Phase Power Supply: Suitable for commercial and industrial applications
- Reversible Operation: Enhances flexibility for various tasks
- Compact Dimensions: Easy to maneuver in tight spaces
Detailed Specifications
| Feature | Specification |
|---|---|
| Motor Type | 10 HP Variable Speed Right Angle Electric Motor |
| Power Requirements | 220V, 3 Phase, 30A |
| Drive System | Variable Frequency Drive |
| Outlet Type | 2” HD or CamLock Outlet |
| Pump Type | Progressive Cavity 6012 |
| Dimensions | 96”L x 24”W x 45”H |
| Hopper Fill Height | 26” |
| Weight | 895 lbs |
Application
- Masonry Grouts
- SCC (Self-Consolidating Concrete)
- Pour & Form
- 3D Concrete Printing
- Shotcrete
- Epoxy Grout
- Abandoned utility grouting
- Slurry
- Light-weight Concrete
Manuals & Documents
3/8 SE MINI MANUAL
