Product Description
VENTURE ROTOR & SOTOR 2L8 SQUARE WITH DRILL HOLE
DESCRIPTION
Rotor head design is square with drill hole or hexagonal. Please choose according to your machine requirement.

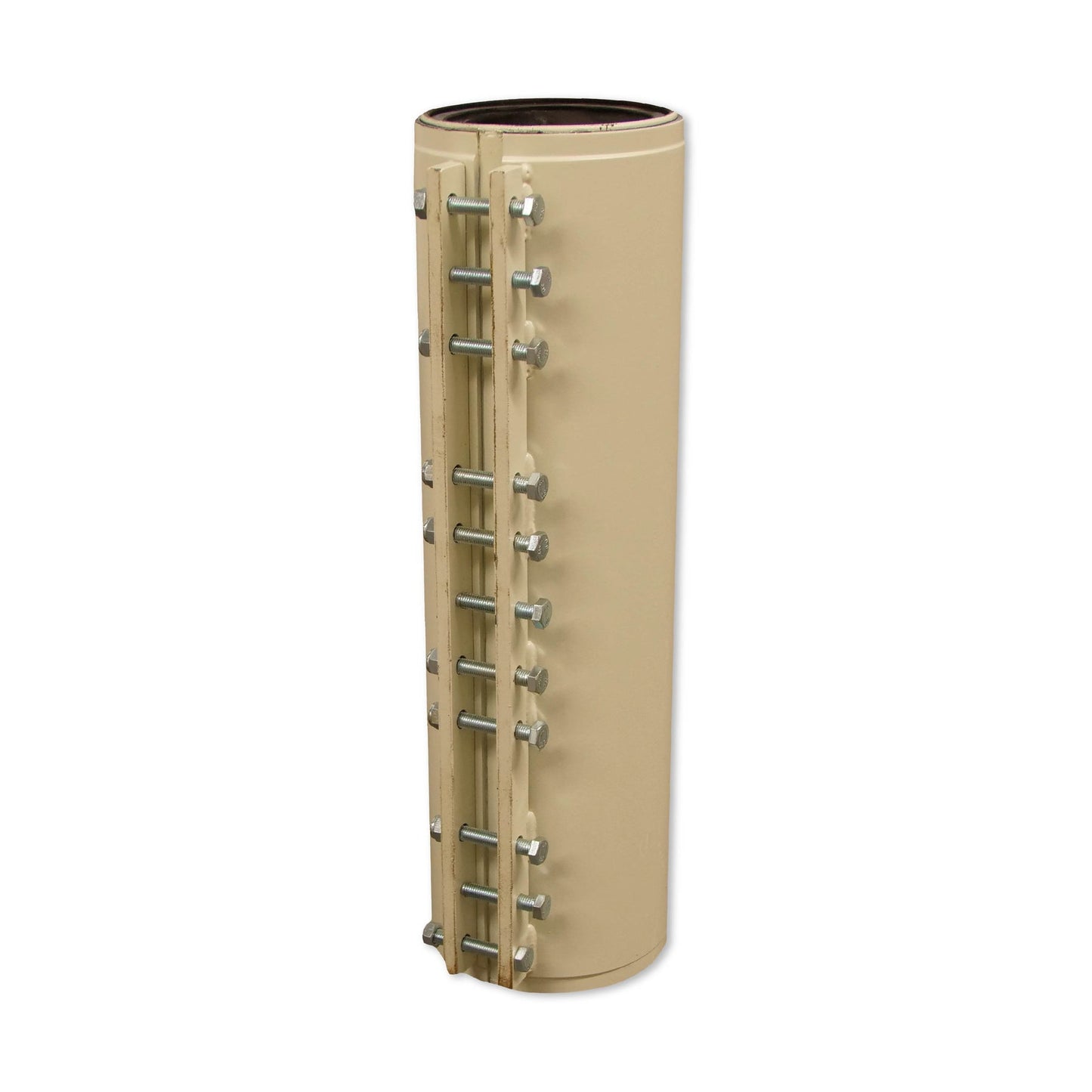

Stator design with an integrated clamp. The colour is white. The stator also comes in orange, known as the 2L8 Long Life
The VENTURE 2L8 Rotor and Stator set is designed for heavy-duty performance, featuring a square or hexagonal rotor head with a drill hole option tailored to specific machine requirements. Made with high-alloyed tool steel, the rotor offers exceptional durability, while the stator, available in white or a long-life orange variant, incorporates an integrated clamp for seamless installation. With a maximum flow rate of 560 l/min at 400 RPM, this rotor and stator set is ideal for high-performance applications in various industrial settings.
Key Features
- Square or Hexagonal Rotor Head: Choose the optimal fit for your machine
- Integrated Clamp: Sturdy, secure mounting on the stator
- High Flow Capacity: Up to 560 l/min at 400 RPM for efficient operation
- Long-Life Options: Available in standard white or high-durability orange (2L8 Long Life)
- Premium Material Composition: Rotor made from high alloyed tool steel for extended service life
Detailed Specifications
| Feature | Specification |
|---|---|
| Stator Diameter | 193 mm |
| Stator Length | 655 mm |
| Rubber Quality | 63 Shore |
| Flow Rate (400 | 200 RPM) |
| Max Grain Size | 16 mm |
| Rotor Material | High alloyed tool steel |
| Color Options | White (standard), Orange (2L8 Long Life) |
