Product Description
Virnig Big Bale Grapple | Models BG54, BG72 & BG84 | Widths 56" To 86" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
DESCRIPTION

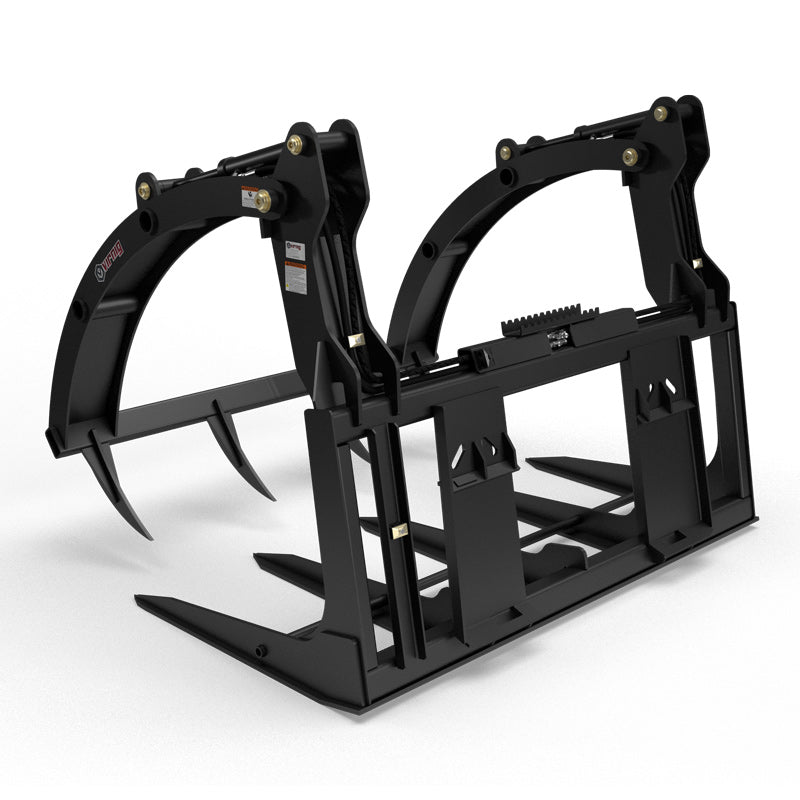

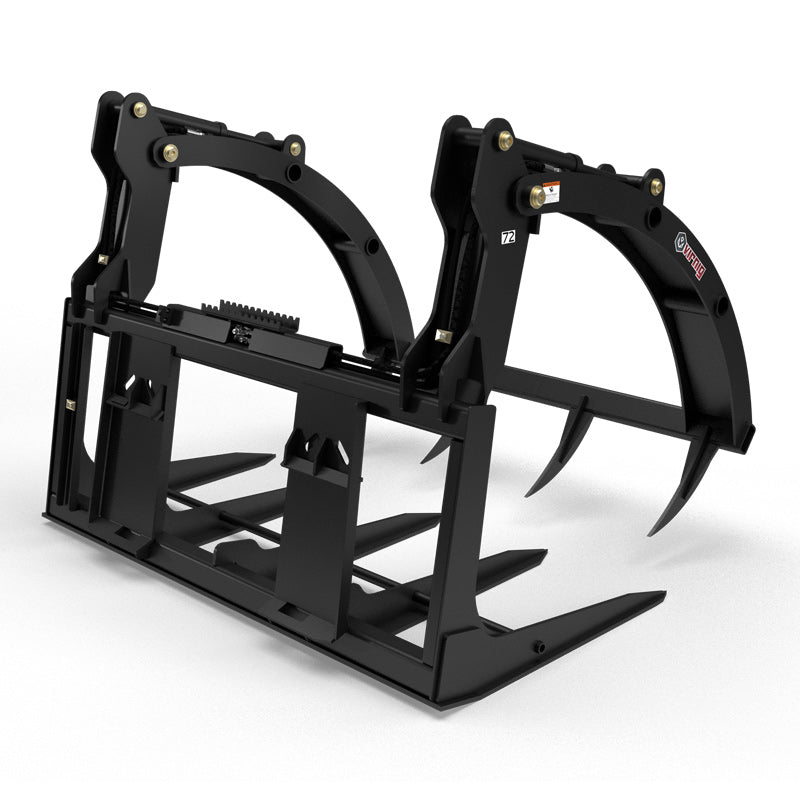

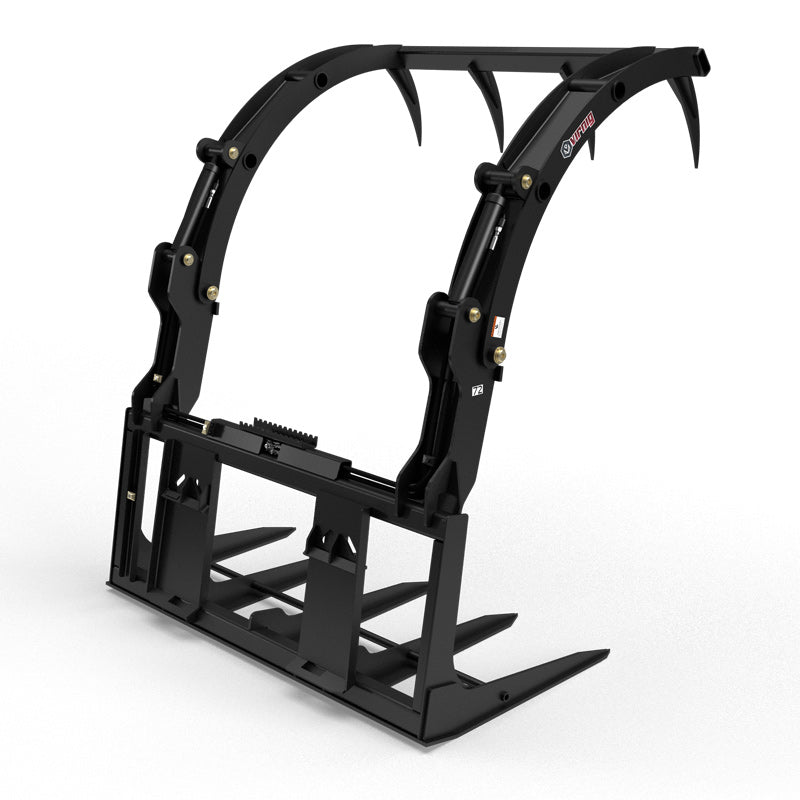

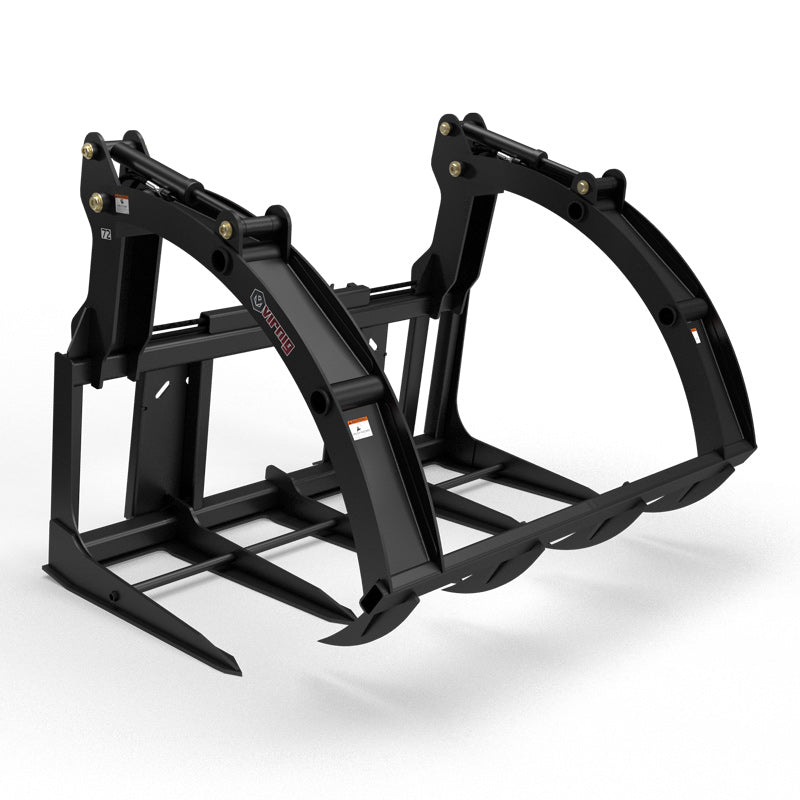

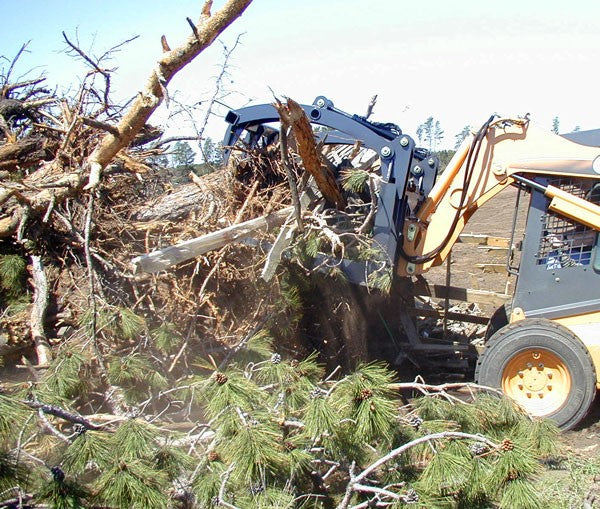

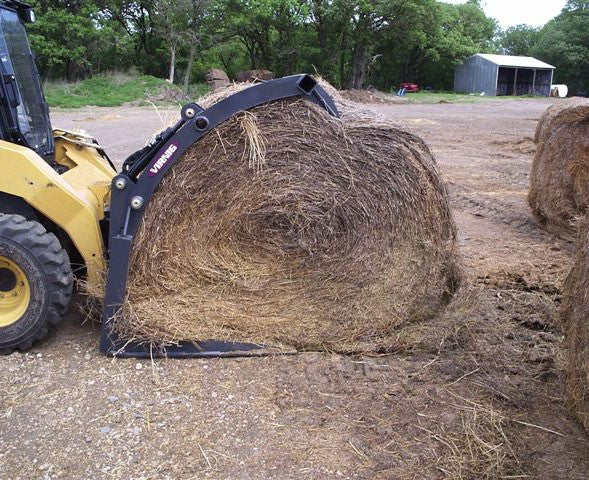

Move more hay with less hassle using the Virnig Big Bale Grapple Series the ultimate skid steer attachment for efficiently handling round bales, loose hay, brush, and other light materials. Designed for professional farmers, ranchers, and operators who demand performance, this heavy-duty grapple combines power, visibility, and durability in one rugged package.
Available in three sizes (56", 74", and 86" widths), each Big Bale Grapple model features a massive 73.4-inch jaw opening powered by dual 2" bore hydraulic cylinders. Whether you’re transporting 1,200-pound round bales or cleaning up hay piles, the Virnig Big Bale Grapple grips securely without tearing twine or net wrap.
The open-back, skeleton-style frame provides superior visibility and allows dirt and debris to fall through, keeping your worksite clean and efficient. Built with Grade 80 high-strength steel tines and NitroSteel® cylinder rods, this grapple resists bending, corrosion, and flaking. The Teflon®-coated bushings and greasable pivot pins deliver smooth operation and long-term reliability so you spend less time maintaining and more time working.
Compatible with all universal skid steer and compact track loader mounts, and optimized for standard-flow hydraulics (15–25 GPM), the Virnig Big Bale Grapple is ready to take on the toughest farm and field jobs.
Key Features
- Versatile Bale Grapple for Skid Steers & CTLs Ideal for moving round bales, hay, brush, and light materials.
- Three Model Options (56", 74", 86") Perfect fit for a range of loaders and applications.
- Massive 73.4" Grapple Jaw Opening Handles large round bales with ease and stability.
- Dual 2" Bore Cylinders (8⅜" Stroke) Provide consistent, powerful clamping force.
- Grade 80 Steel Construction 0.5" thick tines rated for 80,000 PSI yield strength.
- NitroSteel® Cylinder Rods Resist corrosion, pitting, and wear in harsh environments.
- Teflon®-Coated Pivot Bushings Self-lubricating for smoother operation and less maintenance.

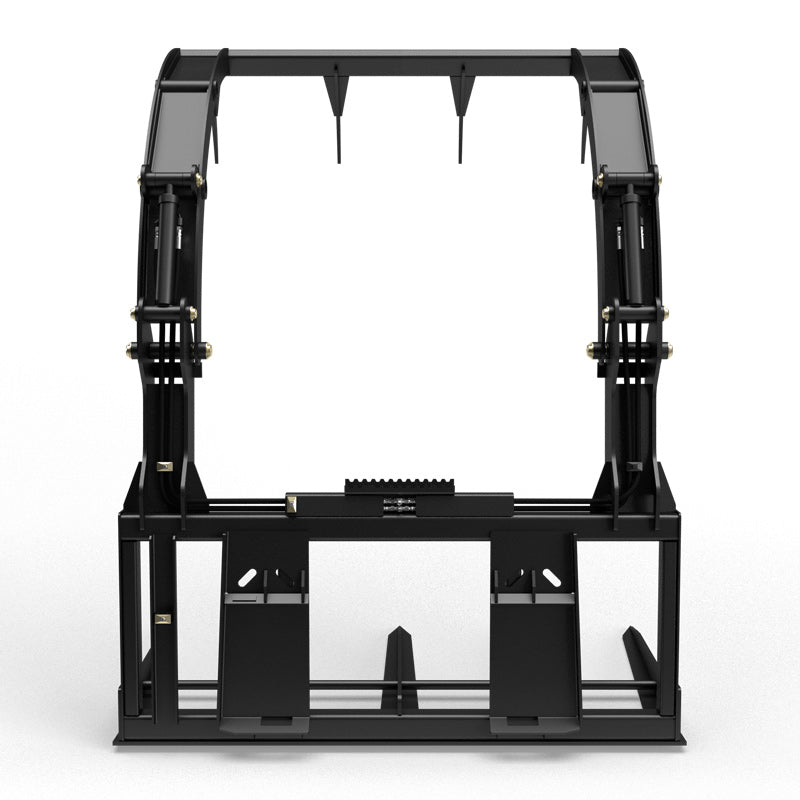

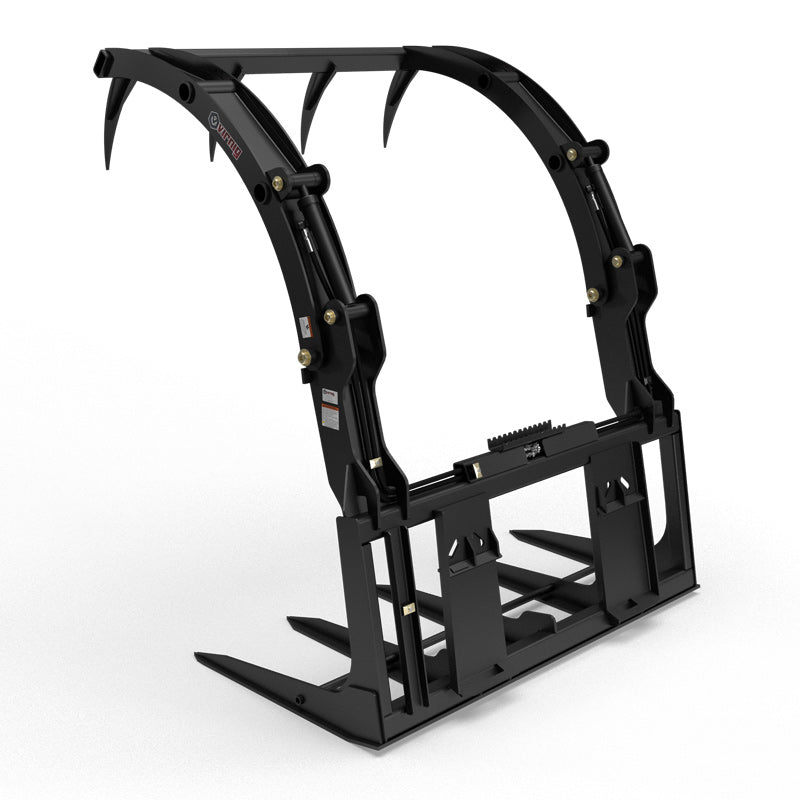

- Open Bottom & Back Frame Design Improves operator visibility and allows debris to fall through.

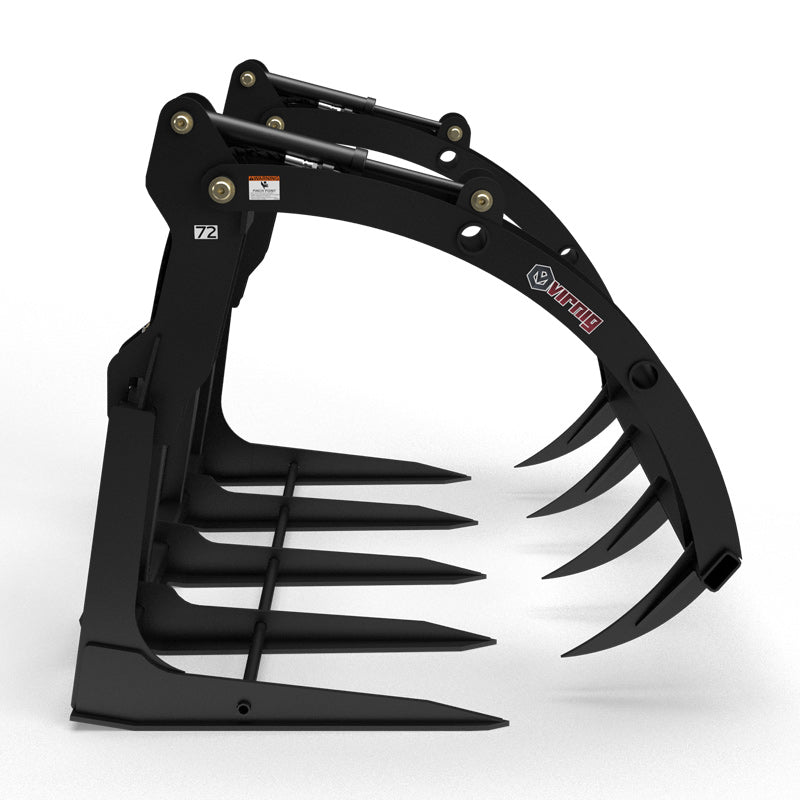

- Curved Tine Profile Cleanly penetrates bales with minimal damage to wrapping.
- Universal Skid Steer Mount Quick-attach compatibility for most major loader brands.
- Includes Hydraulic Hoses, Couplers & Fittings Ready to connect and operate out of the box.
- Optimized for Standard Flow (15–25 GPM) Compatible with most skid steer hydraulic systems.
- Balanced Weight & Frame Geometry Ensures stable and controlled bale handling.
- Recommended Loader Capacity > 2400 lbs ROC Built to match mid- to high-capacity skid steers.
- Proudly Built in the USA Engineered and manufactured by Virnig, trusted since 1989.
Detailed Specifications
| Model | BG54 |
|---|---|
| Overall Width (in) | 56.0 |
| Jaw Opening (in) | 73.4 |
| Overall Height / Bucket Height (in) | 57.5 / 30.5 |
| Overall Depth (in) | 40.8 |
| Bucket Tine Thickness (in) | 0.5 |
| Tine Material | Grade 80 Plate Steel (80,000 PSI Yield Strength) |
| Number of Bucket Tines (with Sides) | 3 |
| Space Between Tines (in) | 26.5 |
| Number of Grapple Teeth | 3 |
| Space Between Grapple Teeth (in) | 20.0 |
| Cylinder Bore / Stroke (in) | 2.0 / 8.375 |
| Cylinder Pins / Hinge Pins Diameter (in) | 1.25 / 1.563 |
| Approximate Weight (lbs) | 900 |
| Recommended Loader Capacity (lbs ROC) | > 2400 |
| Hydraulic Flow Range (GPM) | 15–25 |
| Compatibility | Universal Skid Steer & CTL Mount |
| Model | BG72 |
|---|---|
| Overall Width (in) | 74.0 |
| Jaw Opening (in) | 73.4 |
| Overall Height / Bucket Height (in) | 57.5 / 30.5 |
| Overall Depth (in) | 40.8 |
| Bucket Tine Thickness (in) | 0.5 |
| Tine Material | Grade 80 Plate Steel |
| Number of Bucket Tines (with Sides) | 5 |
| Space Between Tines (in) | 17.5 |
| Number of Grapple Teeth | 4 |
| Space Between Grapple Teeth (in) | 19.3 |
| Cylinder Bore / Stroke (in) | 2.0 / 8.375 |
| Cylinder Pins / Hinge Pins Diameter (in) | 1.25 / 1.563 |
| Approximate Weight (lbs) | 1050 |
| Recommended Loader Capacity (lbs ROC) | > 2400 |
| Hydraulic Flow Range (GPM) | 15–25 |
| Compatibility | Universal Skid Steer & CTL Mount |
| Model | BG84 |
|---|---|
| Overall Width (in) | 86.0 |
| Jaw Opening (in) | 73.4 |
| Overall Height / Bucket Height (in) | 57.5 / 30.5 |
| Overall Depth (in) | 40.8 |
| Bucket Tine Thickness (in) | 0.5 |
| Tine Material | Grade 80 Plate Steel |
| Number of Bucket Tines (with Sides) | 6 |
| Space Between Tines (in) | 16.3 |
| Number of Grapple Teeth | 4 |
| Space Between Grapple Teeth (in) | 19.3 |
| Cylinder Bore / Stroke (in) | 2.0 / 8.375 |
| Cylinder Pins / Hinge Pins Diameter (in) | 1.25 / 1.563 |
| Approximate Weight (lbs) | 1150 |
| Recommended Loader Capacity (lbs ROC) | > 2400 |
| Hydraulic Flow Range (GPM) | 15–25 |
| Compatibility | Universal Skid Steer & CTL Mount |
