Virnig Hay Bucket Grapple | Model HBG72 & HBG84 | Width 73.5" & 85.5" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
Virnig Hay Bucket Grapple | Model HBG72 & HBG84 | Width 73.5" & 85.5" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
Regular price
$7,045.00
Regular price
Sale price
$7,045.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description

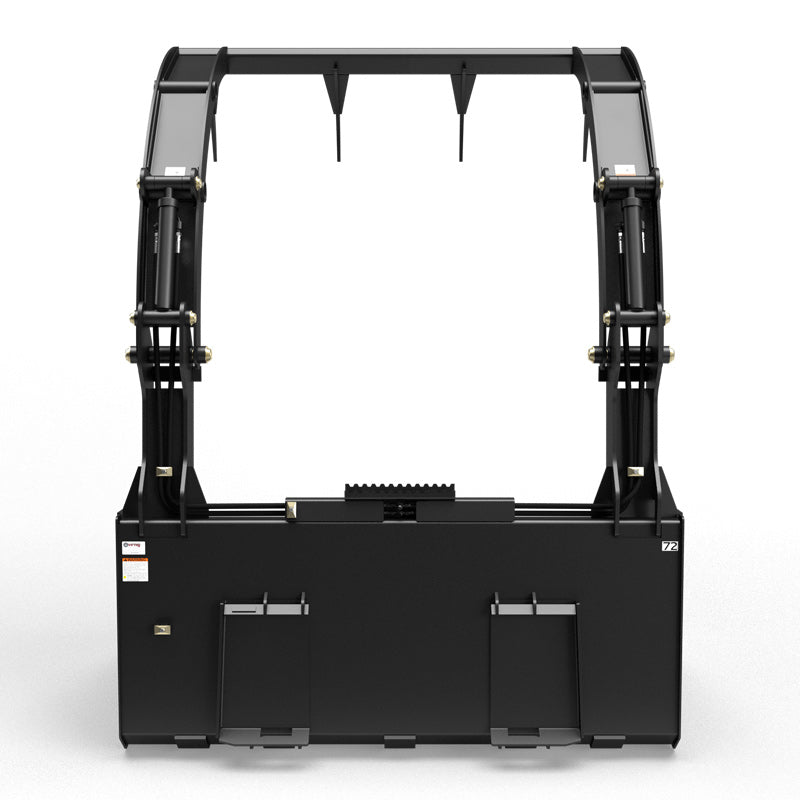

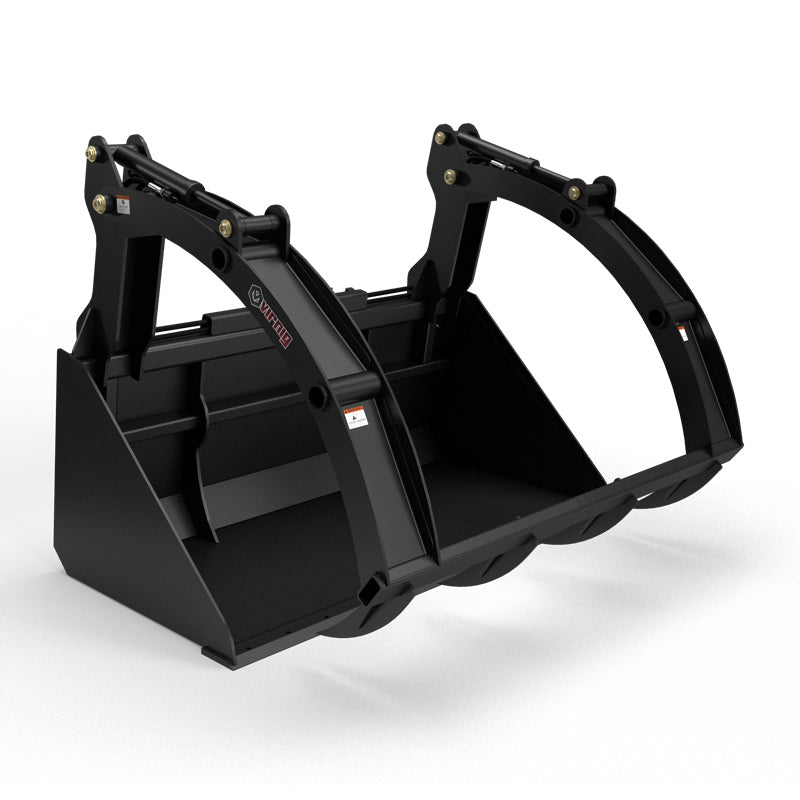

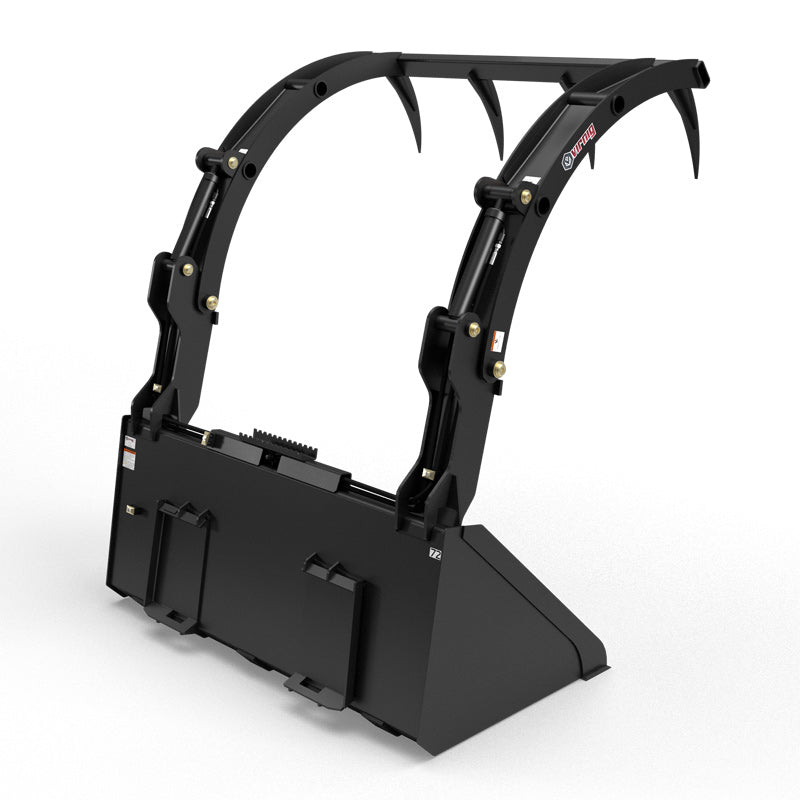

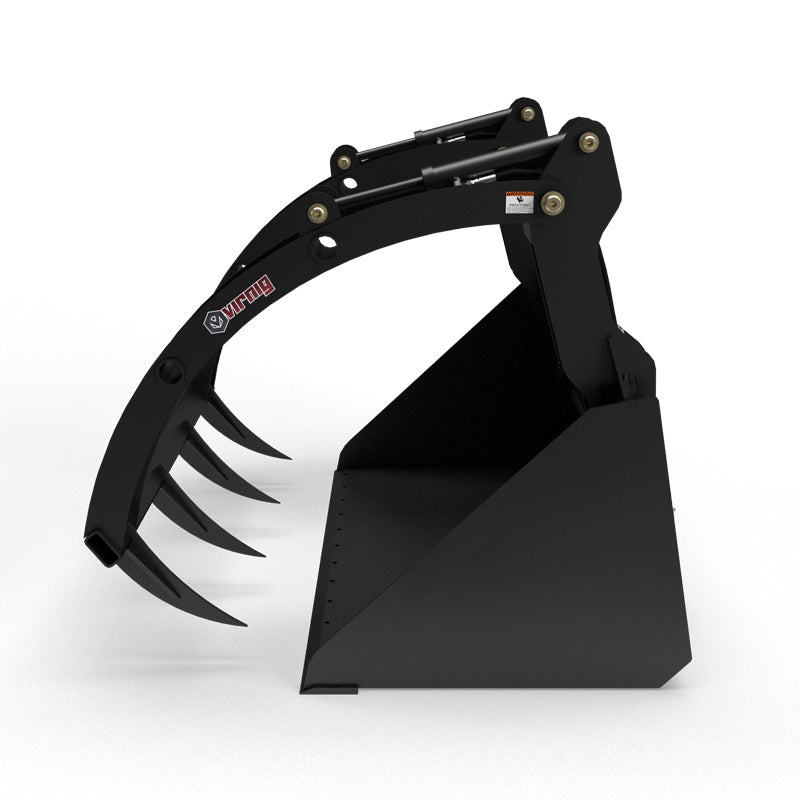

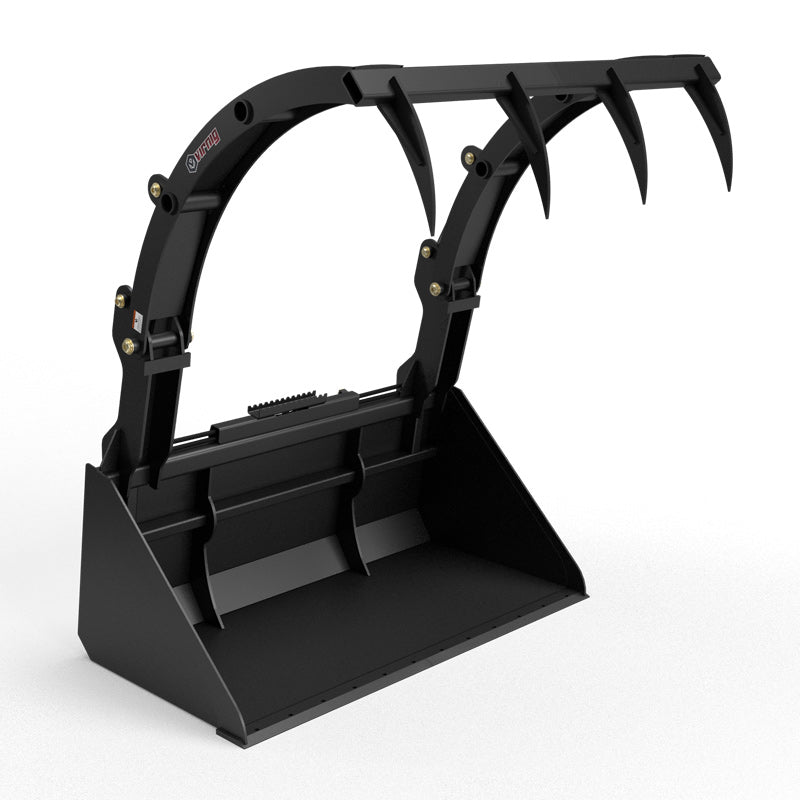

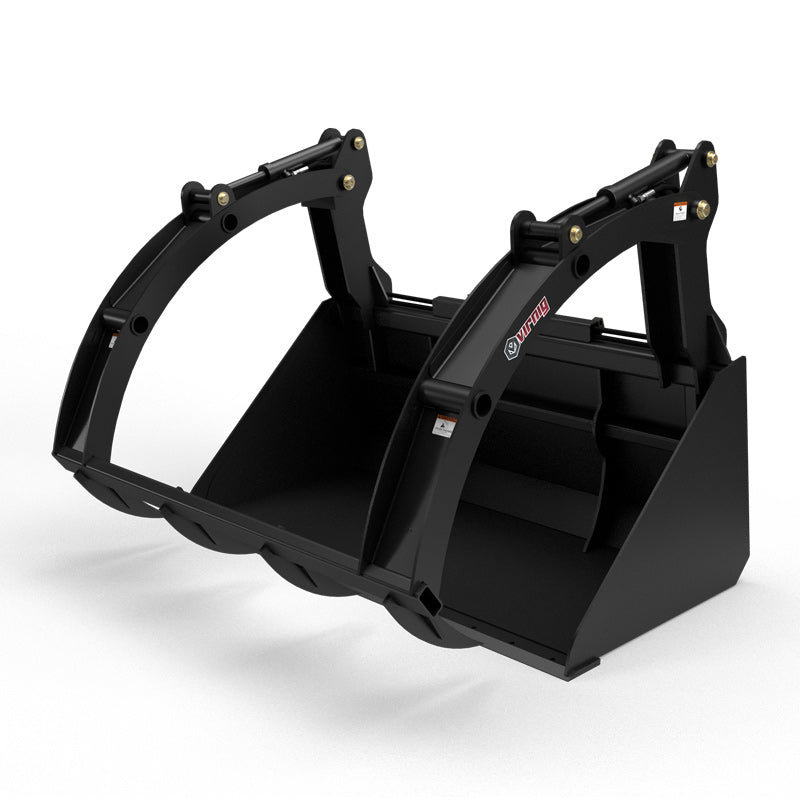

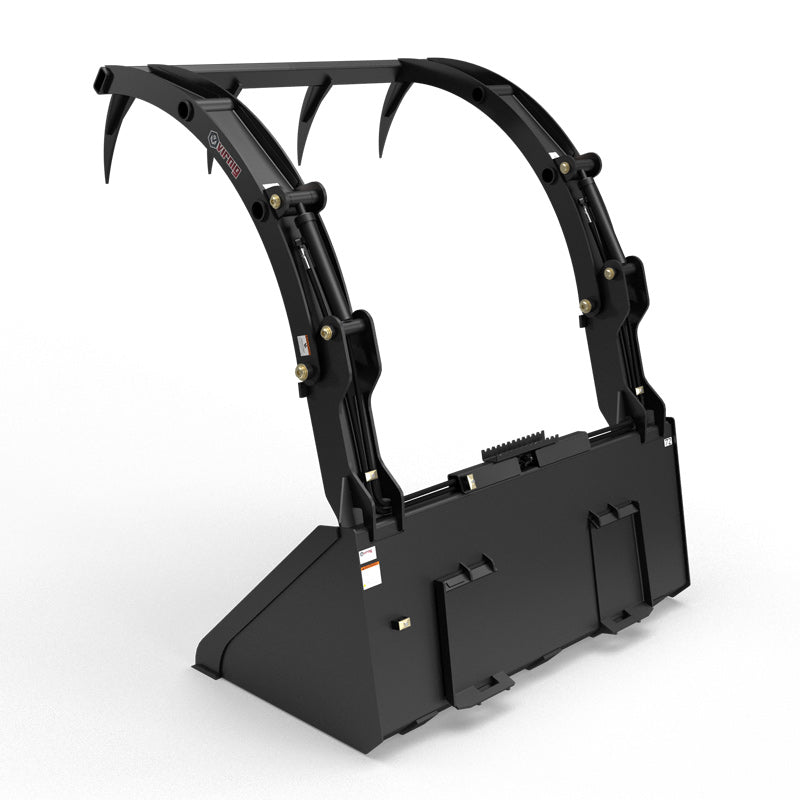

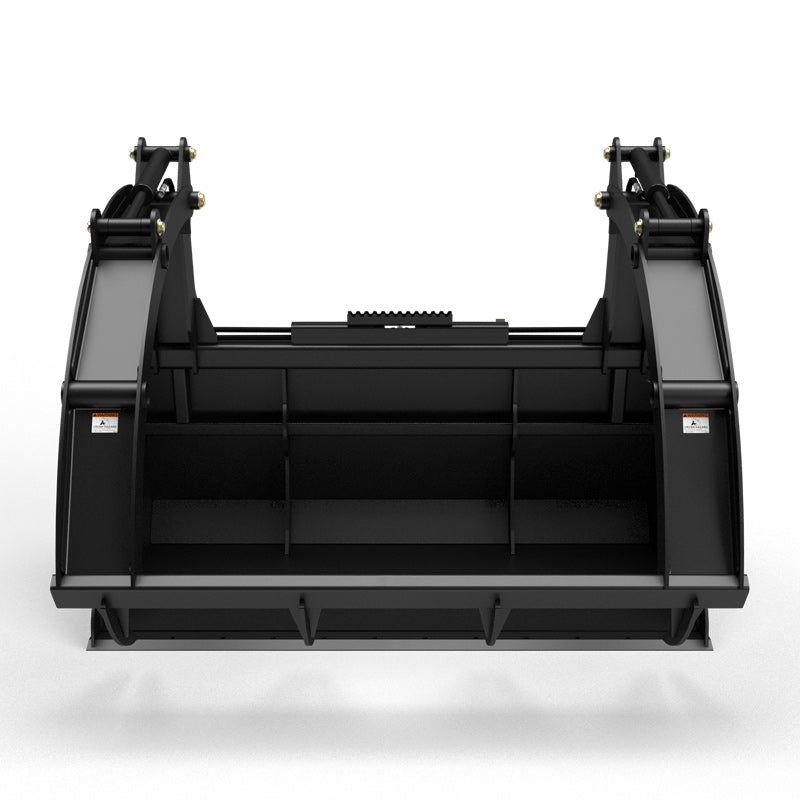

Virnig Hay Bucket Grapple | Model HBG72 & HBG84 | Width 73.5" & 85.5" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
DESCRIPTION

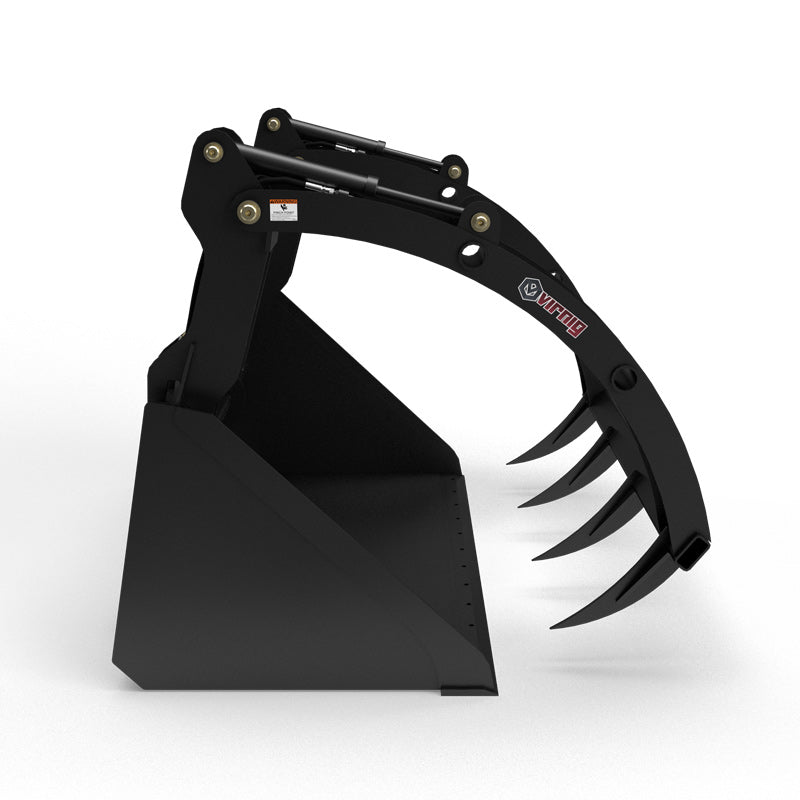

Tackle hay, silage, and light material handling with confidence using the Virnig Hay Bucket Grapple, built for skid steers and compact track loaders with a rated operating capacity above 2,400 lbs. Engineered for demanding agricultural and livestock operations, this grapple delivers exceptional strength, superior control, and long-lasting performance.

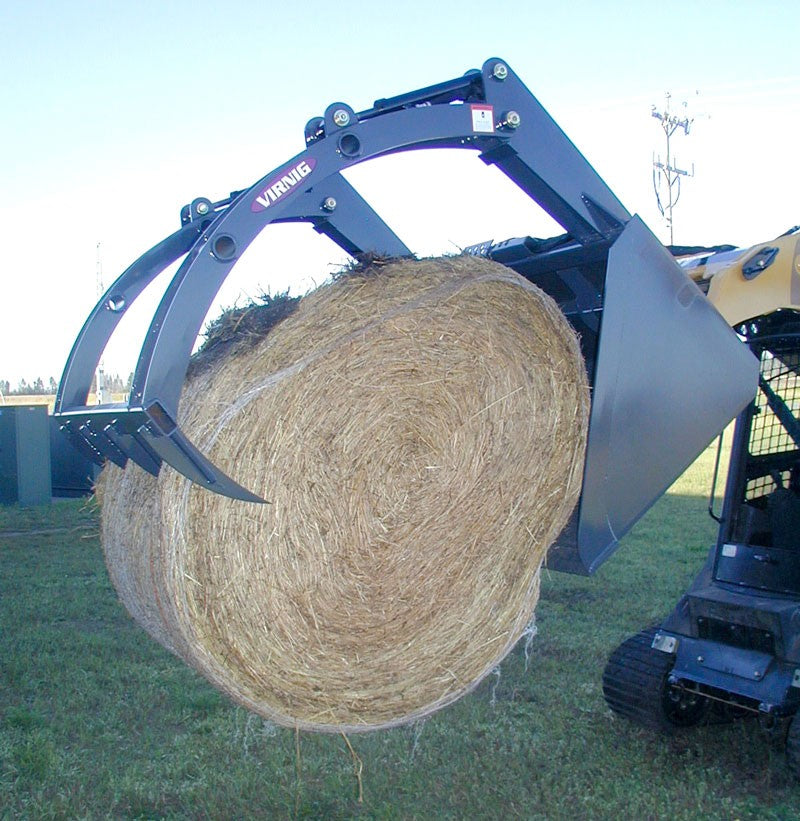

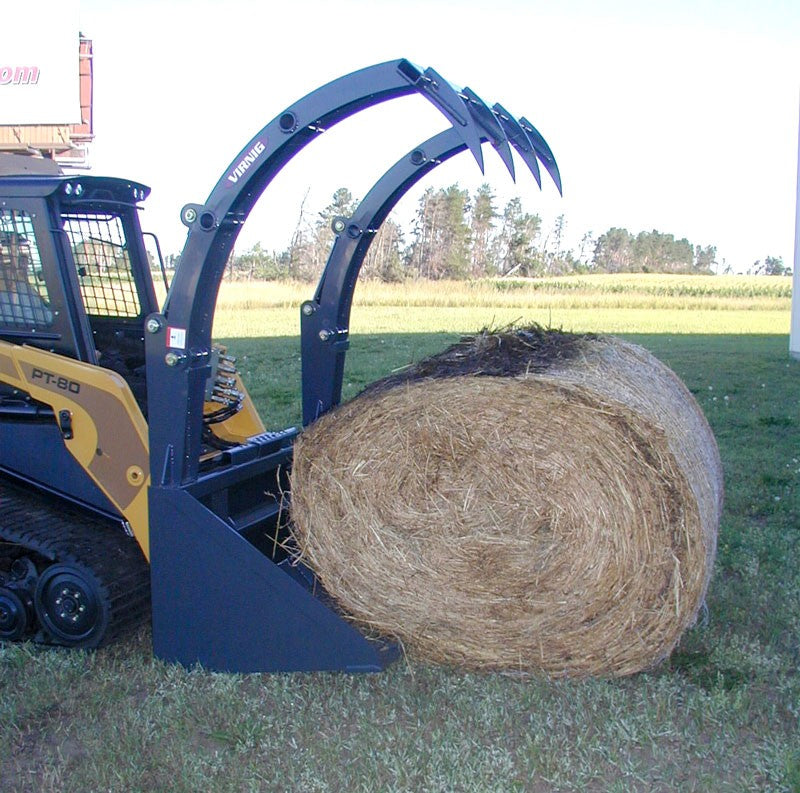

The dual-cylinder design offers powerful clamping force, while curved grapple tines grip and lift large round bales securely without tearing or shredding the hay. Each pivot point features Teflon®-coated bushings and greasable hinge pins, ensuring smooth, low-maintenance operation even in harsh environments.
Constructed with Grade 80 steel and equipped with a 3/4" × 6" weld-on cutting edge, the Virnig Hay Bucket Grapple easily withstands the daily rigors of moving hay, feed, and other loose materials. Whether you’re clearing feedlots, stacking hay, or managing silage piles, this attachment combines precision engineering with rugged durability the perfect partner for professional ranchers, farmers, and operators.
Key Features
- Dual Hydraulic Grapple Cylinders Two 2" bore, 8 3/8" stroke cylinders deliver powerful, even clamping pressure for secure hay handling.
- High Flow Compatibility (15–25 GPM) Works seamlessly with standard-flow and mid-flow skid steers and CTLs.
- Heavy-Duty Construction Made from Grade 80 steel (80,000 PSI yield strength) for maximum structural integrity.
- Large Jaw Opening (74.3") Easily grabs big round bales, silage, and loose material with ample clearance.
- Curved Grapple Teeth Penetrate hay and silage with minimal material damage for efficient movement.
- Durable NitroSteel® Cylinder Rods Corrosion and flake resistant for extended service life.
- Teflon® Coated Bushings Reduce friction and wear at all pivot points, eliminating the need for constant lubrication.
- Greasable Hinge Pins 1 9/16" diameter hinge pins ensure long-term reliability and easy maintenance.
- Reinforced Bucket Bottom Five ½" × 4" structural wear bars add strength and extend bucket lifespan.
- High-Capacity Bucket Design 27.7 ft³ (struck) / 33.2 ft³ (heaped) on 72", and 32.2 ft³ / 38.8 ft³ on 84" model.
- Universal Skid Steer Mounting Quick attach plate fits all major skid steer and CTL brands.
- Optional Cutting Edges Choose between Bolt-On Cutting Edge (BOCE) or Serrated Edge (SE) for tailored performance.
- Optimized Weight Balance 1,350 lbs (72") and 1,450 lbs (84") provide optimal stability and breakout power.
- Operator-Friendly Design Smooth, responsive hydraulic motion for precision handling.
- Made for Professional Use Perfect for agriculture, ranching, and feedlot operations demanding maximum productivity.
Detailed Specifications
| Specification | HBG72 Model |
|---|---|
| Overall Width (in) | 73.5 |
| Inside Width (in) | 71.25 |
| Bucket Height (in) | 31.4 |
| Overall Height (in) | 58.3 |
| Overall Depth (in) | 40.0 |
| Grapple Jaw Opening (in) | 74.3 |
| Grapple Tine Thickness (in) | 0.5 |
| Tine Material | Grade 80 Plate (80,000 PSI Yield) |
| Number of Grapple Teeth | 4 |
| Spacing Between Grapple Teeth (in) | 19.3 |
| Bucket Struck Capacity (ft³) | 27.7 |
| Bucket Heaped Capacity (ft³) | 33.2 |
| Cylinder Bore / Stroke (in) | 2.0 / 8.375 |
| Cylinder Pins / Hinge Pins (in) | 1.25 / 1.563 |
| Structural Wear Bars (½" × 4") | 5 |
| Recommended Loader Capacity (lbs) | > 2,400 |
| Approximate Weight (lbs) | 1,350 |
| Hydraulic Flow Required (GPM) | 15–25 |
| Mount Type | Universal Skid Steer / CTL |
| Specification | HBG84 Model |
|---|---|
| Overall Width (in) | 85.5 |
| Inside Width (in) | 83.25 |
| Bucket Height (in) | 31.4 |
| Overall Height (in) | 58.3 |
| Overall Depth (in) | 40.0 |
| Grapple Jaw Opening (in) | 74.3 |
| Grapple Tine Thickness (in) | 0.5 |
| Tine Material | Grade 80 Plate (80,000 PSI Yield) |
| Number of Grapple Teeth | 4 |
| Spacing Between Grapple Teeth (in) | 19.3 |
| Bucket Struck Capacity (ft³) | 32.2 |
| Bucket Heaped Capacity (ft³) | 38.8 |
| Cylinder Bore / Stroke (in) | 2.0 / 8.375 |
| Cylinder Pins / Hinge Pins (in) | 1.25 / 1.563 |
| Structural Wear Bars (½" × 4") | 5 |
| Recommended Loader Capacity (lbs) | > 2,400 |
| Approximate Weight (lbs) | 1,450 |
| Hydraulic Flow Required (GPM) | 15–25 |
| Mount Type | Universal Skid Steer / CTL |
Manuals & Documents
Specification Sheet
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!
