Product Description
Virnig V20 Mini Skid Steer Angle Broom | Models CAB48 & CAB60 | Widths 48" & 60" | Hydraulic Flow 10 To 18 GPM | For Mini Skid Steers
DESCRIPTION

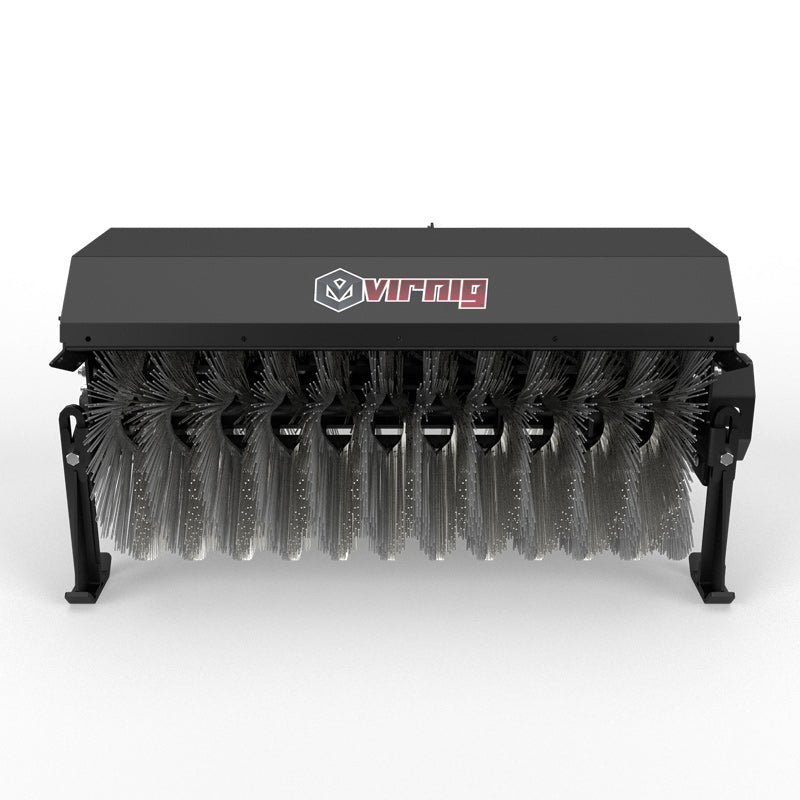

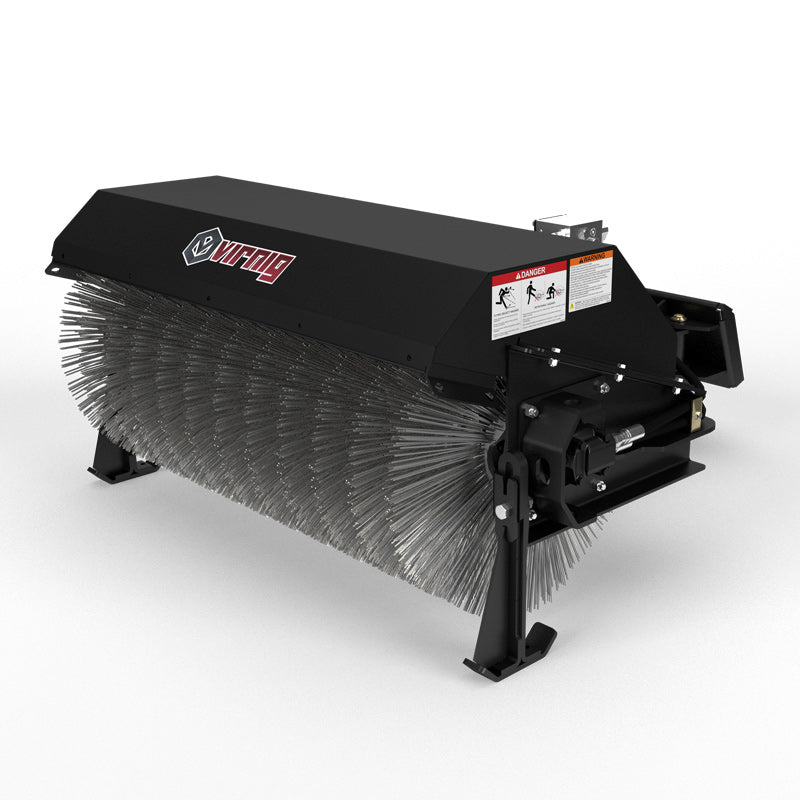

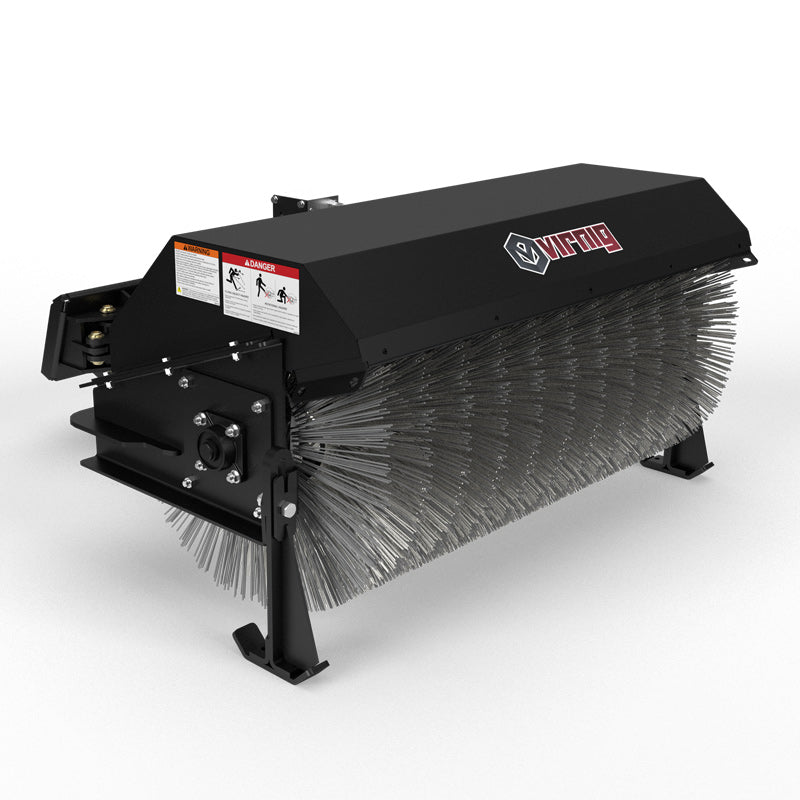

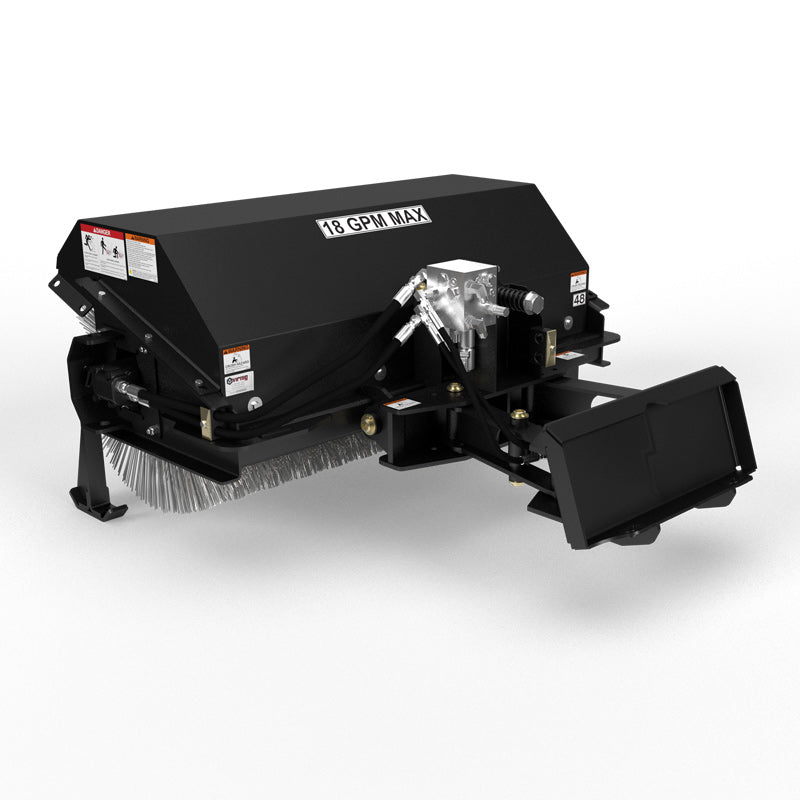

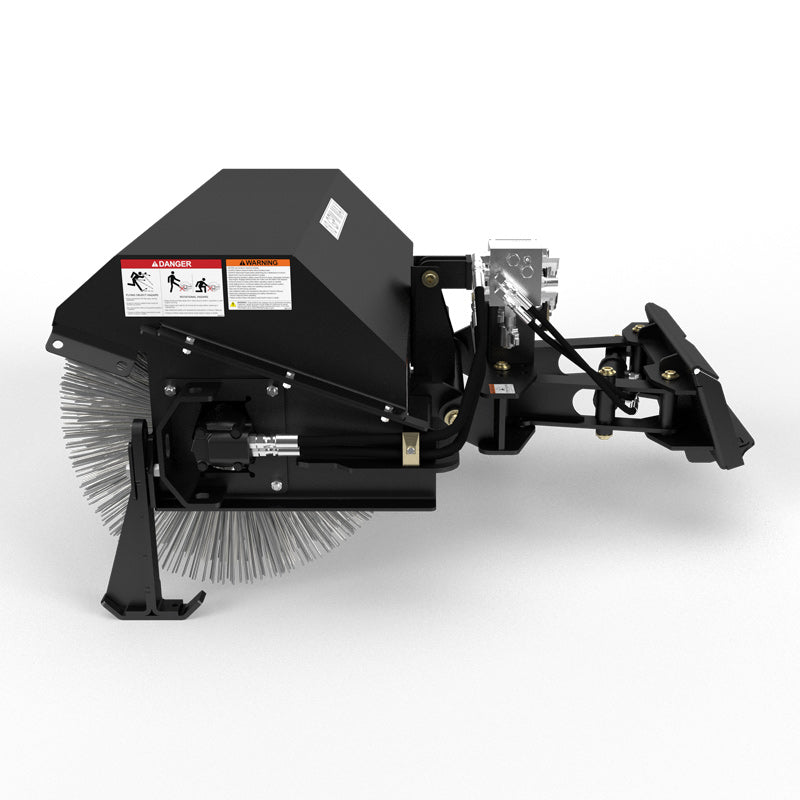

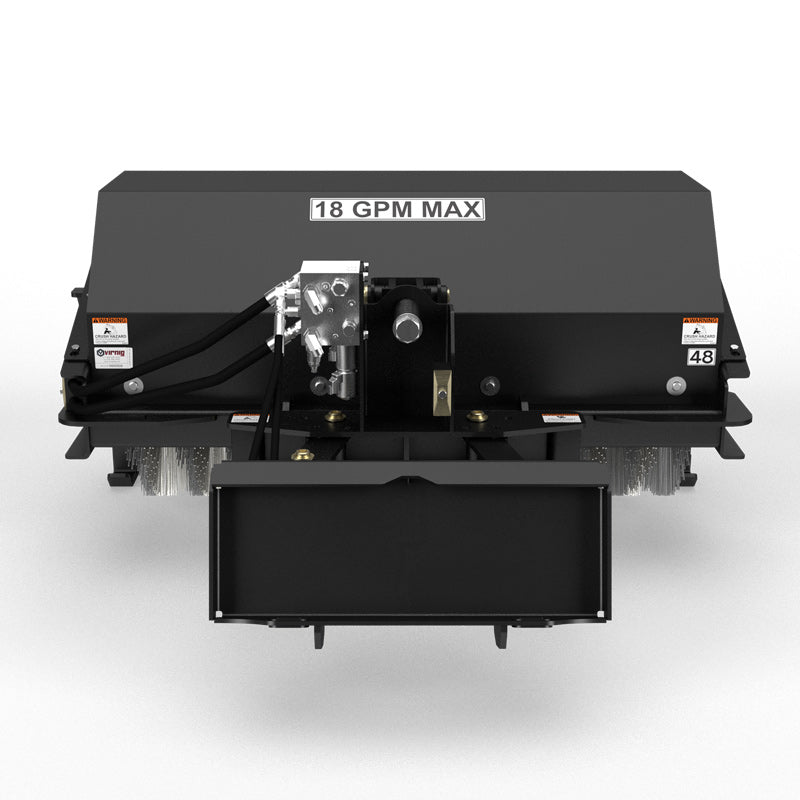

The Virnig V20 Mini Skid Steer Angle Broom is designed for contractors, landscapers, property managers, and anyone who needs a compact yet powerful solution for year-round cleanup. Built with a rugged direct-drive Eaton® motor, a self-centering swing linkage system, and an ultra-durable 1.25" greasable bearing, this angle broom delivers exceptional sweeping power in tight spaces where full-size skid steers cannot go.
Available in 48" and 60" sweeping widths, the V20 Angle Broom is ideal for clearing snow, dirt, leaves, construction debris, and jobsite material from sidewalks, driveways, trails, parking lots, and building perimeters. Its smart design allows you to replace wafers without disconnecting hydraulic hoses, and the flip-down storage stands protect bristles whenever the broom is not in use.
Compatible with Mini Universal, Bobcat® Mini, and ASV® Mini mounts, this compact attachment is optimized for machines with standard-flow hydraulics (10–18 GPM) and loader capacities greater than 500 lbs. Whether you’re managing commercial properties or keeping a jobsite clean and efficient, the V20 Mini Angle Broom provides unmatched control, visibility, and maneuverability in a durable, long-lasting package.
Key Features
- Direct-Drive Eaton® Motor Delivers strong, consistent torque for powerful sweeping.

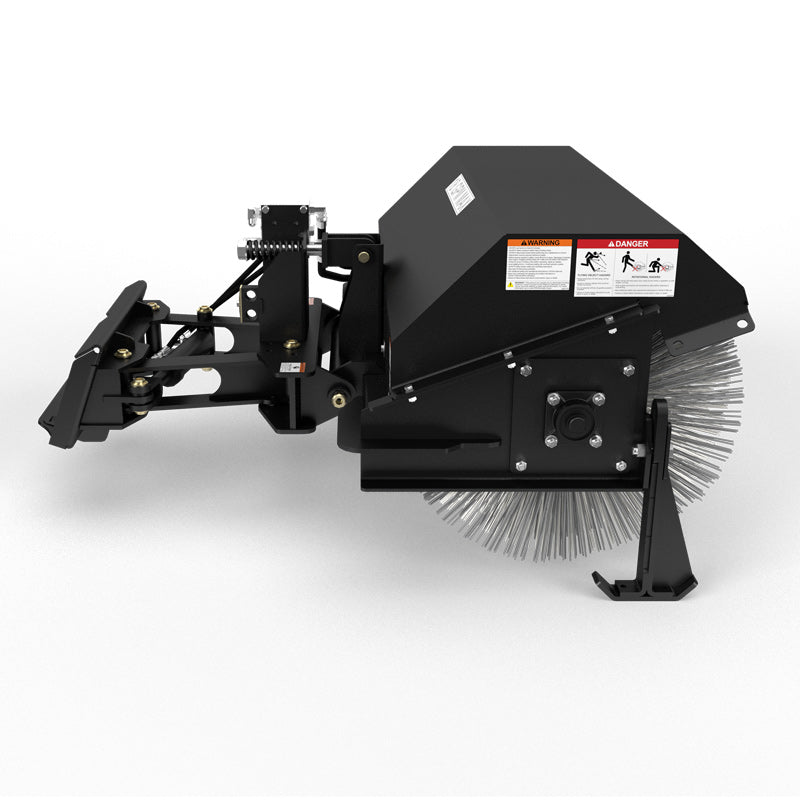

- Self-Centering Swing Linkage System Automatically returns the broom to center for smooth, predictable operation.
- Standard Poly/Wire Wafers Superior debris removal with long bristle life.
- Tool-Free Wafers Replacement Swap wafers without removing or disconnecting hydraulic hoses.
- Hydraulic Angle Function Easily angle the broom from the loader seat for precise sweeping control.
- Heavy-Duty 1.25" Greasable Bearing Engineered for long life and minimal maintenance.
- Recessed, Guarded Motor Design Protects the motor from impacts, debris, and harsh jobsite conditions.
- Flip-Down Storage Stands Prevents bristle deformation during storage and transport.
- Compact Mini Skid Steer Compatibility Works with Mini Universal, Bobcat® Mini, and ASV® Mini mounts.
- Built for Tight Spaces Perfect for sidewalks, pathways, parking lots, and confined work areas.
- Large 26" Diameter Wafers Improves reach, sweeping depth, and efficiency.
- High Visibility for Operators Broom placement is easy to monitor in tight or delicate work zones.
- Rugged All-Season Performance Ideal for snow, dirt, gravel, leaves, and construction debris.
- Strong Powder-Coated Steel Construction Designed to handle demanding commercial use.

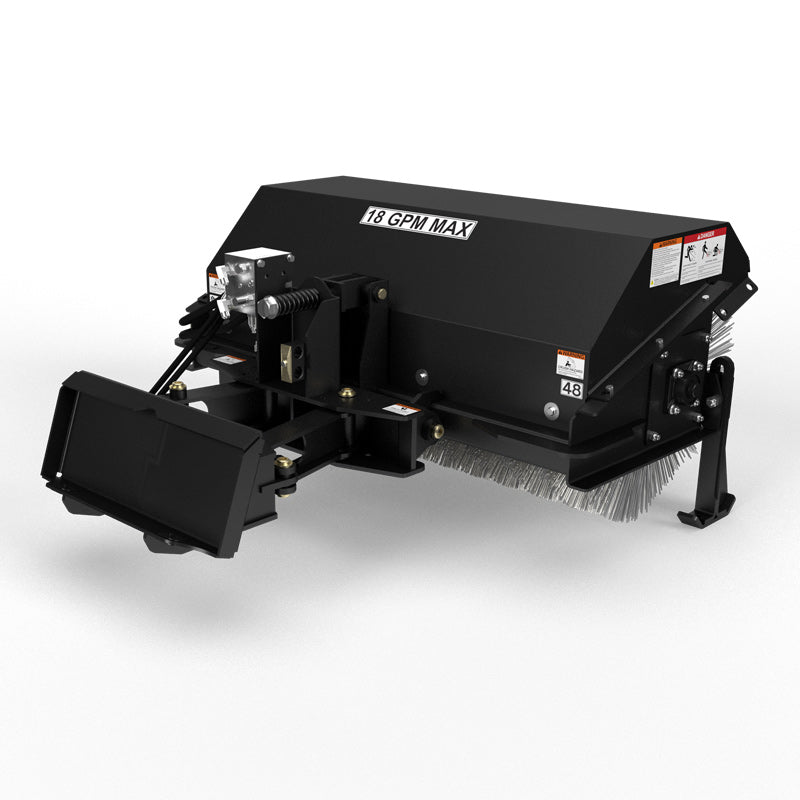

- Optimized for Standard-Flow Systems Runs efficiently on 10–18 GPM machines without requiring high-flow hydraulics.
Detailed Specifications
| Model | CAB48 |
|---|---|
| Sweeping Width (Straight) | 48.0 in |
| Sweeping Width (Full Angle) | 42.8 in |
| Loader Track Width Coverage (Full Angle) | 38.0 in |
| Overall Width (Straight) | 54.3 in |
| Overall Width (Full Angle) | 58.5 in |
| Overall Height / Depth | 27.7 in / 56.9 in |
| Maximum Broom Angle | 28° |
| Wafers (26" Diameter) | 23 |
| Hydraulic Flow Requirement | 10–18 GPM (Standard Flow Only) |
| Approx. Weight | 495 lbs* |
| Recommended Loader Capacity | >500 lbs |
| Mount Options | Mini Universal, Bobcat® Mini, ASV® Mini |
| Model | CAB60 |
|---|---|
| Sweeping Width (Straight) | 60.0 in |
| Sweeping Width (Full Angle) | 53.5 in |
| Loader Track Width Coverage (Full Angle) | 48.0 in |
| Overall Width (Straight) | 66.3 in |
| Overall Width (Full Angle) | 68.5 in |
| Overall Height / Depth | Same |
| Maximum Broom Angle | 28° |
| Wafers (26" Diameter) | 29 |
| Hydraulic Flow Requirement | 10–18 GPM |
| Approx. Weight | 530 lbs* |
| Recommended Loader Capacity | >500 lbs |
| Mount Options | Mini Universal, Bobcat® Mini, ASV® Mini |
