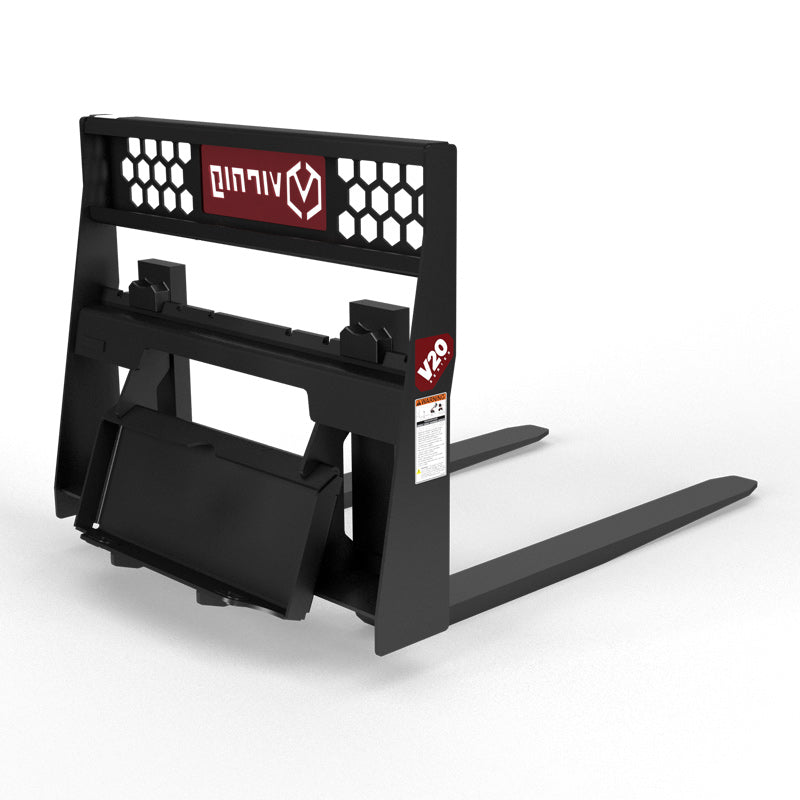

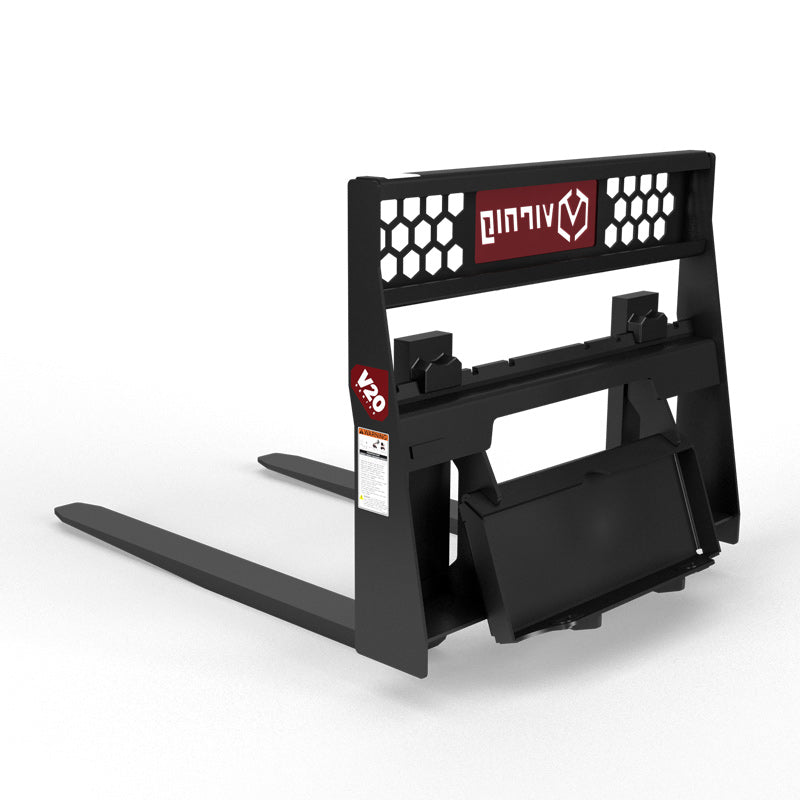

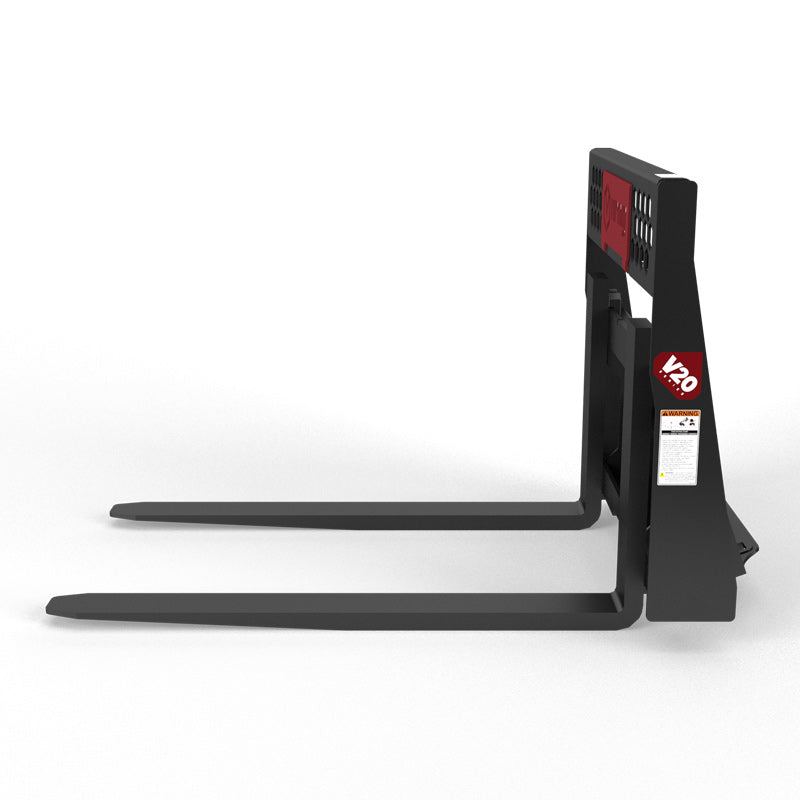

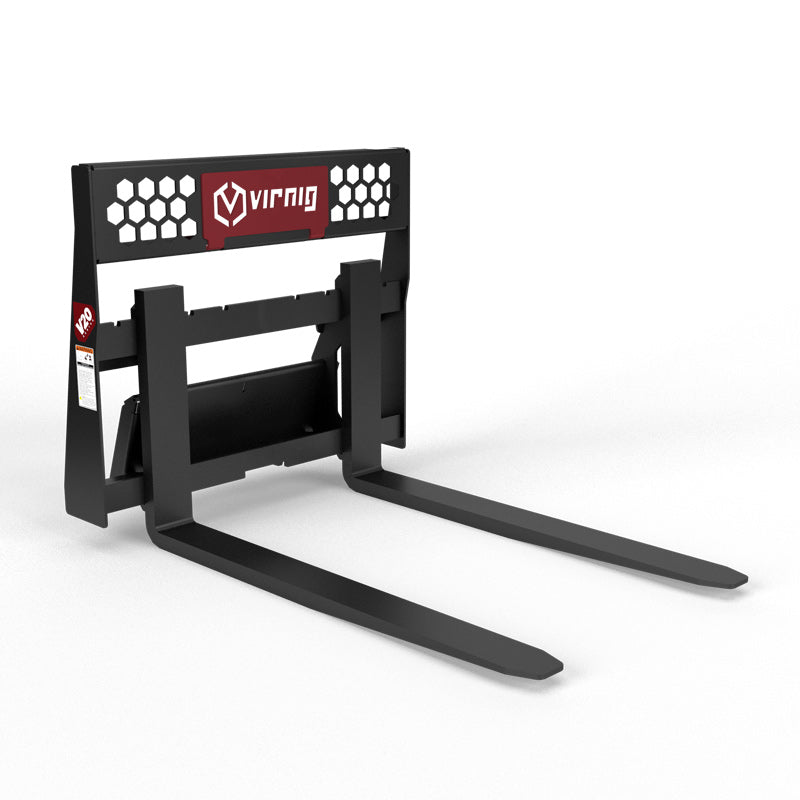

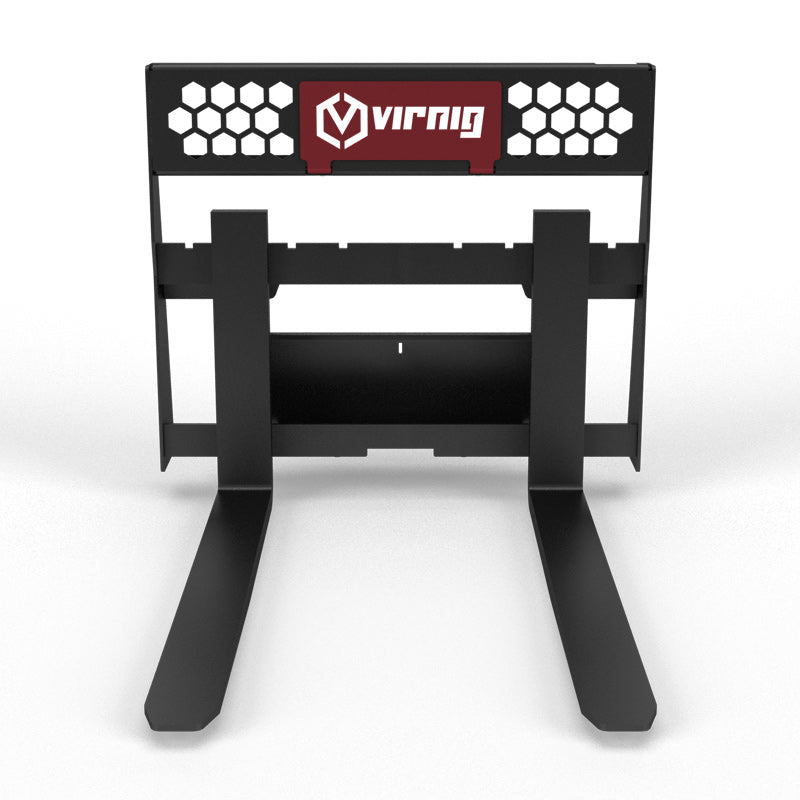

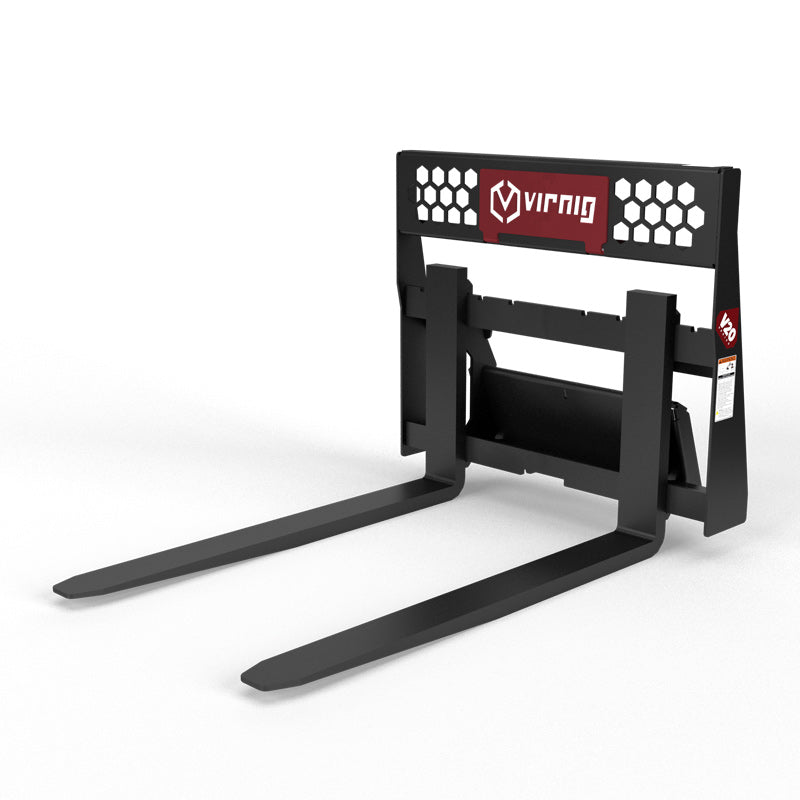

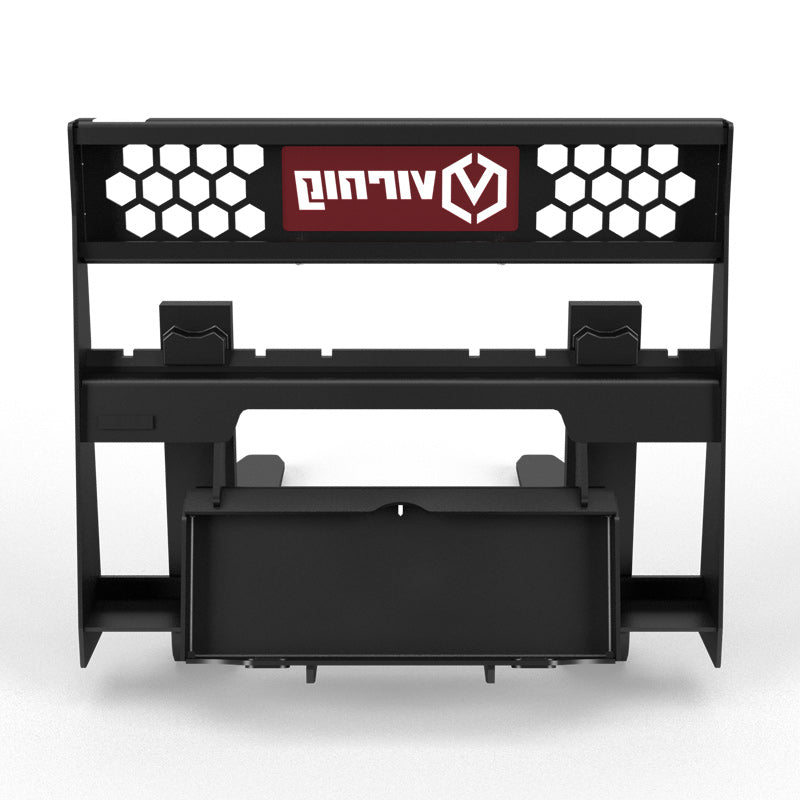

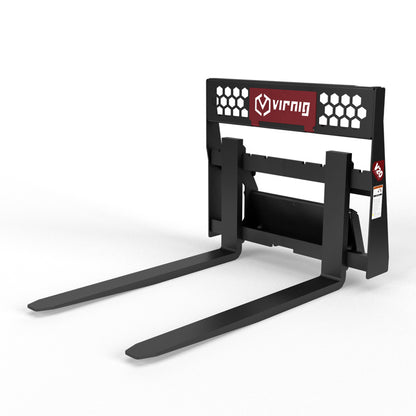

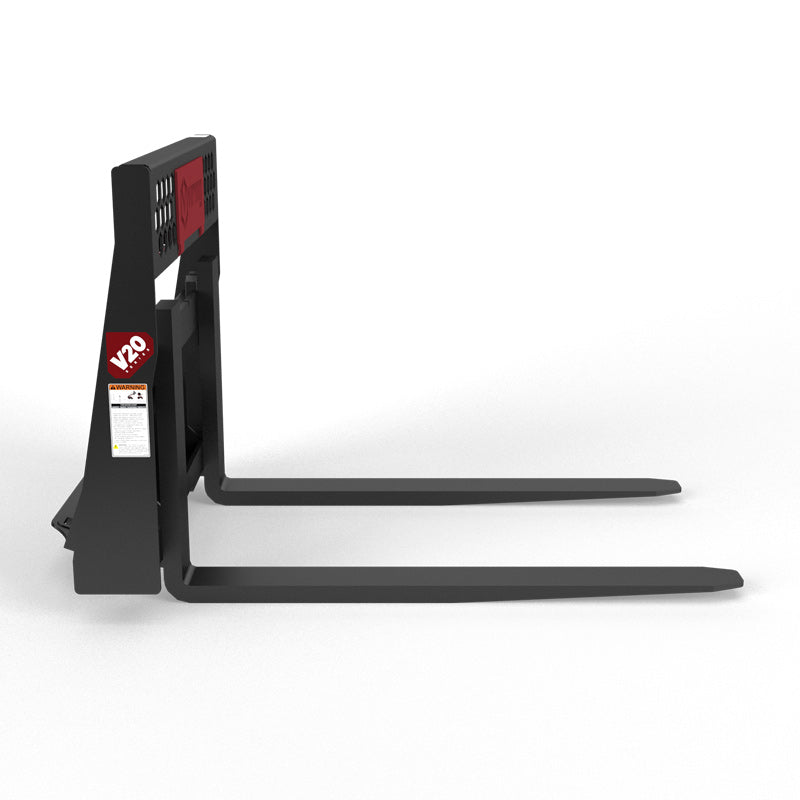

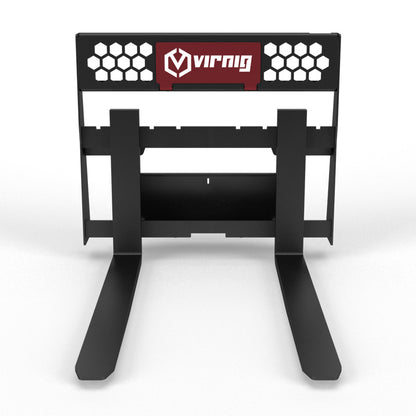

Virnig V20 Mini Skid Steer Rail Pallet Fork | Models CPF3622 & CPF4222 | Widths 36" & 42" | 15-25 GPM | For Mini Skid Steers

Virnig V20 Mini Skid Steer Rail Pallet Fork | Models CPF3622 & CPF4222 | Widths 36" & 42" | 15-25 GPM | For Mini Skid Steers

Regular price $1,380.00
Regular price Sale price $1,380.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Hydraulic Flow: 15–25 GPM.
  • Width Options: 36" & 42".
  • Max Load Capacity: 2,200 lbs.
  • Mount Compatibility: Mini Universal, Bobcat® Mini, ASV® Mini.
  • Weight: 245 lbs (CPF3622), 255 lbs (CPF4222).
  • For Mini Skid Steers: Ideal for material handling and pallet lifting.
View full details

Product Description

Virnig V20 Mini Skid Steer Rail Pallet Fork | Models CPF3622 & CPF4222 | Widths 36" & 42" | 15-25 GPM | For Mini Skid Steers


DESCRIPTION

The V20 Mini Skid Steer Rail Pallet Fork is engineered for precision and strength, offering unparalleled performance for material handling tasks. Whether you’re lifting and moving pallets, construction materials, or other heavy loads, this attachment is your ideal partner for mini skid steers.

Designed with versatility in mind, the V20 Fork features adjustable, forged ITA Class II tines, providing you with maximum flexibility for a variety of tasks. The 3/16" BRICKGUARD and 3/4" beveled rail ensure durability, while the Brickguard flush with the tines helps stabilize loads and prevents shifting. Choose from three mini skid mounts to ensure compatibility with a range of machines, and experience a smoother, more efficient workflow on the job.

If you’re operating a mini skid steer and need a reliable, tough, and adaptable fork attachment, look no further than the V20. It’s built to handle heavy-duty tasks with ease while keeping your equipment safe and efficient.

Key Features

  • Adjustable ITA Class II Tines: Forged for strength and adaptability, these tines can be adjusted to fit various load sizes.
  • BRICKGUARD Protection: Features a 3/16" BRICKGUARD to protect the tines and stabilize loads, preventing shifting during operation.
  • Beveled Rail Design: The 3/4" beveled rail makes it easier to slide the forks into position, improving operational speed and ease.
  • Three Mount Options: Compatible with Mini Universal mounts (all brands except Bobcat® and ASV®), Bobcat® Mini, and ASV® Mini skid steers.
  • Increased Load Stability: The Brickguard is flush with the tines to help maintain load stability during transport.
  • Lightweight Design: At just 245 to 255 pounds, the V20 Fork adds minimal weight to your skid steer, optimizing fuel efficiency and overall performance.
  • Compact & Robust: Perfect for tight spaces while delivering the power needed for heavy-duty jobs.
  • Easy to Attach: The V20 Fork attaches quickly and securely to your mini skid steer, reducing downtime and increasing job site productivity.
  • Ideal for Material Handling: Efficiently lifts and moves a variety of loads, including pallets, rail materials, and construction debris.
  • Durable Construction: Built for long-term performance with premium materials that can handle rough conditions.
  • Improved Safety: The stable design of the Brickguard and flush-mounted tines ensures safe handling of materials with less risk of damage or accidents.
  • Max Capacity: Handles up to 2,200 lbs, making it ideal for small to medium-sized material loads.
  • Works with Low-Capacity Loaders: Perfect for loaders with capacities under 1,650 lbs, providing a reliable, lightweight solution.
  • Hydraulic Flow Required: This attachment requires hydraulic flow 15 To 25 GPM , making it a great fit for machines that don't have hydraulic capabilities.
  • Versatile in All Conditions: Whether you're working in tight spaces or on large, open sites, the V20 Fork can be counted on to get the job done.
  • Enhanced Productivity: The robust and stable fork design reduces the chances of load spills, ensuring smoother operations and less time spent on corrections.

Detailed Specifications

Specification Model CPF3622
Width (Frame / Overall w/Step) 36.0 inches / 39.0 inches
Height 30.1 inches
Tine Length 36.0 inches
Tine Width 3.0 inches
Tine Thickness 1.19 inches
Tine Space (Min/Max) 8.4 / 30.9 inches
Approximate Weight 245 lbs
Max Capacity 2,200 lbs
Recommended Loader Capacity Less than 1,650 lbs
Hydraulic Flow Required 15 To 25 GPM
Mount Compatibility Mini Universal (except Bobcat® & ASV®)
Construction Material Forged Steel, Brickguard, Beveled Rail
Ideal For Material handling, pallet lifting, construction
Product Type Mini Skid Steer Attachment



Specification Model CPF4222
Width (Frame / Overall w/Step) 42.0 inches / 45.0 inches
Height 30.1 inches
Tine Length 42.0 inches
Tine Width 3.0 inches
Tine Thickness 1.19 inches
Tine Space (Min/Max) 8.4 / 30.9 inches
Approximate Weight 255 lbs
Max Capacity 2,200 lbs
Recommended Loader Capacity Less than 1,650 lbs
Hydraulic Flow Required 15 To 25 GPM
Mount Compatibility Mini Universal (except Bobcat® & ASV®)
Construction Material Forged Steel, Brickguard, Beveled Rail
Ideal For Material handling, pallet lifting, construction
Product Type Mini Skid Steer Attachment
