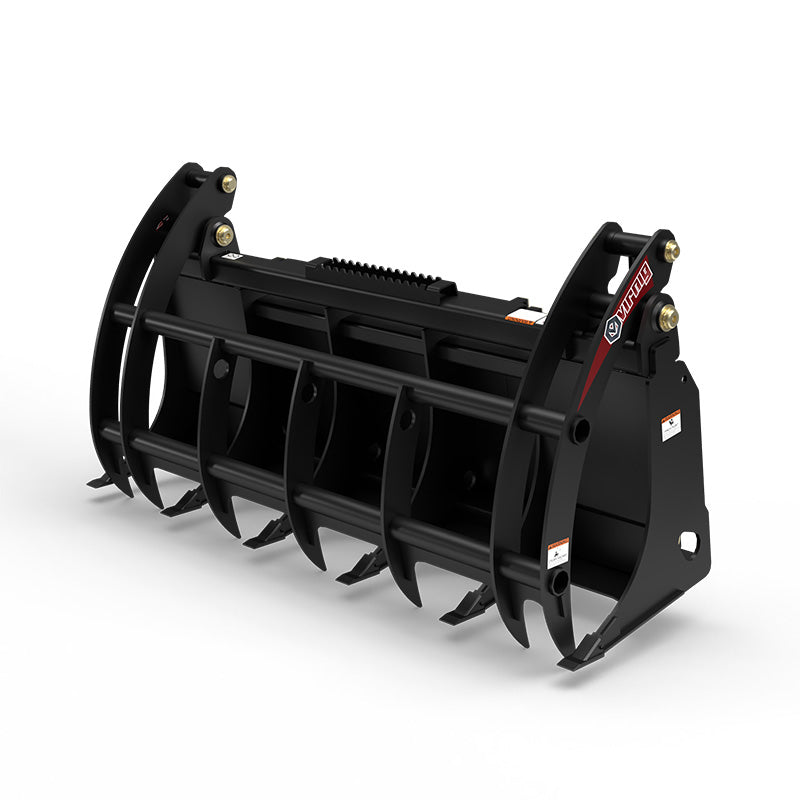

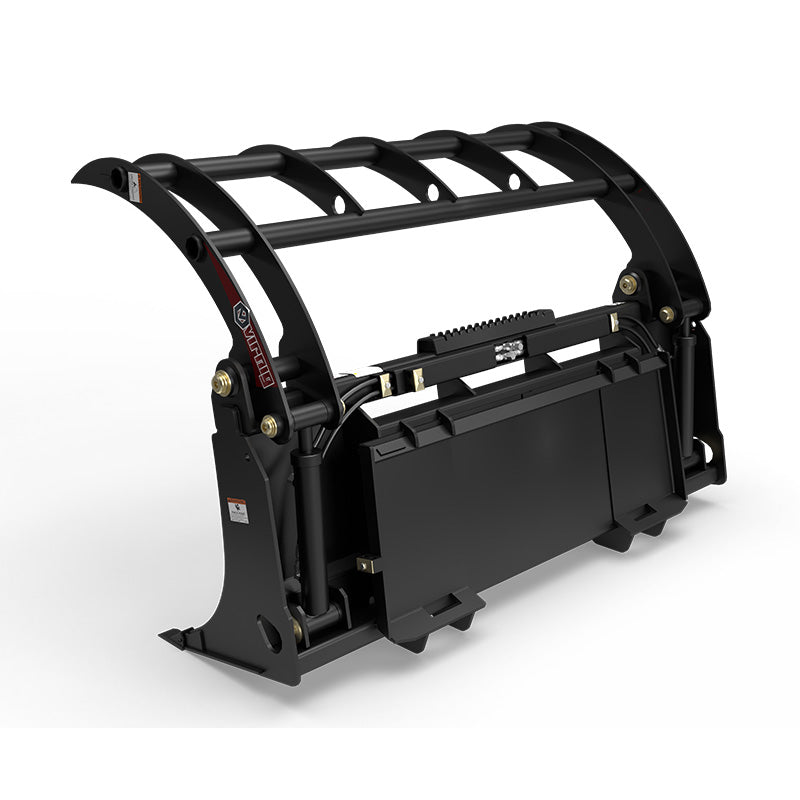

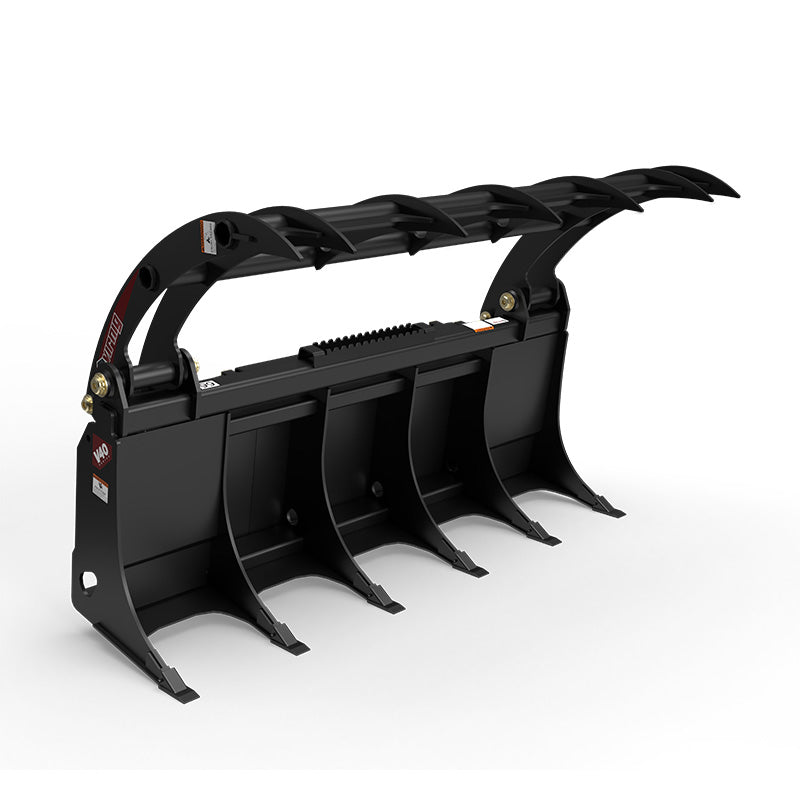

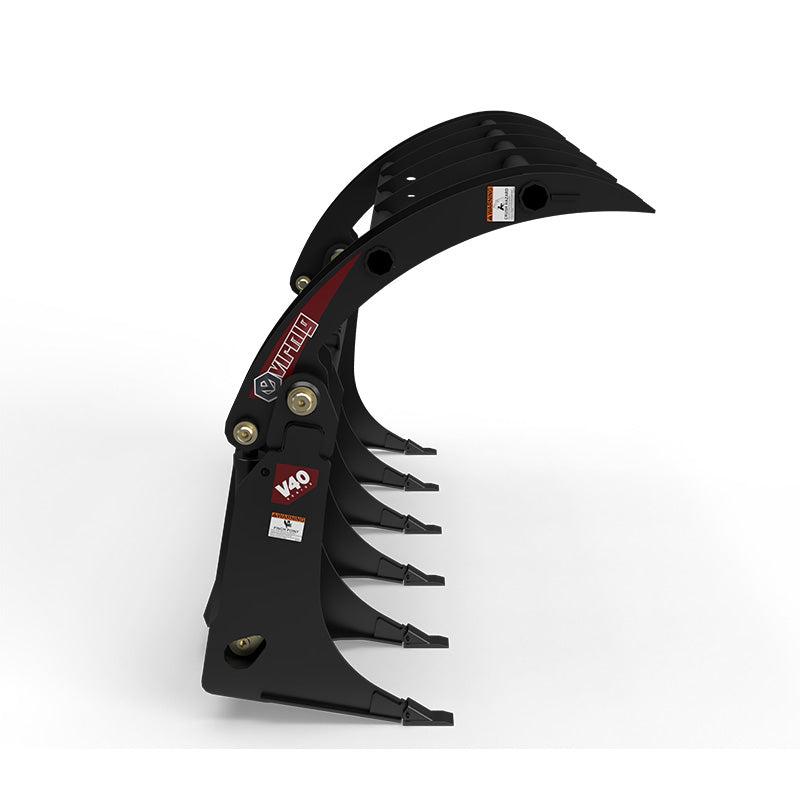

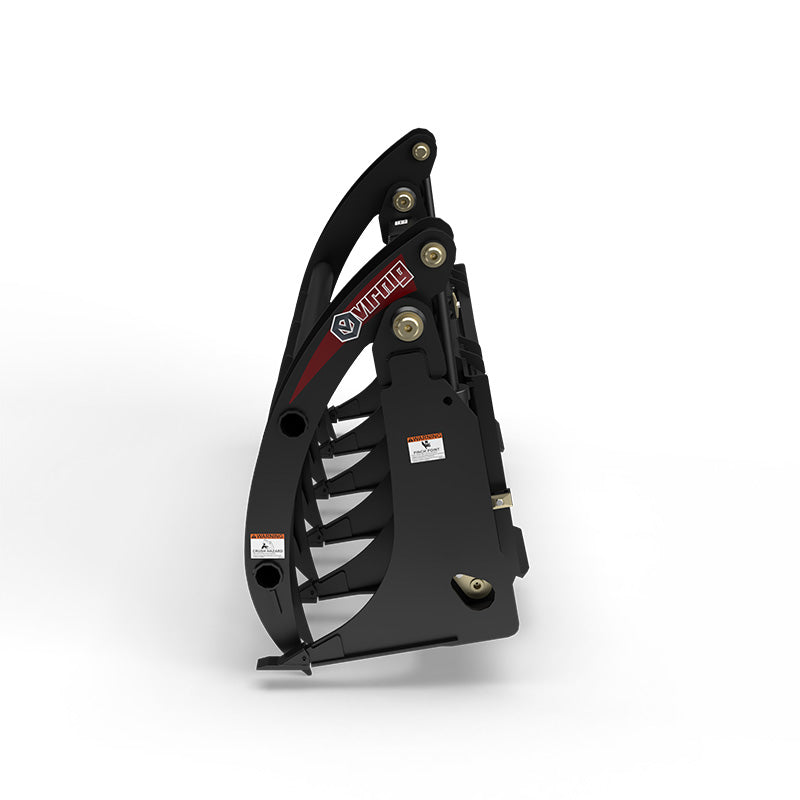

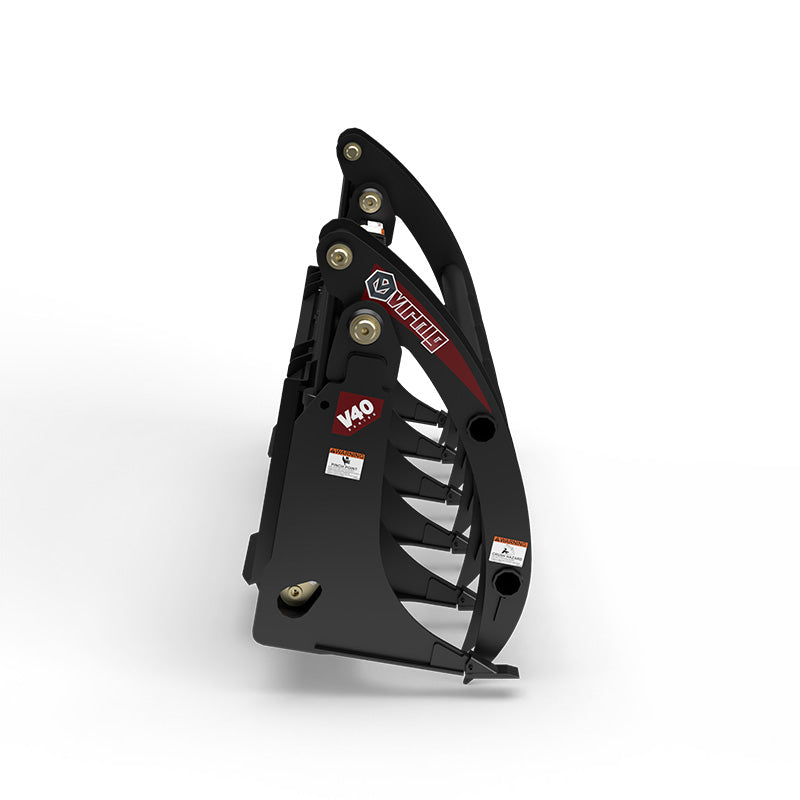

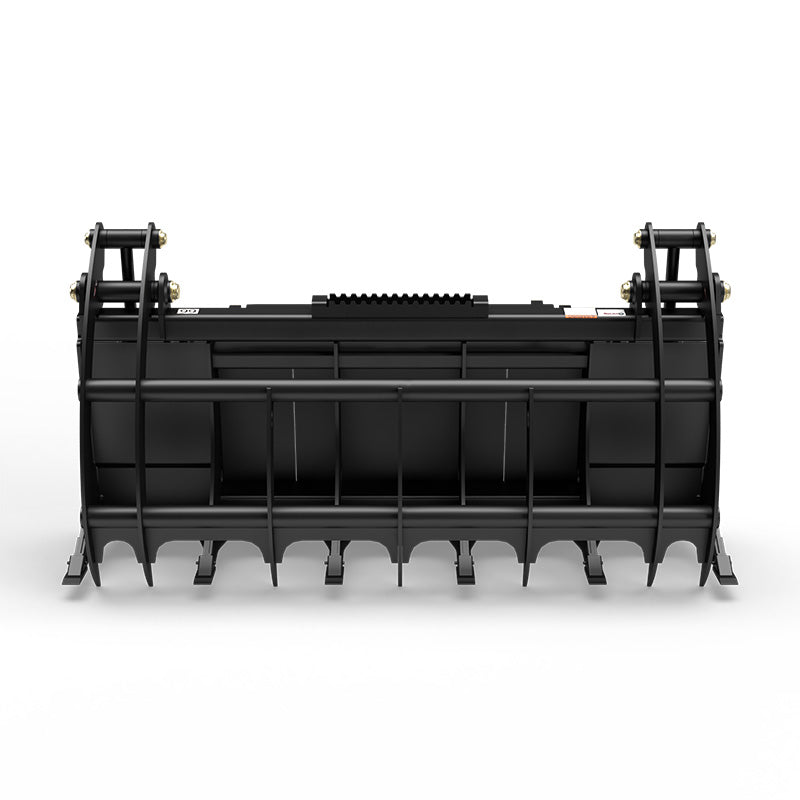

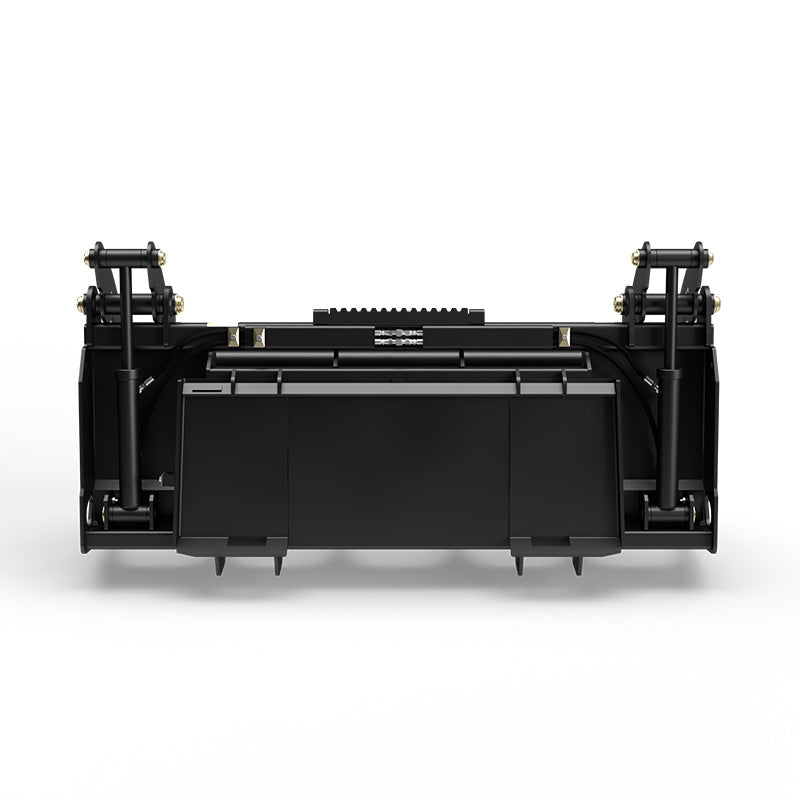

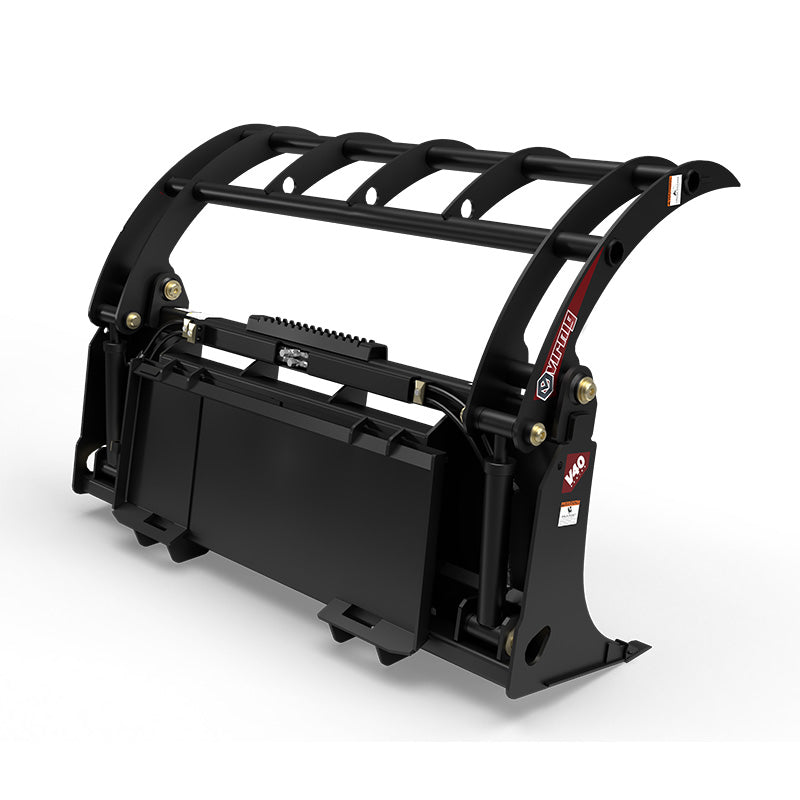

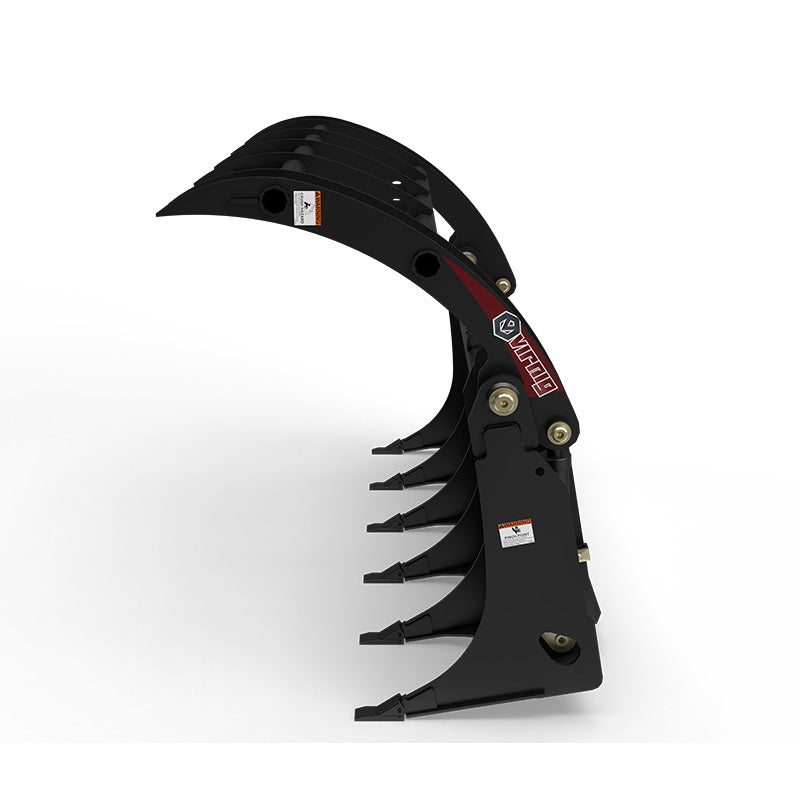

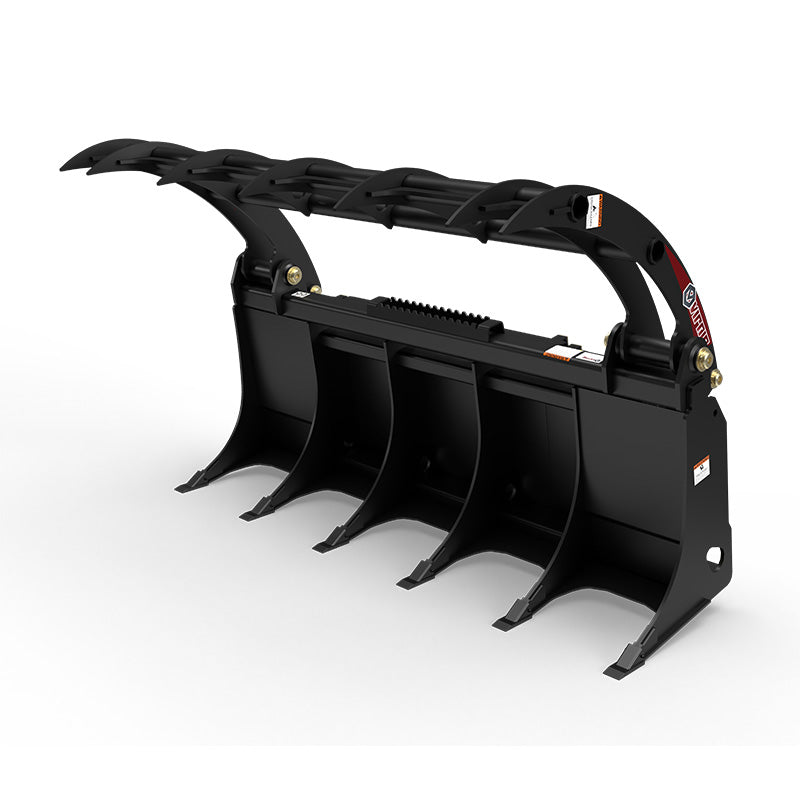

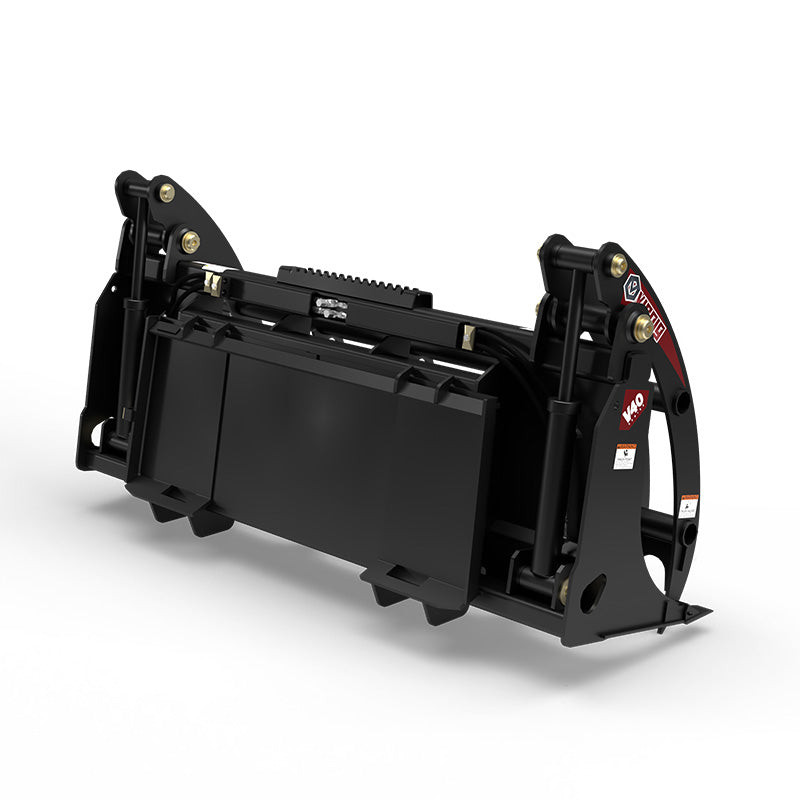

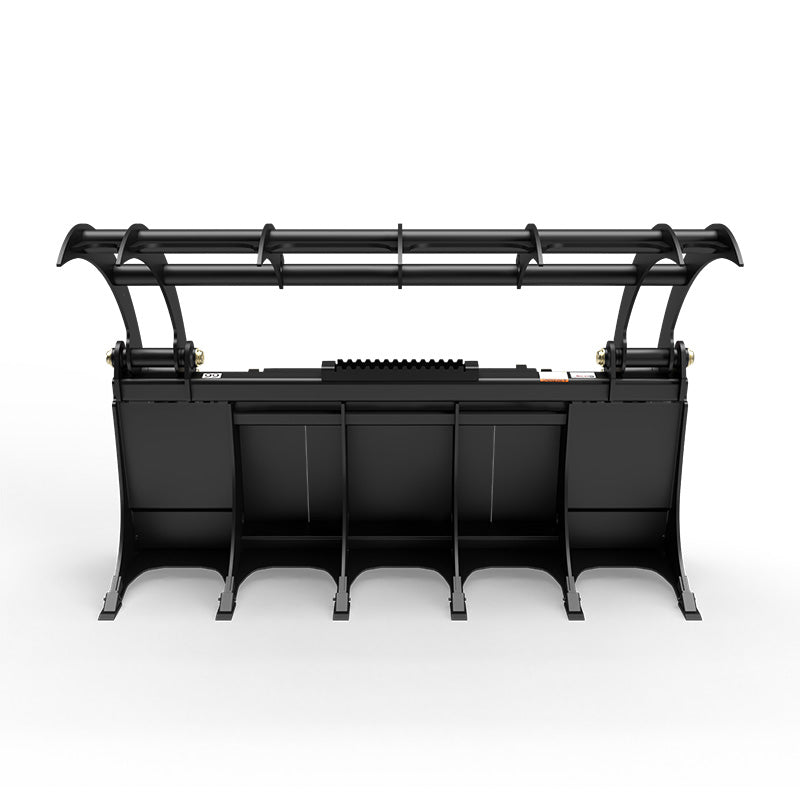

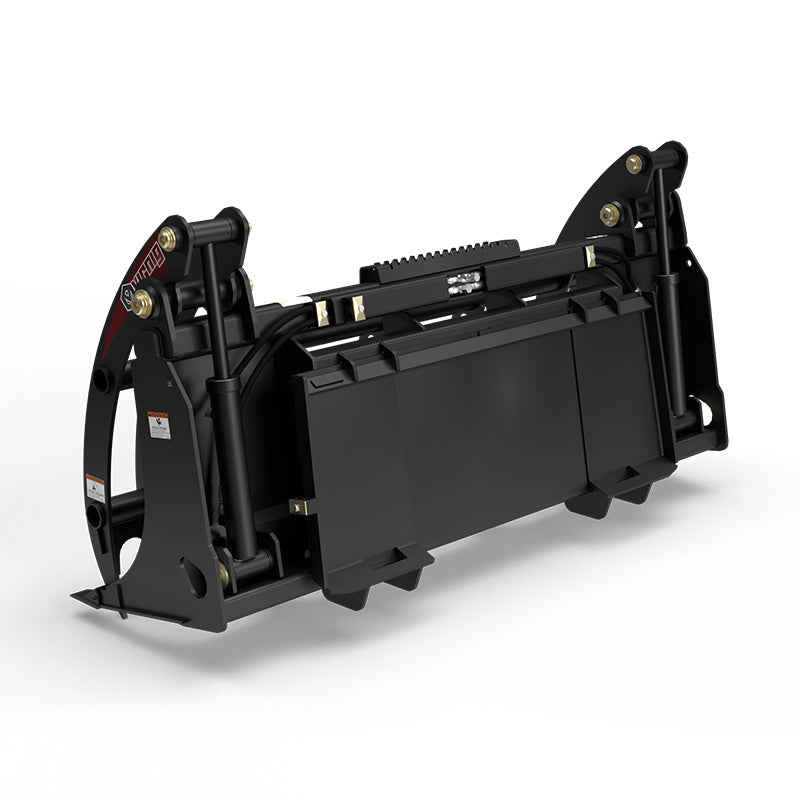

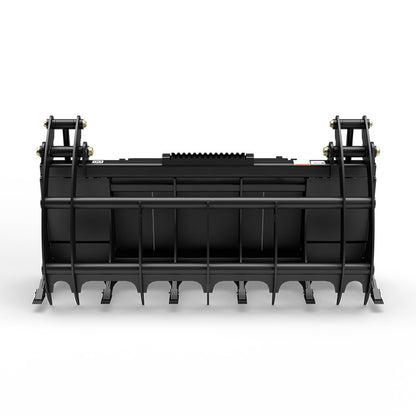

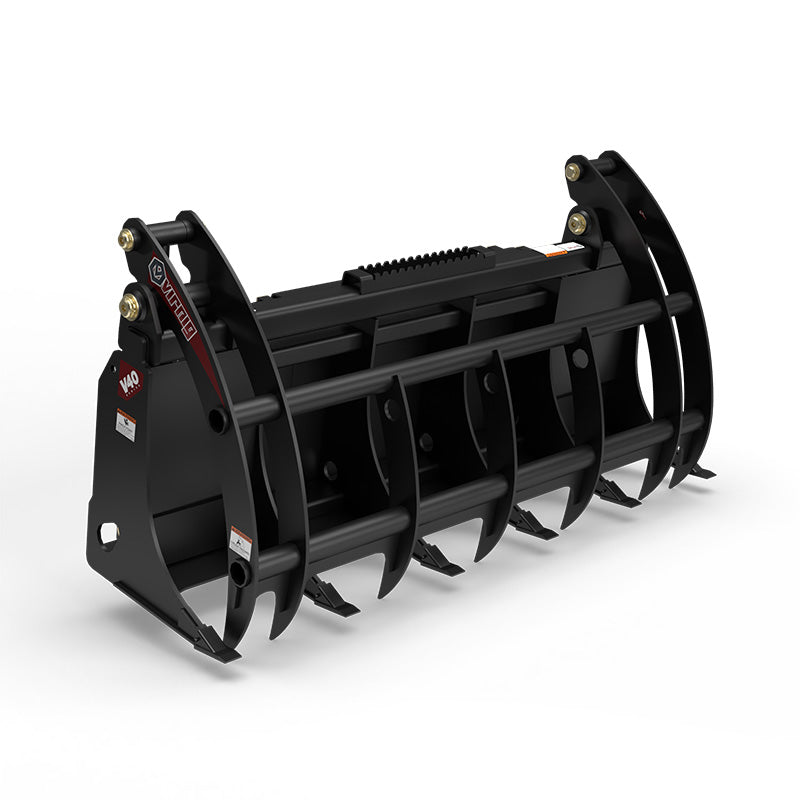

Virnig V40 Root Rake Grapple | Models URG60-UT, URG66-UT & URG72-UT | Widths 61.5" to 73.5" | Hydraulic Flow 15 to 25 GPM | For Skid Steer & Track Loaders
DESCRIPTION
Take your skid steer performance to the next level with the Virnig V40 Root Rake Grapple, engineered for precision, strength, and versatility. Whether you’re clearing brush, digging roots, or moving debris, this grapple is your go-to attachment for smaller skid steers and track loaders. Built with NITROSTEEL® cylinder rods and Teflon® coated bushings on all pivot points, it delivers unmatched durability while reducing wear and maintenance.
Featuring replaceable cast teeth, the V40 Grapple makes short work of tough jobs without compromising efficiency. Its rugged design handles the demands of landscaping, land clearing, and construction projects, while its carefully engineered tooth spacing and tine thickness provide maximum grip for logs, rocks, and debris.
Perfect for operators who demand both strength and precision, the V40 Root Rake Grapple is compatible with a wide range of skid steers and track loaders, offering smooth, controlled operation every time. Don’t just move material master it with the V40 Grapple.
Key Features
- Heavy-Duty Construction: Grade 50 steel plate (50,000 PSI minimum yield) ensures maximum strength and long-lasting durability.
- High-Performance Grapple Teeth: Replaceable cast teeth for easy maintenance and aggressive material handling.
- Precision Engineering: NITROSTEEL® cylinder rods and Teflon® coated bushings reduce wear and extend attachment life.
- Optimal Tooth Spacing: Strategically spaced teeth provide excellent root and brush gripping performance.
- Hydraulic Flow Range Compatible with machines delivering 15–25 GPM.
- Versatile Loader Compatibility: Designed for skid steers and track loaders with a recommended capacity under 2,200 lbs.
- Multiple Width Options: Available in 61.5", 67.5", and 73.5" widths to fit various machine sizes.
- Ample Grapple Jaw Opening: 44.1" jaw spread allows easy material pick-up and stacking.
- Compact Yet Mighty: Overall height and depth designed for maneuverability without sacrificing capacity.
- Cylinder Efficiency: 2.0" bore and 8.375" stroke provide smooth and reliable clamping power.
- Easy Maintenance: Hinges and pivot points with 1.25" cylinder pins and 1.563" hinge pins for robust operation.
- Lightweight Design: Weighs only 625–695 lbs depending on size for easy attachment handling.
- Multipurpose Use: Ideal for brush clearing, root digging, debris loading, and landscaping.
- Time-Saving Performance: Quickly rake, dig, pile, and load material, increasing jobsite efficiency.
- Durable Finish: Designed to resist corrosion, scratches, and wear in harsh outdoor environments.
- Reliable Brand: Virnig, a trusted name in skid steer attachments, ensuring top-tier quality and support.
Detailed Specifications
| Feature | URG60-UT |
|---|---|
| Overall Width (in) | 61.5 |
| Overall Height / Bucket Height (in) | 34.2 / 29.3 |
| Overall Depth (in) | 22.1 |
| Number of Teeth | 6 |
| Space Between Teeth (in) | 10.2 |
| Space Between Tines / Grapple Jaws (in) | 5.0 / 10.9 |
| Tine Thickness (in) | 0.375 |
| Cylinder Bore / Stroke (in) | 2.0 / 8.375 |
| Cylinder Pins / Hinge Pins (in) | 1.25 / 1.563 |
| Grapple Jaw Opening (in) | 44.1 |
| Hydraulic Flow Range | 15–25 GPM. |
| Approximate Weight (lbs) | 625 |
| Recommended Loader Capacity (lbs) | <2,200 |
| Feature | URG66-UT | URG72-UT |
|---|---|---|
| Overall Width (in) | 67.5 | 73.5 |
| Overall Height / Bucket Height (in) | 34.2 / 29.3 | 34.2 / 29.3 |
| Overall Depth (in) | 22.1 | 22.1 |
| Number of Teeth | 6 | 7 |
| Space Between Teeth (in) | 11.4 | 10.2 |
| Space Between Tines / Grapple Jaws (in) | 5.0 / 12.4 | 5.0 / 11.1 |
| Tine Thickness (in) | 0.375 | 0.375 |
| Cylinder Bore / Stroke (in) | 2.0 / 8.375 | 2.0 / 8.375 |
| Cylinder Pins / Hinge Pins (in) | 1.25 / 1.563 | 1.25 / 1.563 |
| Grapple Jaw Opening (in) | 44.1 | 44.1 |
| Hydraulic Flow Range | 15–25 GPM. | 15–25 GPM. |
| Approximate Weight (lbs) | 645 | 695 |
| Recommended Loader Capacity (lbs) | <2,200 | <2,200 |
| Feature | URG72-UT |
|---|---|
| Overall Width (in) | 73.5 |
| Overall Height / Bucket Height (in) | 34.2 / 29.3 |
| Overall Depth (in) | 22.1 |
| Number of Teeth | 7 |
| Space Between Teeth (in) | 10.2 |
| Space Between Tines / Grapple Jaws (in) | 5.0 / 11.1 |
| Tine Thickness (in) | 0.375 |
| Cylinder Bore / Stroke (in) | 2.0 / 8.375 |
| Cylinder Pins / Hinge Pins (in) | 1.25 / 1.563 |
| Grapple Jaw Opening (in) | 44.1 |
| Hydraulic Flow Range | 15–25 GPM. |
| Approximate Weight (lbs) | 695 |
| Recommended Loader Capacity (lbs) | <2,200 |
