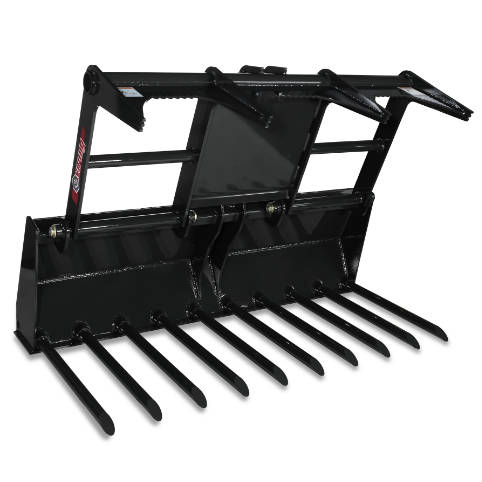

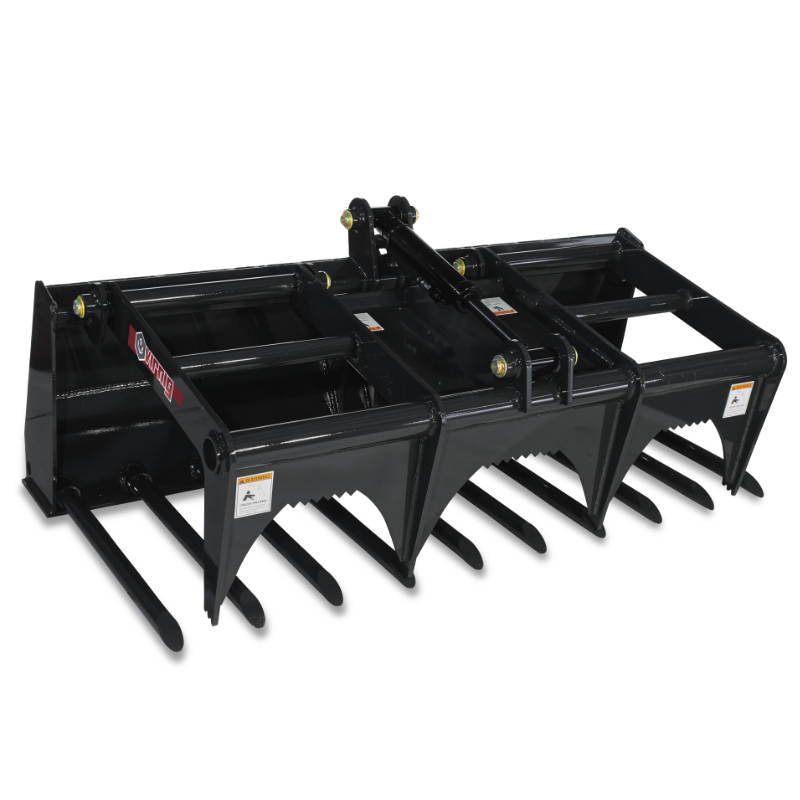

Virnig V40 Utility Fork Grapple | Model MGV160 To MGV178 | Width 60" To 78" | Hydraulic Flow 10 To 20 GPM | For Skid Steer
Virnig V40 Utility Fork Grapple | Model MGV160 To MGV178 | Width 60" To 78" | Hydraulic Flow 10 To 20 GPM | For Skid Steer
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Virnig V40 Utility Fork Grapple | Model MGV160 To MGV178 | Width 60" To 78" | Hydraulic Flow 10 To 20 GPM | For Skid Steer
DESCRIPTION
Take control of your cleanup and material handling with the Virnig V40 Utility Fork Grapple a purpose-built, single-jaw skid steer grapple designed for unmatched versatility and durability. Ideal for farmers, landscapers, and contractors, this grapple makes easy work of manure, brush, hay bales, and debris, delivering exceptional strength and precision handling in a cost-efficient package.
The open-tine design with no cross member allows deeper penetration into dense or uneven piles, maximizing material pickup with every pass. Built with high-strength 1.75" replaceable tines and a NitroSteel® cylinder rod, the V40 ensures long-lasting performance, even in demanding environments. Greasable pins and Teflon®-coated bushings reduce wear and keep your grapple operating smoothly season after season.
Designed for skid steers with less than 2,400 lbs rated operating capacity (ROC) and a standard hydraulic flow between 10–20 GPM, the V40 Utility Fork Grapple delivers efficient, low-maintenance performance all while providing the durability you expect from Virnig Attachments.
Key Features
- Single-Jaw Design: Simplifies operation with fewer moving parts for cost-effective material handling.
- No Cross Member: Provides superior tine penetration into dense materials like manure or brush.
- High-Tensile Replaceable Tines: 1.75" diameter forged from 1045 CFSR round stock (100,000 PSI yield strength).
- Hydraulic Efficiency: Optimized for skid steers with 10–20 GPM hydraulic flow.
- Heavy-Duty Cylinder: 2.0" bore × 8.375" stroke for powerful, consistent clamping force.
- NitroSteel® Cylinder Rods: Corrosion- and dent-resistant for long-lasting reliability.
- Teflon®-Coated Bushings: Reduce friction and wear at hinge points.
- Greasable Cylinder & Hinge Pins: Easy maintenance ensures extended lifespan.
- Open Tine Spacing: 5.1"–5.4" between tines for efficient sifting and debris handling.
- Universal Skid Steer Mount: Compatible with all major skid steer quick-attach systems.
- Balanced Weight: Lightweight design (835–990 lbs) maximizes machine performance.
- Wide Size Range: Available in 60", 66", 72", and 78" widths for multiple loader sizes.
- Optimized for Precision Work: Perfect for agriculture, landscaping, and property management tasks.
- Machine-Specific Hydraulic Protection: Hoses and fittings routed for protection and reliability.
- Proven Virnig Quality: American-built attachment trusted by professionals nationwide.
Detailed Specifications
| Specification | MGV160 (60") | MGV166 (66") |
|---|---|---|
| Overall Width (in) | 61.3 | 67.3 |
| Overall Depth (in) | 33.5 | 33.5 |
| Height (Overall / Bucket, in) | 27.6 / 21.5 | 27.6 / 21.5 |
| Grapple Jaw Opening (in) | 38.0 | 38.0 |
| Number of Tines | 9 | 10 |
| Tine Spacing (in) | 5.4 | 5.3 |
| Tine Diameter (in) | 1.75 | 1.75 |
| Cylinder Bore / Stroke (in) | 2.0 / 8.375 | 2.0 / 8.375 |
| Cylinder Pins / Hinge Pins (in) | 1.25 | 1.25 |
| Approximate Weight (lbs) | 835 | 860 |
| Recommended Loader Capacity (ROC) | < 2,400 lbs | < 2,400 lbs |
| Hydraulic Flow (GPM) | 10–20 | 10–20 |
| Specification | MGV172 (72") | MGV178 (78") |
|---|---|---|
| Overall Width (in) | 73.3 | 79.3 |
| Overall Depth (in) | 33.5 | 33.5 |
| Height (Overall / Bucket, in) | 27.6 / 21.5 | 27.6 / 21.5 |
| Grapple Jaw Opening (in) | 38.0 | 38.0 |
| Number of Tines | 11 | 12 |
| Tine Spacing (in) | 5.2 | 5.1 |
| Tine Diameter (in) | 1.75 | 1.75 |
| Cylinder Bore / Stroke (in) | 2.0 / 8.375 | 2.0 / 8.375 |
| Cylinder Pins / Hinge Pins (in) | 1.25 | 1.25 |
| Approximate Weight (lbs) | 950 | 990 |
| Recommended Loader Capacity (ROC) | < 2,400 lbs | < 2,400 lbs |
| Hydraulic Flow (GPM) | 10–20 | 10–20 |
Manuals & Documents
Specification Sheet
