Product Description

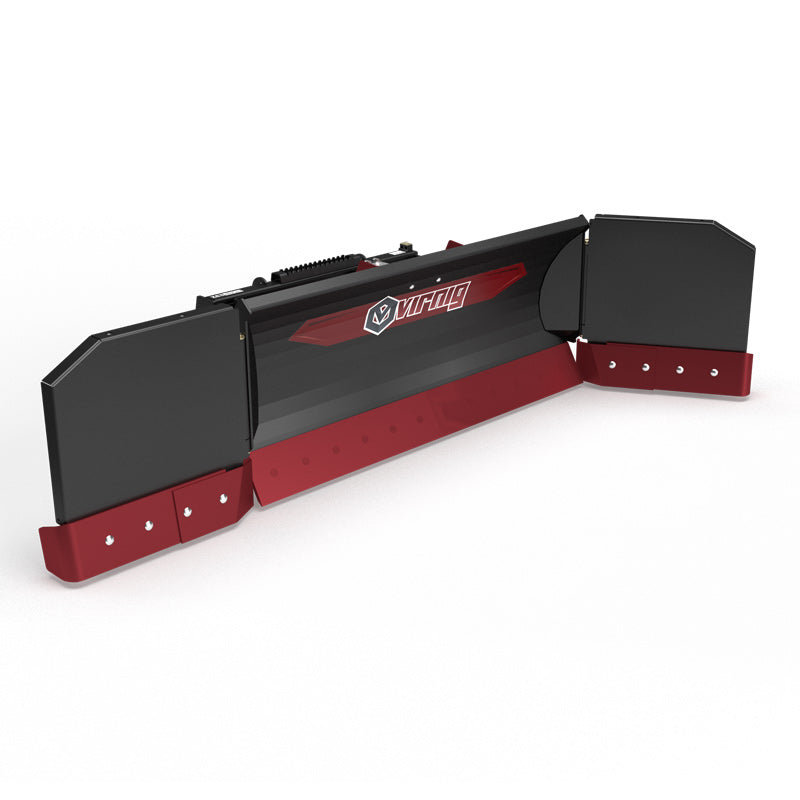

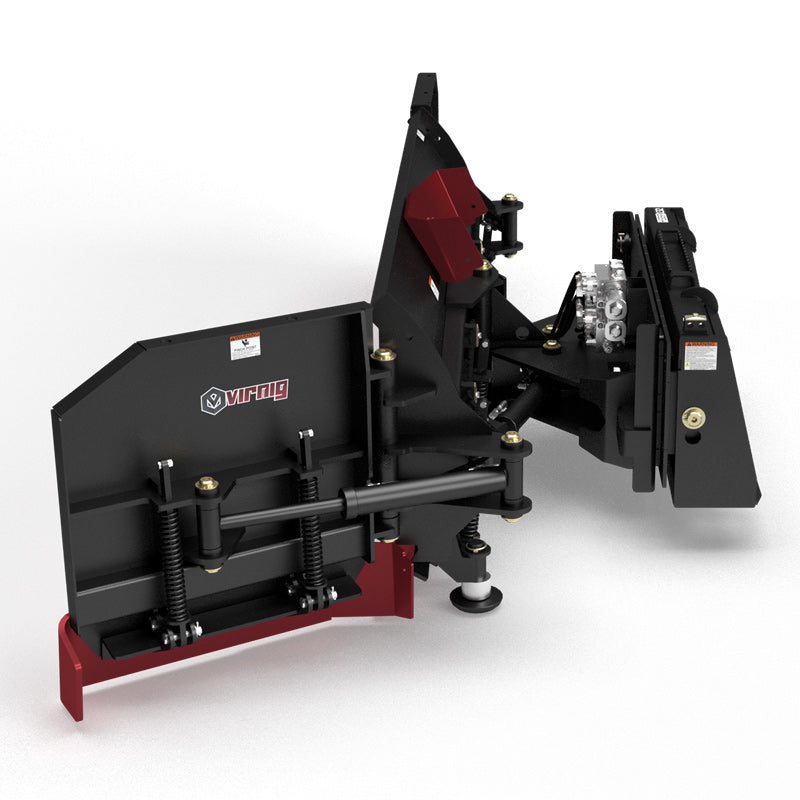

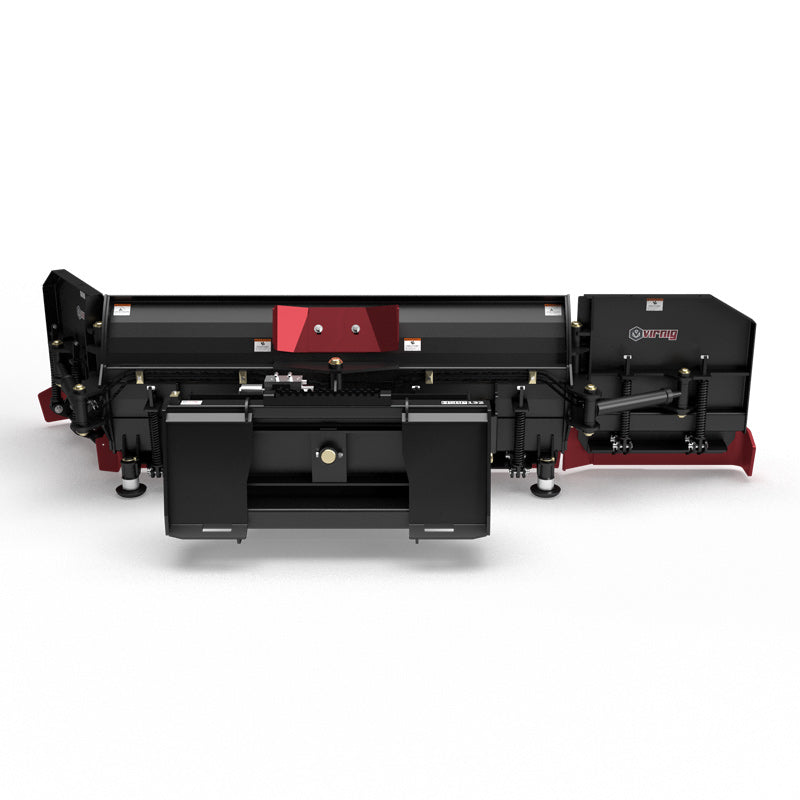

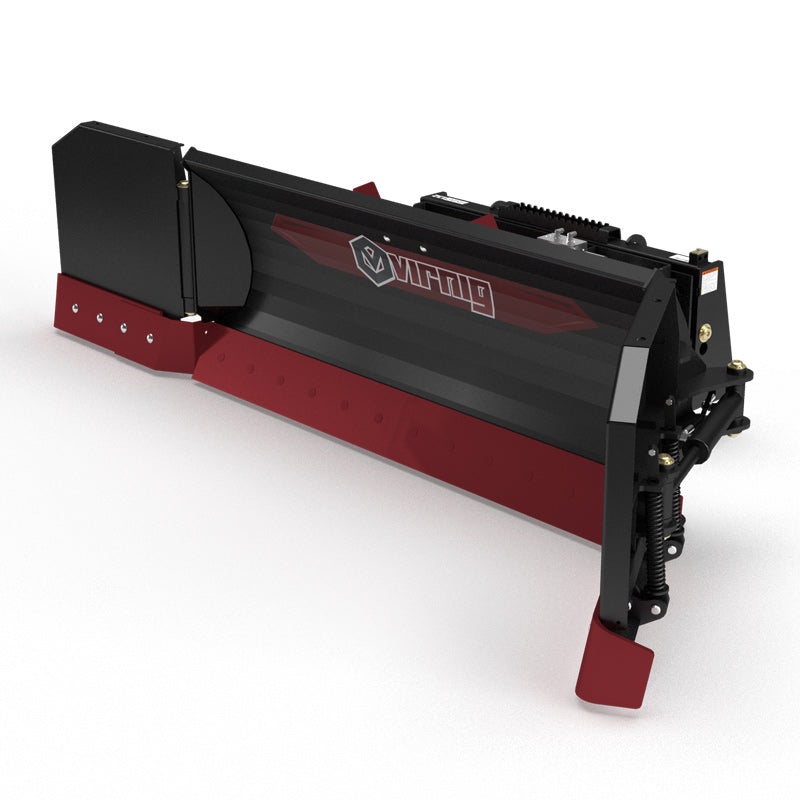

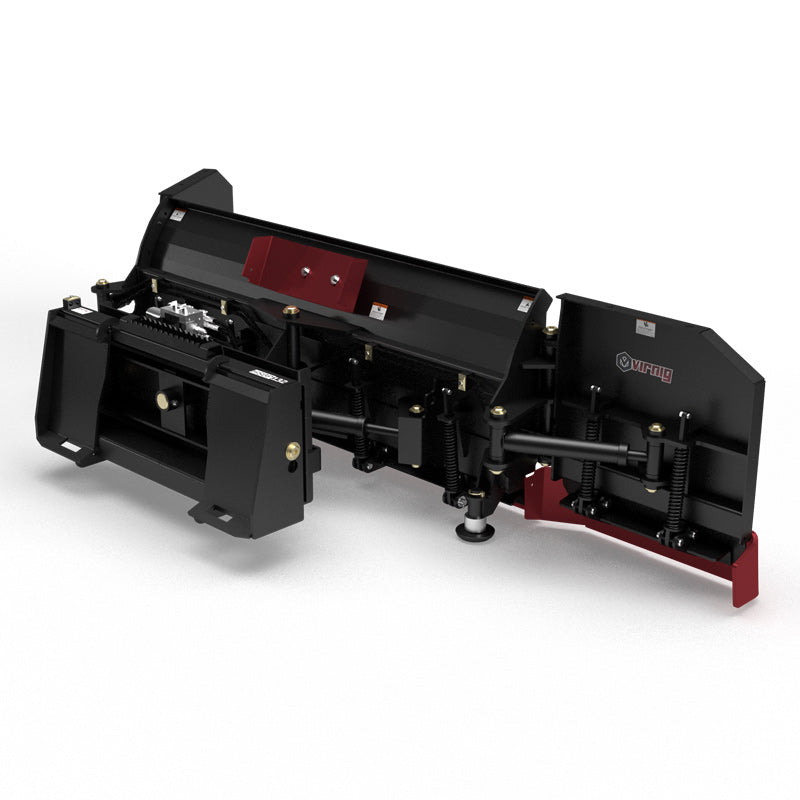

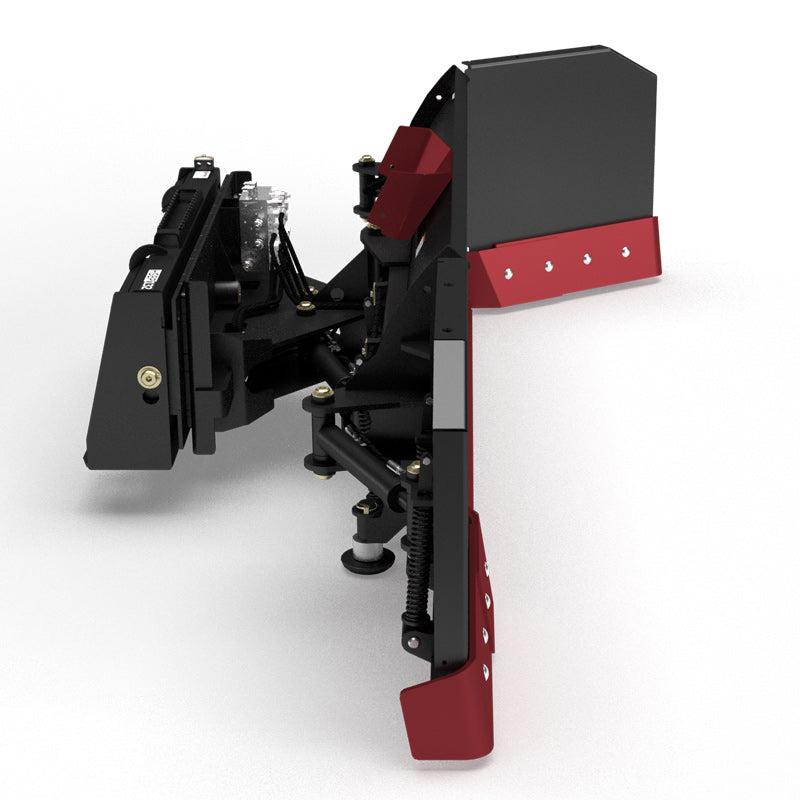

Virnig V60 Hydraulic Snow Blade/Pusher | Models HSBP120, HSBP132, HSBP144 & HSBP156 | Widths 124.5" To 160.5" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
DESCRIPTION

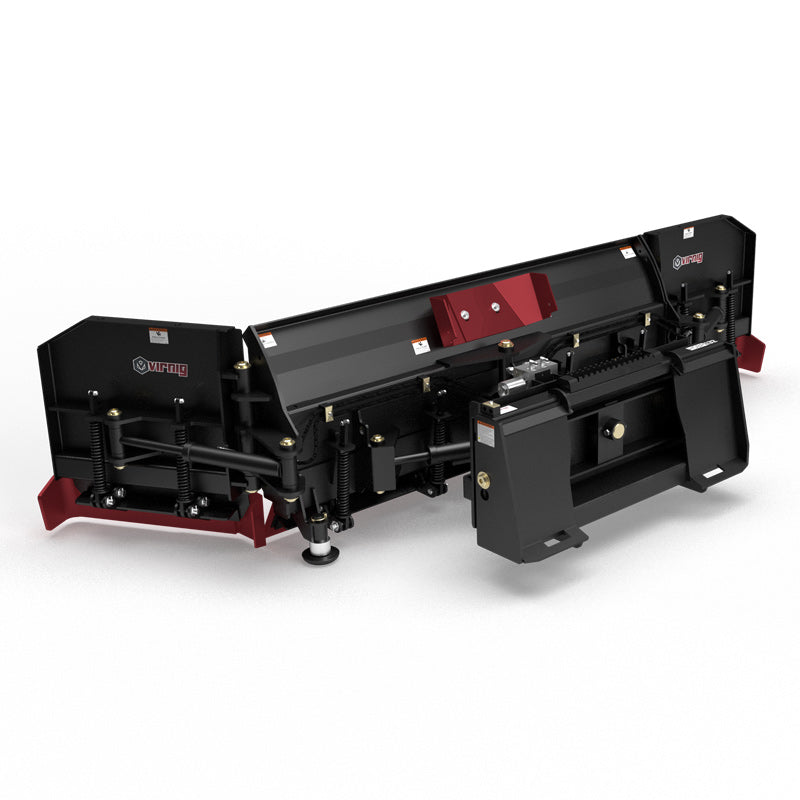

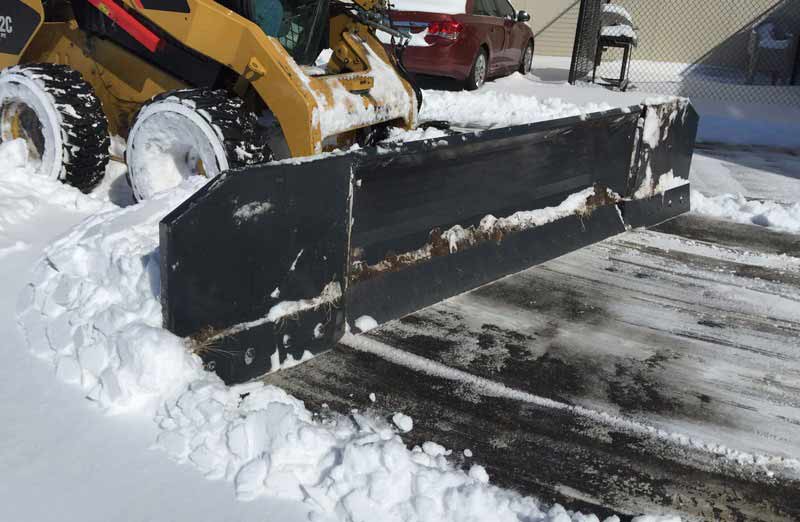

The Virnig V60 Hydraulic Snow Blade/Pusher is the ultimate multi-function snow removal attachment for contractors, municipalities, and commercial property managers who demand faster clearing, cleaner passes, and total control. Engineered for professional use, this industrial-grade skid steer snow blade features independent hydraulic wing control, a free-floating moldboard, and full blade angling letting you switch seamlessly between plowing, pushing, scooping, and windrowing without ever leaving the cab.
Its floating design automatically adapts to uneven ground in every direction, improving cutting performance while still allowing full down pressure when needed. Dual hydraulic crossover relief valves protect the attachment by angling the blade on impact, while the combination of hardened steel and AR400 edges maximizes blade life even in the harshest winter conditions.
Whether you’re clearing tight residential areas or pushing massive commercial lots, the V60 Hydraulic Snow Blade/Pusher eliminates wasted passes, cuts job time dramatically, and gives operators unmatched flexibility and reliability in deep snow, ice, and variable terrain.
Key Features
- Compatible with skid steer loaders requiring 15–25 GPM hydraulic flow for reliable blade and wing control.
- Wide working widths from 124.5" to 160.5" increase snow-clearing capacity on large commercial lots.

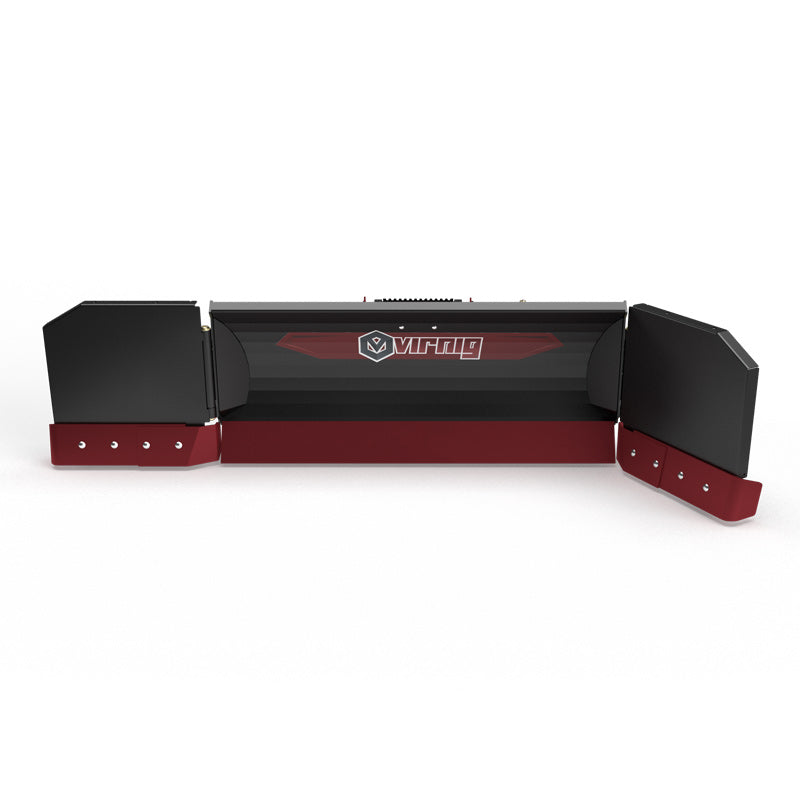

- Independent 60° hydraulic wing angling lets operators switch between plowing, scooping, and windrowing from the cab.
- Main blade angling of ±30° improves efficiency when redirecting snow in tight or open areas.
- Free-floating design adapts to uneven terrain for cleaner scraping and reduced follow-up passes.
- Trip edges on both the main blade and wings protect the skid steer and operator during unexpected impacts.
- Hardened reversible 5/8" × 8" main cutting edge delivers up to 5.5" of wear for extended service life.
- AR400 1/2" wing edges resist abrasion for long-term durability in heavy snow and ice.
- Overall height of 31" and depth of 39.5" provide optimal visibility and maneuverability.
- Heavy-duty cylinders with a 2" bore and 8.375" stroke ensure strong, consistent hydraulic performance.

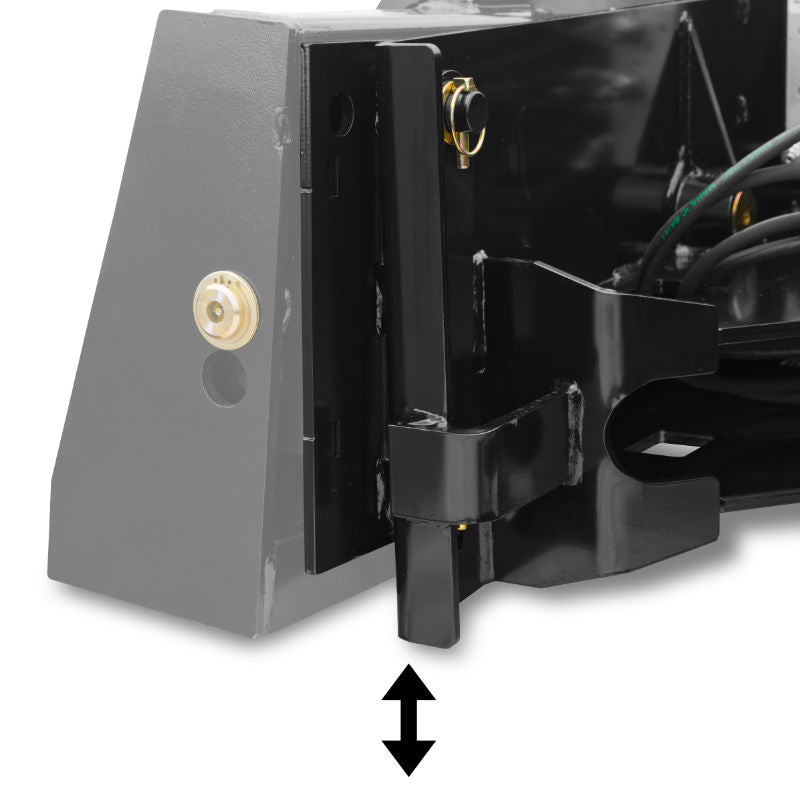

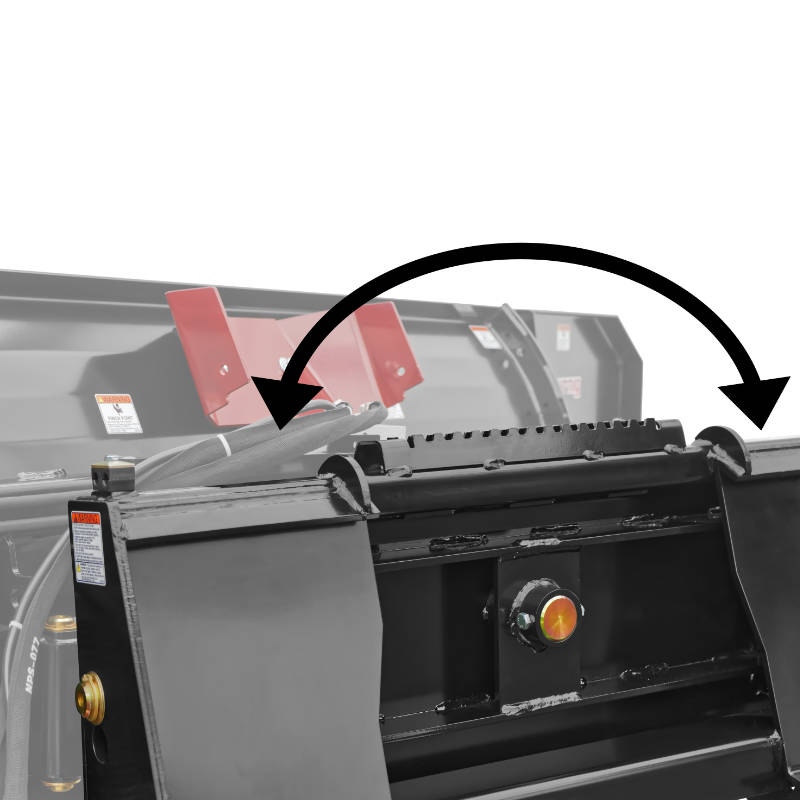

- Floating oscillation of ±4° and ±5° float link angle maintain ground contact on uneven surfaces.
- Weight range of 1,540–1,705 lbs delivers the stability needed for commercial-grade pushing and plowing.
- Infinite blade and wing positioning improves control and adaptability for varying snow depths.
- Suitable for contractors, municipalities, and property managers needing faster, more precise snow removal.
- Designed for skid steers with an operating capacity over 1,800 lbs to handle heavy winter workloads.
Detailed Specifications
| Model | HSBP120 | HSBP132 |
|---|---|---|
| Overall Width, Straight (in) | 124.5 | 136.5 |
| Width at Full Angle, Both Wings Open (in) | 110.0 | 120.5 |
| Width at Full Angle, One Wing Open (in) | 86.0 | 96.5 |
| Width at Full Scoop (in) | 96.5 | 108.5 |
| Main Moldboard Width (in) | 62.0 | 74.0 |
| Overall Height (in) | 31.0 | 31.0 |
| Overall Depth, Straight (in) | 39.5 | 39.5 |
| Blade Angle (Main/Wings) | ±30° / 60° | ±30° / 60° |
| Moldboard Thickness (in) | 0.19 | 0.19 |
| Cutting Edge (Main/Wing) | 5/8" x 8" Bolt-On / 1/2" x 7.75" AR400 | Same |
| Blade Oscillation (°) | ±4 | ±4 |
| Float Link Angle (°) | ±5 | ±5 |
| Cylinder Bore/Stroke (in) | 2.0 / 8.375 | 2.0 / 8.375 |
| Pin Diameters (Cylinder/Hinge) | 1.25 / 1.563 | 1.25 / 1.563 |
| Weight (lbs) | 1540* | 1600* |
| Recommended Skid Steer Loader Capacity | >1800 lbs | >1800 lbs |
| Hydraulic Flow Requirement | 15–25 GPM | 15–25 GPM |
| Model | HSBP144 | HSBP156 |
|---|---|---|
| Overall Width, Straight (in) | 148.5 | 160.5 |
| Width at Full Angle, Both Wings Open (in) | 131.0 | 141.5 |
| Width at Full Angle, One Wing Open (in) | 107.0 | 117.5 |
| Width at Full Scoop (in) | 120.5 | 132.5 |
| Main Moldboard Width (in) | 86.0 | 98.0 |
| Overall Height (in) | 31.0 | 31.0 |
| Overall Depth, Straight (in) | 39.5 | 39.5 |
| Blade Angle (Main/Wings) | ±30° / 60° | ±30° / 60° |
| Moldboard Thickness (in) | 0.19 | 0.19 |
| Cutting Edge (Main/Wing) | Same | Same |
| Blade Oscillation (°) | ±4 | ±4 |
| Float Link Angle (°) | ±5 | ±5 |
| Cylinder Bore/Stroke (in) | 2.0 / 8.375 | 2.0 / 8.375 |
| Pin Diameters (Cylinder/Hinge) | 1.25 / 1.563 | 1.25 / 1.563 |
| Weight (lbs) | 1650* | 1705* |
| Recommended Skid Steer Loader Capacity | >1800 lbs | >1800 lbs |
| Hydraulic Flow Requirement | 15–25 GPM | 15–25 GPM |
Manuals & Documents
Specification Sheet
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

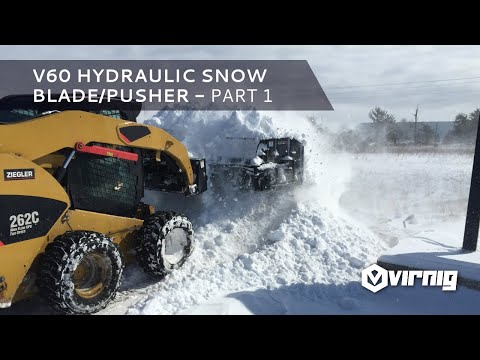

Videos
