Product Description

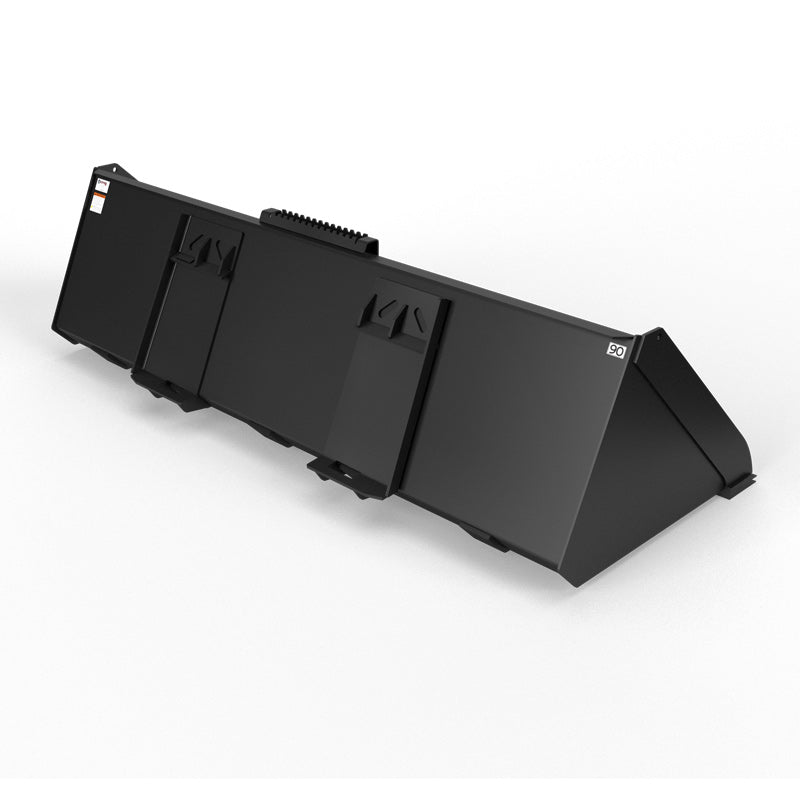

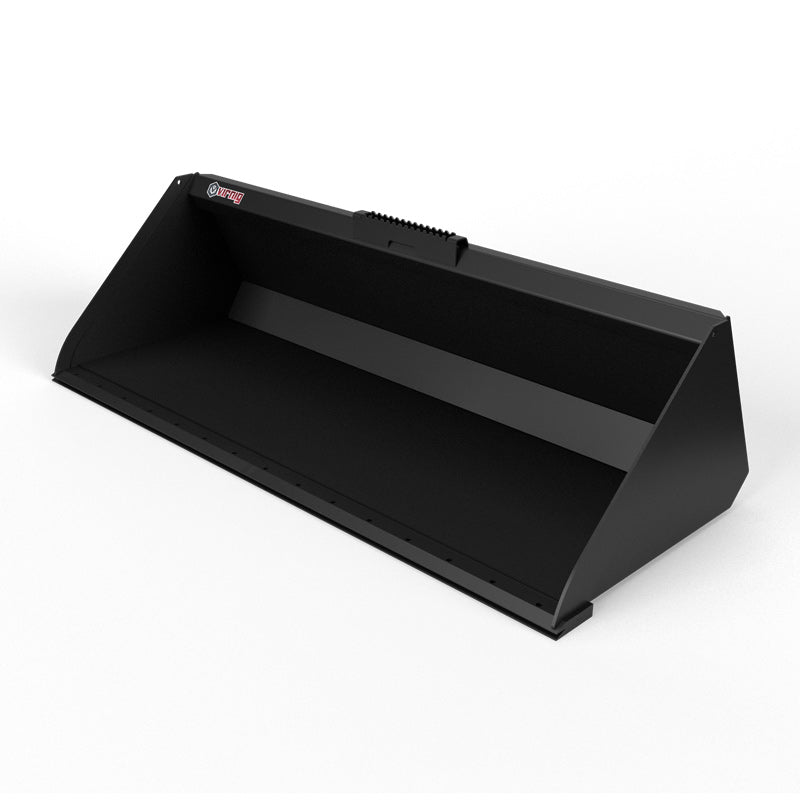

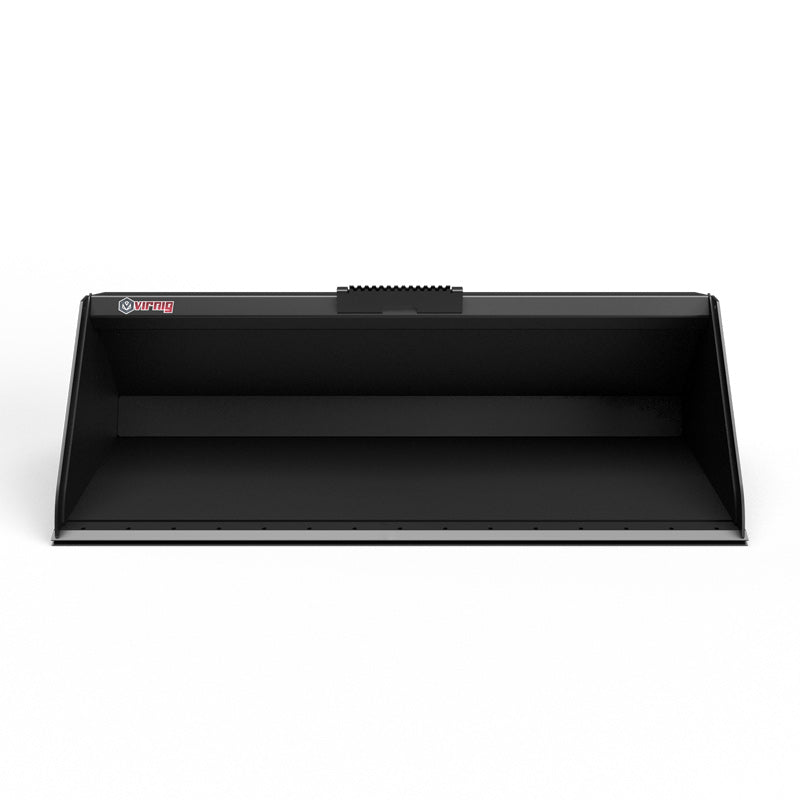

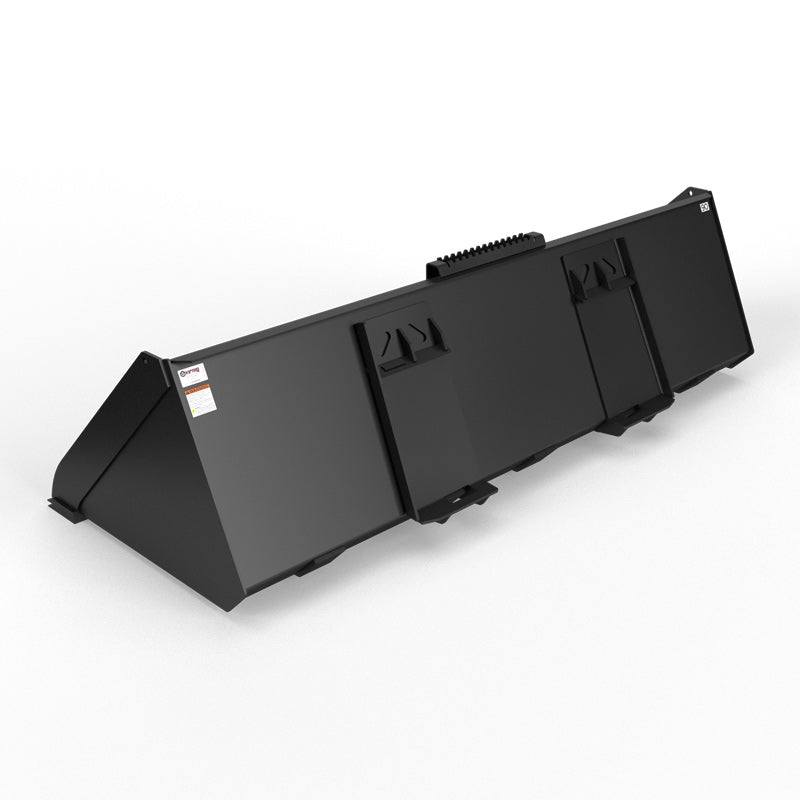

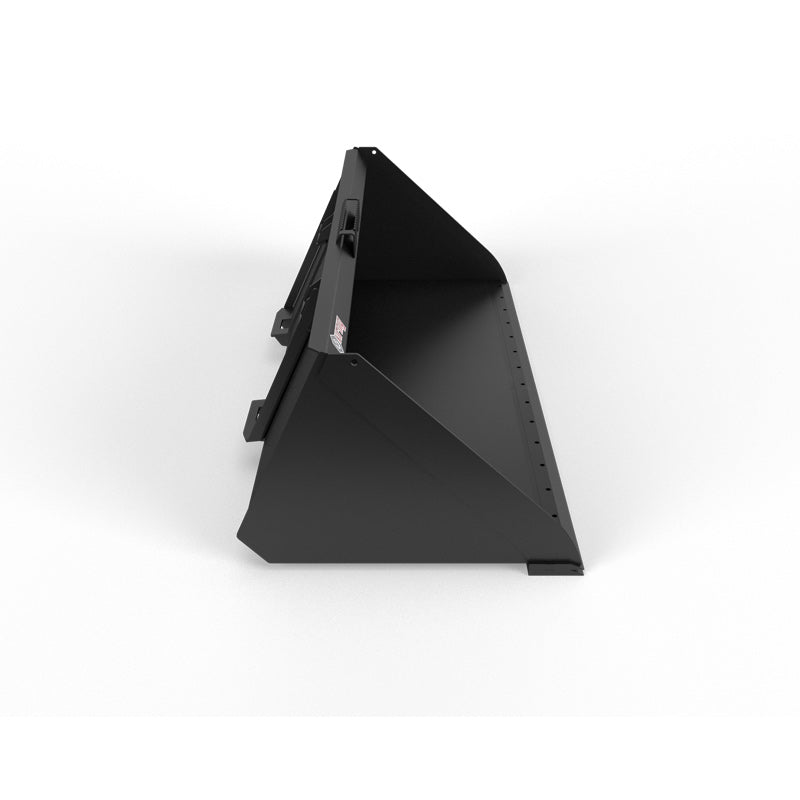

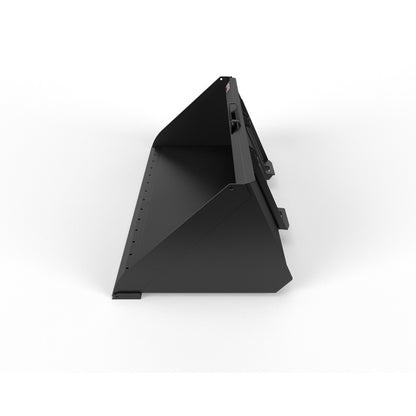

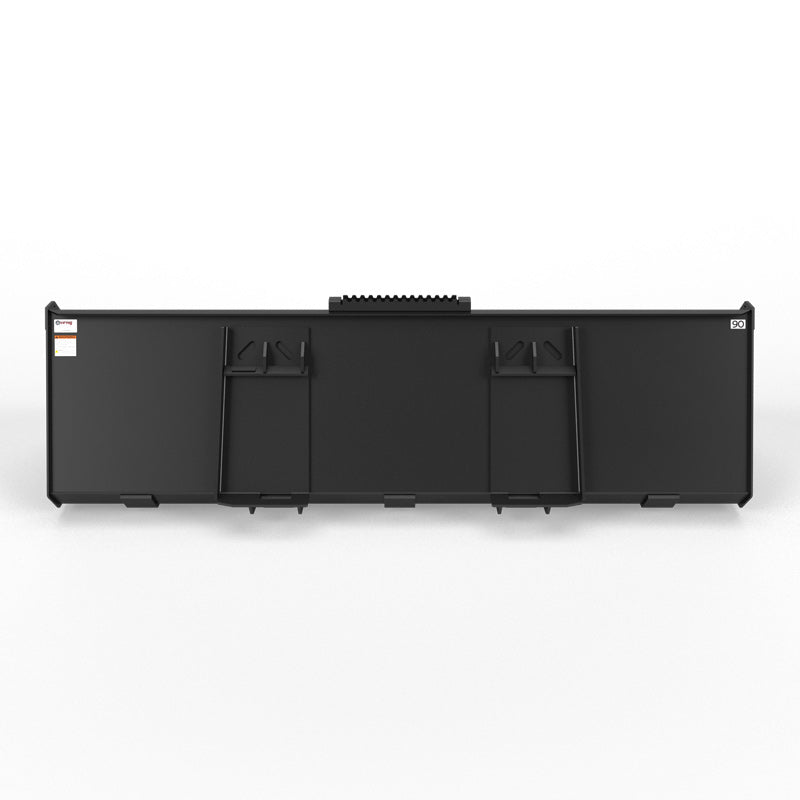

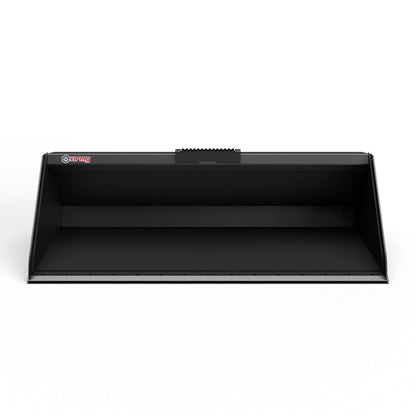

Virnig V60 Utility Bucket | Models HUHV72 To HUHV96 | Widths 72" To 96" | Hydraulic Flow >15 GPM | For Skid Steer
DESCRIPTION
Upgrade your skid steer’s productivity with the Virnig V60 Utility Bucket the ultimate tool for heavy-duty digging, grading, and material handling. Engineered for contractors, landscapers, and site development professionals, this bucket is built to endure the toughest workloads while maximizing efficiency.
Whether you’re cutting sod, excavating virgin soil, grading gravel, or loading bulk materials, the V60’s robust design ensures consistent performance. With reinforced bracing, heavy-duty wear bars, and optional bolt-on edges, this bucket delivers durability that outlasts standard attachments. Its generous capacity and optimized bucket angle make every load easier to manage, reducing operator fatigue and increasing your productivity.
Designed for skid steer loaders with capacities above 2,400 lbs, the V60 Utility Bucket combines strength, precision, and versatility, making it the go-to attachment for demanding outdoor projects.
Key Features
- Heavy-Duty Construction: HD bracing ties top to quick-tach plate, ensuring maximum rigidity under heavy loads.
- Extra Reinforcement: Additional internal brace plate increases strength for handling dense materials.

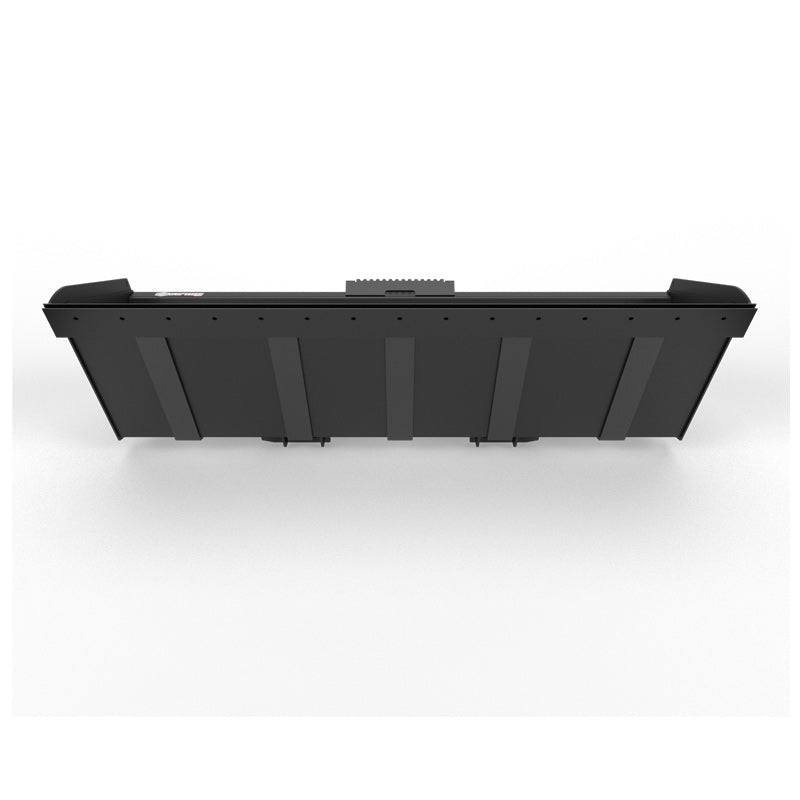

- Durable Wear Bars: 1/2" x 4" wear bars protect the bucket bottom from abrasion and extend service life.
- Optional Bolt-On Edge: Extend bucket life with a reversible 5/8" x 8" bolt-on edge.
- Serrated Edge Option: Ideal for chiseling and breaking up compacted soil or aggregate.
- Hydraulic Flow Range Compatible with machines delivering 15–25 GPM.
- Versatile Widths: Available in widths from 73.5" to 97.5", fitting a wide range of skid steer models.
- Generous Capacity: Struck capacities from 19.2 to 26.0 cu. ft., heaped capacities up to 31.2 cu. ft.
- Optimized Bucket Angle: 66° back angle improves penetration and material retention.
- Heavy-Duty Shell & Side Plates: 0.25" thick steel resists bending and deformation.
- Smooth Material Flow: Deep bucket design ensures efficient loading and reduced spillage.
- Perfect for Landscaping & Excavation: Cuts sod, digs soil, and moves aggregate with ease.
- High Compatibility: Designed for skid steer loaders with a recommended capacity over 2,400 lbs.
- American-Made Quality: Built in the USA with high-grade steel and precise craftsmanship.
- Lightweight for Size: Balanced design offers superior lifting without overloading the loader.
- Operator-Friendly Design: Easy to attach and maneuver, improving workflow and reducing fatigue.
Detailed Specifications
| Feature | HUHV72 |
|---|---|
| Overall Width (in) | 73.5 |
| Inside Width (in) | 71.3 |
| Overall Height (in) | 24.9 |
| Overall Depth (in) | 40.1 |
| Inside Depth (in) | 35.5 |
| Struck Capacity (cu ft) | 19.2 |
| Heaped Capacity (cu ft) | 23.0 |
| Bucket Back Angle (°) | 66 |
| Shell Thickness (in) | 0.25 |
| Side Plate Thickness (in) | 0.25 |
| Wear Bars Under Bucket (qty) | 4 |
| Approx. Weight (lbs) | 720 |
| Hydraulic Flow Range | 15–25 GPM |
| Recommended Loader Capacity (lbs) | >2,400 |
| Feature | HUHV78 |
|---|---|
| Overall Width (in) | 79.5 |
| Inside Width (in) | 77.3 |
| Overall Height (in) | 24.9 |
| Overall Depth (in) | 40.1 |
| Inside Depth (in) | 35.5 |
| Struck Capacity (cu ft) | 20.9 |
| Heaped Capacity (cu ft) | 25.1 |
| Bucket Back Angle (°) | 66 |
| Shell Thickness (in) | 0.25 |
| Side Plate Thickness (in) | 0.25 |
| Wear Bars Under Bucket (qty) | 5 |
| Approx. Weight (lbs) | 775 |
| Hydraulic Flow Range | 15–25 GPM |
| Recommended Loader Capacity (lbs) | >2,400 |
| Feature | HUHV84 |
|---|---|
| Overall Width (in) | 85.5 |
| Inside Width (in) | 83.3 |
| Overall Height (in) | 24.9 |
| Overall Depth (in) | 40.1 |
| Inside Depth (in) | 35.5 |
| Struck Capacity (cu ft) | 22.6 |
| Heaped Capacity (cu ft) | 27.1 |
| Bucket Back Angle (°) | 66 |
| Shell Thickness (in) | 0.25 |
| Side Plate Thickness (in) | 0.25 |
| Wear Bars Under Bucket (qty) | 5 |
| Approx. Weight (lbs) | 815 |
| Hydraulic Flow Range | 15–25 GPM |
| Recommended Loader Capacity (lbs) | >2,400 |
| Feature | HUHV90 |
|---|---|
| Overall Width (in) | 91.5 |
| Inside Width (in) | 89.3 |
| Overall Height (in) | 24.9 |
| Overall Depth (in) | 40.1 |
| Inside Depth (in) | 35.5 |
| Struck Capacity (cu ft) | 24.3 |
| Heaped Capacity (cu ft) | 29.2 |
| Bucket Back Angle (°) | 66 |
| Shell Thickness (in) | 0.25 |
| Side Plate Thickness (in) | 0.25 |
| Wear Bars Under Bucket (qty) | 5 |
| Approx. Weight (lbs) | 855 |
| Hydraulic Flow Range | 15–25 GPM |
| Recommended Loader Capacity (lbs) | >2,400 |
| Feature | HUHV96 |
|---|---|
| Overall Width (in) | 97.5 |
| Inside Width (in) | 95.3 |
| Overall Height (in) | 24.9 |
| Overall Depth (in) | 40.1 |
| Inside Depth (in) | 35.5 |
| Struck Capacity (cu ft) | 26.0 |
| Heaped Capacity (cu ft) | 31.2 |
| Bucket Back Angle (°) | 66 |
| Shell Thickness (in) | 0.25 |
| Side Plate Thickness (in) | 0.25 |
| Wear Bars Under Bucket (qty) | 5 |
| Approx. Weight (lbs) | 890 |
| Hydraulic Flow Range | 15–25 GPM |
| Recommended Loader Capacity (lbs) | >2,400 |
