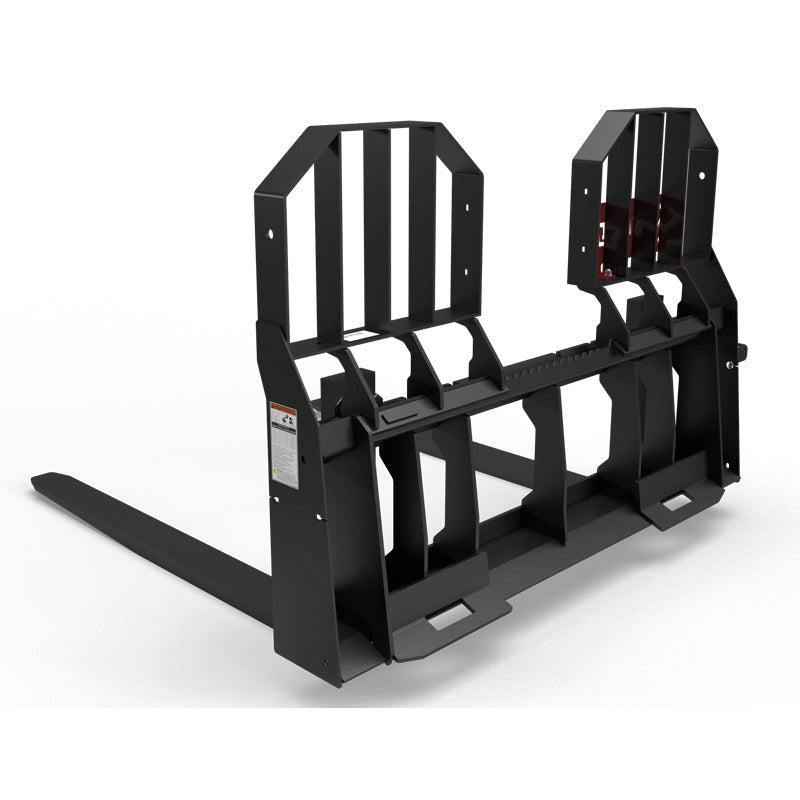

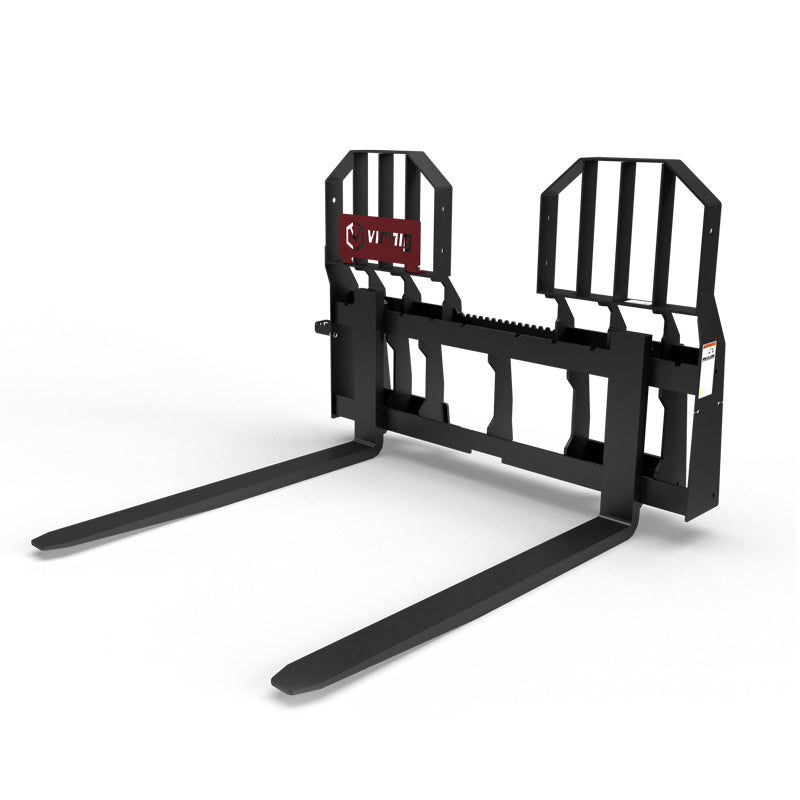

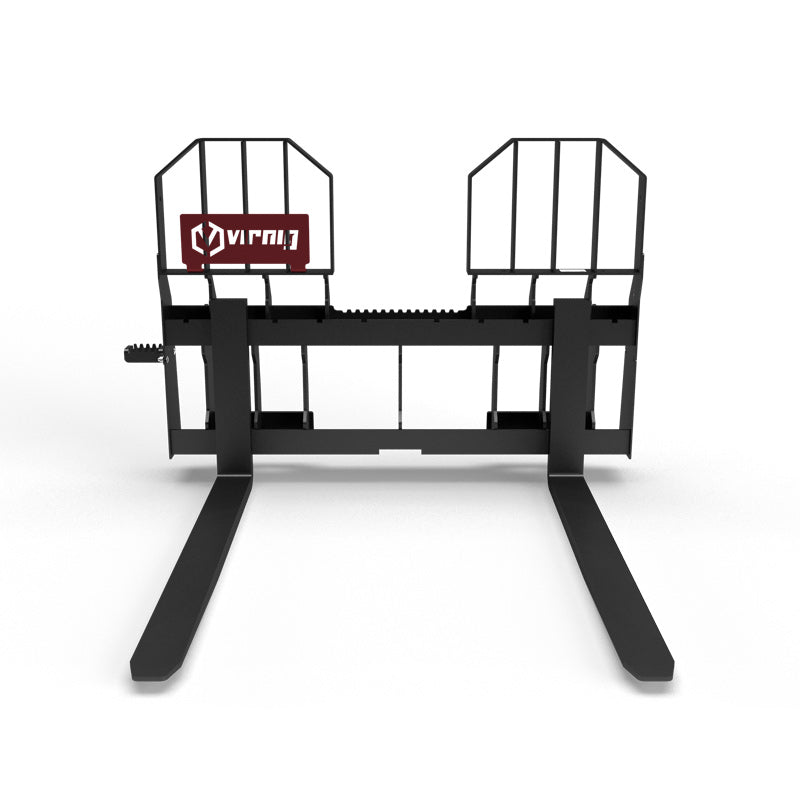

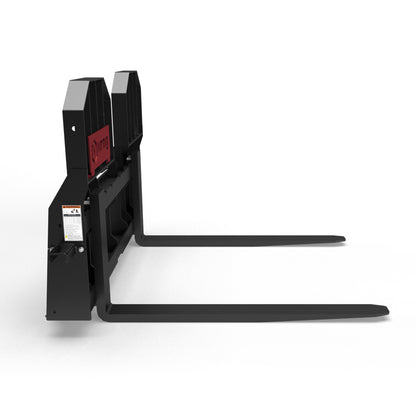

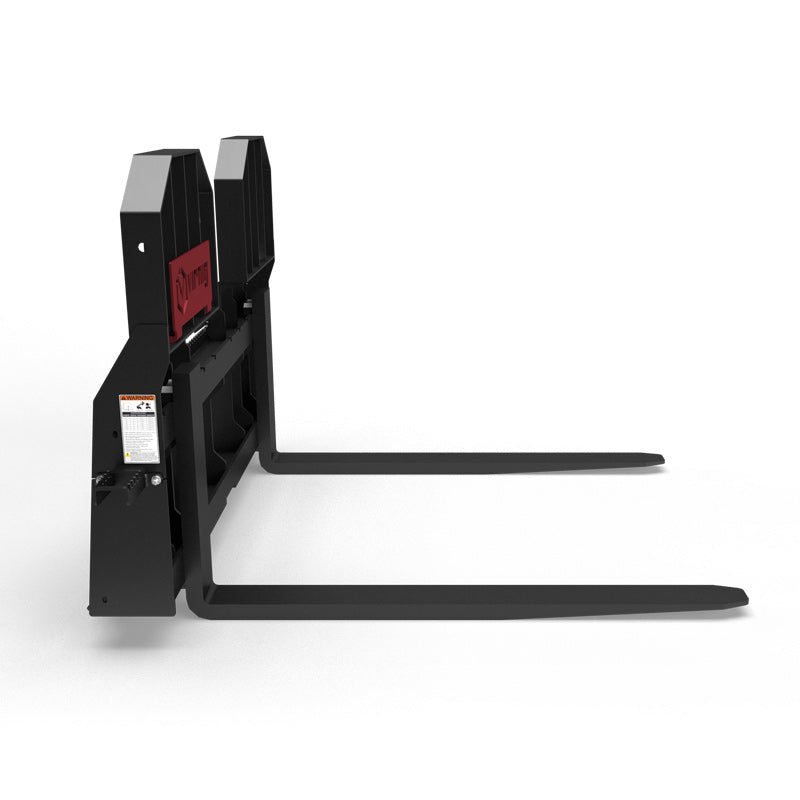

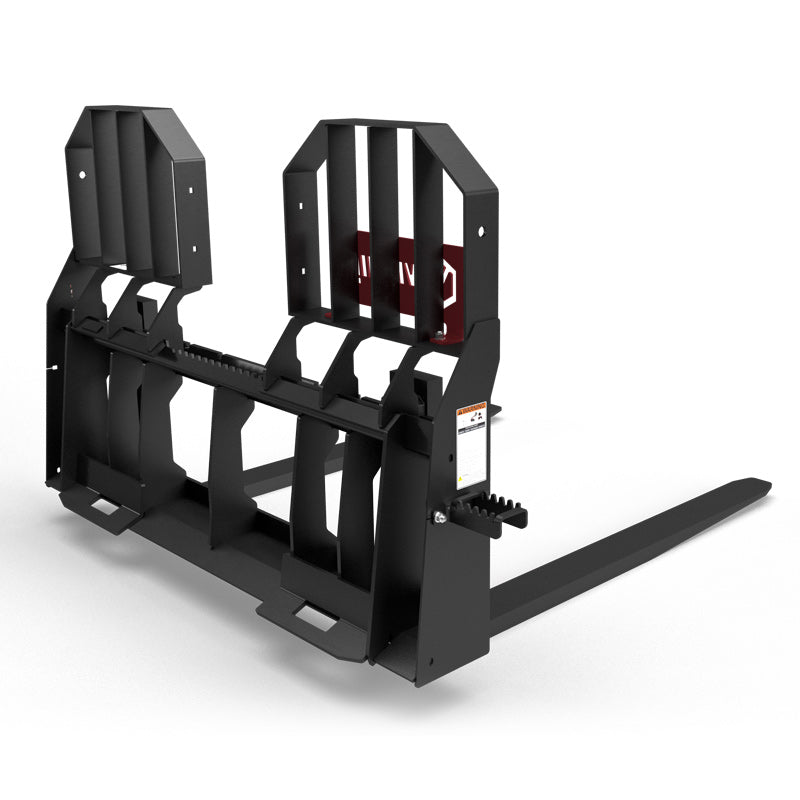

Virnig Wide Rail Walk-Through Pallet Fork | Models WPFWT4240 To WPFWT4862 | Tine Length 42" To 72" | Widths 54.5" To 59.5" | Hydraulic Flow 15 To 25 GPM | For Skid Steer

Virnig Wide Rail Walk-Through Pallet Fork | Models WPFWT4240 To WPFWT4862 | Tine Length 42" To 72" | Widths 54.5" To 59.5" | Hydraulic Flow 15 To 25 GPM | For Skid Steer

$1,480.00
$1,480.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Compatibility: Fits all skid steers with standard quick-tach; ideal for 60–100 HP machines.
  • Fork Sizes: Tine lengths available in 42", 48", 60", and 72" depending on model.
  • Hydraulic Flow Range Compatible with machines delivering 15–25 GPM.
  • Capacity Range: Rated lifting capacity from 4,000–6,200 lbs for heavy-duty material handling.
  • Frame Dimensions: Overall height 37" with walk-through frame and 59.5"/54.5" wide step/frame design.
  • Intended Use: Designed for skid steers to lift pallets, bricks, lumber, and construction materials.
View full details

Product Description

Virnig Wide Rail Walk-Through Pallet Fork | Models WPFWT4240 To WPFWT4862 | Tine Length 42" To 72" | Widths 54.5" To 59.5" | Hydraulic Flow 15 To 25 GPM | For Skid Steer


DESCRIPTION

Upgrade your material handling with the Virnig Wide Rail Pallet Fork Walk-Through, designed for skid steer operators who demand stability, durability, and efficiency on every job site. Engineered with a wider rail system and adjustable ITA Class II forged tines, this attachment makes lifting and transporting heavy loads safer and more precise than ever.

The innovative walk-through design allows quick and easy access to your cab without needing to remove the attachment, saving you valuable time throughout your workday. A 1/4″ high-visibility brickguard and flush-mounted tines ensure better load stabilization, while the 3/4″ beveled rail adds unmatched strength for handling heavy pallets, bricks, or bulky materials.

Built to last, the Virnig Wide Rail Pallet Fork offers a perfect balance of rugged performance and user-friendly design ideal for construction, landscaping, farming, and industrial applications. Make every lift smoother, safer, and more efficient with this must-have skid steer attachment.

Key Features

  • Walk-Through Design Quick cab access without removing the attachment, saving time and effort.
  • Wider Rail for Stability Enhanced balance for lifting heavy pallets and uneven loads.
  • Adjustable ITA Class II Forged Tines Customize tine spacing to accommodate various load sizes.
  • High-Visibility Brickguard 1/4" thick guard improves safety while handling bricks or blocks.
  • Hydraulic Flow Range Compatible with machines delivering 15–25 GPM.
  • Flush-Mounted Tines Helps stabilize loads and prevent slipping during transport.
  • 3/4" Beveled Rail Extra strength for heavy-duty applications and long-term durability.
  • Centered Bracing on Quick-Tach Ensures fast, secure attachment hookup to your skid steer.
  • Bolt-On Step Install on either side for easy operator access and improved safety.
  • Heavy-Duty Construction Supports capacities from 4,000 to 6,200 lbs.
  • Multiple Width Options 42", 48", 55", and 60" options fit a variety of skid steer models.
  • Optimized for Material Handling Perfect for pallets, bricks, blocks, and industrial materials.
  • Smooth Load Distribution Reduces strain on your skid steer and improves maneuverability.
  • Versatile Applications Ideal for construction, landscaping, agriculture, and warehouse work.
  • Easy Maintenance Durable design requires minimal upkeep for long-lasting performance.
  • Enhanced Safety Features Every detail, from beveled rails to brickguards, designed to protect operators and loads.

Detailed Specifications

Specification WPFWT4240 WPFWT4840
Overall Width (w/ Step/Frame) 59.5" / 54.5" 59.5" / 54.5"
Overall Height 37.0" 37.0"
Tine Length x Width x Thickness 42" x 4" x 1.375" 48" x 4" x 1.375"
Tine Space Min / Max 8.9" / 49.1" 8.9" / 49.1"
Approx. Weight 400 lbs 420 lbs
Capacity 4,000 lbs 4,000 lbs
Hydraulic Flow Required 15–25 GPM 15–25 GPM
Recommended Skid Steer HP 60–100 HP 60–100 HP



Specification WPFWT4255 WPFWT4855
Overall Width (w/ Step/Frame) 59.5" / 54.5" 59.5" / 54.5"
Overall Height 37.0" 37.0"
Tine Length x Width x Thickness 42" x 4" x 1.5" 48" x 4" x 1.5"
Tine Space Min / Max 8.9" / 49.1" 8.9" / 49.1"
Approx. Weight 420 lbs 435 lbs
Capacity 5,500 lbs 5,500 lbs
Hydraulic Flow Required 15–25 GPM 15–25 GPM
Recommended Skid Steer HP 60–100 HP 60–100 HP



Specification WPFWT6055 WPFWT7255
Overall Width (w/ Step/Frame) 59.5" / 54.5" (Assumed 72" / 67")
Overall Height 37.0" 37.0"
Tine Length x Width x Thickness 60" x 4" x 1.5" 72" x 4" x 1.5"
Tine Space Min / Max 8.9" / 49.1" 8.9" / 69.1"
Approx. Weight 470 lbs 500 lbs
Capacity 5,500 lbs 5,500 lbs
Hydraulic Flow Required 15–25 GPM 15–25 GPM
Recommended Skid Steer HP 60–100 HP 60–100 HP



Specification WPFWT4862
Overall Width (w/ Step/Frame) 59.5" / 54.5"
Overall Height 37.0"
Tine Length x Width x Thickness 48" x 4" x 1.75"
Tine Space Min / Max 8.9" / 49.1"
Approx. Weight 450 lbs
Capacity 6,200 lbs
Hydraulic Flow Required 15–25 GPM
Recommended Skid Steer HP 60–100 HP
