Product Description

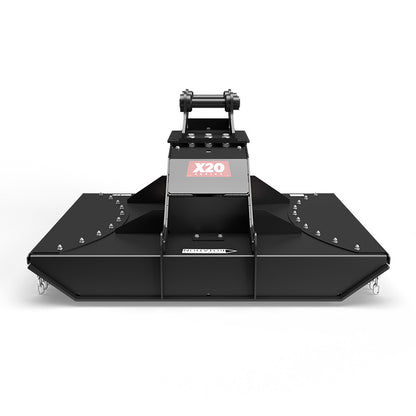

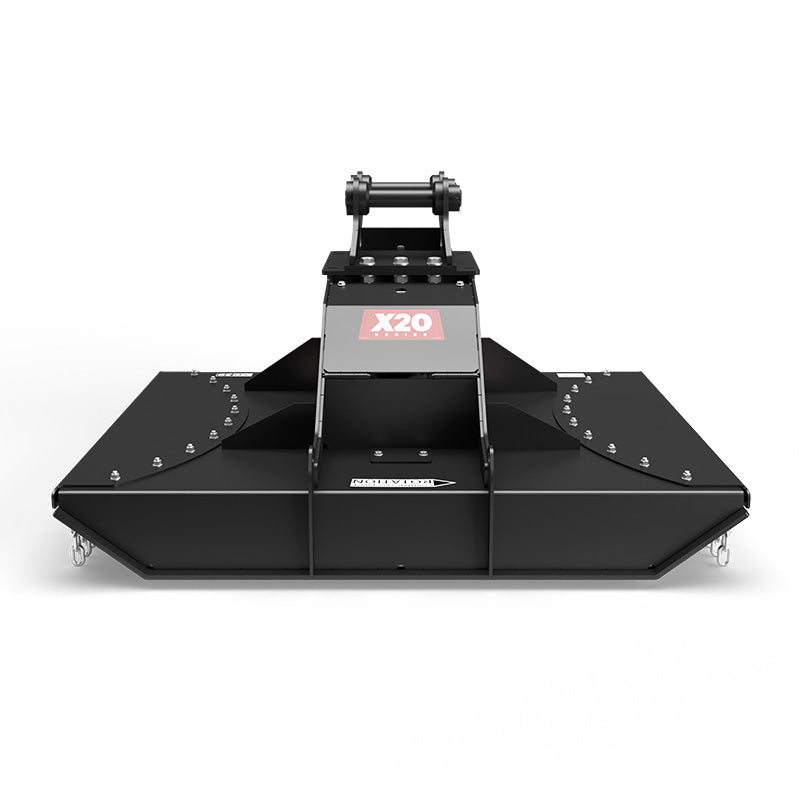

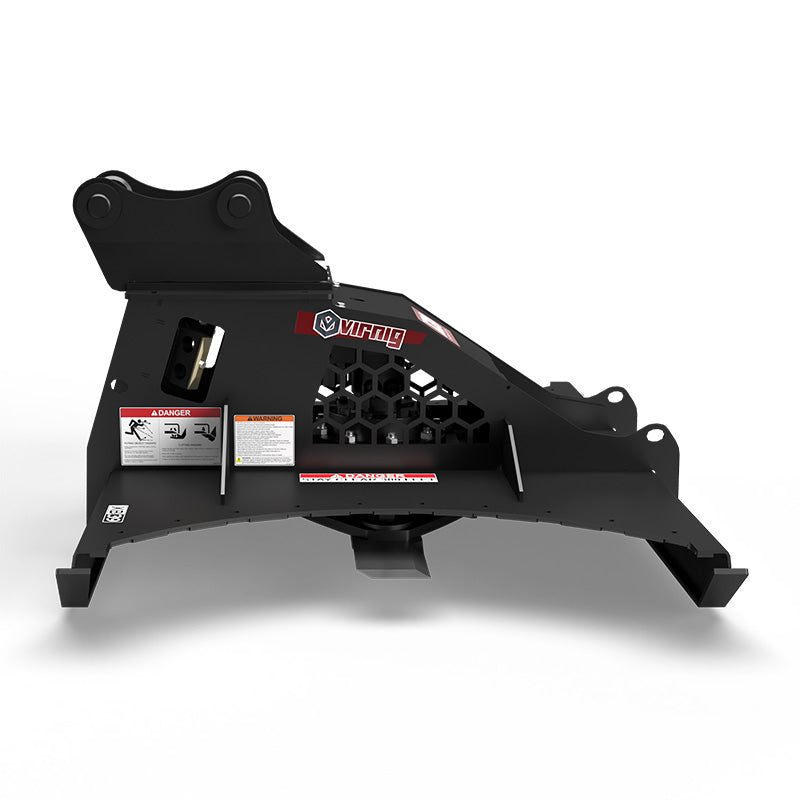

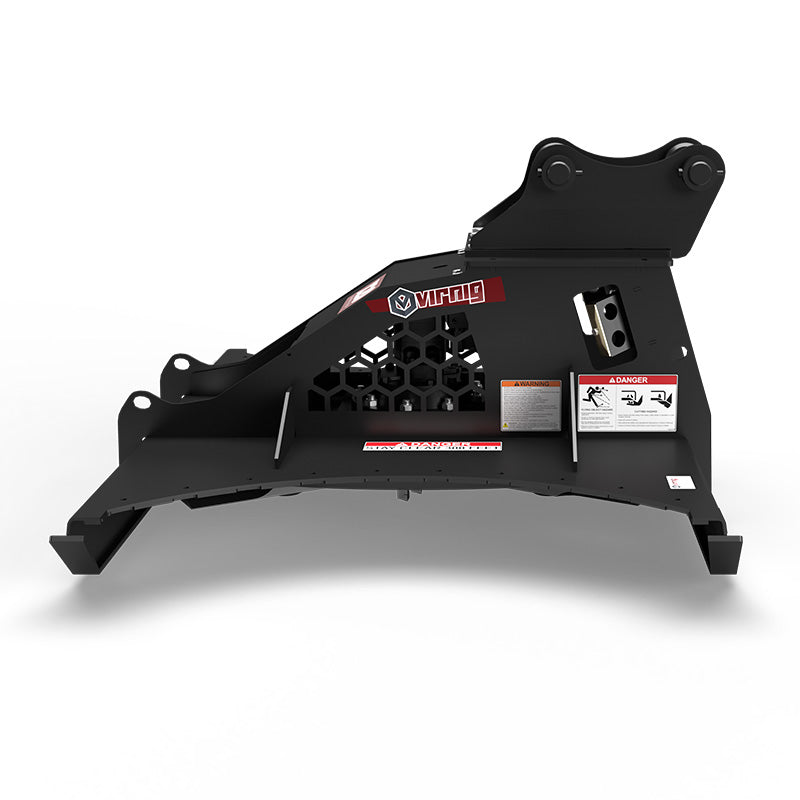

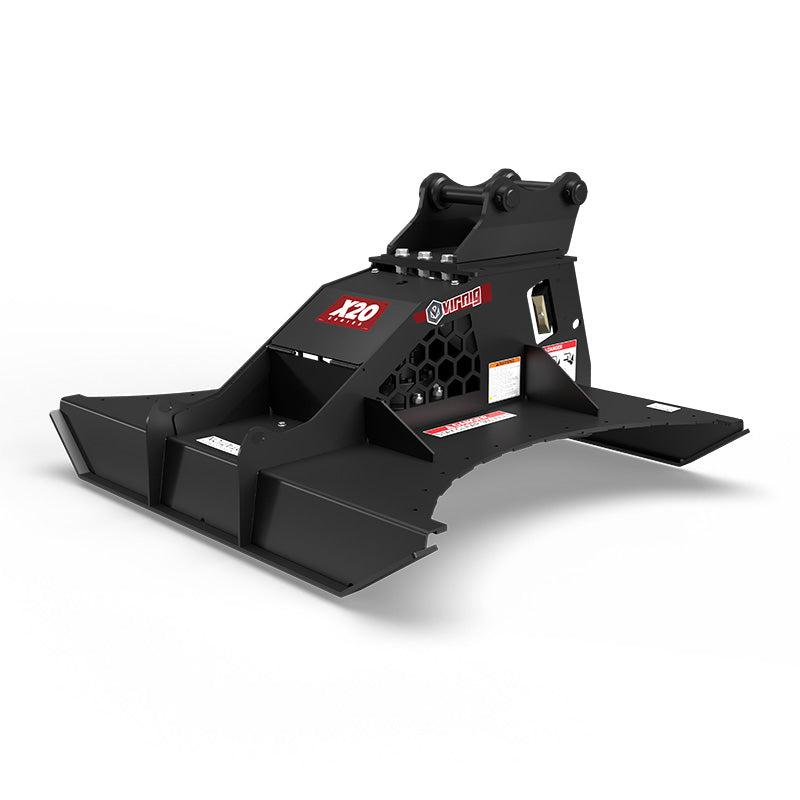

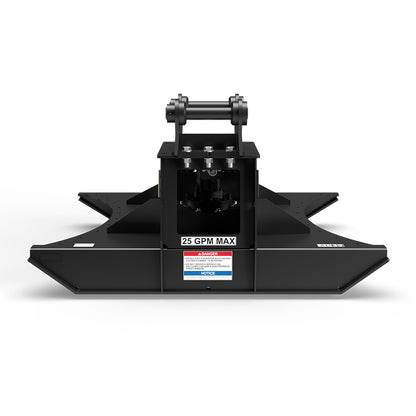

Virnig X20 Mini Excavator Rotary Brush Cutter | Width 40″ | Machine Size 3.25 To 7.5 Tons | For Mini Excavators
DESCRIPTION
Take on tough land-clearing jobs with ease using the Virnig X20 Mini Excavator Rotary Brush Cutter. Built to cut through dense brush, small trees, and overgrown vegetation up to 3" in diameter, this powerful attachment delivers faster and more efficient results compared to 36" mini-excavator cutters. With a 40″ cutting width, you can tackle larger areas in less time, boosting your productivity.
Weighing just 510 lbs, the X20 is engineered for compatibility with mini excavators weighing between 3.25 To 7.5 Tons (6,500 and 15,000 lbs). Its direct-drive Eaton® motor, coupled with relief valve protection, eliminates the need for a case drain, simplifying your setup and reducing downtime. The cutter’s design is optimized for safety, with a deck that helps contain flying debris and optional side curtains for enhanced containment during operation. For an even smoother cut and a more refined finish, you can add optional carbide teeth to the blade.

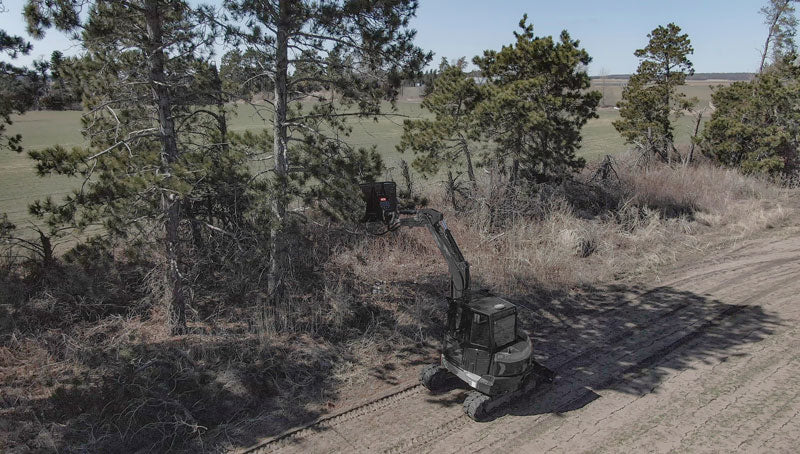

Whether you're clearing brush on a construction site, preparing a plot of land, or maintaining trails, the Virnig X20 is your reliable partner for quick and efficient brush clearing. Built for rugged conditions, it ensures maximum uptime and minimal maintenance, so you can focus on getting the job done.
Key Features
- 40″ Cutting Width: Clear more ground faster with a wider cutting path than standard 36″ cutters.
- Cuts Up to 3″ Diameter Trees: Handle dense brush, small trees, and tough vegetation with ease.
- Up to 35% Faster Blade Speed: Blade tip speeds range from 7,880 to 15,155 FPM depending on your flow rate, cutting through material with exceptional speed.
- Lightweight at 510 lbs: Perfectly balanced for mini-excavators between 3.25 To 7.5 Tons (6,500 and 15,000 lbs).
- Direct Drive Eaton® Motor: No case drain required for a simpler setup and smoother operation.
- Relief Valve Protection: Safeguards against motor damage by providing relief in case of excessive pressure.
- Safety-First Deck Design: Deck is designed to limit flying debris, keeping the operator safe during use.

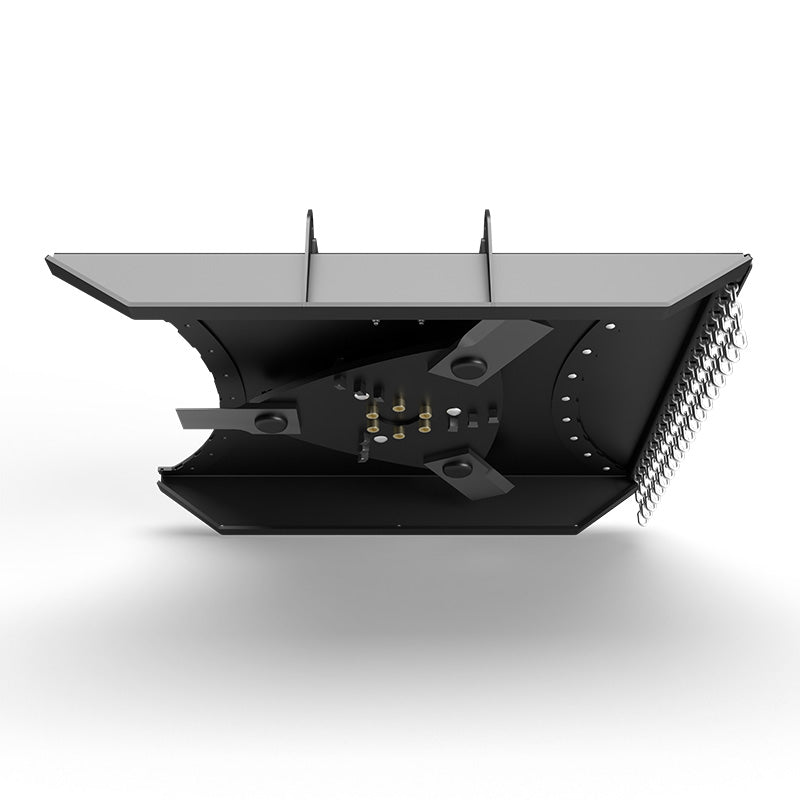

- Optional Side Curtains: Add one or two bolt-on side curtains for maximum debris containment.

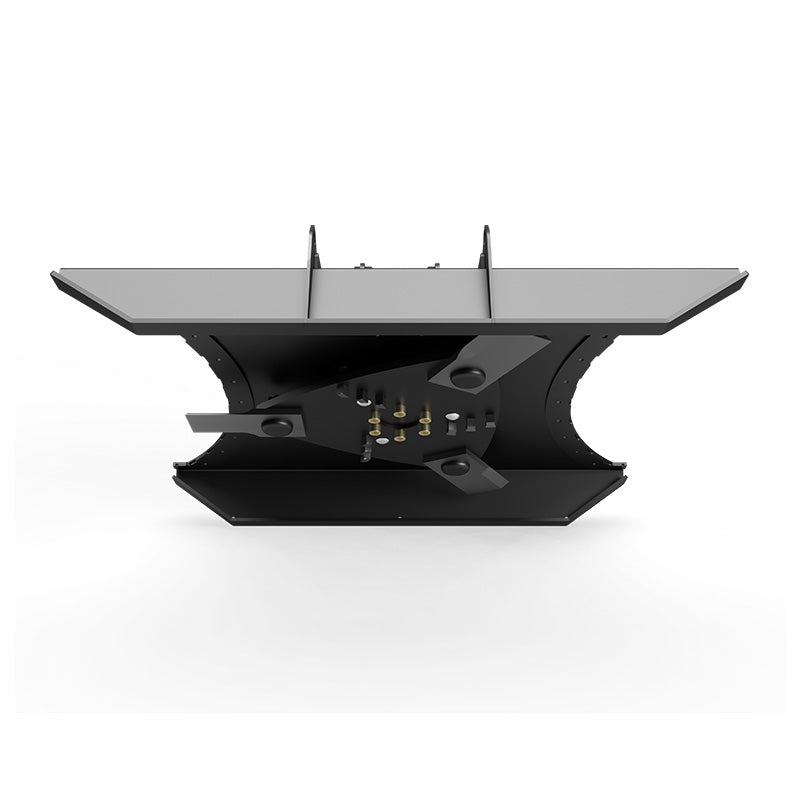

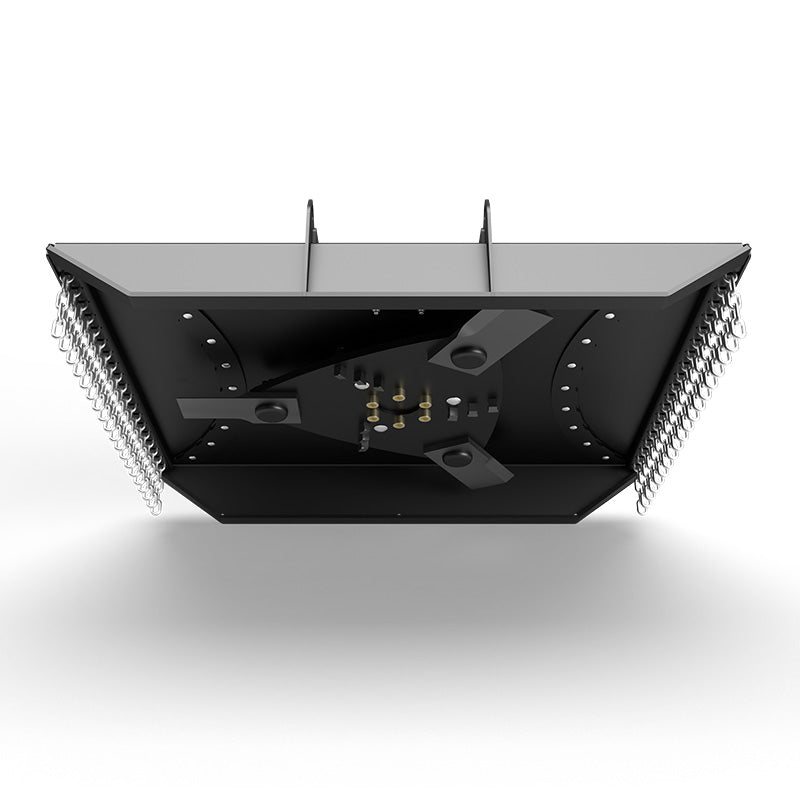

- Rounded Flywheel with 3 Double-Sided Blades: Built to bounce off obstacles like stumps without damage.
- Carbide Teeth Option: Add optional carbide teeth for a finer, more polished finish on cleared areas.

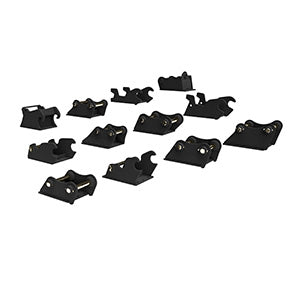

- Bolt-On Hanger Brackets: Quick and easy attachment changes to fit various excavator models.
- Compatible with Most Mini-Excavators: Hanger brackets available for most brands—please consult Virnig for compatibility.
- Standard 90″ Hoses & Couplers: Ready to connect to your mini excavator with included hoses and couplers.
- Spindle & Motor Guard Protection: Keep the vital parts of your cutter shielded from damage during use.
- Tough Deck Construction: 3/16″ thick deck provides durability for long-term performance in harsh conditions.
- Optional Teeth for Enhanced Cutting: For better performance and a cleaner finish, carbide teeth can be added to the blades.
- Max Operating Pressure of 3,500 PSI: Built to handle tough tasks with heavy-duty hydraulic performance.
Detailed Specifications
| Feature | Details |
|---|---|
| Model | XB39 |
| Cut Width (Inches) | 40.1 |
| Overall Width (Inches) | Without Sides: 52.5, With Sides: 53.1 |
| Height (Inches) | Overall: 19.7, Deck: 6.1 |
| Depth (Inches) | 45.1 |
| Minimum Cut Height (Inches) | 2.3 |
| Cutting Capacity (Diameter) | 3.0 |
| Deck Thickness (Inches) | Top: 3/16, Side: 3/16 |
| Recommended Flow Rate (GPM) | 13-25 |
| Max Operating Pressure (PSI) | 3500 |
| Approximate Weight (Pounds) | Without Sides: 510, With Sides: 590 |
| Carbide Teeth (Optional) | 6 lbs per tooth, 9 teeth |
| Recommended Mini-Excavator Weight | 3.25 To 7.5 Tons (6,500 - 15,000 lbs.) |
| Hanger Bracket Weight (Pounds) | 80 - 150 (depending on model) |
| Blade Tip Speeds (FPM) | 7,880 (13 GPM) to 15,155 (25 GPM) |
Manuals & Documents
Specification Sheet
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!
