Product Description

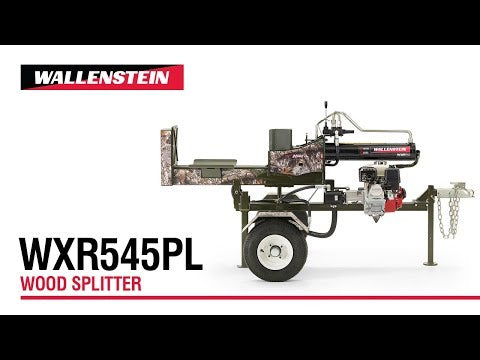

Wallenstein | Log Splitter | Model WXR545PL | 24" Split Opening | 22 Ton Hydraulic Force | Horizontal, Vertical & 20° Split Angle | For Heavy-Duty Wood Processing
DESCRIPTION

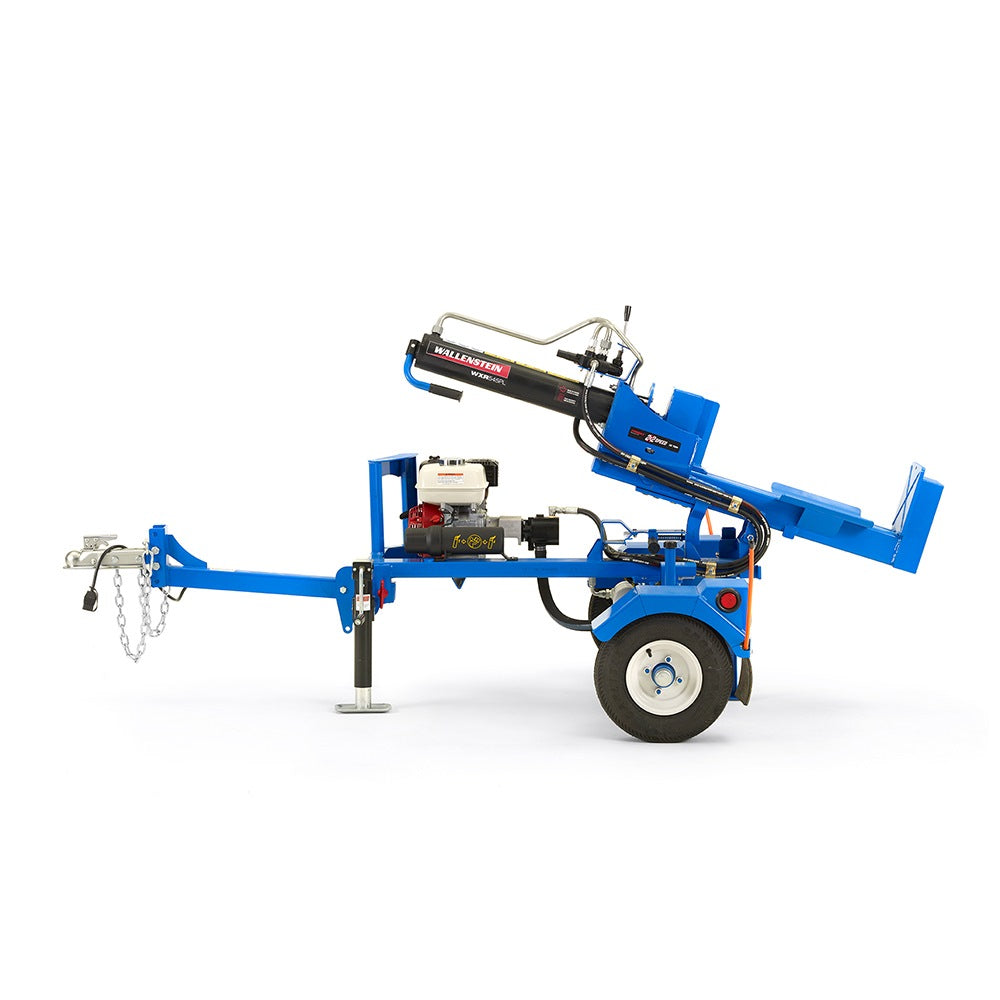

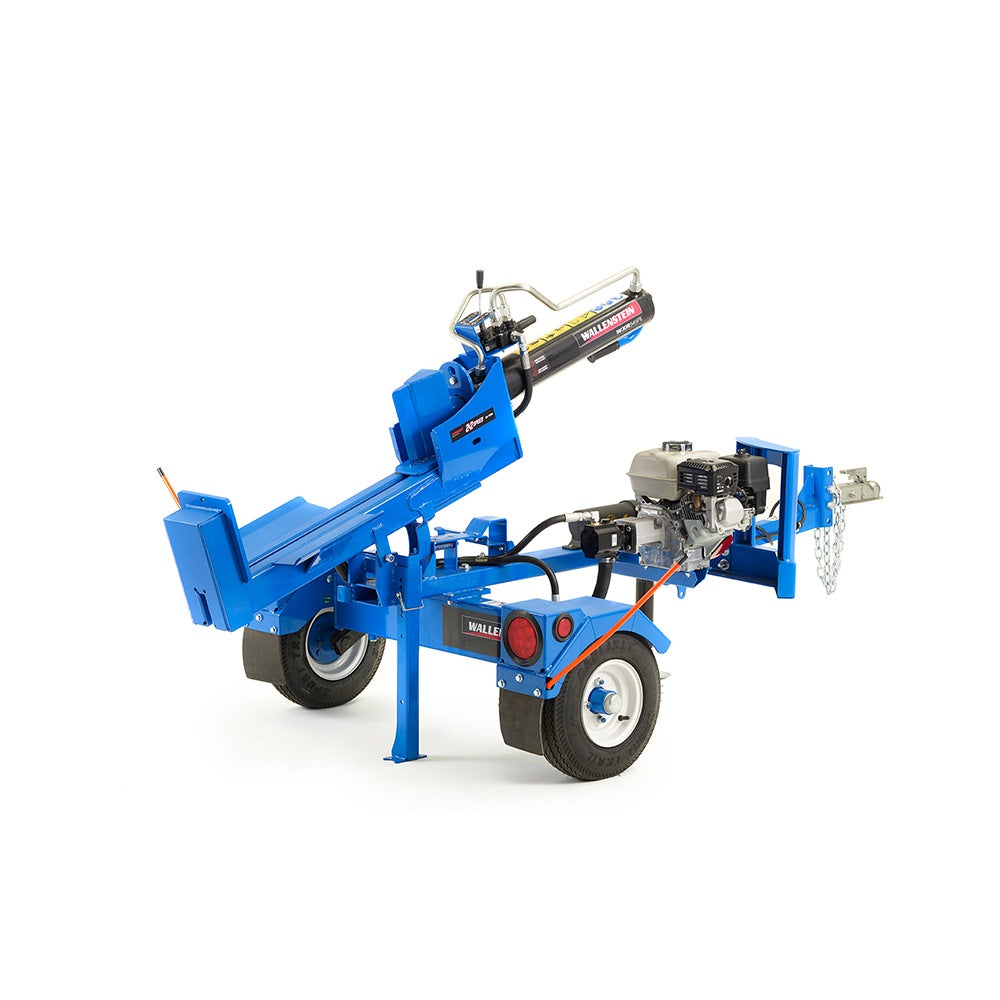

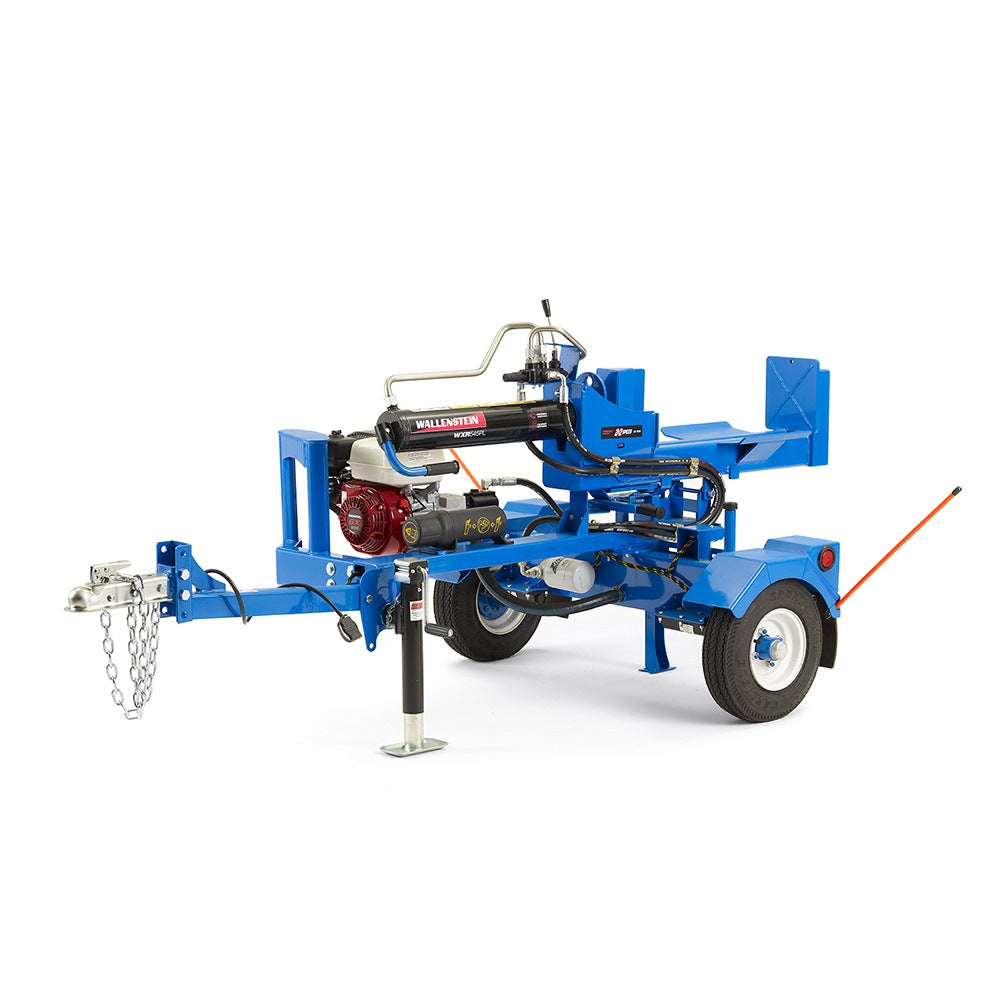

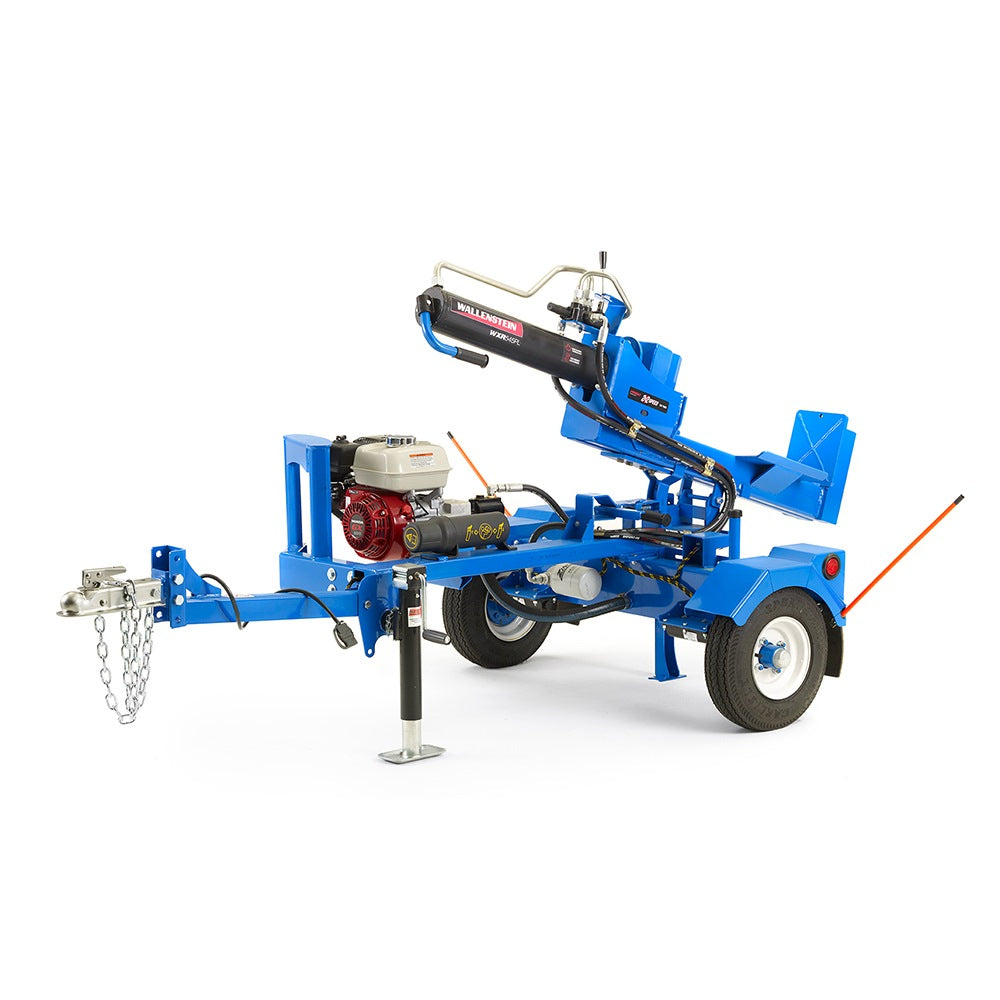

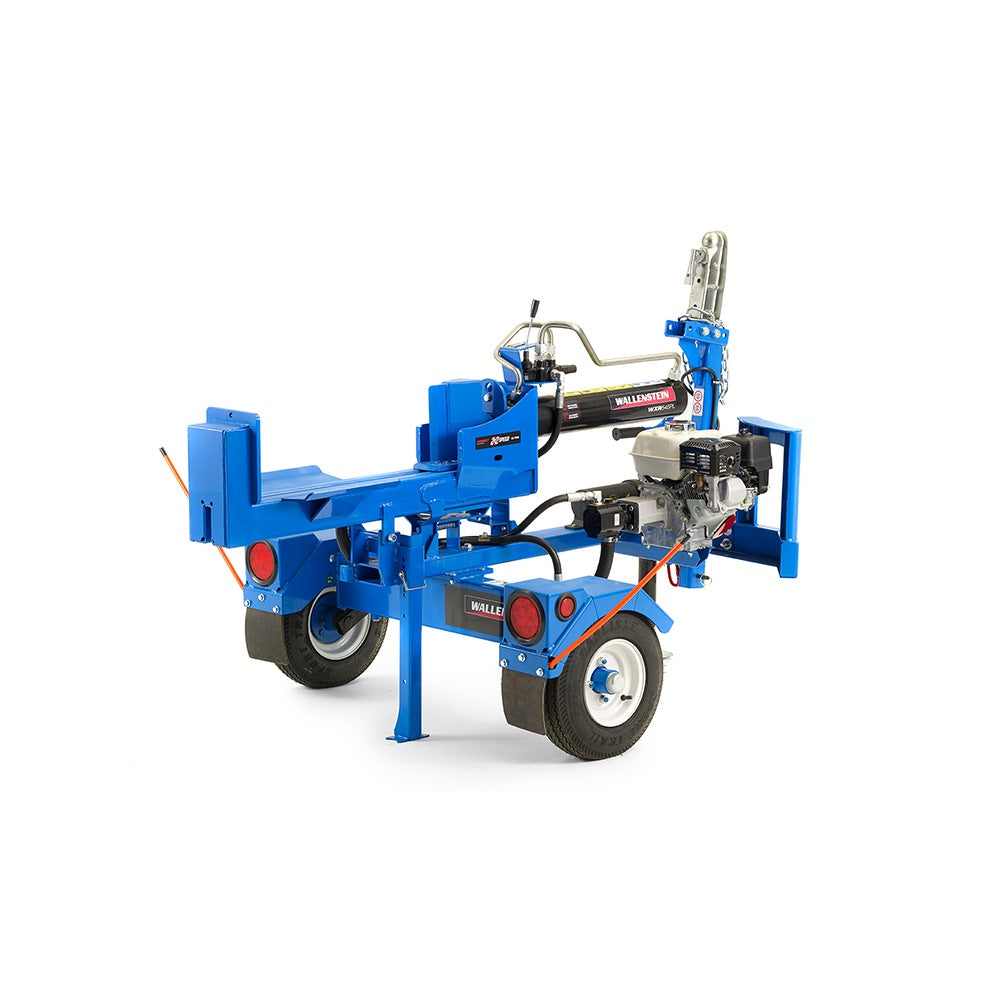

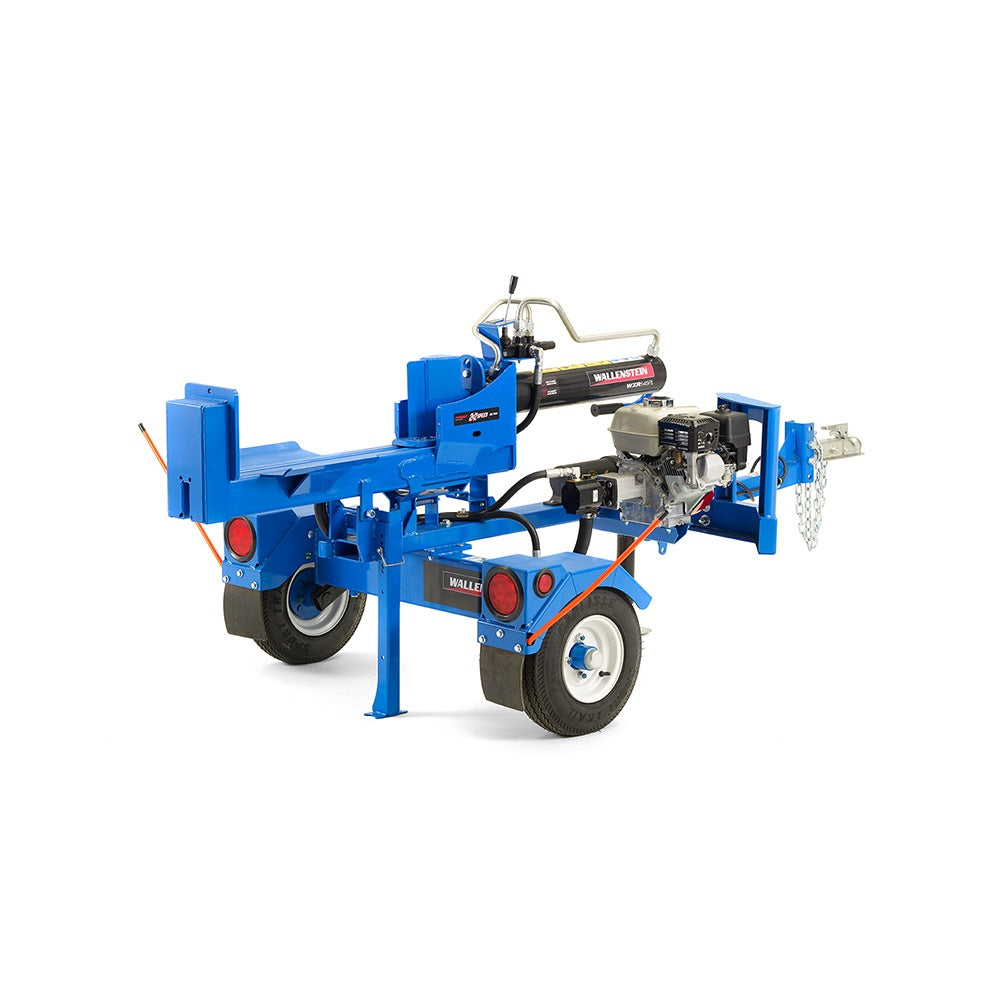

Tame even the toughest firewood with the Wallenstein WXR545PL a premium, gas-powered log splitter built for farmers, homesteaders, and forestry pros who demand reliability and performance. Powered by a rugged 196cc Honda GX200 engine, the WXR545PL delivers a 22-ton splitting force and handles logs up to 24 inches long with ease.
Whether you're working horizontally, vertically, or at a convenient 20° angle for ergonomic splitting, this 3-position log splitter adapts to your needs. Its compact design, quick cycle time (just 10.3 seconds full cycle), and ladder-style hitch for towing make it the ideal choice for farm operations, woodlot owners, and rental fleets seeking versatility in a single machine.
Built with Wallenstein’s hallmark Canadian craftsmanship, the WXR545PL offers durability you can trust, season after season.
Key Features
- 22-Ton Hydraulic Split Force Built for tough hardwoods, delivering professional-grade performance in a compact footprint.

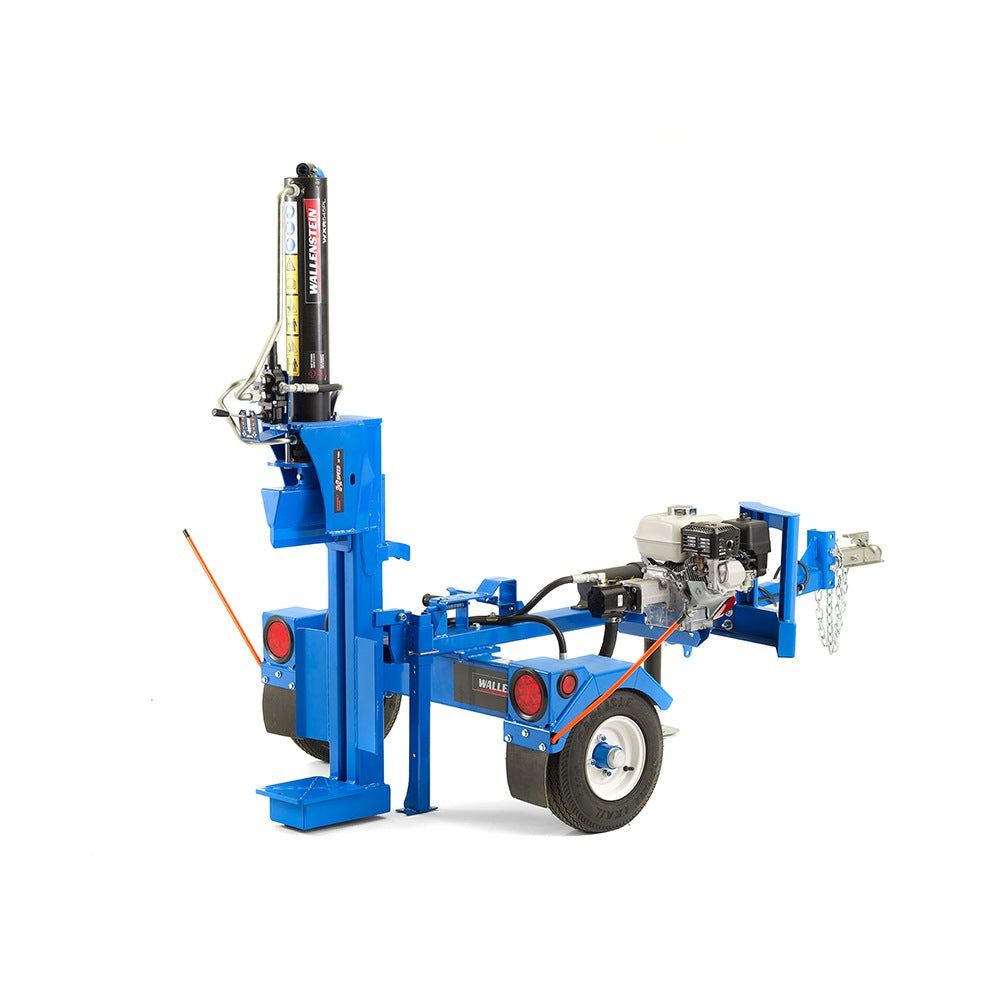

- 3-Way Splitting Orientation Switch easily between horizontal, vertical, and 20° angles to reduce log lifting and operator fatigue.
- Reliable Honda GX200 Engine 196cc commercial-grade engine known for durability, fuel efficiency, and easy starts in cold weather.
- Fast Cycle Time Average 5-second split time, 10.3 seconds full cycle to keep your workflow moving.
- Towable Convenience Highway-towable with 2" ladder-style coupler and rugged tires for farm or job site transport.
- Ergonomic Bed Height Work comfortably at a 24" splitting platform that minimizes bending and strain.
- Rugged Design Engineered for agricultural and commercial use, perfect for rental yards or long-haul farm use.
Detailed Specifications
| Specification | Details |
|---|---|
| Model | WXR545PL |
| Engine | Honda GX200 (196 cc) |
| Split Force | 22 Ton |
| Splitting Orientation | Horizontal / Vertical / 20° Angle |
| Split Opening | 24" (61 cm) |
| Cylinder Diameter | 4" (10 cm) |
| Cycle Time (Avg/Full) | 5 sec / 10.3 sec |
| Wedge Height | 9" (23 cm) |
| Bed Height | 24" (61 cm) |
| Dimensions (L×W×H) | 108" x 49" x 45" (274×124×114 cm) |
| Weight | 625 lbs (283 kg) |
| Hydraulic Capacity | Integrated System |
| Fuel Tank Capacity | 0.8 US gal (3 L) |
| Tires | 4.80 x 8 |
| Hitch Type | 2" Ladder Style Ball Coupler |
| Towable | Yes – Towable On Site & Road |
