Wallenstein | Log Splitters | Models WX500 Series | Width 24" Split Opening | 20-Ton Split Force | Horizontal & Vertical Orientation | For Heavy-Duty Wood Processing
DESCRIPTION

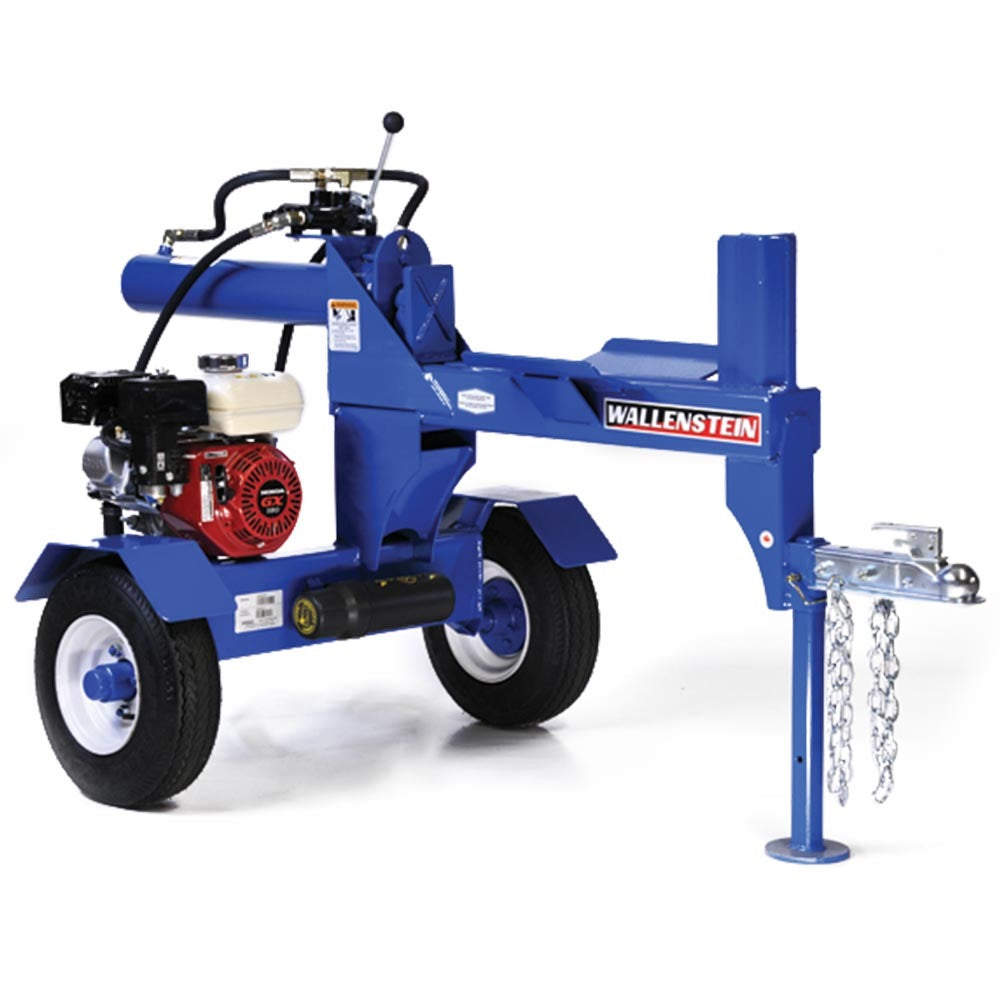

When you need reliable wood splitting power for the toughest jobs, the Wallenstein WX500 Series gas-powered log splitters deliver uncompromising performance. With a 20-ton split force, heavy-duty construction, and the trusted power of Vanguard® or Honda® engines, these log splitters are designed for efficiency, safety, and ease of use.
From horizontal-only models ideal for consistent workflow, to dual-position vertical/horizontal splitters for tackling massive rounds without lifting, the WX500 Series adapts to your work style. Whether you're a homeowner stocking up for winter or a rental yard operator serving pros, these splitters are the go-to solution for dependable, high-output wood processing.
Towable, powerful, and feature-rich, the WX500 series makes log splitting faster, safer, and smarter so you can focus on the firewood, not the frustration.
Key Features
- 20-Ton Split Force: Handles dense hardwoods and large logs up to 24" with ease.
- Engine Options: Choose between Vanguard® 6.5 HP or Honda GC160 engines for reliable starting and smooth operation.

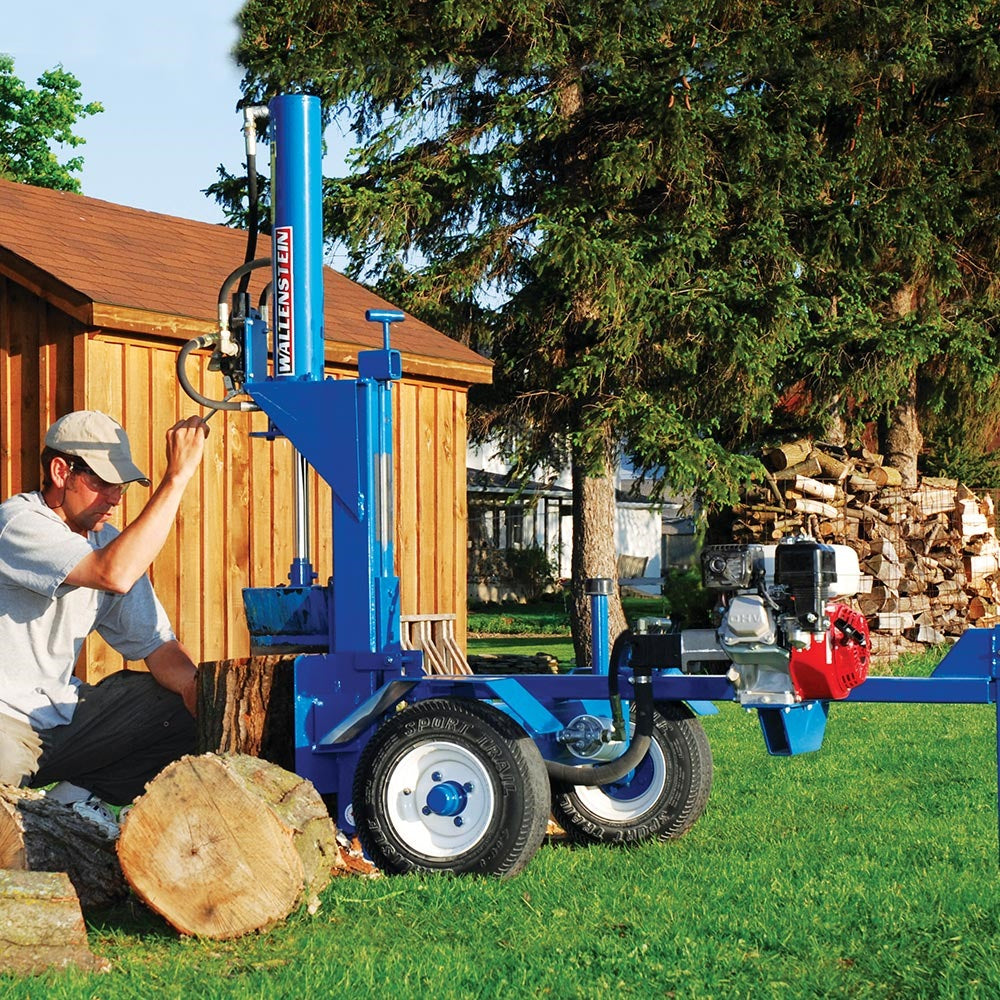

- Horizontal or Vertical Splitting: Easily switch positions for ergonomic flexibility (WX530, WX540, WX540L).
- Hands-Free Return: Auto-return cylinder saves time and effort on every cycle.
- Towable with 2” Ball Hitch: Highway-towable options available for mobile use across property or job site.
- Wide Wedge Design: Enhances splitting efficiency by initiating the split earlier in the stroke.
- Two-Stage Hydraulic Pump: Maximizes power and cycle speed, delivering a smooth 13.24-second full cycle.
- Rugged Tires & Tongue Weight: Designed for field use, quick transport, and balance.
- Optional Accessories: Add-on shelves, stroke limiters, 4-way wedges, and protective covers enhance usability.

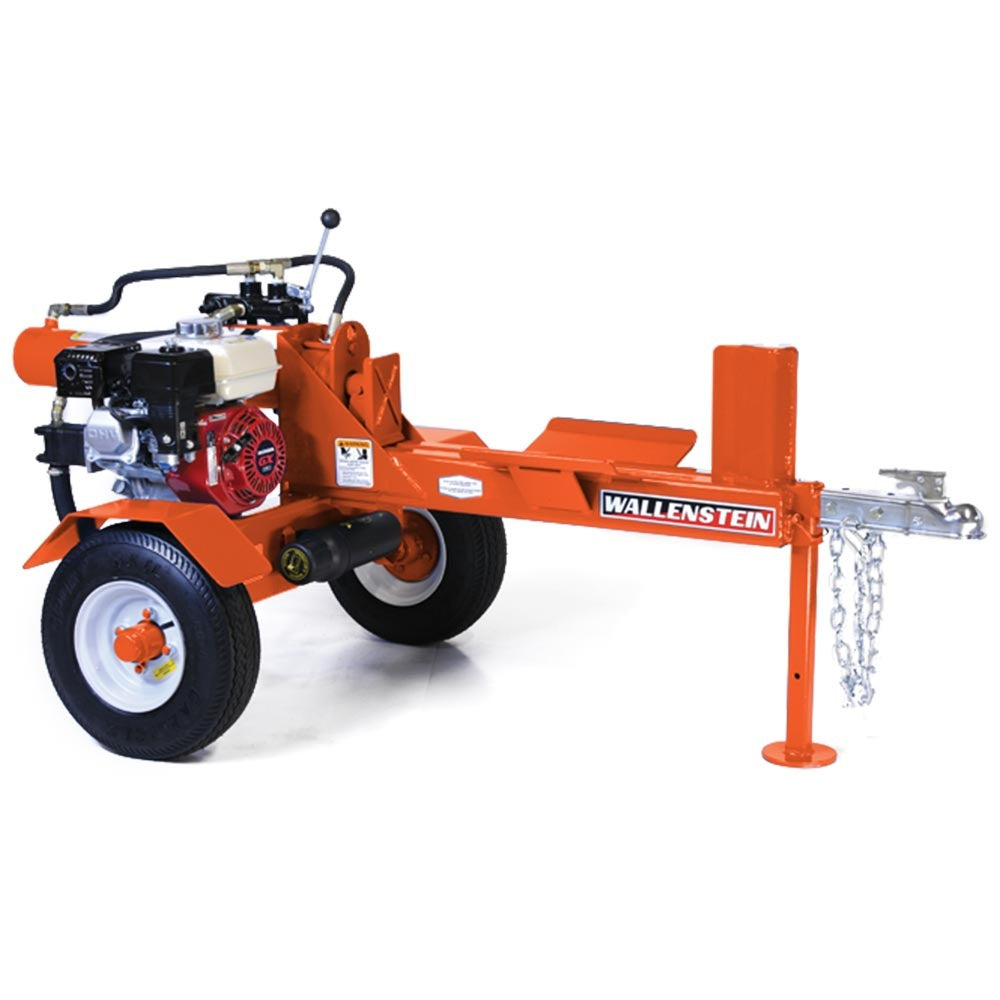

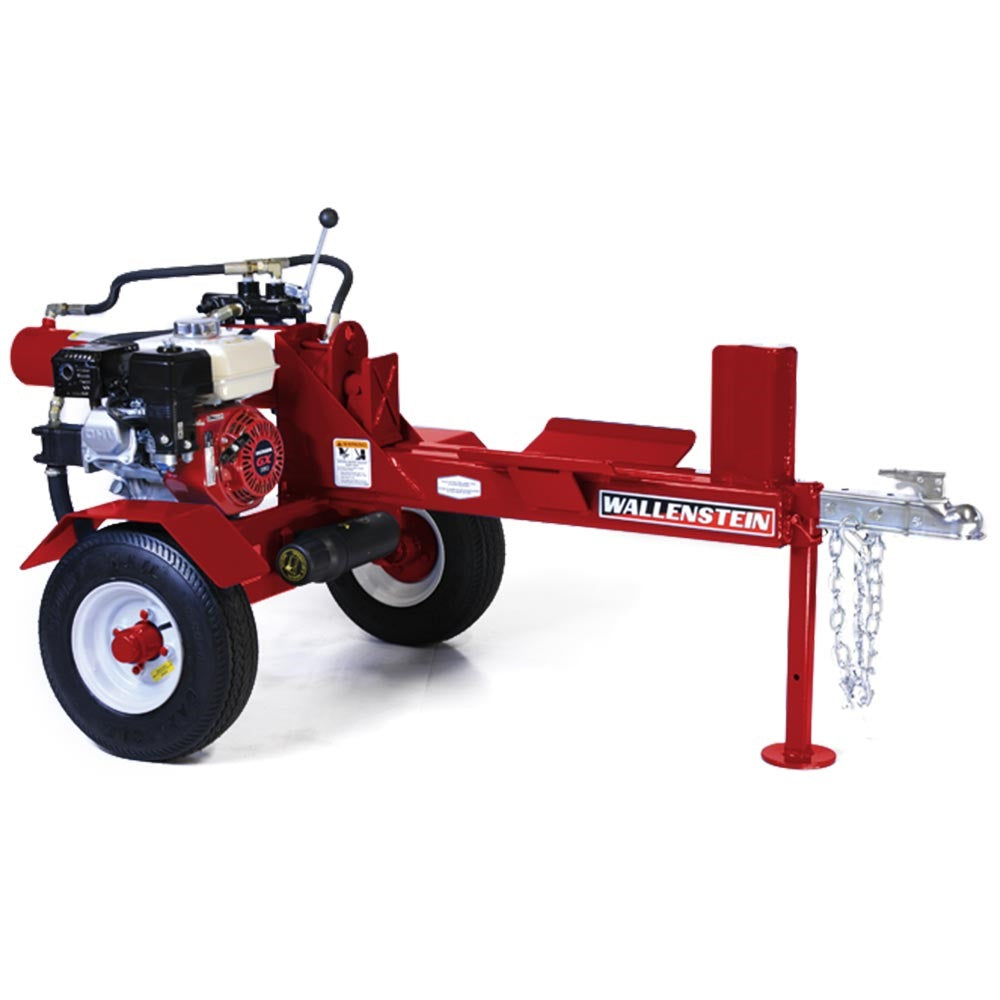

- Multiple Color Options: Available in Black, Blue, Orange, Red, Yellow, Grey, Green, and Realtree® camo finishes.
Detailed Specifications
| Specification | WX520 | WX520L | WX520T | WX530 | WX540 | WX540L |
|---|---|---|---|---|---|---|
| Engine | Vanguard® 6.5 HP (203 cc) | Vanguard® 6.5 HP (203 cc) | Vanguard® 6.5 HP (203 cc) | Honda® GC160 (160 cc) | Vanguard® 6.5 HP (203 cc) | Vanguard® 6.5 HP (203 cc) |
| Orientation | Horizontal | Horizontal | Horizontal (Tall Bed) | Horizontal / Vertical | Horizontal / Vertical | Horizontal / Vertical |
| Split Force | 20 Ton | 20 Ton | 20 Ton | 20 Ton | 20 Ton | 20 Ton |
| Cycle Time (Avg / Full) | 6.62s / 13.24s | 6.62s / 13.24s | 6.62s / 13.24s | 6.62s / 13.24s | 6.62s / 13.24s | 6.62s / 13.24s |
| Split Opening | 24" (61 cm) | 24" (61 cm) | 24" (61 cm) | 24" (61 cm) | 24" (61 cm) | 24" (61 cm) |
| Wedge Height | 9" (23 cm) | 9" (23 cm) | 9" (23 cm) | 9" (23 cm) | 9" (23 cm) | 9" (23 cm) |
| Total Weight | 365 lbs (166 kg) | 365 lbs (166 kg) | 375 lbs (170 kg) | 470 lbs (213 kg) | 470 lbs (213 kg) | 470 lbs (213 kg) |
| Towable | Yes | Yes (w/ lights) | Yes | Yes | Yes | Yes (w/ lights) |
| Hydraulic Capacity | 3 US gal (11 L) | 3 US gal (11 L) | 3 US gal (11 L) | 3.5 US gal (13 L) | 3.5 US gal (13 L) | 3.5 US gal (13 L) |
Manuals & Documents
W4110, W4120, W4130, W4140 Wedge install instructions
Z97822 W4211 Splitter Clamp on Shelf Installation Instructions
Z97823 W4212 Splitter Folding Shelf Installation Instructions
W4213 & W4214 SPLITTER STROKE LIMITER KITS Installation & Use Instructions
WX Series Wood Splitters 500, 600 ,and 900 Series
WX Series Wood Splitters 500, 600 ,and 900 Series (After May 2016)
CE Certified EU WX Series Trailer Wood Splitter
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information neededabout products and parts you can’t find!

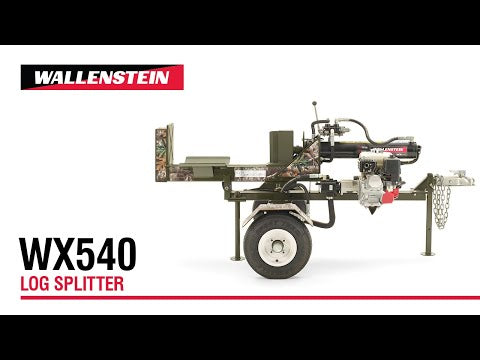

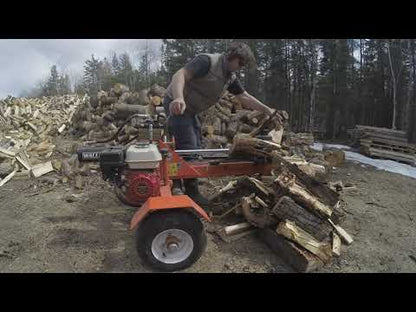

Videos
