Werk-Brau

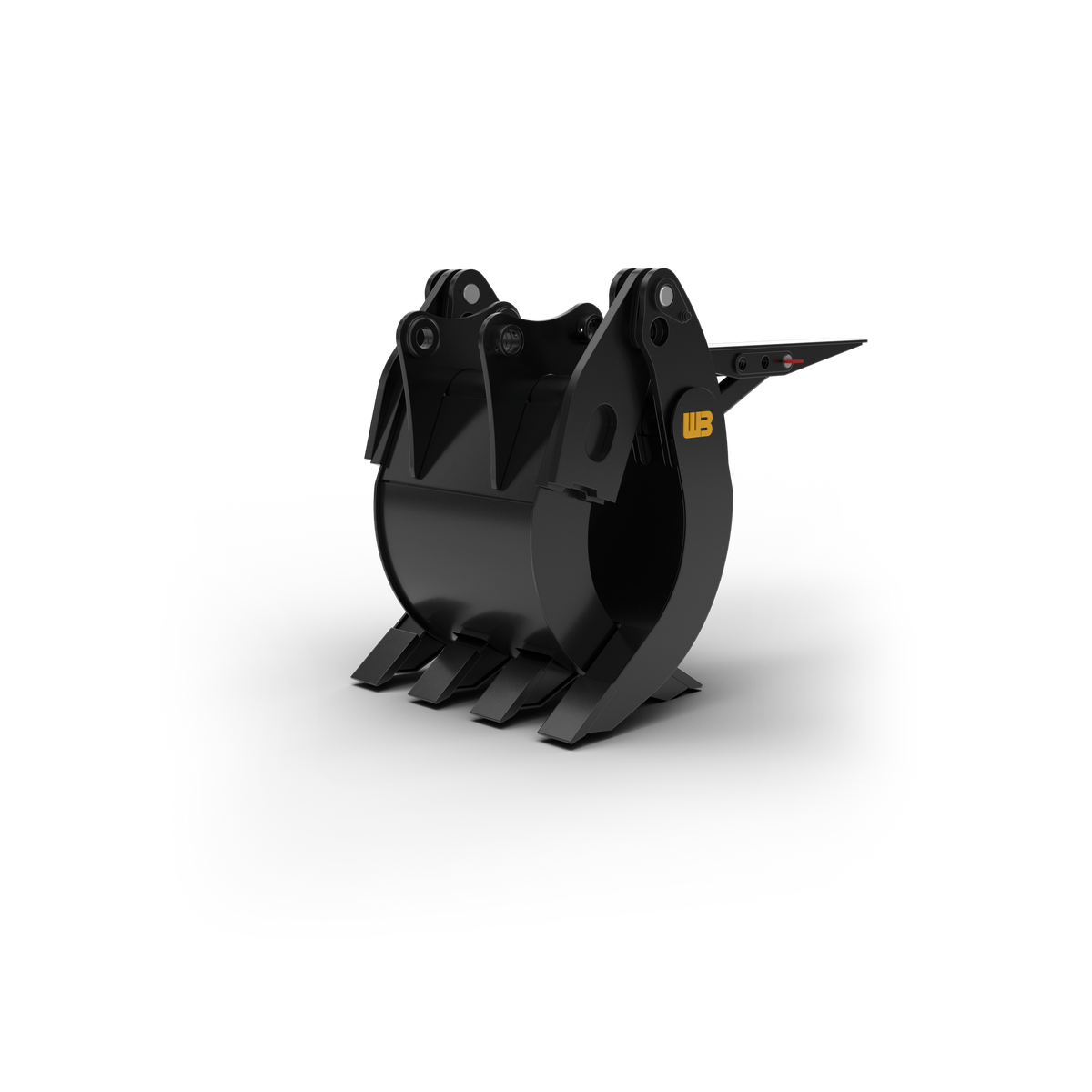

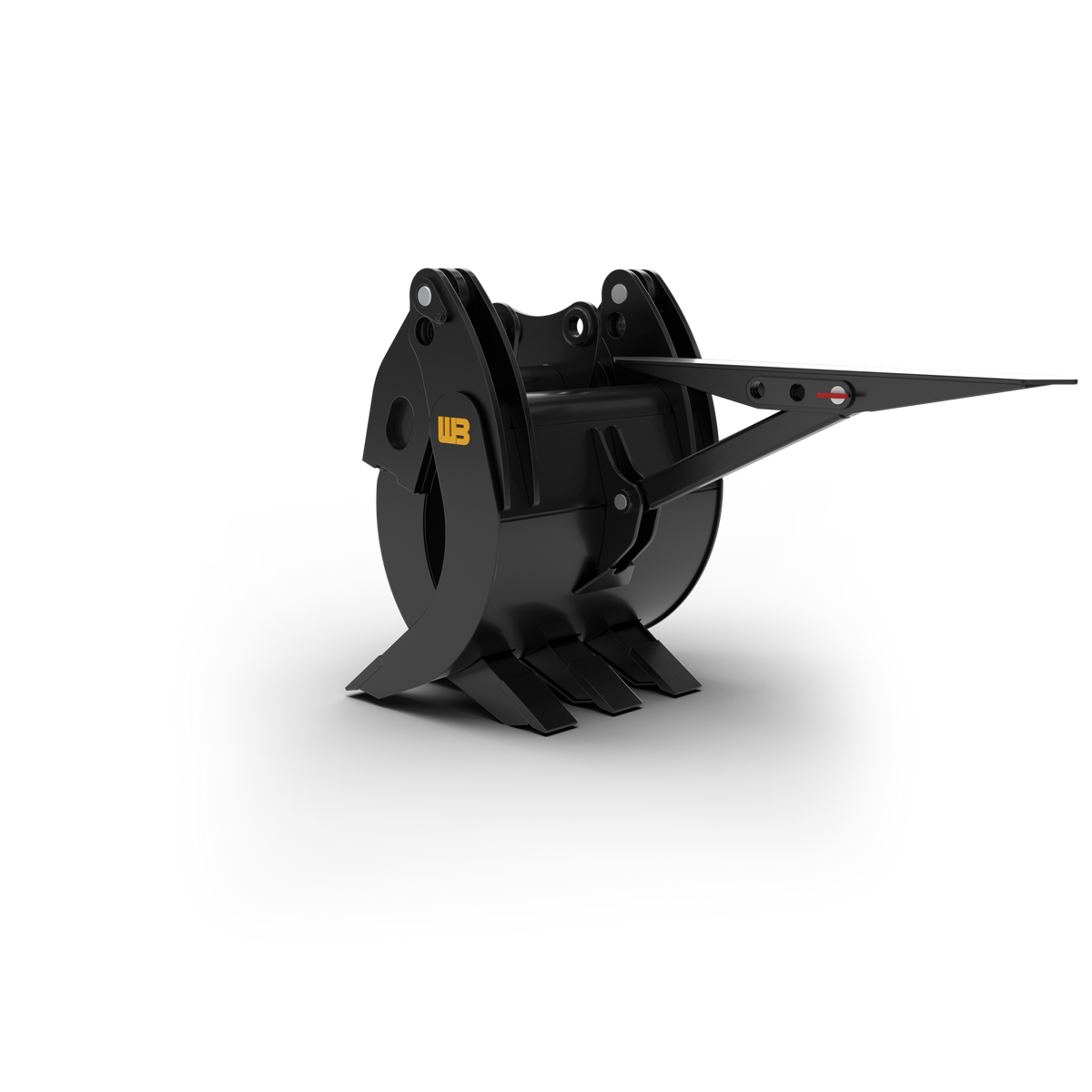

Werk-Brau Box Style Grapple | Severe Duty | Width 36" To 84" | 12–60 Tons | For Excavators

Werk-Brau Box Style Grapple | Severe Duty | Width 36" To 84" | 12–60 Tons | For Excavators

$1.00
$1.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Excavator Compatibility: 12-60 Metric Ton Excavators.
  • Grapple Width: 36-84" Available Across Multiple Models.
  • Jaw Opening: Up To 155" For Material Handling.
  • Weight Range: 2,100-8,700 Lbs. Depending On Model.
  • Intended Use: Demolition, Land Clearing, Debris Handling.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Werk-Brau Box Style Grapple | Severe Duty | Width 36" To 84" | 12–60 Tons | For Excavators

DESCRIPTION

Werk-Brau Box Style Grapples are built for heavy-duty material handling, land clearing, demolition cleanup, and debris management. The wide-mouth grapple design securely captures brush, rocks, scrap, and irregular demolition debris while reducing repositioning during each cycle. Hydraulically operated grapple arms, fabricated from high-strength Hardox 450 and T-1 steel, deliver dependable clamping performance in demanding jobsite conditions. Critical wear components use T-1 steel, while hardened, greaseable pivot bushings support long service life and convenient maintenance. The reinforced frame helps withstand impact, and edge pads at the tine ends add protection in high-wear areas. Available in multiple widths and configurations for 12–60 metric ton excavators. Designed specifically for handling and sorting material, this grapple is not intended for digging or prying.

Key Features

  • Wide-Mouth Grapple Design The wide opening helps operators capture and manage large volumes of irregular material including brush, rocks, scrap, and demolition debris, reducing repositioning movements and improving material-handling productivity.
  • Heavy-Duty Excavator Attachment Engineered for demanding excavator material-handling applications, the Box Style Grapple provides a robust solution for land clearing, demolition cleanup, storm debris removal, recycling, and scrap handling.
  • Hydraulically Operated Grapple Arms Hydraulic grapple arms provide controlled clamping action for securely gripping and moving irregular loads, making the attachment suitable for repetitive material sorting and debris management tasks.
  • Hardox 450 Construction Grapple arms are fabricated from high-strength Hardox 450 and T-1 material, helping provide durability in demanding applications where abrasion, impact, and repeated material handling are common.
  • T-1 Steel Wear Components Critical and high-wear components utilize T-1 steel to support long operating life and reliable performance during intensive excavator attachment use.
  • Reinforced Grapple Frame The reinforced structural design provides additional support in impact-prone areas, helping protect the grapple against demanding handling conditions and repeated contact with heavy materials.
  • Hardened Pivot Bushings Hardened greasable bushings at the pivot points are designed for durability and dependable grapple-arm movement during repeated opening and closing cycles.
  • Easy Maintenance Access Accessible grease points make routine lubrication more convenient, helping operators maintain pivot components and support consistent attachment performance over time.
  • Multiple Grapple Widths Available in several standard widths from 36 to 84 inches, allowing users to select a configuration suited to excavator size and the material-handling requirements of the job.
  • Multiple Excavator Classes Standard models are designed for excavators ranging from approximately 12 to 60 metric tons, providing options for different machine classes and operating requirements.
  • Land Clearing Capability The wide-mouth configuration is suited for handling brush, branches, vegetation, rocks, and storm debris, supporting efficient cleanup and material relocation during land-clearing projects.
  • Demolition Debris Handling Designed to manage irregular demolition debris and other loose materials, making it useful for cleanup and sorting operations where conventional digging attachments are not appropriate.
  • Recycling & Scrap Handling The grapple can be used for recycling and scrap material handling, providing controlled gripping and placement of assorted materials during sorting and cleanup operations.
  • Reinforced Tine Ends Edge pads at tine ends provide additional wear protection in high-contact areas, helping support durability during repeated material handling.
  • Single or Dual Grapple Options Single grapples may be used with a bucket, while dual grapple styles are also available, providing configuration flexibility for different excavator attachment setups.

Detailed Specifications

Specification WBBG36.05 WBBG42.05
Brand Werk-Brau Werk-Brau
Product Type Box Style Grapple Box Style Grapple
Excavator Class 12 Metric Tons 12 Metric Tons
Part Number WBBG36.05 WBBG42.05
Lower Width 36 in 42 in
Upper Width 22 in 25 in
Jaw Opening 86 in 86 in
Number of Tines 2/3 2/3
Weight 2,100 lb 2,200 lb
Operation Hydraulic Hydraulic
Grapple Style Box Style Box Style
Design Wide-Mouth Wide-Mouth
Construction High-Strength Steel / T-1 / Hardox 450 High-Strength Steel / T-1 / Hardox 450
Pivot Points Hardened Greaseable Bushings Hardened Greaseable Bushings
Recommended Applications Land Clearing, Demolition, Debris, Recycling, Scrap Land Clearing, Demolition, Debris, Recycling, Scrap



Specification WBBG48.05 WBBG42.1
Brand Werk-Brau Werk-Brau
Product Type Box Style Grapple Box Style Grapple
Excavator Class 12 Metric Tons 15 Metric Tons
Part Number WBBG48.05 WBBG42.1
Lower Width 48 in 42 in
Upper Width 34 in 35 in
Jaw Opening 86 in 86 in
Number of Tines 3/4 2/2
Weight 2,350 lb 2,100 lb
Operation Hydraulic Hydraulic
Grapple Style Box Style Box Style
Design Wide-Mouth Wide-Mouth
Construction High-Strength Steel / T-1 / Hardox 450 High-Strength Steel / T-1 / Hardox 450
Pivot Points Hardened Greaseable Bushings Hardened Greaseable Bushings
Recommended Applications Land Clearing, Demolition, Debris, Recycling, Scrap Land Clearing, Demolition, Debris, Recycling, Scrap



Specification WBBG48.1 WBBG54.1
Brand Werk-Brau Werk-Brau
Product Type Box Style Grapple Box Style Grapple
Excavator Class 15 Metric Tons 15 Metric Tons
Part Number WBBG48.1 WBBG54.1
Lower Width 48 in 54 in
Upper Width 34 in 38 in
Jaw Opening 86 in 86 in
Number of Tines 3/4 3/4
Weight 2,350 lb 2,550 lb
Operation Hydraulic Hydraulic
Grapple Style Box Style Box Style
Design Wide-Mouth Wide-Mouth
Construction High-Strength Steel / T-1 / Hardox 450 High-Strength Steel / T-1 / Hardox 450
Pivot Points Hardened Greaseable Bushings Hardened Greaseable Bushings
Recommended Applications Land Clearing, Demolition, Debris, Recycling, Scrap Land Clearing, Demolition, Debris, Recycling, Scrap



Specification WBBG42.15 WBBG48.15
Brand Werk-Brau Werk-Brau
Product Type Box Style Grapple Box Style Grapple
Excavator Class 20 Metric Tons 20 Metric Tons
Part Number WBBG42.15 WBBG48.15
Lower Width 42 in 48 in
Upper Width 25 in 34 in
Jaw Opening 86 in 86 in
Number of Tines 2/3 3/4
Weight 3,350 lb 3,700 lb
Operation Hydraulic Hydraulic
Grapple Style Box Style Box Style
Design Wide-Mouth Wide-Mouth
Construction High-Strength Steel / T-1 / Hardox 450 High-Strength Steel / T-1 / Hardox 450
Pivot Points Hardened Greaseable Bushings Hardened Greaseable Bushings
Recommended Applications Land Clearing, Demolition, Debris, Recycling, Scrap Land Clearing, Demolition, Debris, Recycling, Scrap



Specification WBBG54.15 WBBG48.2
Brand Werk-Brau Werk-Brau
Product Type Box Style Grapple Box Style Grapple
Excavator Class 20 Metric Tons 25 Metric Tons
Part Number WBBG54.15 WBBG48.2
Lower Width 54 in 48 in
Upper Width 38 in 28 in
Jaw Opening 86 in 112 in
Number of Tines 3/4 2/3
Weight 3,900 lb 3,700 lb
Operation Hydraulic Hydraulic
Grapple Style Box Style Box Style
Design Wide-Mouth Wide-Mouth
Construction High-Strength Steel / T-1 / Hardox 450 High-Strength Steel / T-1 / Hardox 450
Pivot Points Hardened Greaseable Bushings Hardened Greaseable Bushings
Recommended Applications Land Clearing, Demolition, Debris, Recycling, Scrap Land Clearing, Demolition, Debris, Recycling, Scrap



Specification WBBG54.2 WBBG60.2
Brand Werk-Brau Werk-Brau
Product Type Box Style Grapple Box Style Grapple
Excavator Class 25 Metric Tons 25 Metric Tons
Part Number WBBG54.2 WBBG60.2
Lower Width 54 in 60 in
Upper Width 38 in 42 in
Jaw Opening 112 in 112 in
Number of Tines 3/4 3/4
Weight 3,900 lb 4,150 lb
Operation Hydraulic Hydraulic
Grapple Style Box Style Box Style
Design Wide-Mouth Wide-Mouth
Construction High-Strength Steel / T-1 / Hardox 450 High-Strength Steel / T-1 / Hardox 450
Pivot Points Hardened Greaseable Bushings Hardened Greaseable Bushings
Recommended Applications Land Clearing, Demolition, Debris, Recycling, Scrap Land Clearing, Demolition, Debris, Recycling, Scrap



Specification WBBG48.3 WBBG54.3
Brand Werk-Brau Werk-Brau
Product Type Box Style Grapple Box Style Grapple
Excavator Class 30–35 Metric Tons 30–35 Metric Tons
Part Number WBBG48.3 WBBG54.3
Lower Width 48 in 54 in
Upper Width 28 in 38 in
Jaw Opening 116 in 116 in
Number of Tines 2/3 3/4
Weight 4,300 lb 4,800 lb
Operation Hydraulic Hydraulic
Grapple Style Box Style Box Style
Design Wide-Mouth Wide-Mouth
Construction High-Strength Steel / T-1 / Hardox 450 High-Strength Steel / T-1 / Hardox 450
Pivot Points Hardened Greaseable Bushings Hardened Greaseable Bushings
Recommended Applications Land Clearing, Demolition, Debris, Recycling, Scrap Land Clearing, Demolition, Debris, Recycling, Scrap



Specification WBBG60.3 WBBG48.4
Brand Werk-Brau Werk-Brau
Product Type Box Style Grapple Box Style Grapple
Excavator Class 30–35 Metric Tons 40 Metric Tons
Part Number WBBG60.3 WBBG48.4
Lower Width 60 in 48 in
Upper Width 46 in 38 in
Jaw Opening 116 in 120 in
Number of Tines 3/4 2/3
Weight 5,100 lb 5,900 lb
Operation Hydraulic Hydraulic
Grapple Style Box Style Box Style
Design Wide-Mouth Wide-Mouth
Construction High-Strength Steel / T-1 / Hardox 450 High-Strength Steel / T-1 / Hardox 450
Pivot Points Hardened Greaseable Bushings Hardened Greaseable Bushings
Recommended Applications Land Clearing, Demolition, Debris, Recycling, Scrap Land Clearing, Demolition, Debris, Recycling, Scrap



Specification WBBG54.4 WBBG60.4
Brand Werk-Brau Werk-Brau
Product Type Box Style Grapple Box Style Grapple
Excavator Class 40 Metric Tons 40 Metric Tons
Part Number WBBG54.4 WBBG60.4
Lower Width 54 in 60 in
Upper Width 46 in 50 in
Jaw Opening 120 in 120 in
Number of Tines 3/4 4/5
Weight 6,700 lb 6,900 lb
Operation Hydraulic Hydraulic
Grapple Style Box Style Box Style
Design Wide-Mouth Wide-Mouth
Construction High-Strength Steel / T-1 / Hardox 450 High-Strength Steel / T-1 / Hardox 450
Pivot Points Hardened Greaseable Bushings Hardened Greaseable Bushings
Recommended Applications Land Clearing, Demolition, Debris, Recycling, Scrap Land Clearing, Demolition, Debris, Recycling, Scrap



Specification WBBG60.5 WBBG72.5
Brand Werk-Brau Werk-Brau
Product Type Box Style Grapple Box Style Grapple
Excavator Class 50–60 Metric Tons 50–60 Metric Tons
Part Number WBBG60.5 WBBG72.5
Lower Width 60 in 72 in
Upper Width 50 in 60 in
Jaw Opening 155 in 155 in
Number of Tines 2/3 3/4
Weight 6,950 lb 7,600 lb
Operation Hydraulic Hydraulic
Grapple Style Box Style Box Style
Design Wide-Mouth Wide-Mouth
Construction High-Strength Steel / T-1 / Hardox 450 High-Strength Steel / T-1 / Hardox 450
Pivot Points Hardened Greaseable Bushings Hardened Greaseable Bushings
Recommended Applications Land Clearing, Demolition, Debris, Recycling, Scrap Land Clearing, Demolition, Debris, Recycling, Scrap



Specification WBBG84.5
Brand Werk-Brau
Product Type Box Style Grapple
Excavator Class 50–60 Metric Tons
Part Number WBBG84.5
Lower Width 84 in
Upper Width Not specified in supplied data
Jaw Opening 155 in
Number of Tines 4/5
Weight 8,700 lb
Operation Hydraulic
Grapple Style Box Style
Design Wide-Mouth
Construction High-Strength Steel / T-1 / Hardox 450
Pivot Points Hardened Greaseable Bushings
Recommended Applications Land Clearing, Demolition, Debris, Recycling, Scrap
