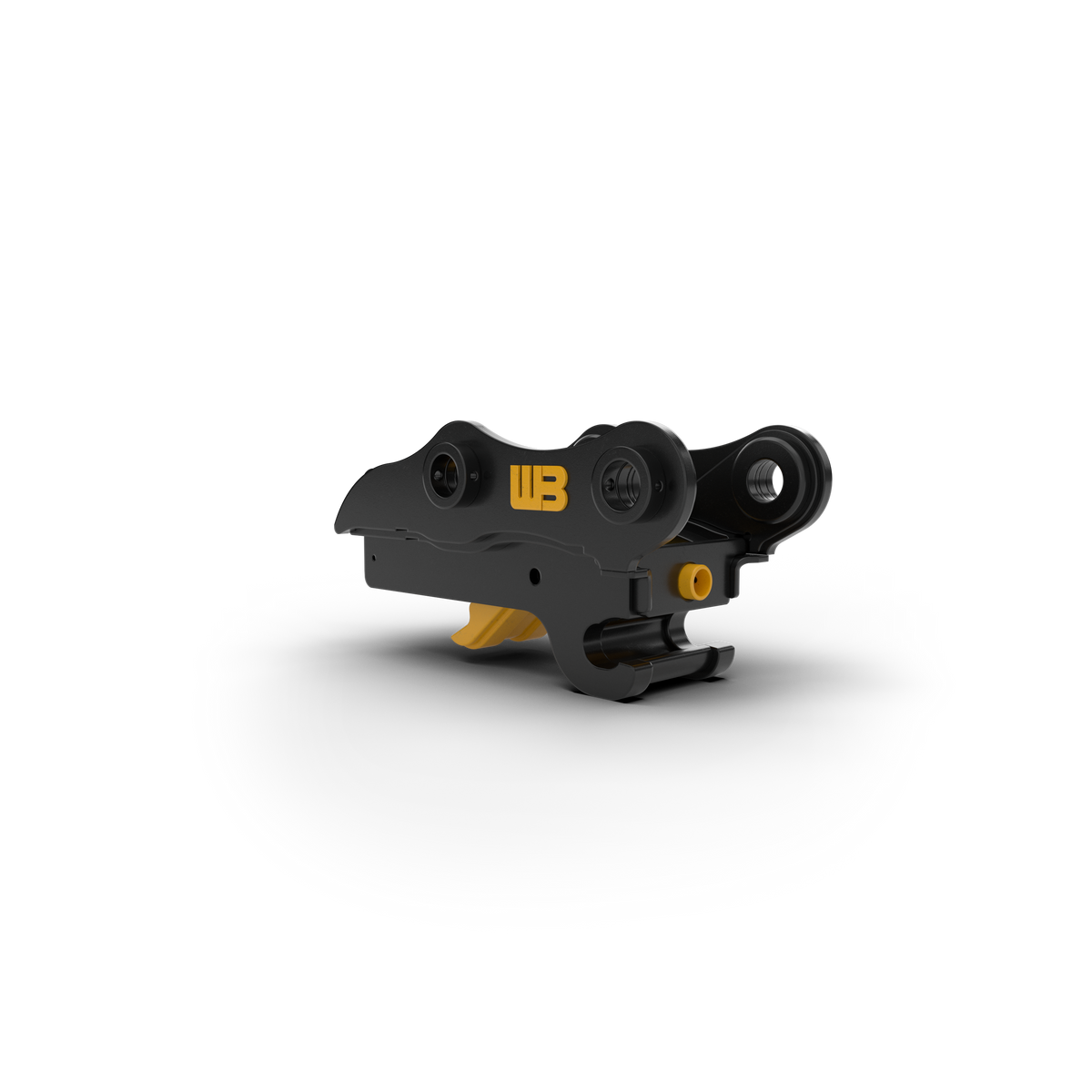

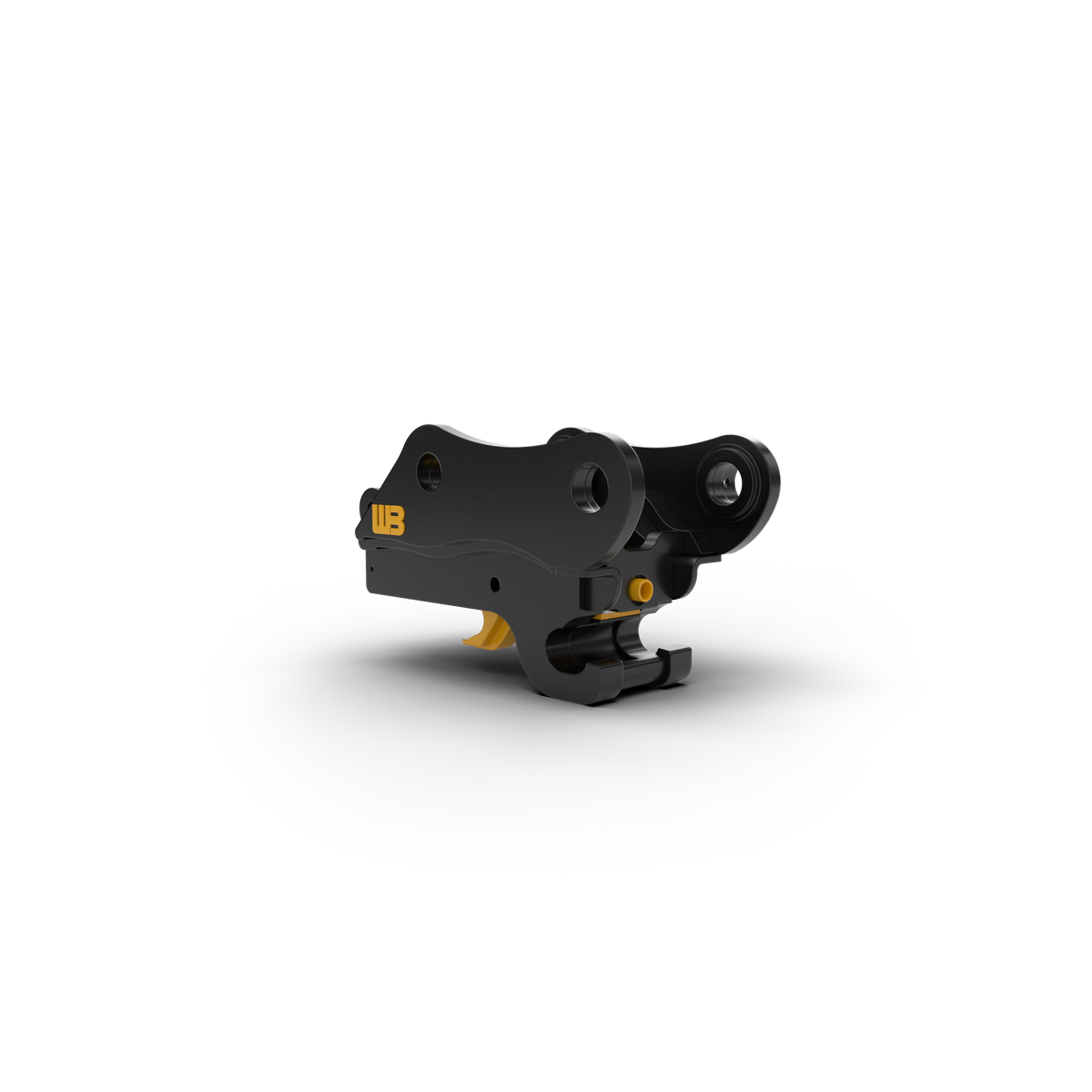

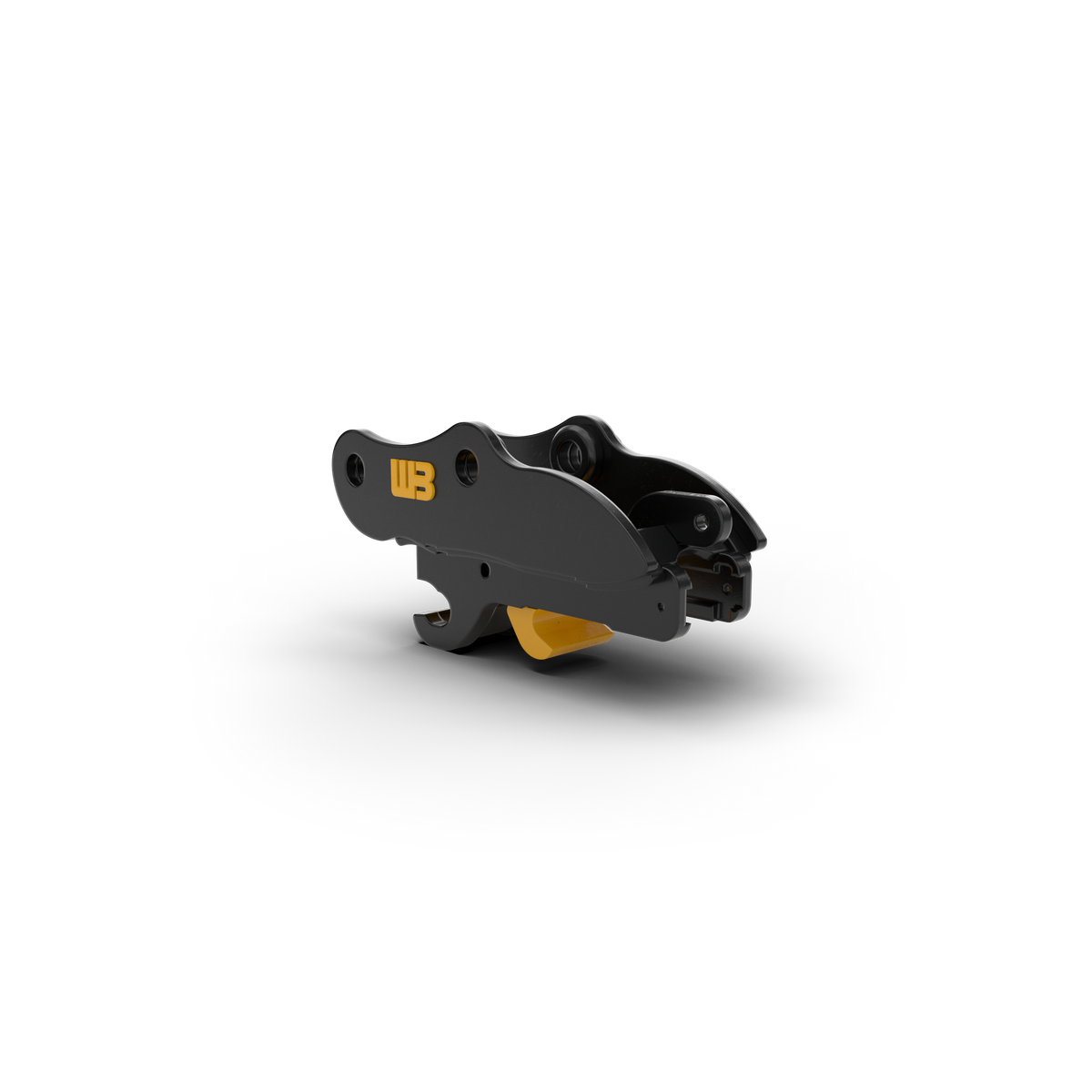

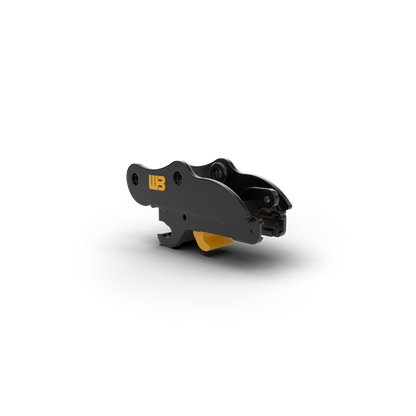

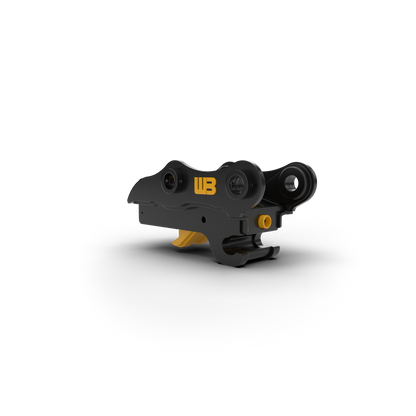

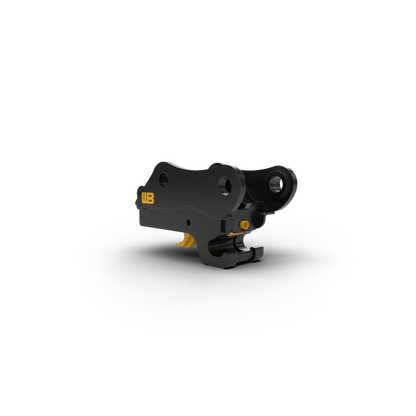

The Werk-Brau D-Lock Variable Center Hydraulic Coupler is engineered for fast, secure, and versatile attachment changes on excavators from 12 to 40 tons. Its compact design uses only nine moving parts, requiring just two hydraulic hoses and no greasing, helping simplify maintenance and reduce downtime. The dual pin locking system keeps attachments securely engaged on both pins, even if engagement force is lost. An automatic front lock helps secure the front pin when the rear pin is not properly engaged, while the highly visible lock indicator provides quick operator feedback. With multi-pin center compatibility, the D-Lock can pick up multiple attachments within the same weight class and compatible pin diameter. Its controlled hydraulic unlock process, gravity-independent safety system, and serviceable construction make this hydraulic excavator coupler a practical solution for demanding construction and earthmoving applications.
| Specification | HD035-35 | HD035-40 |
|---|---|---|
| Brand | Werk-Brau | Werk-Brau |
| Product Series | D-Lock Variable Center Hydraulic Coupler | D-Lock Variable Center Hydraulic Coupler |
| Part Number | HD035-35 | HD035-40 |
| Machine Class | 3 Tons | 3 Tons |
| Pin Diameter | 35 mm | 40 mm |
| Base Width | 120 mm | 120 mm |
| Pin Spread Range | 166–220 mm | 170–223 mm |
| Coupler Weight | 130 lb | 130 lb |
| Coupler Type | Hydraulic | Hydraulic |
| Locking System | Dual Pin Lock | Dual Pin Lock |
| Front Lock | Automatic | Automatic |
| Hydraulic Lines | 2 | 2 |
| Greasing Required | No | No |
| Moving Parts | 9 | 9 |
| Lock Indicator | Highly Visible | Highly Visible |
| Specification | HD055-45A | HD055-45B |
|---|---|---|
| Brand | Werk-Brau | Werk-Brau |
| Product Series | D-Lock Variable Center Hydraulic Coupler | D-Lock Variable Center Hydraulic Coupler |
| Part Number | HD055-45A | HD055-45B |
| Machine Class | 3–5 Tons | 3–5 Tons |
| Pin Diameter | 45 mm | 45 mm |
| Base Width | 144 mm | 144 mm |
| Pin Spread Range | 220–255 mm | 242–277 mm |
| Coupler Weight | 130 lb | 130 lb |
| Coupler Type | Hydraulic | Hydraulic |
| Locking System | Dual Pin Lock | Dual Pin Lock |
| Front Lock | Automatic | Automatic |
| Hydraulic Lines | 2 | 2 |
| Greasing Required | No | No |
| Moving Parts | 9 | 9 |
| Lock Indicator | Highly Visible | Highly Visible |
| Specification | HD055-45C | HD060-45A |
|---|---|---|
| Brand | Werk-Brau | Werk-Brau |
| Product Series | D-Lock Variable Center Hydraulic Coupler | D-Lock Variable Center Hydraulic Coupler |
| Part Number | HD055-45C | HD060-45A |
| Machine Class | 3–5 Tons | 3–5 Tons |
| Pin Diameter | 45 mm | 45 mm |
| Base Width | 144 mm | 144 mm |
| Pin Spread Range | 261–296 mm | 220–255 mm |
| Coupler Weight | 130 lb | 140 lb |
| Coupler Type | Hydraulic | Hydraulic |
| Locking System | Dual Pin Lock | Dual Pin Lock |
| Front Lock | Automatic | Automatic |
| Hydraulic Lines | 2 | 2 |
| Greasing Required | No | No |
| Moving Parts | 9 | 9 |
| Lock Indicator | Highly Visible | Highly Visible |
| Specification | HD060-45B | HD060-45C |
|---|---|---|
| Brand | Werk-Brau | Werk-Brau |
| Product Series | D-Lock Variable Center Hydraulic Coupler | D-Lock Variable Center Hydraulic Coupler |
| Part Number | HD060-45B | HD060-45C |
| Machine Class | 3–5 Tons | 3–5 Tons |
| Pin Diameter | 45 mm | 45 mm |
| Base Width | 144 mm | 144 mm |
| Pin Spread Range | 245–285 mm | 245–285 mm |
| Coupler Weight | 140 lb | 140 lb |
| Coupler Type | Hydraulic | Hydraulic |
| Locking System | Dual Pin Lock | Dual Pin Lock |
| Front Lock | Automatic | Automatic |
| Hydraulic Lines | 2 | 2 |
| Greasing Required | No | No |
| Moving Parts | 9 | 9 |
| Lock Indicator | Highly Visible | Highly Visible |
| Specification | HD060-45D | HD080-45 |
|---|---|---|
| Brand | Werk-Brau | Werk-Brau |
| Product Series | D-Lock Variable Center Hydraulic Coupler | D-Lock Variable Center Hydraulic Coupler |
| Part Number | HD060-45D | HD080-45 |
| Machine Class | 3–5 Tons | 3–4 Tons |
| Pin Diameter | 45 mm | 45 mm |
| Base Width | 144 mm | 164 mm |
| Pin Spread Range | 230–265 mm | 291–326 mm |
| Coupler Weight | 140 lb | 187 lb |
| Coupler Type | Hydraulic | Hydraulic |
| Locking System | Dual Pin Lock | Dual Pin Lock |
| Front Lock | Automatic | Automatic |
| Hydraulic Lines | 2 | 2 |
| Greasing Required | No | No |
| Moving Parts | 9 | 9 |
| Lock Indicator | Highly Visible | Highly Visible |
| Specification | HD085-55-50 | HD085-60 |
|---|---|---|
| Brand | Werk-Brau | Werk-Brau |
| Product Series | D-Lock Variable Center Hydraulic Coupler | D-Lock Variable Center Hydraulic Coupler |
| Part Number | HD085-55-50 | HD085-60 |
| Machine Class | 3–5 Tons | 3–5 Tons |
| Pin Diameter | 50–55 mm | 60 mm |
| Base Width | 164 mm | 164 mm |
| Pin Spread Range | 50 mm: 288–316 mm / 55 mm: 295–331 mm | 296–326 mm |
| Coupler Weight | 187 lb | 187 lb |
| Coupler Type | Hydraulic | Hydraulic |
| Locking System | Dual Pin Lock | Dual Pin Lock |
| Front Lock | Automatic | Automatic |
| Hydraulic Lines | 2 | 2 |
| Greasing Required | No | No |
| Moving Parts | 9 | 9 |
| Lock Indicator | Highly Visible | Highly Visible |
| Specification | HD145-65-60 | HD185-80-70 |
|---|---|---|
| Brand | Werk-Brau | Werk-Brau |
| Product Series | D-Lock Variable Center Hydraulic Coupler | D-Lock Variable Center Hydraulic Coupler |
| Part Number | HD145-65-60 | HD185-80-70 |
| Machine Class | 12 Tons | 15 Tons |
| Pin Diameter | 60–65 mm | 70–80 mm |
| Base Width | 220 mm | 278 mm |
| Pin Spread Range | 346–405 mm / 355–422 mm | 374–465 mm / 390–495 mm |
| Coupler Weight | 410 lb | 650 lb |
| Coupler Type | Hydraulic | Hydraulic |
| Locking System | Dual Pin Lock | Dual Pin Lock |
| Front Lock | Automatic | Automatic |
| Hydraulic Lines | 2 | 2 |
| Greasing Required | No | No |
| Moving Parts | 9 | 9 |
| Lock Indicator | Highly Visible | Highly Visible |
| Specification | HD245-80 | HD255-90-80 |
|---|---|---|
| Brand | Werk-Brau | Werk-Brau |
| Product Series | D-Lock Variable Center Hydraulic Coupler | D-Lock Variable Center Hydraulic Coupler |
| Part Number | HD245-80 | HD255-90-80 |
| Machine Class | 20 Tons | 20–30 Tons |
| Pin Diameter | 80 mm | 80–90 mm |
| Base Width | 300 mm | 320 mm |
| Pin Spread Range | 435–500 mm | 440–517 mm / 455–545 mm |
| Coupler Weight | 675 lb | 910 lb |
| Coupler Type | Hydraulic | Hydraulic |
| Locking System | Dual Pin Lock | Dual Pin Lock |
| Front Lock | Automatic | Automatic |
| Hydraulic Lines | 2 | 2 |
| Greasing Required | No | No |
| Moving Parts | 9 | 9 |
| Lock Indicator | Highly Visible | Highly Visible |
| Specification | HD355-100-90 | HD355-110-100 |
|---|---|---|
| Brand | Werk-Brau | Werk-Brau |
| Product Series | D-Lock Variable Center Hydraulic Coupler | D-Lock Variable Center Hydraulic Coupler |
| Part Number | HD355-100-90 | HD355-110-100 |
| Machine Class | 35 Tons | 35 Tons |
| Pin Diameter | 90–100 mm | 100–110 mm |
| Base Width | 345 mm | 360 mm |
| Pin Spread Range | 475–567 mm / 488–585 mm | 483–565 mm / 498–595 mm |
| Coupler Weight | 1,315 lb | 1,490 lb |
| Coupler Type | Hydraulic | Hydraulic |
| Locking System | Dual Pin Lock | Dual Pin Lock |
| Front Lock | Automatic | Automatic |
| Hydraulic Lines | 2 | 2 |
| Greasing Required | No | No |
| Moving Parts | 9 | 9 |
| Lock Indicator | Highly Visible | Highly Visible |
| Specification | HD455-110-100 | HD455-110-100-A |
|---|---|---|
| Brand | Werk-Brau | Werk-Brau |
| Product Series | D-Lock Variable Center Hydraulic Coupler | D-Lock Variable Center Hydraulic Coupler |
| Part Number | HD455-110-100 | HD455-110-100-A |
| Machine Class | 40 Tons | 40 Tons |
| Pin Diameter | 100–110 mm | 100–110 mm |
| Base Width | 368 mm | 368 mm |
| Pin Spread Range | 535–615 mm / 548–645 mm | 556–636 mm / 569–664 mm |
| Coupler Weight | 1,930 lb | 1,600 lb |
| Coupler Type | Hydraulic | Hydraulic |
| Locking System | Dual Pin Lock | Dual Pin Lock |
| Front Lock | Automatic | Automatic |
| Hydraulic Lines | 2 | 2 |
| Greasing Required | No | No |
| Moving Parts | 9 | 9 |
| Lock Indicator | Highly Visible | Highly Visible |
| Specification | HD465-115-110 | HD465-120-115 |
|---|---|---|
| Brand | Werk-Brau | Werk-Brau |
| Product Series | D-Lock Variable Center Hydraulic Coupler | D-Lock Variable Center Hydraulic Coupler |
| Part Number | HD465-115-110 | HD465-120-115 |
| Machine Class | 40 Tons | 40 Tons |
| Pin Diameter | 110–115 mm | 115–120 mm |
| Base Width | 400 mm | 400 mm |
| Pin Spread Range | 545–628 mm / 552–643 mm | 545–631 mm / 552–646 mm |
| Coupler Weight | 1,930 lb | 1,930 lb |
| Coupler Type | Hydraulic | Hydraulic |
| Locking System | Dual Pin Lock | Dual Pin Lock |
| Front Lock | Automatic | Automatic |
| Hydraulic Lines | 2 | 2 |
| Greasing Required | No | No |
| Moving Parts | 9 | 9 |
| Lock Indicator | Highly Visible | Highly Visible |
