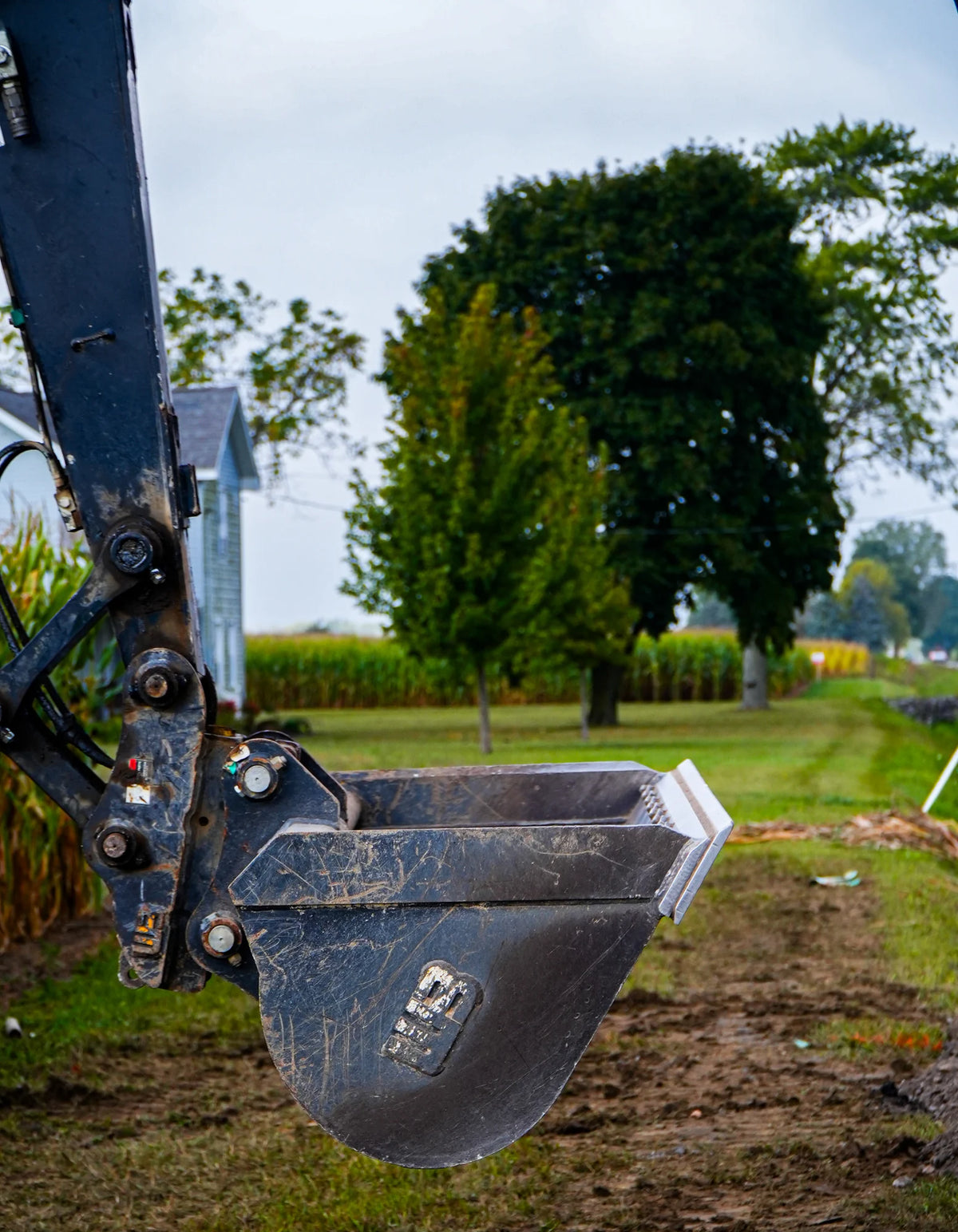

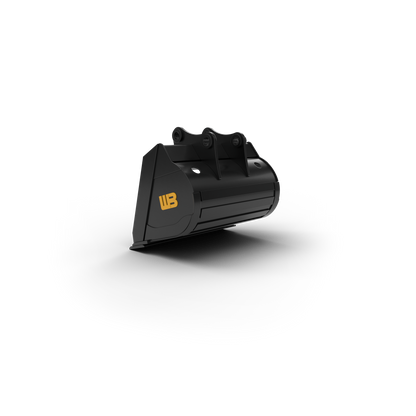

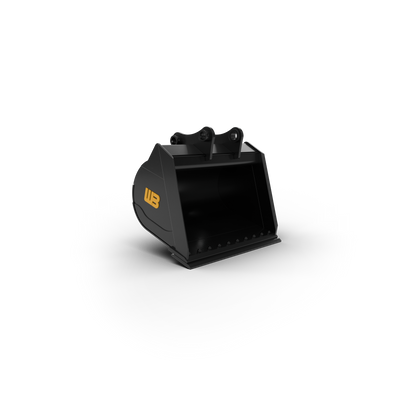

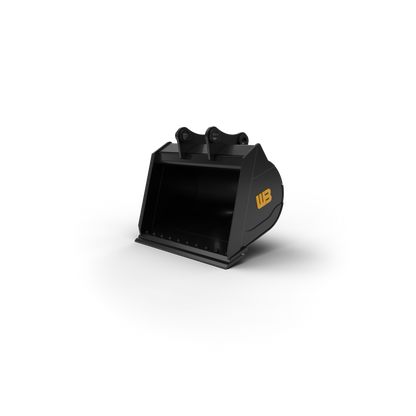

Werk-Brau Ditching & Grading Bucket | Widths 48–84" | 12–50 Tons | For Excavators

Werk-Brau Ditching & Grading Bucket | Widths 48–84" | 12–50 Tons | For Excavators

$1.00
$1.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Bucket Width: 48–84" for full-size excavators.
  • Excavator Compatibility: Designed for 12–50 ton excavators.
  • Bucket Capacity: 0.64–3.81 cubic yards available.
  • Construction: T-1 steel with reinforced wear components.
  • Intended Use: Ditch maintenance, grading, and slope work.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Werk-Brau Ditching & Grading Bucket | Widths 48–84" | 12–50 Tons | For Excavators

DESCRIPTION

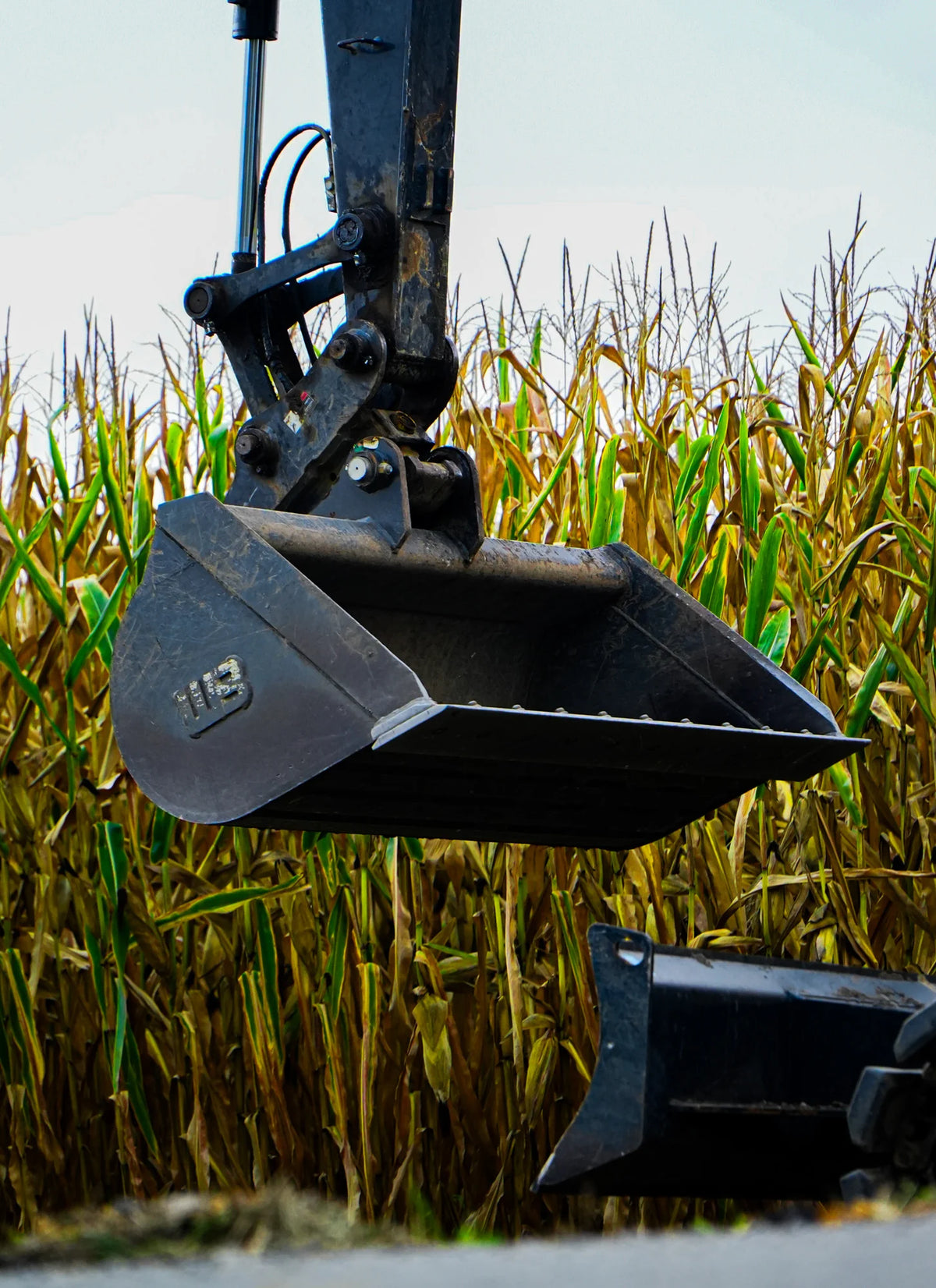

The Werk-Brau Ditching & Grading Bucket is engineered for ditch maintenance, grading, slope work, and precision excavation on full-size excavators. Built with T-1 steel in high-wear components, this heavy-duty excavator bucket provides excellent durability and long service life in demanding jobsite conditions. Its tapered side plates help reduce side wear while supporting easier material dumping, while the reinforced bottom with wear straps improves structural strength and abrasion resistance. A rigid top section provides stability on wider bucket sizes. The standard bolt-on cutting edge helps protect the bucket edge during extended operation. Available in 48–84 inch widths, with capacities from 0.64 to 3.81 cu. yd. and excavator weight classes from 12 to 50 tons. Optional drain holes, center rib, external double bottom, oversized wear plate, and aquatic configurations provide additional application flexibility.

Key Features

  • Heavy-Duty T-1 Steel Construction Built with T-1 steel in high-wear components for durable performance and extended service life in demanding excavation environments.
  • Ditching & Grading Design Purpose-built for ditch maintenance, grading, slope work, material spreading, and precision excavation with full-size excavators.
  • Wide 48–84 Inch Sizes Available in multiple bucket widths to support different excavation requirements, working conditions, and machine configurations.
  • 12–50 Ton Excavator Compatibility Designed for excavators across multiple weight classes, providing application flexibility for construction and site-development work.
  • Tapered Side Plates Engineered to reduce side wear while helping material discharge more easily during bucket dumping and grading operations.
  • Reinforced Bottom Wear Straps Reinforced bottom construction improves strength and abrasion resistance when handling demanding materials and working conditions.
  • Rigid Top Section Provides additional structural stability, particularly on wider ditching and grading bucket configurations.
  • Bolt-On Cutting Edge Standard bolt-on cutting edge helps extend and protect the working edge during extended hours of excavation and grading.
  • High Capacity Options Bucket capacities range from 0.64 to 3.81 cubic yards, supporting efficient material handling across multiple excavator classes.
  • Aquatic Application Ready Optional drain holes and dedicated aquatic configurations support ditching and grading applications where water management is required.
  • Multiple Reinforcement Options Optional center rib, external double bottom, and oversized wear plate configurations provide additional structural support.
  • Precision Grading Performance Wide bucket geometry supports smooth material leveling, ditch shaping, slope finishing, and site preparation.
  • Long Service Life Design High-wear steel construction and reinforced components are designed for reliable operation over extended working periods.
  • Versatile Excavation Attachment Suitable for ditch construction, maintenance, grading, slope work, and general material-handling applications.
  • Multiple Part Configurations Available across numerous part numbers and excavator weight classes to match different machine and application requirements.

Detailed Specifications

Specification 1DCG48 1DCG54
Excavator Class Long Reach Long Reach
Part Number 1DCG48 1DCG54
Bucket Width 48 in. 54 in.
Cut Width 49 in. 55 in.
Cut Capacity 0.58 cu. yd. 0.60 cu. yd.
Struck Capacity 0.64 cu. yd. 0.73 cu. yd.
Bucket Weight 950 lb. 1,000 lb.



Specification 1DCG60 1DCG48
Excavator Class Long Reach 12, 15 & 20 Tons
Part Number 1DCG60 1DCG48
Bucket Width 60 in. 48 in.
Cut Width 60 in. 49 in.
Cut Capacity 0.73 cu. yd. 0.58 cu. yd.
Struck Capacity 1.02 cu. yd. 0.64 cu. yd.
Bucket Weight 1,100 lb. 950 lb.



Specification 1DCG54 1DCG60
Excavator Class 12, 15 & 20 Tons 12, 15 & 20 Tons
Part Number 1DCG54 1DCG60
Bucket Width 54 in. 60 in.
Cut Width 54 in. 60 in.
Cut Capacity 0.65 cu. yd. 0.73 cu. yd.
Struck Capacity 0.73 cu. yd. 1.02 cu. yd.
Bucket Weight 1,000 lb. 1,100 lb.



Specification 1DCG66 1DCG72
Excavator Class 12, 15 & 20 Tons 12, 15 & 20 Tons
Part Number 1DCG66 1DCG72
Bucket Width 66 in. 72 in.
Cut Width 66 in. 72 in.
Cut Capacity 0.80 cu. yd. 0.87 cu. yd.
Struck Capacity 1.12 cu. yd. 1.22 cu. yd.
Bucket Weight 1,200 lb. 1,300 lb.



Specification 1DCG78 2DCG48
Excavator Class 12, 15 & 20 Tons 25 Tons
Part Number 1DCG78 2DCG48
Bucket Width 78 in. 48 in.
Cut Width 72 in. 49 in.
Cut Capacity 0.98 cu. yd. 0.80 cu. yd.
Struck Capacity 1.32 cu. yd. 1.08 cu. yd.
Bucket Weight 1,350 lb. 1,450 lb.



Specification 2DCG54 2DCG60
Excavator Class 25 Tons 25 Tons
Part Number 2DCG54 2DCG60
Bucket Width 54 in. 60 in.
Cut Width 55 in. 61 in.
Cut Capacity 0.90 cu. yd. 1.00 cu. yd.
Struck Capacity 1.23 cu. yd. 1.38 cu. yd.
Bucket Weight 1,600 lb. 1,650 lb.



Specification 2DCG66 2DCG72
Excavator Class 25 Tons 25 Tons
Part Number 2DCG66 2DCG72
Bucket Width 66 in. 72 in.
Cut Width 67 in. 73 in.
Cut Capacity 1.10 cu. yd. 1.30 cu. yd.
Struck Capacity 1.52 cu. yd. 1.77 cu. yd.
Bucket Weight 1,750 lb. 1,850 lb.



Specification 2DCG78 3DCG54
Excavator Class 25 Tons 30 Tons
Part Number 2DCG78 3DCG54
Bucket Width 78 in. 54 in.
Cut Width 79 in. 56 in.
Cut Capacity 1.40 cu. yd. 1.13 cu. yd.
Struck Capacity 2.02 cu. yd. 1.53 cu. yd.
Bucket Weight 2,000 lb. 2,000 lb.



Specification 3DCG60 3DCG66
Excavator Class 30 Tons 30 Tons
Part Number 3DCG60 3DCG66
Bucket Width 60 in. 66 in.
Cut Width 62 in. 68 in.
Cut Capacity 1.25 cu. yd. 1.38 cu. yd.
Struck Capacity 1.71 cu. yd. 1.90 cu. yd.
Bucket Weight 2,150 lb. 2,300 lb.



Specification 3DCG72 3DCG84
Excavator Class 30 Tons 30 Tons
Part Number 3DCG72 3DCG84
Bucket Width 72 in. 84 in.
Cut Width 74 in. 85 in.
Cut Capacity 1.51 cu. yd. 1.77 cu. yd.
Struck Capacity 2.09 cu. yd. 2.47 cu. yd.
Bucket Weight 2,450 lb. 2,750 lb.



Specification 4DCG54 4DCG60
Excavator Class 35 Tons 35 Tons
Part Number 4DCG54 4DCG60
Bucket Width 54 in. 60 in.
Cut Width 56 in. 62 in.
Cut Capacity 1.24 cu. yd. 1.38 cu. yd.
Struck Capacity 1.67 cu. yd. 1.88 cu. yd.
Bucket Weight 2,600 lb. 2,450 lb.



Specification 4DCG66 4DCG72
Excavator Class 35 Tons 35 Tons
Part Number 4DCG66 4DCG72
Bucket Width 66 in. 72 in.
Cut Width 68 in. 74 in.
Cut Capacity 1.51 cu. yd. 1.61 cu. yd.
Struck Capacity 2.07 cu. yd. 2.28 cu. yd.
Bucket Weight 2,625 lb. 2,800 lb.



Specification 4DCG78 4DCG84
Excavator Class 35 Tons 35 Tons
Part Number 4DCG78 4DCG84
Bucket Width 78 in. 84 in.
Cut Width 80 in. 86 in.
Cut Capacity 1.79 cu. yd. 1.97 cu. yd.
Struck Capacity 2.49 cu. yd. 2.70 cu. yd.
Bucket Weight 2,950 lb. 3,150 lb.



Specification 5DCG60 5DCG66
Excavator Class 40 Tons 40 Tons
Part Number 5DCG60 5DCG66
Bucket Width 60 in. 66 in.
Cut Width 62 in. 68 in.
Cut Capacity 1.48 cu. yd. 1.63 cu. yd.
Struck Capacity 2.01 cu. yd. 2.24 cu. yd.
Bucket Weight 3,100 lb. 3,275 lb.



Specification 5DCG72 5DCG78
Excavator Class 40 Tons 40 Tons
Part Number 5DCG72 5DCG78
Bucket Width 72 in. 78 in.
Cut Width 74 in. 78 in.
Cut Capacity 1.78 cu. yd. 1.92 cu. yd.
Struck Capacity 2.46 cu. yd. 2.67 cu. yd.
Bucket Weight 3,500 lb. 3,725 lb.



Specification 5DCG84 6DCG60
Excavator Class 40 Tons 50 Tons
Part Number 5DCG84 6DCG60
Bucket Width 84 in. 60 in.
Cut Width 84 in. 62 in.
Cut Capacity 2.07 cu. yd. 1.78 cu. yd.
Struck Capacity 2.89 cu. yd. 2.40 cu. yd.
Bucket Weight 3,875 lb. 3,725 lb.



Specification 6DCG66 6DCG72
Excavator Class 50 Tons 50 Tons
Part Number 6DCG66 6DCG72
Bucket Width 66 in. 72 in.
Cut Width 66 in. 74 in.
Cut Capacity 1.95 cu. yd. 2.13 cu. yd.
Struck Capacity 2.68 cu. yd. 2.92 cu. yd.
Bucket Weight 3,925 lb. 4,175 lb.



Specification 6DCG78 6DCG84
Excavator Class 50 Tons 50 Tons
Part Number 6DCG78 6DCG84
Bucket Width 78 in. 84 in.
Cut Width 80 in. 86 in.
Cut Capacity 2.31 cu. yd. 2.84 cu. yd.
Struck Capacity 3.19 cu. yd. 3.81 cu. yd.
Bucket Weight 4,375 lb. 4,350 lb.
