Werk-Brau

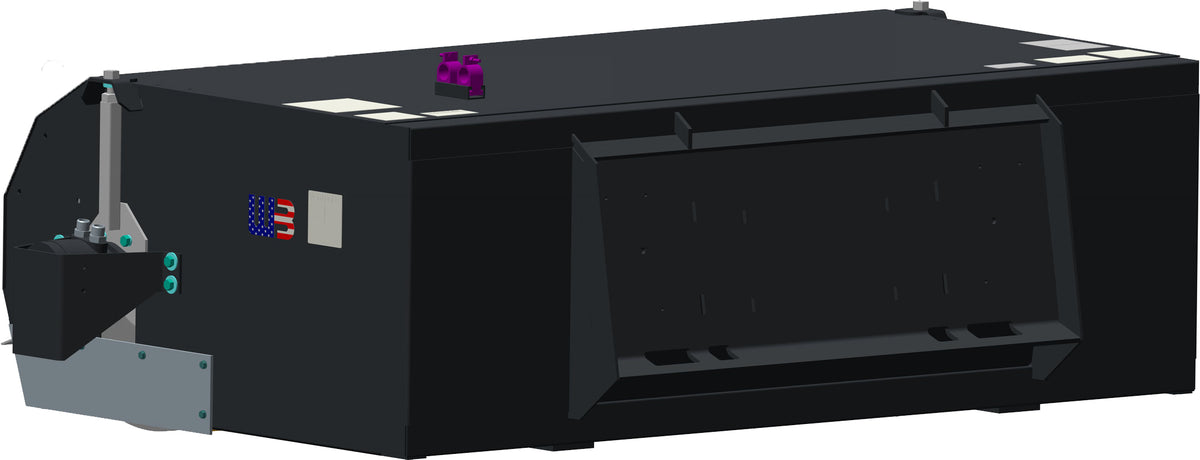

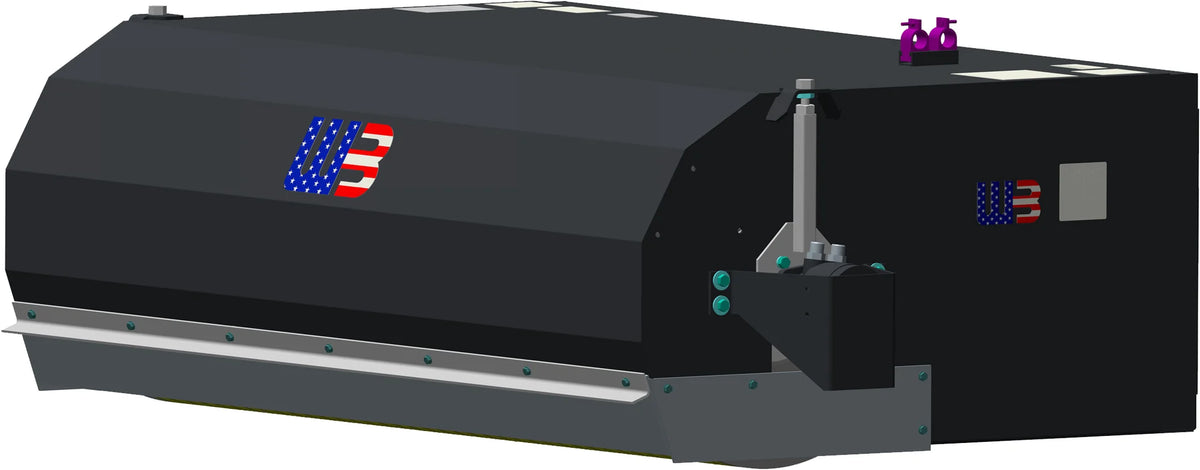

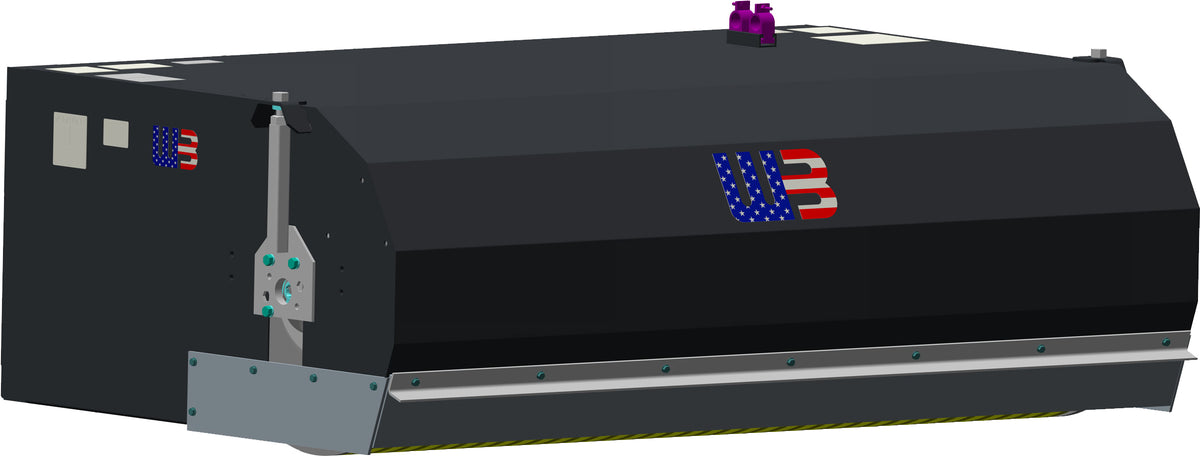

Werk-Brau Fixed Hopper Pick-Up Broom | Model WFLB | Width 60"–84" | 8–22 GPM | For Skid Steer

Werk-Brau Fixed Hopper Pick-Up Broom | Model WFLB | Width 60"–84" | 8–22 GPM | For Skid Steer

Regular price $1.00
Regular price Sale price $1.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Broom Width: 60–84" for varied sweeping coverage.
  • Hydraulic Flow: 10–22 GPM for skid steers.
  • Low-Flow Option: 8–16 GPM for compatible loaders.
  • Brush Diameter: 25" for aggressive debris sweeping.
  • For Skid Steers for construction and site cleanup.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Werk-Brau Fixed Hopper Pick-Up Broom | Model WFLB | Width 60"–84" | 8–22 GPM | For Skid Steer


DESCRIPTION

The Werk-Brau WFLB Skid Steer Fixed Hopper Pick-Up Broom is a heavy-duty hydraulic pickup broom attachment designed to sweep, collect, and contain dirt, gravel fines, grass, construction debris, and general jobsite refuse in a single pass. Built for skid steer loaders, this fixed hopper broom combines an aggressive rotary brush with a durable collection hopper for efficient site cleanup and maintenance. Available in 60", 72", and 84" broom widths, it offers flexible coverage for different operating requirements. The 25" O.D. wafer-style brush, replaceable cutting edge, heavy-duty pillow block bearings, and protected high-torque hydraulic motor provide dependable performance in demanding applications. The hopper uses a 12-gauge hood, 10-gauge side panels, and 1/4" steel bottom for added durability. The forward-dumping hopper empties directly into trucks or dumpsters using the loader's bucket dump function, reducing manual cleanup and improving productivity. Optional low-flow motor, sprinkler system, sight indicators, and gutter brooms further expand application versatility.

Key Features

  • Heavy-Duty Hydraulic Pickup Broom: Designed for skid steer loaders, the WFLB hydraulically driven rotary broom sweeps and collects dirt, gravel fines, grass, construction debris, and general refuse efficiently in a single pass.
  • Multiple Broom Widths Available: Choose from 60", 72", or 84" broom widths to match jobsite requirements and desired sweeping coverage for construction, maintenance, landscaping, and cleanup applications.
  • Standard 10–22 GPM Motor: The standard single low-speed, high-torque 18 CID hydraulic motor is designed for standard-flow skid steer loaders operating within the specified hydraulic flow range.
  • Optional Low-Flow Drive: The optional low-flow hydraulic motor supports 8–16 GPM skid steer systems, providing additional machine compatibility for lower-flow compact loaders.
  • 25" Wafer-Style Brush: The durable 25" O.D. x 6 3/8" I.D. brush is engineered for aggressive sweeping performance and effective collection of dirt, debris, gravel fines, and jobsite refuse.
  • Poly and Wire Brush Option: The available polypropylene and wire brush configuration provides versatility for different sweeping conditions, from general cleanup to demanding construction applications.
  • Forward-Dumping Hopper: The fixed hopper can be emptied directly into trucks or dumpsters using the loader's bucket dump function, simplifying debris disposal and reducing manual handling.
  • Heavy-Duty Hopper Construction: A 12-gauge hood, 10-gauge side panels, and 1/4" steel hopper bottom provide a rugged collection system designed for demanding work environments.
  • Replaceable Cutting Edge: The hopper includes a replaceable cutting edge to support long-term serviceability and help reduce maintenance costs when the working edge becomes worn.
  • Protected Hydraulic Motor: The hydraulic motor is mounted outside the brush frame and protected by formed 1/4" guards, helping shield critical drive components during operation.
  • Direct Brush Drive: The motor connects directly to the brush core through a 1" 6-spline shaft, providing a direct and efficient hydraulic drive arrangement.
  • Up to 200 RPM Brush Speed: Brush rotation can reach up to 200 RPM, depending on the hydraulic capabilities and operating conditions of the prime mover.
  • Easy Brush Assembly Removal: The brush and core assembly can be removed from the frame without disconnecting the hydraulic hoses, helping simplify service and maintenance procedures.
  • Optional Gutter Brooms: Available single or dual hydraulic gutter broom options provide additional sweeping reach along curbs, edges, and difficult-to-access areas.
  • Optional Sprinkler System: The available 45-gallon, 12-volt or 24-volt sprinkler system can help manage dust during sweeping operations in appropriate applications.

Detailed Specifications

Specification 60" Model 72" Model
Brand Werk-Brau Werk-Brau
Model WFLB WFLB
Product Type Skid Steer Fixed Hopper Pick-Up Broom Skid Steer Fixed Hopper Pick-Up Broom
Attachment Type Hydraulic Rotary Pickup Broom Hydraulic Rotary Pickup Broom
Compatible Machine Skid Steer Loader Skid Steer Loader
Broom Width 60" 72"
Standard Hydraulic Flow 10–22 GPM 10–22 GPM
Low-Flow Hydraulic Option 8–16 GPM 8–16 GPM
Standard Motor Single 18 CID low-speed, high-torque hydraulic motor Single 18 CID low-speed, high-torque hydraulic motor
Brush Type Wafer Style Wafer Style
Brush Material Option Polypropylene and Wire Polypropylene and Wire
Brush Outside Diameter 25" O.D. 25" O.D.
Brush Inside Diameter 6 3/8" I.D. 6 3/8" I.D.
Maximum Brush Speed Up to 200 RPM Up to 200 RPM
Brush Drive Shaft 1" 6-Spline Shaft 1" 6-Spline Shaft
Brush Core Installation Reversible left/right installation Reversible left/right installation
Brush Assembly Removal Removable without disconnecting hydraulic hoses Removable without disconnecting hydraulic hoses
Brush Lift Lifted by prime mover Lifted by prime mover
Hopper Capacity 13.2 cu. ft. 15.8 cu. ft.
Hopper Hood 12-Gauge Steel 12-Gauge Steel
Hopper Side Panels 10-Gauge Steel 10-Gauge Steel
Hopper Bottom 1/4" Steel Plate 1/4" Steel Plate
Hopper Dump Method Loader bucket dump function Loader bucket dump function
Cutting Edge Replaceable Replaceable
Bearing System Heavy-Duty Self-Aligning Pillow Block Bearings Heavy-Duty Self-Aligning Pillow Block Bearings
Motor Protection Formed 1/4" Guards Formed 1/4" Guards
Standard Mounting Standard Bumper Mounting Frame with Two Ears Standard Bumper Mounting Frame with Two Ears
Gutter Broom Option Single or Dual Single or Dual
Sprinkler System Option 45-Gallon, 12V or 24V 45-Gallon, 12V or 24V
Sight Indicators Optional Optional
Finish Phosphatized surface, epoxy primer, polyurethane topcoat Phosphatized surface, epoxy primer, polyurethane topcoat
Standard Finish Color Gray Gray
Manufacturing Location Findlay, Ohio Findlay, Ohio


Specification 84" Model
Brand Werk-Brau
Model WFLB
Product Type Skid Steer Fixed Hopper Pick-Up Broom
Attachment Type Hydraulic Rotary Pickup Broom
Compatible Machine Skid Steer Loader
Broom Width 84"
Standard Hydraulic Flow 10–22 GPM
Low-Flow Hydraulic Option 8–16 GPM
Standard Motor Single 18 CID low-speed, high-torque hydraulic motor
Brush Type Wafer Style
Brush Material Option Polypropylene and Wire
Brush Outside Diameter 25" O.D.
Brush Inside Diameter 6 3/8" I.D.
Maximum Brush Speed Up to 200 RPM
Brush Drive Shaft 1" 6-Spline Shaft
Brush Core Reversible left/right installation
Brush Assembly Removal No hydraulic hose disconnection required
Brush Lift Lifted by prime mover
Hopper Capacity 18.2 cu. ft.
Hopper Hood 12-Gauge Steel
Hopper Side Panels 10-Gauge Steel
Hopper Bottom 1/4" Steel Plate
Hopper Dump Method Loader bucket dump function
Cutting Edge Replaceable
Bearing System Heavy-Duty Self-Aligning Pillow Block Bearings
Motor Protection Formed 1/4" Guards
Standard Mounting Standard Bumper Mounting Frame with Two Ears
Gutter Broom Option Single or Dual
Sprinkler Capacity 45 Gallons
Sprinkler Voltage Options 12V or 24V
Sight Indicators Optional
Finish Process Phosphatizing acid bath, epoxy primer, polyurethane topcoat
Standard Color Gray
Manufacturing Location Findlay, Ohio
