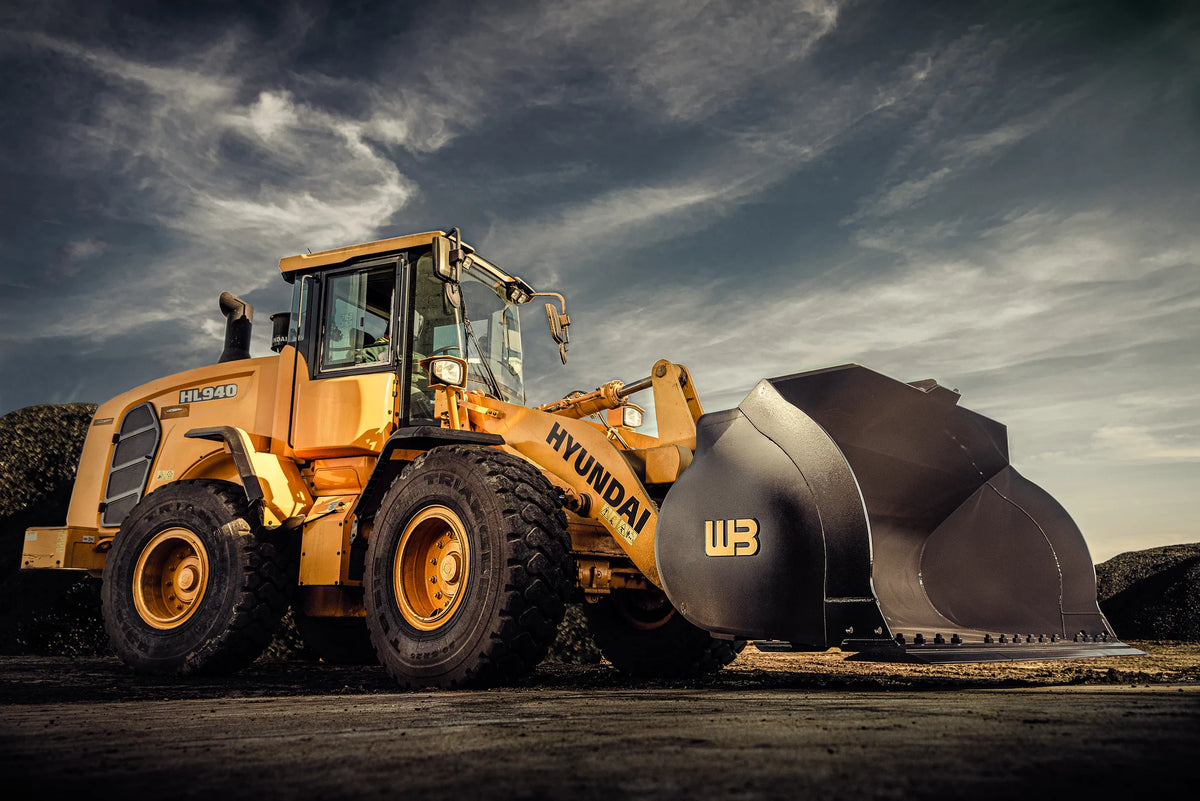

Werk-Brau General Purpose High Performance Bucket | Width 47–144" | 20–60 GPM | For Wheel Loaders

Werk-Brau General Purpose High Performance Bucket | Width 47–144" | 20–60 GPM | For Wheel Loaders

$1.00
$1.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Bucket Width: 47–144" across multiple loader configurations.
  • Hydraulic Flow: 20–60 GPM for compatible wheel loaders.
  • Bucket Capacity: 0.50–10.00 cubic yards rated capacity.
  • Rated Weight: 700–10,500 lbs across available models.
  • Application: For wheel loaders, digging and material handling.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Werk-Brau General Purpose High Performance Bucket | Width 47–144" | 20–60 GPM | For Wheel Loaders

DESCRIPTION

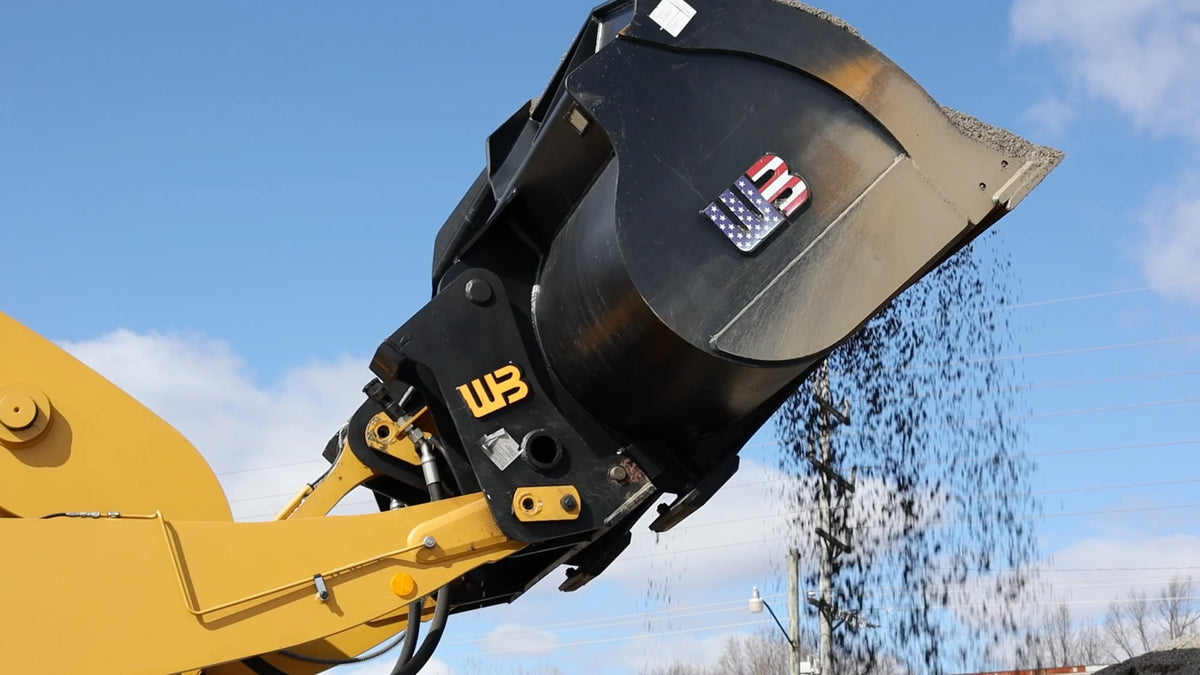

The Werk-Brau General Purpose High Performance Loader Bucket is engineered for demanding loading, digging, trenching, excavation, and material-handling applications. Its enhanced high-performance profile provides approximately 5% greater capacity than the standard General Purpose Bucket, helping operators move more material per cycle. Built with high-strength, abrasion-resistant steel, solid-welded seams, curved side plates, and a strong top structure, this bucket is designed for durability under high digging forces. The inclined bottom reduces loading forces, while the increased rollback angle and beveled design improve material retention and bucket efficiency. Available in multiple widths and capacities from 2.0 to 9.0 cu. yd., with select models ranging from 47" to 144" wide, it is designed for wheel loaders handling virgin soil and materials up to 3,200 lbs./cu. yd. Optional auxiliary edge and tooth equipment is also available.

Key Features

  • High-Performance Bucket Profile The enhanced profile is designed specifically for efficient digging, loading, and material handling. Its optimized geometry helps improve bucket performance while providing approximately 5% more capacity than the standard Werk-Brau General Purpose Bucket.
  • High-Strength Steel Construction Critical components are manufactured using high-strength, abrasion-resistant steel to withstand demanding loading and excavation applications. Solid-welded seams add structural durability for repeated use in challenging jobsite conditions.
  • Optimized Material Retention Curved side plates, an increased rollback angle, and a beveled bucket design help retain more material during loading and transport. This geometry supports efficient bucket filling and helps reduce material loss during handling.
  • Reduced Loading Forces The inclined bottom design helps reduce the force required during loading. By improving the bucket’s interaction with the material, the design supports smoother operation and efficient material penetration during demanding loading cycles.
  • Increased Bucket Capacity The high-performance configuration holds approximately 5% more material than the standard General Purpose Bucket. Available rated capacities range across multiple configurations, supporting different wheel loader classes and material-handling requirements.
  • Wide Size Selection Multiple bucket configurations are available with widths ranging from approximately 47" to 144", depending on loader class and model. This broad selection makes it easier to match bucket dimensions to different wheel loader applications.
  • 2.0 to 9.0 Cubic Yard Capacity Standard high-performance configurations are available in a broad range of 2.0 to 9.0 cu. yd. capacities. This allows contractors to select a bucket size suited to machine class, material volume, and required production.
  • Virgin Soil Applications Designed specifically for digging virgin soil and handling suitable bulk materials, this loader bucket provides a purpose-built solution for excavation, loading, site preparation, and general material-handling operations.
  • Handles Dense Materials The bucket is designed for re-handling materials with densities up to approximately 3,200 lbs./cu. yd., making it suitable for a range of demanding bulk-material applications when properly matched to the loader.
  • Strong Top Structure A reinforced top design is engineered to withstand the high digging forces generated by modern wheel loaders. This structural approach supports dependable operation during repeated loading and excavation cycles.
  • Curved Side Wall Design The curved side wall configuration supports greater material retention and helps maximize usable bucket capacity. It contributes to efficient filling and helps keep material contained during lifting and movement.
  • Optional Tooth Equipment Auxiliary edge and tooth equipment can be requested for applications where additional digging capability is required. This provides configuration flexibility for different soil conditions and operational requirements.

Detailed Specifications

Specification WBLH82100 WBLH92125
Brand Werk-Brau Werk-Brau
Product Type General Purpose High Performance Bucket General Purpose High Performance Bucket
Loader Class BH BH
Part Number WBLH82100 WBLH92125
Bucket Width 82" 92"
Edge Length 83" 93"
Struck Capacity 0.85 cu. yd. 1.06 cu. yd.
Rated Capacity 1.00 cu. yd. 1.25 cu. yd.
Rated Weight 1,050 lbs. 1,125 lbs.


Specification WBLH96150
Brand Werk-Brau
Product Type General Purpose High Performance Bucket
Loader Class BH
Part Number WBLH96150
Bucket Width 96"
Edge Length 97"
Struck Capacity 1.27 cu. yd.
Rated Capacity 1.50 cu. yd.
Rated Weight 1,200 lbs.


Specification LHG055450 LHG056275
Brand Werk-Brau Werk-Brau
Product Type General Purpose High Performance Bucket General Purpose High Performance Bucket
Loader Class Mini Mini
Part Number LHG055450 LHG056275
Bucket Width 54" 62"
Edge Length 55" 63"
Struck Capacity 0.42 cu. yd. 0.64 cu. yd.
Rated Capacity 0.50 cu. yd. 0.75 cu. yd.
Rated Weight 700 lbs. 775 lbs.


Specification LHG0574100 LHG0574125
Brand Werk-Brau Werk-Brau
Product Type General Purpose High Performance Bucket General Purpose High Performance Bucket
Loader Class Mini Mini
Part Number LHG0574100 LHG0574125
Bucket Width 74" 74"
Edge Length 75" 75"
Struck Capacity 0.85 cu. yd. 1.00 cu. yd.
Rated Capacity 1.00 cu. yd. 1.25 cu. yd.
Rated Weight 825 lbs. 890 lbs.



Specification WL05GP84SSL125W WL05GP84SSL150W
Brand Werk-Brau Werk-Brau
Product Type General Purpose High Performance Bucket General Purpose High Performance Bucket
Loader Class Mini Mini
Part Number WL05GP84SSL125W WL05GP84SSL150W
Bucket Width 84" 84"
Edge Length 85" 85"
Struck Capacity 1.00 cu. yd. 1.30 cu. yd.
Rated Capacity 1.25 cu. yd. 1.50 cu. yd.
Rated Weight 1,050 lbs. 1,090 lbs.



Specification LHG14750 LHG166100
Brand Werk-Brau Werk-Brau
Product Type General Purpose High Performance Bucket General Purpose High Performance Bucket
Loader Class 1 1
Part Number LHG14750 LHG166100
Bucket Width 47" 66"
Edge Length 48" 69"
Struck Capacity 0.42 cu. yd. 0.85 cu. yd.
Rated Capacity 0.50 cu. yd. 1.00 cu. yd.
Rated Weight 850 lbs. 1,050 lbs.



Specification LHG188125 LHG196150
Brand Werk-Brau Werk-Brau
Product Type General Purpose High Performance Bucket General Purpose High Performance Bucket
Loader Class 1 1
Part Number LHG188125 LHG196150
Bucket Width 88" 96"
Edge Length 91" 99"
Struck Capacity 1.06 cu. yd. 1.27 cu. yd.
Rated Capacity 1.25 cu. yd. 1.50 cu. yd.
Rated Weight 1,300 lbs. 1,675 lbs.



Specification LHG1100200 LHG1100225
Brand Werk-Brau Werk-Brau
Product Type General Purpose High Performance Bucket General Purpose High Performance Bucket
Loader Class 1 1
Part Number LHG1100200 LHG1100225
Bucket Width 100" 100"
Edge Length 102" 102"
Struck Capacity 1.69 cu. yd. 1.91 cu. yd.
Rated Capacity 2.00 cu. yd. 2.25 cu. yd.
Rated Weight 1,880 lbs. 1,950 lbs.



Specification LHG1100250
Brand Werk-Brau
Product Type General Purpose High Performance Bucket
Loader Class 1
Part Number LHG1100250
Bucket Width 100"
Edge Length 102"
Struck Capacity 2.17 cu. yd.
Rated Capacity 2.50 cu. yd.
Rated Weight 2,040 lbs.



Specification LHG2100200 LHG2100225
Brand Werk-Brau Werk-Brau
Product Type General Purpose High Performance Bucket General Purpose High Performance Bucket
Loader Class 2 2
Part Number LHG2100200 LHG2100225
Bucket Width 100" 100"
Edge Length 102" 102"
Struck Capacity 1.69 cu. yd. 1.91 cu. yd.
Rated Capacity 2.00 cu. yd. 2.25 cu. yd.
Rated Weight 1,880 lbs. 1,950 lbs.



Specification LHG2100250 LHG2100275
Brand Werk-Brau Werk-Brau
Product Type General Purpose High Performance Bucket General Purpose High Performance Bucket
Loader Class 2 2
Part Number LHG2100250 LHG2100275
Bucket Width 100" 100"
Edge Length 102" 102"
Struck Capacity 2.17 cu. yd. 2.33 cu. yd.
Rated Capacity 2.50 cu. yd. 2.75 cu. yd.
Rated Weight 2,040 lbs. 2,175 lbs.



Specification LHG2100300
Brand Werk-Brau
Product Type General Purpose High Performance Bucket
Loader Class 2
Part Number LHG2100300
Bucket Width 100"
Edge Length 102"
Struck Capacity 2.54 cu. yd.
Rated Capacity 3.00 cu. yd.
Rated Weight 2,270 lbs.



Specification LHG3100250 LHG3100275
Brand Werk-Brau Werk-Brau
Product Type General Purpose High Performance Bucket General Purpose High Performance Bucket
Loader Class 3 3
Part Number LHG3100250 LHG3100275
Bucket Width 100" 100"
Edge Length 102" 102"
Struck Capacity 2.17 cu. yd. 2.33 cu. yd.
Rated Capacity 2.50 cu. yd. 2.75 cu. yd.
Rated Weight 2,040 lbs. 2,175 lbs.



Specification LHG3100300
Brand Werk-Brau
Product Type General Purpose High Performance Bucket
Loader Class 3
Part Number LHG3100300
Bucket Width 100"
Edge Length 102"
Struck Capacity 2.54 cu. yd.
Rated Capacity 3.00 cu. yd.
Rated Weight 2,270 lbs.



Specification LHG35105300 LHG35105325
Brand Werk-Brau Werk-Brau
Product Type General Purpose High Performance Bucket General Purpose High Performance Bucket
Loader Class 3.5 3.5
Part Number LHG35105300 LHG35105325
Bucket Width 105" 105"
Edge Length 107" 107"
Struck Capacity 2.54 cu. yd. 2.75 cu. yd.
Rated Capacity 3.00 cu. yd. 3.25 cu. yd.
Rated Weight 2,790 lbs. 2,870 lbs.



Specification LHG35105350 LHG35105375
Brand Werk-Brau Werk-Brau
Product Type General Purpose High Performance Bucket General Purpose High Performance Bucket
Loader Class 3.5 3.5
Part Number LHG35105350 LHG35105375
Bucket Width 105" 105"
Edge Length 107" 107"
Struck Capacity 2.97 cu. yd. 3.18 cu. yd.
Rated Capacity 3.50 cu. yd. 3.75 cu. yd.
Rated Weight 2,960 lbs. 3,090 lbs.



Specification LHG4117350 LHG4117400
Brand Werk-Brau Werk-Brau
Product Type General Purpose High Performance Bucket General Purpose High Performance Bucket
Loader Class 4 4
Part Number LHG4117350 LHG4117400
Bucket Width 117" 117"
Edge Length 119" 119"
Struck Capacity 2.97 cu. yd. 3.30 cu. yd.
Rated Capacity 3.50 cu. yd. 4.00 cu. yd.
Rated Weight 3,300 lbs. 3,520 lbs.



Specification LHG4117425 LHG4117450
Brand Werk-Brau Werk-Brau
Product Type General Purpose High Performance Bucket General Purpose High Performance Bucket
Loader Class 4 4
Part Number LHG4117425 LHG4117450
Bucket Width 117" 117"
Edge Length 119" 119"
Struck Capacity 3.60 cu. yd. 3.81 cu. yd.
Rated Capacity 4.25 cu. yd. 4.50 cu. yd.
Rated Weight 3,590 lbs. 3,690 lbs.



Specification LHG4117475 LHG4117500
Brand Werk-Brau Werk-Brau
Product Type General Purpose High Performance Bucket General Purpose High Performance Bucket
Loader Class 4 4
Part Number LHG4117475 LHG4117500
Bucket Width 117" 117"
Edge Length 119" 119"
Struck Capacity 3.96 cu. yd. 4.22 cu. yd.
Rated Capacity 4.75 cu. yd. 5.00 cu. yd.
Rated Weight 3,850 lbs. 3,950 lbs.



Specification LHG4117525
Brand Werk-Brau
Product Type General Purpose High Performance Bucket
Loader Class 4
Part Number LHG4117525
Bucket Width 117"
Edge Length 119"
Struck Capacity 4.40 cu. yd.
Rated Capacity 5.25 cu. yd.
Rated Weight 4,000 lbs.



Specification LHG5124475 LHG5124500
Brand Werk-Brau Werk-Brau
Product Type General Purpose High Performance Bucket General Purpose High Performance Bucket
Loader Class 5 5
Part Number LHG5124475 LHG5124500
Bucket Width 124" 124"
Edge Length 126" 126"
Struck Capacity 3.95 cu. yd. 4.24 cu. yd.
Rated Capacity 4.75 cu. yd. 5.00 cu. yd.
Rated Weight 4,650 lbs. 4,750 lbs.



Specification LHG5124525 LHG5124550
Brand Werk-Brau Werk-Brau
Product Type General Purpose High Performance Bucket General Purpose High Performance Bucket
Loader Class 5 5
Part Number LHG5124525 LHG5124550
Bucket Width 124" 124"
Edge Length 126" 126"
Struck Capacity 4.45 cu. yd. 4.60 cu. yd.
Rated Capacity 5.25 cu. yd. 5.50 cu. yd.
Rated Weight 4,900 lbs. 5,020 lbs.



Specification LHG5124575 LHG5124600
Brand Werk-Brau Werk-Brau
Product Type General Purpose High Performance Bucket General Purpose High Performance Bucket
Loader Class 5 5
Part Number LHG5124575 LHG5124600
Bucket Width 124" 124"
Edge Length 126" 126"
Struck Capacity 4.87 cu. yd. 5.08 cu. yd.
Rated Capacity 5.75 cu. yd. 6.00 cu. yd.
Rated Weight 5,120 lbs. 5,250 lbs.



Specification LHG5124625
Brand Werk-Brau
Product Type General Purpose High Performance Bucket
Loader Class 5
Part Number LHG5124625
Bucket Width 124"
Edge Length 126"
Struck Capacity 5.23 cu. yd.
Rated Capacity 6.25 cu. yd.
Rated Weight 5,380 lbs.



Specification LHG6134650 LHG6134750
Brand Werk-Brau Werk-Brau
Product Type General Purpose High Performance Bucket General Purpose High Performance Bucket
Loader Class 6 6
Part Number LHG6134650 LHG6134750
Bucket Width 134" 134"
Edge Length 134" 134"
Struck Capacity 5.51 cu. yd. 6.25 cu. yd.
Rated Capacity 6.50 cu. yd. 7.50 cu. yd.
Rated Weight 5,950 lbs. 6,350 lbs.



Specification LHG6134800 LHG6138750
Brand Werk-Brau Werk-Brau
Product Type General Purpose High Performance Bucket General Purpose High Performance Bucket
Loader Class 6 6
Part Number LHG6134800 LHG6138750
Bucket Width 134" 138"
Edge Length 134" 141"
Struck Capacity 6.36 cu. yd. 6.78 cu. yd.
Rated Capacity 7.50 cu. yd. 8.00 cu. yd.
Rated Weight 6,100 lbs. 6,500 lbs.



Specification LHG7144700 LHG7144800
Brand Werk-Brau Werk-Brau
Product Type General Purpose High Performance Bucket General Purpose High Performance Bucket
Loader Class 7 7
Part Number LHG7144700 LHG7144800
Bucket Width 144" 144"
Edge Length 147" 147"
Struck Capacity 5.60 cu. yd. 6.70 cu. yd.
Rated Capacity 7.00 cu. yd. 8.00 cu. yd.
Rated Weight 7,200 lbs. 8,000 lbs.



Specification LHG7144900 LHG71441000
Brand Werk-Brau Werk-Brau
Product Type General Purpose High Performance Bucket General Purpose High Performance Bucket
Loader Class 7 7
Part Number LHG7144900 LHG71441000
Bucket Width 144" 144"
Edge Length 147" 147"
Struck Capacity 7.60 cu. yd. 8.70 cu. yd.
Rated Capacity 9.00 cu. yd. 10.00 cu. yd.
Rated Weight 9,700 lbs. 10,500 lbs.



Manuals & Documents

General Warranty Info:

  • Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
  • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
  • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
  • Please reach out to us for any specific warranty information needed about products and parts you can’t find!

Videos

Shipping

$1 Shipping Quote Info:

  • Contact Us For Shipping Quotes. All $1 products are listed as quote only because we can not display their pricing online.
  • Low shipping rates for customers. We have negotiated the best possible rates for customers from our trusted carriers (ODFL, ESTES, UPS, and FedEx) & Top Private Drivers
  • Negotiate shipping rates if you think we can do better please reach out. Keep in mind some shipping rates also include assembly & configuration as well!
  • Complimentary lift gate service on all freight shipments where it’s possible. We guarantee safe delivery!

Customer Reviews

Overall rating: 4.6 / 5 from 94 reviews.

Customer photo review of Ferntree Mini Excavator Forestry Mulcher | Model FF-L Series | 22"-30" Cutting Width | Machine Size 2.5- 6 Ton | For Mini Excavator

easy buying process and great communication. Mulcher works great, easily clears overgrown brush and even mulched a 5" thick mulberry tree fairly easily. running it off of my old 331 bobcat with no problem powering the drum at all. Only small issue which isn't a big deal is that the supplied hoses are about 16" too short to operate a full range of motion.

Clint S. 5/5 Verified

Ferntree Mini Excavator Forestry Mulcher | Model FF-L Series | 22"-30" Cutting Width | Machine Size 2.5- 6 Ton | For Mini Excavator

Over all built well. I like it is all cast iron and metal and not plastic. Had to modify fertilizer disc mount to fit correctly, nothing major, a little grinding. I modified the center link hitch point to accommodate my John Deere quick hitch. Have yet to plant with it but I’m sure it will work perfect. Love the grease fittings everywhere. Reminds me of the old farm equipment I grew up on, and still use periodically.

Curtis L. 4/5 Verified

Cole 12 MX Multiflex Planter | Model B46-664A / 0120103 | Width 13" | Size: One Row | 3PT Hitch Planter Attachment | Horsepower 25–45 HP | For Tractor

My firminator RT was delivered in good condition in ND. I will be using it next week. I have a 45 HP John Deere tractor that is supposed to lift 2000 lb but really struggles to lift this 6 foot firminator RT. I will just have to use in as a two pass operation for now. I do wish there was a better operating manual for this unit. Maybe that is something you can work on. I will give you an update once I start using it in a few days.

John L. 5/5 Verified

Ranew Outdoor Firminator Rototiller | RT Series | Working Width 4', 6' & 8' | Tiller, Seeder & Cultipacker | Horsepower 24–55 HP | For Tractors

Put this on Kubota 900 with winch hookup. This thing is a beast (within reason). I named it ‘Homie”, cause Homie don’t play. It will take care of stuff up to about 2” in diameter. You still have to remember that this is NOT like the ones on a bobcat or larger machinery. It does have its limits. But all in all I am very satisfied with it. Now on to the good part! The staff at Ripping It are outstanding! Especially Kayla in the office. She has gone above and beyond on making sure everything went right, from ordering to questions about installation. This young lady would be of great value at ANY company ! Her knowledge and personality are like over the top. This is my first experience with Ripping It Outdoors and I can only say positive things about them. With all that being said, I do fill out reviews on things I buy, AND I give a honest review. If it’s bad then you will know it. But if it’s good, well I tell the truth ! Again Kayla, from the bottom of my heart, a great big THANK YOU for all your help and just talking to you. I feel like we’ve know each other for years!

Steve V. 5/5 Verified

Forax Gas Powered Mulcher | Model GP40 | 40" Cutting Width | 14HP Kohler Motor | For UTV Side by Sides and Tractors

TENT is easy to put up , material is tuff as told....only complaint is that i wish the bottom had about 3 to 4 inches overlap towards the inside so i could install a 2 x4 or something to help hold the tent down in high winds we have here in virginia thanks

Bill G. 4/5 Verified

30-06 Ground Blind Native - Spirit 600d 48"x48"x62" Camo

Hi, my name is Ken. I’ve had a great experience with Ripping It Outdoors. I purchased a Forax Hp40 Mulcher for my mini excavator. Kayla Patterson is who I dealt with from the beginning until I received it at my house. She has been wonderful to work with and looking forward to working with her with any other orders I purchase. Kayla answered any questions I had and kept me updated throughout the whole process, can’t say it enough just a wonderful person to work with!!

Ken B. 5/5 Verified

Forax Ultralight Mulcher | Model HP40 | Cutting Width 40" | Carrier 2-4-Ton | For Excavators

These are great feeders if you don’t have any feral hogs but if the hogs tear off the wiring harness from the timer to the feeder motor, you’re disabled. Then, if you ask for help from Outback, they refer you to the dealer but really you’re on your own for parts and repairs. I have three Outback feeders that work as designed. They’re 13 years old and have always served well but this feeder misses the mark by a very high margin. I’d NEVER buy this product again. Feeders need to be dependable and this unit is not.

Bob M. 2/5

Outback Wildlife Baby-Back Low Profile Pistolero Directional Unit Feeders | Available in 400#, 600# and 1000# Capacities | Lid Opening 16" and 24"
