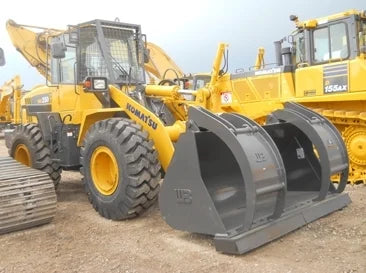

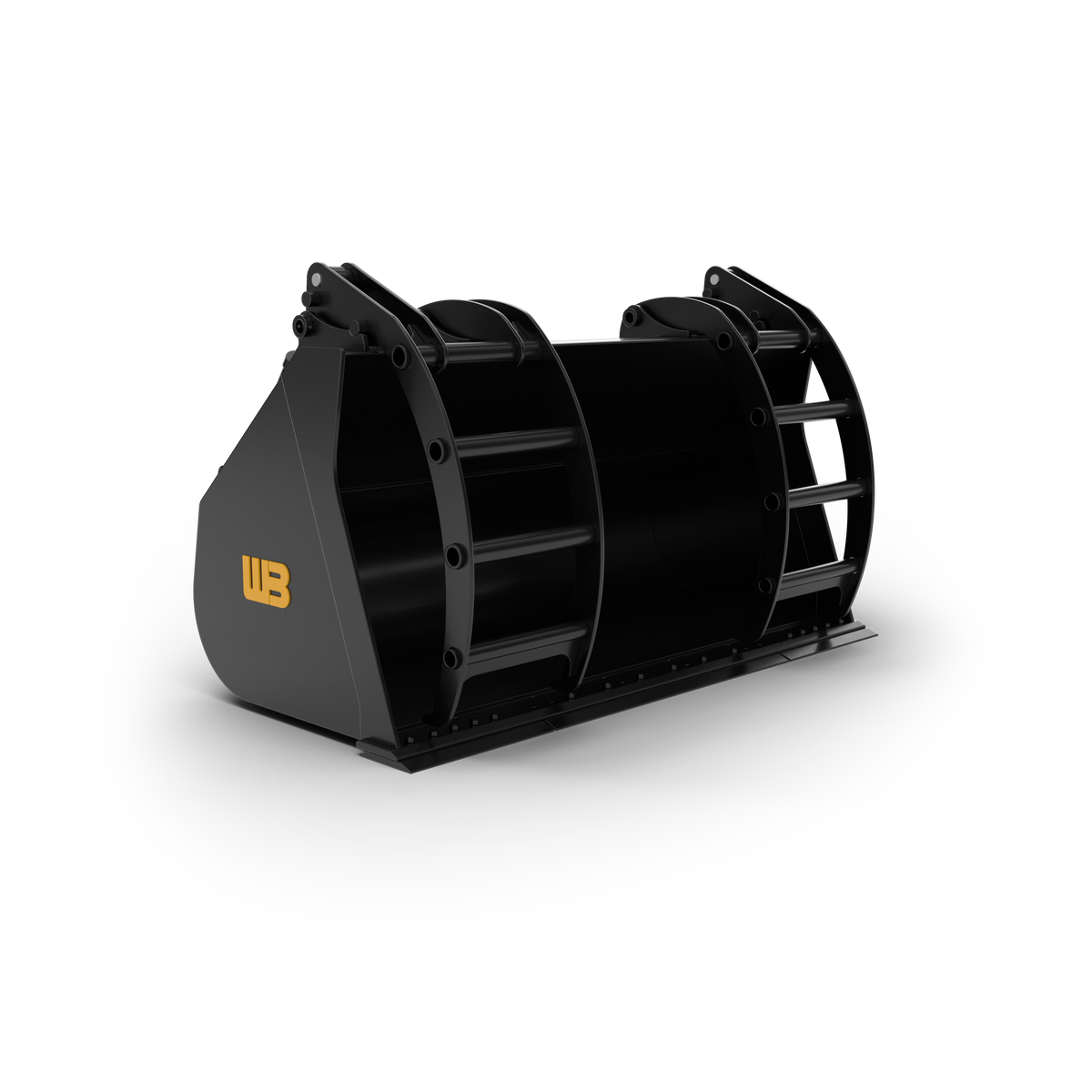

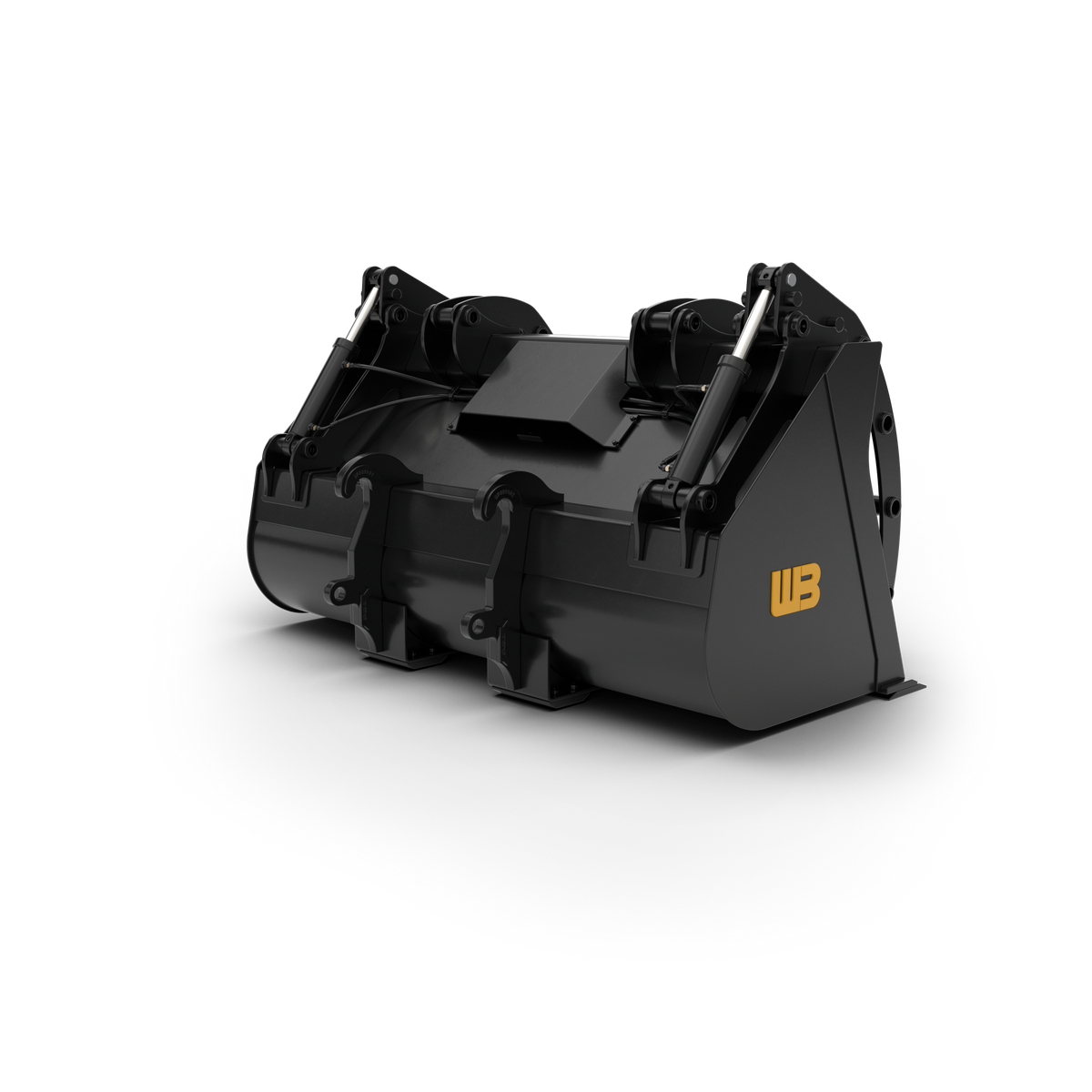

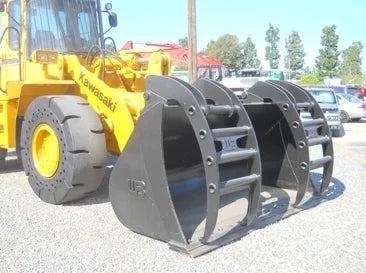

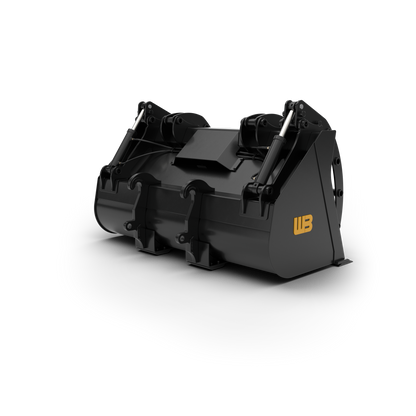

Werk-Brau Grapple Bucket | Width 88" To 132" | 1.75–8 yd³ Capacity | 15–25 GPM | For Wheel Loader

Werk-Brau Grapple Bucket | Width 88" To 132" | 1.75–8 yd³ Capacity | 15–25 GPM | For Wheel Loader

$1.00
$1.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Bucket Width: 88–132" across documented models.
  • Bucket Capacity: 1.75–8.00 yd³ for varied loads.
  • Hydraulic Flow: Approximately 15–25 GPM adjustable.
  • Operating Weight: 2,075–8,900 lbs depending on model.
  • Compatibility: Designed for hydraulic wheel loader applications.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Werk-Brau Grapple Bucket | Width 88" To 132" | 1.75–8 yd³ Capacity | 15–25 GPM | For Wheel Loader

DESCRIPTION

Built for demanding material handling, land clearing, demolition, and cleanup applications, the Werk-Brau Grapple Bucket combines hydraulic gripping power with a durable wheel-loader bucket design. Its hydraulically operated grapple arms securely clamp brush, scrap, refuse, logs, debris, and other irregular materials that conventional buckets may struggle to contain. High-strength, abrasion-resistant steel is used in critical components to withstand demanding working conditions, while tapered side plates help reduce wear and support efficient dumping. With adjustable hydraulic flow, a 4,500 PSI maximum manifold pressure, and grapple-cylinder pressure limited to 2,900 PSI, this attachment delivers controlled material handling and versatile performance. Multiple configurations are available, with documented widths from 88–132 inches and capacities from 1.75–8.00 yd³, making it adaptable to various wheel-loader applications.

Key Features

  • Hydraulic Grapple Arms Securely clamp and grip brush, scrap, refuse, debris, logs, and other irregular materials for controlled material handling.
  • Powerful Hydraulic Grip Provides a secure hold on loose and bulky loads that may be difficult to contain using a conventional wheel-loader bucket.
  • Heavy-Duty Construction Built with high-strength, abrasion-resistant steel in critical components to support demanding material handling and cleanup applications.
  • Adjustable Hydraulic Flow Supports adjustable hydraulic flow for controlled grapple operation, with documented configurations using approximately 15–25 GPM.
  • 4,500 PSI Manifold Rating Hydraulic system supports maximum auxiliary pressure of 4,500 PSI to the manifold for demanding attachment operation.
  • 2,900 PSI Cylinder Pressure Grapple cylinders receive pressure limited to 2,900 PSI after the manifold for controlled hydraulic gripping performance.
  • 88–132 Inch Widths Available in multiple documented configurations, providing attachment widths from approximately 88 to 132 inches.
  • 1.75–8.00 yd³ Capacity Multiple bucket capacities accommodate different wheel-loader material handling requirements and load volumes.
  • Efficient Material Handling Designed to improve handling speed and control across brush clearing, demolition, cleanup, and refuse applications.
  • Tapered Side Plates Tapered side-plate construction helps reduce wear while supporting smoother and more efficient dumping operations.
  • Versatile Cleanup Attachment Suitable for handling brush, scrap, refuse, demolition debris, and other cumbersome or irregular materials.
  • Wheel Loader Compatibility Specifically designed as a wheel-loader attachment for hydraulic material handling and loading applications.
  • Heavy-Duty Hose Rating Hydraulic hoses are specified with a minimum 4,000 PSI pressure rating for demanding operating conditions.
  • Multiple Configuration Options Model configurations range from compact 1.75 yd³ units to large 8.00 yd³ versions for different applications.
  • Controlled Load Handling Hydraulic clamping helps operators maintain better control of irregular loads during pickup, transport, and dumping.

Detailed Specifications

Specification WL1GB88-1.75 WL1GB100-2.00
Brand Werk-Brau Werk-Brau
Product Type Grapple Bucket Grapple Bucket
Machine Type Wheel Loader Wheel Loader
Model WL1GB88-1.75 WL1GB100-2.00
Bucket Width 88 in 100 in
Bucket Capacity 1.75 yd³ 2.00 yd³
Unit Weight 2,075 lbs 2,475 lbs
Hydraulic Operation Yes Yes
Hydraulic Flow 15–25 GPM* 15–25 GPM*
Maximum Auxiliary Pressure 4,500 PSI 4,500 PSI
Grapple Cylinder Pressure 2,900 PSI max. 2,900 PSI max.
Hydraulic Hose Rating 4,000 PSI minimum 4,000 PSI minimum
Grapple Arms Hydraulic Hydraulic
Primary Applications Brush, scrap, refuse, cleanup Brush, scrap, refuse, cleanup
Construction High-strength, abrasion-resistant steel High-strength, abrasion-resistant steel
Side Plate Design Tapered Tapered


Specification WL1GB100-2.50 WL1GB100-3.00
Brand Werk-Brau Werk-Brau
Product Type Grapple Bucket Grapple Bucket
Machine Type Wheel Loader Wheel Loader
Model WL1GB100-2.50 WL1GB100-3.00
Bucket Width 100 in 100 in
Bucket Capacity 2.50 yd³ 3.00 yd³
Unit Weight 2,875 lbs 3,275 lbs
Hydraulic Operation Yes Yes
Hydraulic Flow 15–25 GPM* 15–25 GPM*
Maximum Auxiliary Pressure 4,500 PSI 4,500 PSI
Grapple Cylinder Pressure 2,900 PSI max. 2,900 PSI max.
Hydraulic Hose Rating 4,000 PSI minimum 4,000 PSI minimum
Grapple Arms Hydraulic Hydraulic
Primary Applications Brush, scrap, refuse, cleanup Brush, scrap, refuse, cleanup
Construction High-strength, abrasion-resistant steel High-strength, abrasion-resistant steel
Side Plate Design Tapered Tapered


Specification WL1GB100-3.50 WL2GB100-2.50
Brand Werk-Brau Werk-Brau
Product Type Grapple Bucket Grapple Bucket
Machine Type Wheel Loader Wheel Loader
Model WL1GB100-3.50 WL2GB100-2.50
Bucket Width 100 in 100 in
Bucket Capacity 3.50 yd³ 2.50 yd³
Unit Weight 3,675 lbs 2,875 lbs
Hydraulic Operation Yes Yes
Hydraulic Flow 15–25 GPM* 15–25 GPM*
Maximum Auxiliary Pressure 4,500 PSI 4,500 PSI
Grapple Cylinder Pressure 2,900 PSI max. 2,900 PSI max.
Hydraulic Hose Rating 4,000 PSI minimum 4,000 PSI minimum
Grapple Arms Hydraulic Hydraulic
Primary Applications Brush, scrap, refuse, cleanup Brush, scrap, refuse, cleanup
Construction High-strength, abrasion-resistant steel High-strength, abrasion-resistant steel
Side Plate Design Tapered Tapered


Specification WL2GB100-3.00 WL2GB100-4.00
Brand Werk-Brau Werk-Brau
Product Type Grapple Bucket Grapple Bucket
Machine Type Wheel Loader Wheel Loader
Model WL2GB100-3.00 WL2GB100-4.00
Bucket Width 100 in 100 in
Bucket Capacity 3.00 yd³ 4.00 yd³
Unit Weight 3,375 lbs 3,575 lbs
Hydraulic Operation Yes Yes
Hydraulic Flow 15–25 GPM* 15–25 GPM*
Maximum Auxiliary Pressure 4,500 PSI 4,500 PSI
Grapple Cylinder Pressure 2,900 PSI max. 2,900 PSI max.
Hydraulic Hose Rating 4,000 PSI minimum 4,000 PSI minimum
Grapple Arms Hydraulic Hydraulic
Primary Applications Brush, scrap, refuse, cleanup Brush, scrap, refuse, cleanup
Construction High-strength, abrasion-resistant steel High-strength, abrasion-resistant steel
Side Plate Design Tapered Tapered


Specification WL3GB100-3.50 WL3GB103-4.00
Brand Werk-Brau Werk-Brau
Product Type Grapple Bucket Grapple Bucket
Machine Type Wheel Loader Wheel Loader
Model WL3GB100-3.50 WL3GB103-4.00
Bucket Width 100 in 103 in
Bucket Capacity 3.50 yd³ 4.00 yd³
Unit Weight 3,750 lbs 4,350 lbs
Hydraulic Operation Yes Yes
Hydraulic Flow 15–25 GPM* 15–25 GPM*
Maximum Auxiliary Pressure 4,500 PSI 4,500 PSI
Grapple Cylinder Pressure 2,900 PSI max. 2,900 PSI max.
Hydraulic Hose Rating 4,000 PSI minimum 4,000 PSI minimum
Grapple Arms Hydraulic Hydraulic
Primary Applications Brush, scrap, refuse, cleanup Brush, scrap, refuse, cleanup
Construction High-strength, abrasion-resistant steel High-strength, abrasion-resistant steel
Side Plate Design Tapered Tapered



Specification WL4GB117-4.50 WL4GB117-5.00
Brand Werk-Brau Werk-Brau
Product Type Grapple Bucket Grapple Bucket
Machine Type Wheel Loader Wheel Loader
Model WL4GB117-4.50 WL4GB117-5.00
Bucket Width 117 in 117 in
Bucket Capacity 4.50 yd³ 5.00 yd³
Unit Weight 5,100 lbs 5,300 lbs
Hydraulic Operation Yes Yes
Hydraulic Flow 15–25 GPM* 15–25 GPM*
Maximum Auxiliary Pressure 4,500 PSI 4,500 PSI
Grapple Cylinder Pressure 2,900 PSI max. 2,900 PSI max.
Hydraulic Hose Rating 4,000 PSI minimum 4,000 PSI minimum
Grapple Arms Hydraulic Hydraulic
Primary Applications Brush, scrap, refuse, cleanup Brush, scrap, refuse, cleanup
Construction High-strength, abrasion-resistant steel High-strength, abrasion-resistant steel
Side Plate Design Tapered Tapered



Specification WL5GB124-6.00 WL5GB124-7.00
Brand Werk-Brau Werk-Brau
Product Type Grapple Bucket Grapple Bucket
Machine Type Wheel Loader Wheel Loader
Model WL5GB124-6.00 WL5GB124-7.00
Bucket Width 124 in 124 in
Bucket Capacity 6.00 yd³ 7.00 yd³
Unit Weight 7,400 lbs 7,800 lbs
Hydraulic Operation Yes Yes
Hydraulic Flow 15–25 GPM* 15–25 GPM*
Maximum Auxiliary Pressure 4,500 PSI 4,500 PSI
Grapple Cylinder Pressure 2,900 PSI max. 2,900 PSI max.
Hydraulic Hose Rating 4,000 PSI minimum 4,000 PSI minimum
Grapple Arms Hydraulic Hydraulic
Primary Applications Brush, scrap, refuse, cleanup Brush, scrap, refuse, cleanup
Construction High-strength, abrasion-resistant steel High-strength, abrasion-resistant steel
Side Plate Design Tapered Tapered


Specification WL6GB132-7.00 WL6GB132-8.00
Brand Werk-Brau Werk-Brau
Product Type Grapple Bucket Grapple Bucket
Machine Type Wheel Loader Wheel Loader
Model WL6GB132-7.00 WL6GB132-8.00
Bucket Width 132 in 132 in
Bucket Capacity 7.00 yd³ 8.00 yd³
Unit Weight 8,400 lbs 8,900 lbs
Hydraulic Operation Yes Yes
Hydraulic Flow 15–25 GPM* 15–25 GPM*
Maximum Auxiliary Pressure 4,500 PSI 4,500 PSI
Grapple Cylinder Pressure 2,900 PSI max. 2,900 PSI max.
Hydraulic Hose Rating 4,000 PSI minimum 4,000 PSI minimum
Grapple Arms Hydraulic Hydraulic
Primary Applications Brush, scrap, refuse, cleanup Brush, scrap, refuse, cleanup
Construction High-strength, abrasion-resistant steel High-strength, abrasion-resistant steel
Side Plate Design Tapered Tapered
