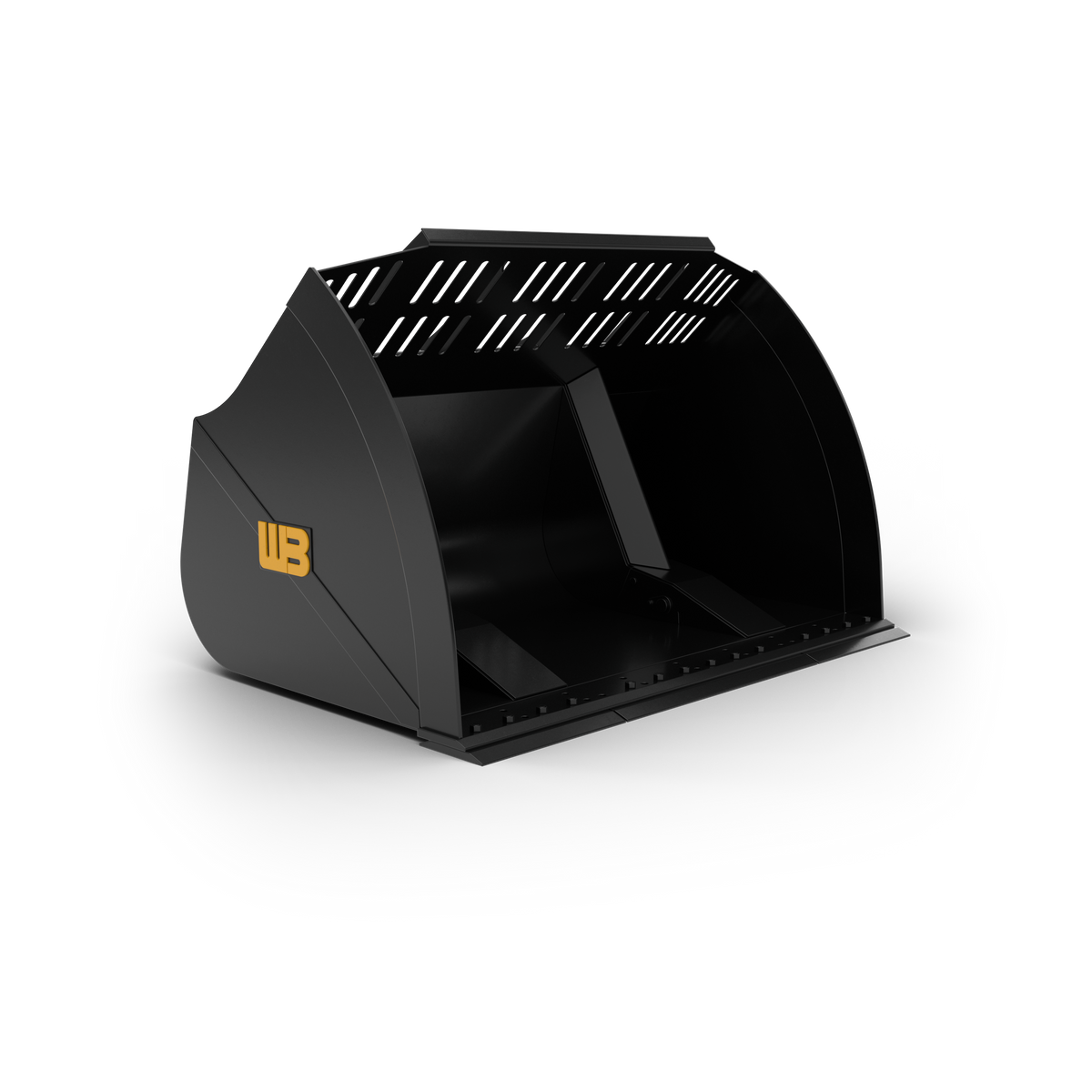

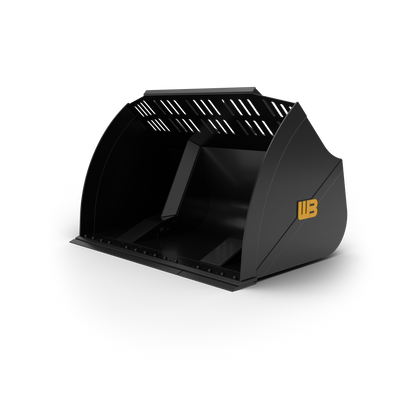

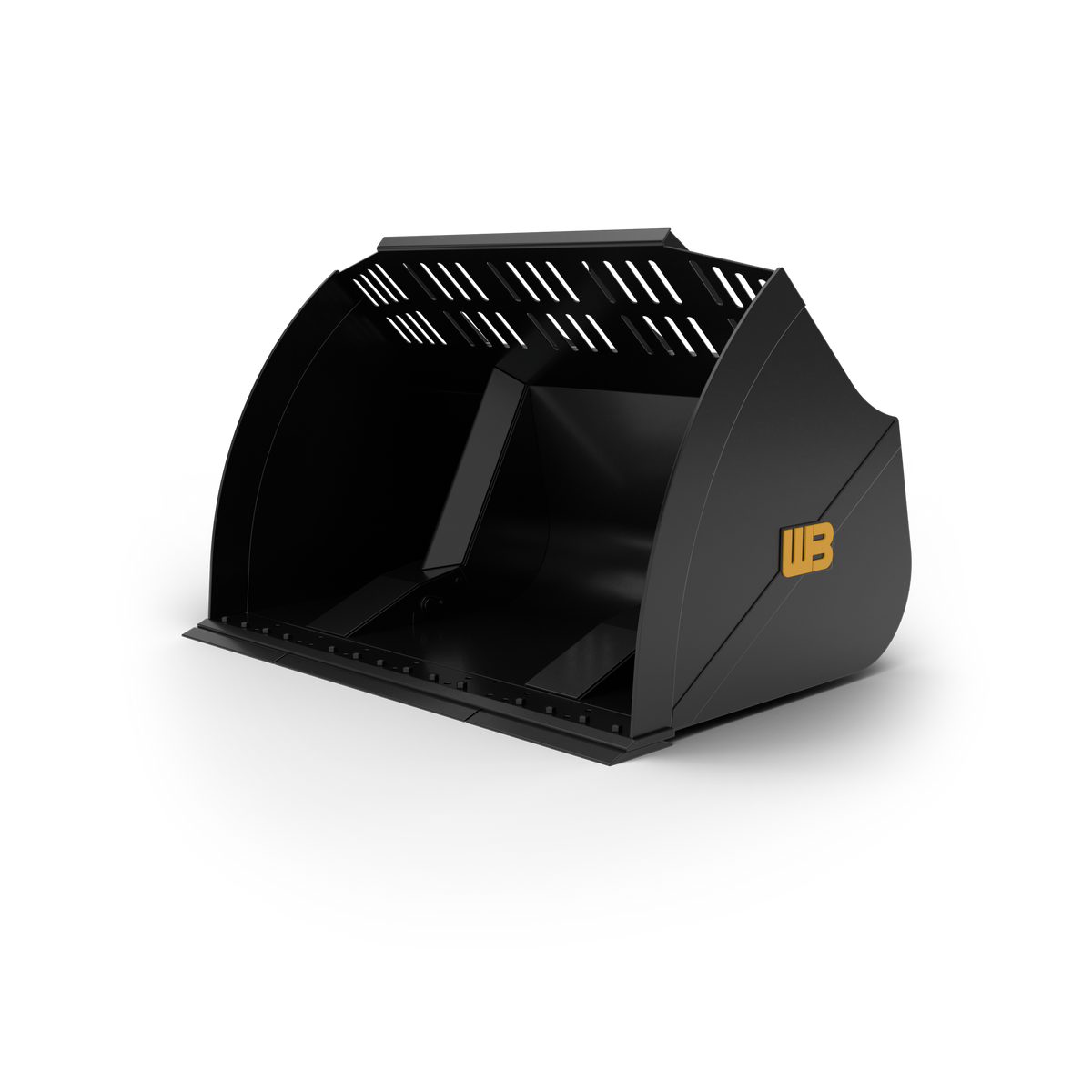

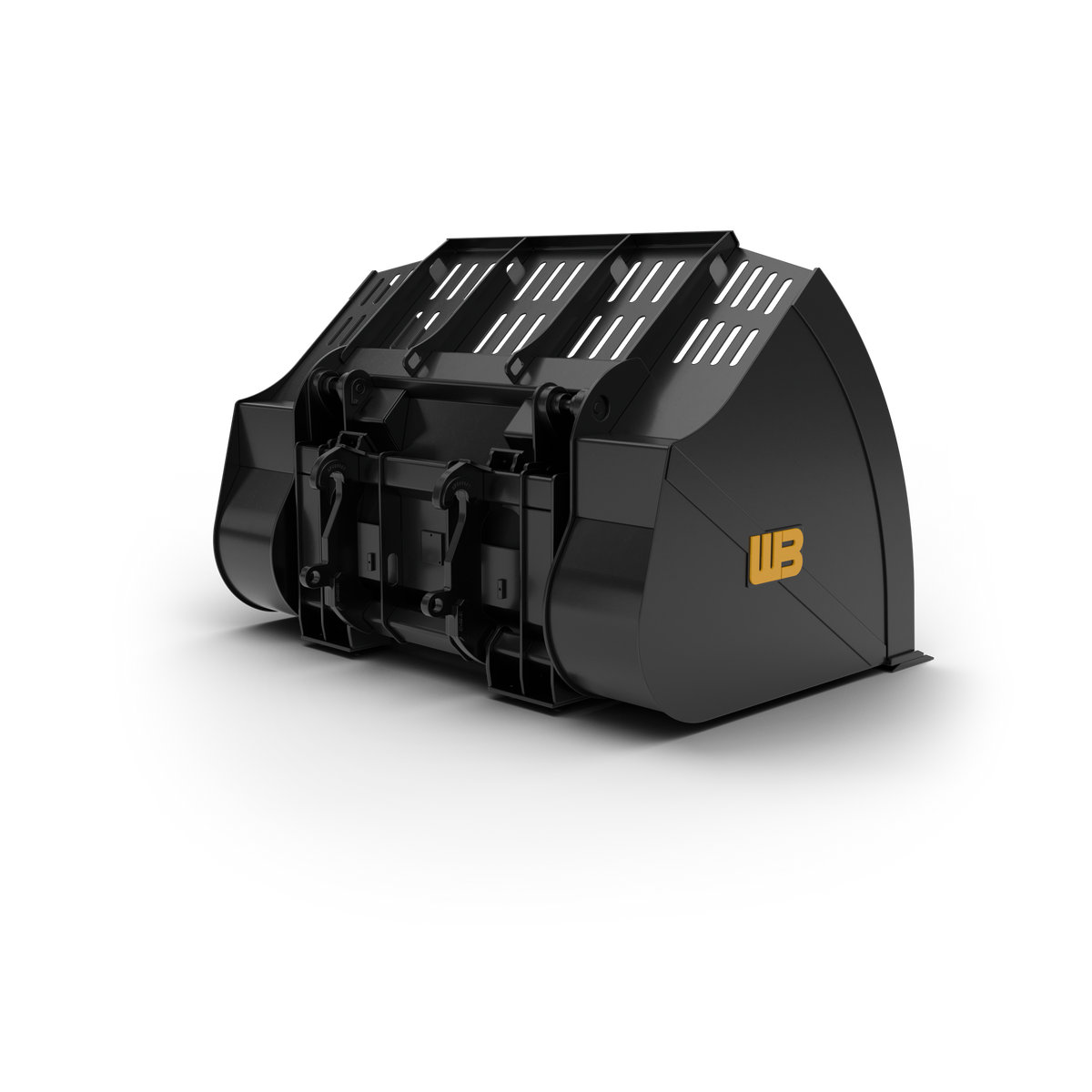

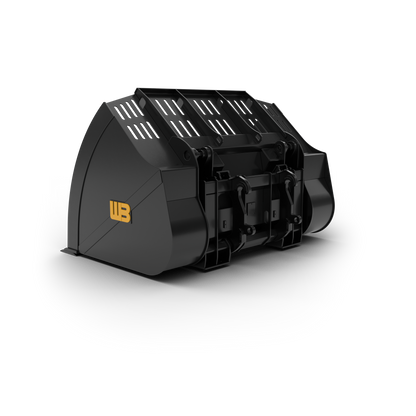

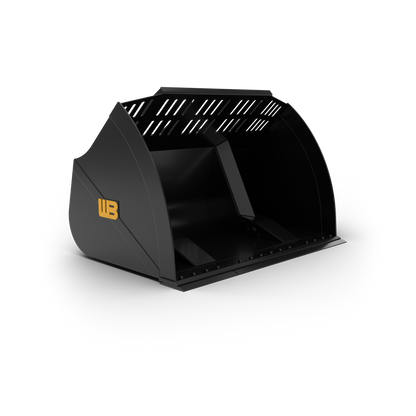

Werk-Brau High Tip Roll-Out Bucket | Vertical Cylinder | Width 100"–144" | 10–20 GPM | For Wheel Loaders

Werk-Brau High Tip Roll-Out Bucket | Vertical Cylinder | Width 100"–144" | 10–20 GPM | For Wheel Loaders

$1.00
$1.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Bucket Width: 100–144"; Length: 102–146".
  • Hydraulic Flow: 10–20 GPM.
  • Bucket Weight: 3,275–14,000 lbs.
  • Rated Capacity: 3–14 yd³.
  • For Wheel Loaders, Classes 1–6.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Werk-Brau High Tip Roll-Out Bucket | Vertical Cylinder | Width 100"–144" | 10–20 GPM | For Wheel Loaders

DESCRIPTION

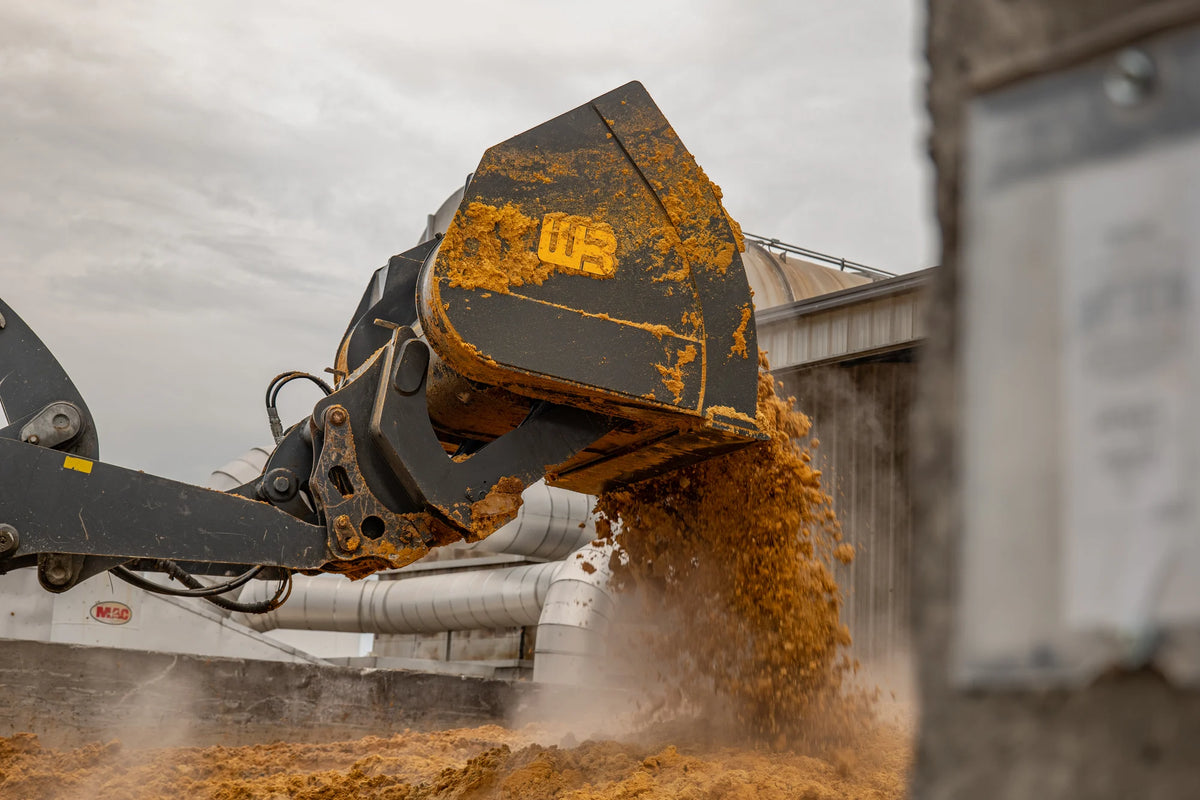

The Werk-Brau High Tip/Roll-Out Bucket is a heavy-duty wheel loader attachment engineered for increased dump height, controlled material discharge, and efficient light-material handling. Its vertical cylinder design provides improved dump control while the recessed carriage helps optimize the center of gravity, reducing tipping tendency and machine stress. With over 24 inches of additional dump height and a 93°+ dump angle, this bucket is well suited for truck loading, backfilling, and material re-handling applications involving loads up to 2,000 lbs. The dual cushioned hydraulic cylinders reduce shock loads and help minimize wear, while visibility slots and performance side plates improve operator visibility and material retention. Available in widths from 100 to 144 inches, with capacities from 3 to 14 yd³, and requiring 10–20 GPM hydraulic flow, it offers dependable performance across multiple wheel loader classes.

Key Features

  • High Dump Height Provides 24+ inches of additional dump height, making the attachment ideal for truck loading, backfilling, and elevated material discharge applications.
  • Vertical Cylinder Design The vertical hydraulic cylinder configuration provides controlled dump action while helping reduce attachment weight compared with conventional horizontal-cylinder designs.
  • Dual Cushioned Cylinders Cushioned hydraulic cylinders help absorb shock loads during dumping, reducing stress on the bucket and loader while supporting longer service life.
  • 93°+ Dump Angle Delivers a 93-degree or greater dump angle for rapid and thorough material discharge, improving cycle efficiency during repetitive handling operations.
  • Heavy-Duty Construction Built for demanding wheel loader material handling, providing the structural strength required for professional construction and industrial applications.

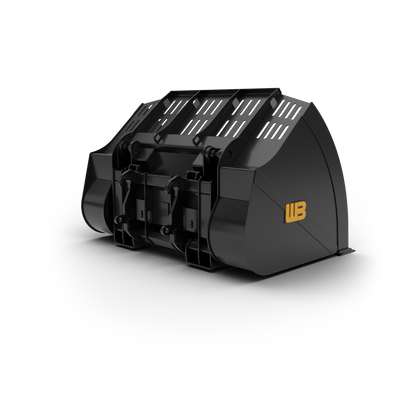

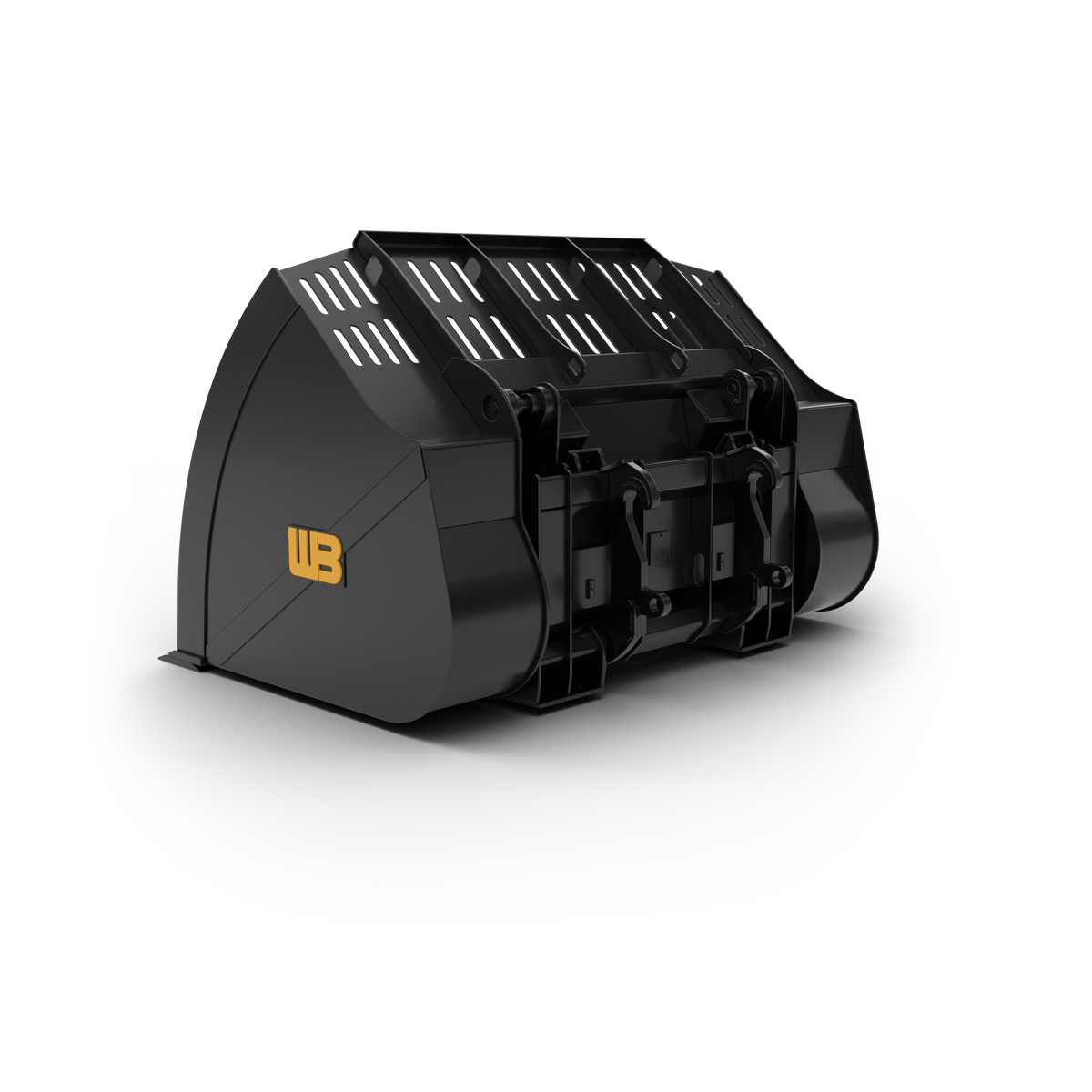

  • Recessed Carriage Design The recessed carriage helps improve the bucket's center of gravity, reducing tipping tendency and minimizing unnecessary stress on the loader.
  • Light Material Handling Designed for handling light materials up to 2,000 lbs, making it suitable for re-handling and high-volume material movement.
  • Wide Bucket Selection Available in 100", 105", 117", 124", 132", and 144" widths, supporting different wheel loader classes and application requirements.
  • Large Material Capacity Available with capacities from 3.00 to 14.00 yd³, allowing operators to select the appropriate bucket size for their loader and material-handling needs.
  • Improved Material Retention Performance side plates help retain material inside the bucket during lifting, transport, and dumping operations.

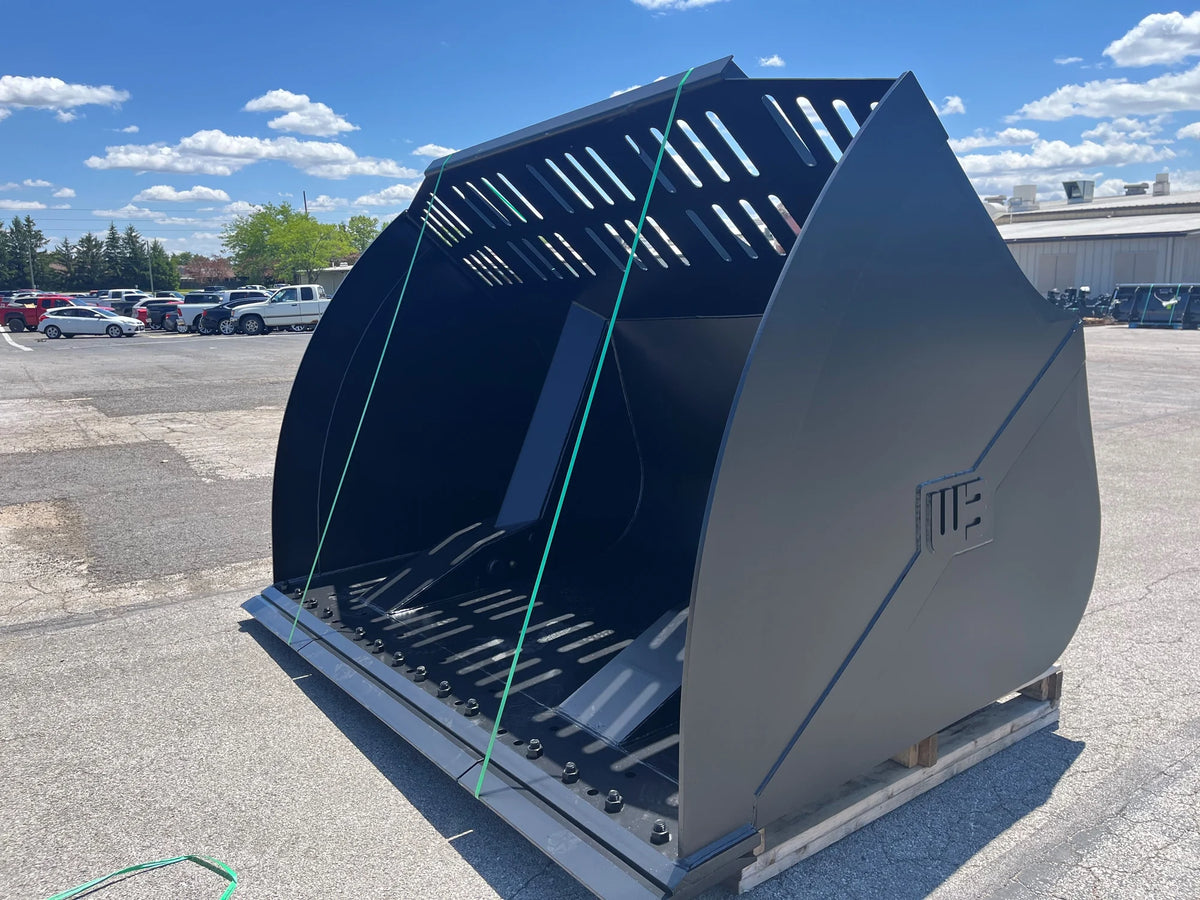

  • Operator Visibility Slots Integrated visibility slots help improve sightlines around the attachment, supporting better awareness during loading and material handling.
  • 10–20 GPM Flow Requires approximately 10–20 GPM hydraulic flow, providing compatibility with appropriately equipped wheel loader hydraulic systems.
  • Multiple Loader Classes Offered for Loader Classes 1 through 6, providing attachment options for a broad range of wheel loader applications.
  • Efficient Truck Loading The high-tip configuration provides additional reach and dump height for loading trucks and containers more efficiently.
  • Made in Ohio Proudly made in Findlay, Ohio, Werk-Brau's high-tip bucket is engineered for professional material-handling applications.

Detailed Specifications

Specification WL1HTV100-3.00 WL2HTV100-4.00
Brand Werk-Brau Werk-Brau
Product Type High Tip/Roll-Out Bucket High Tip/Roll-Out Bucket
Cylinder Style Vertical Cylinder Vertical Cylinder
Loader Class 1 2
Bucket Width 100" 100"
Bucket Length 102" 102"
Struck Capacity 2.15 yd³ 3.39 yd³
Rated Capacity 3.00 yd³ 4.00 yd³
Bucket Weight 3,275 lbs 4,275 lbs
Hydraulic Flow 10–20 GPM 10–20 GPM
Dump Height Increase 24+ inches 24+ inches
Dump Angle 93°+ 93°+
Cylinder Configuration Dual Cushioned Vertical Cylinders Dual Cushioned Vertical Cylinders
Carriage Design Recessed Recessed
Applications Truck Loading, Backfilling, Re-Handling Truck Loading, Backfilling, Re-Handling
Maximum Material Load Up to 2,000 lbs Up to 2,000 lbs



Specification WL2HTV100-5.00 WL3HTV100-5.00
Brand Werk-Brau Werk-Brau
Product Type High Tip/Roll-Out Bucket High Tip/Roll-Out Bucket
Cylinder Style Vertical Cylinder Vertical Cylinder
Loader Class 2 3
Bucket Width 100" 100"
Bucket Length 102" 102"
Struck Capacity 4.24 yd³ 4.24 yd³
Rated Capacity 5.00 yd³ 5.00 yd³
Bucket Weight 4,775 lbs 5,150 lbs
Hydraulic Flow 10–20 GPM 10–20 GPM
Dump Height Increase 24+ inches 24+ inches
Dump Angle 93°+ 93°+
Cylinder Configuration Dual Cushioned Vertical Cylinders Dual Cushioned Vertical Cylinders
Carriage Design Recessed Recessed
Applications Truck Loading, Backfilling, Re-Handling Truck Loading, Backfilling, Re-Handling
Maximum Material Load Up to 2,000 lbs Up to 2,000 lbs



Specification WL3HTV100-6.00 WL3.5HTV105-5.00
Brand Werk-Brau Werk-Brau
Product Type High Tip/Roll-Out Bucket High Tip/Roll-Out Bucket
Cylinder Style Vertical Cylinder Vertical Cylinder
Loader Class 3 3.5
Bucket Width 100" 105"
Bucket Length 102" 108"
Struck Capacity 5.08 yd³ 4.24 yd³
Rated Capacity 6.00 yd³ 5.00 yd³
Bucket Weight 5,650 lbs 5,350 lbs
Hydraulic Flow 10–20 GPM 10–20 GPM
Dump Height Increase 24+ inches 24+ inches
Dump Angle 93°+ 93°+
Cylinder Configuration Dual Cushioned Vertical Cylinders Dual Cushioned Vertical Cylinders
Carriage Design Recessed Recessed
Applications Truck Loading, Backfilling, Re-Handling Truck Loading, Backfilling, Re-Handling
Maximum Material Load Up to 2,000 lbs Up to 2,000 lbs



Specification WL3.5HTV105-6.00 WL4HTV117-6.00
Brand Werk-Brau Werk-Brau
Product Type High Tip/Roll-Out Bucket High Tip/Roll-Out Bucket
Cylinder Style Vertical Cylinder Vertical Cylinder
Loader Class 3.5 4
Bucket Width 105" 117"
Bucket Length 108" 119"
Struck Capacity 5.08 yd³ 5.08 yd³
Rated Capacity 6.00 yd³ 6.00 yd³
Bucket Weight 5,850 lbs 6,350 lbs
Hydraulic Flow 10–20 GPM 10–20 GPM
Dump Height Increase 24+ inches 24+ inches
Dump Angle 93°+ 93°+
Cylinder Configuration Dual Cushioned Vertical Cylinders Dual Cushioned Vertical Cylinders
Carriage Design Recessed Recessed
Applications Truck Loading, Backfilling, Re-Handling Truck Loading, Backfilling, Re-Handling
Maximum Material Load Up to 2,000 lbs Up to 2,000 lbs


Specification WL4HTV117-7.00 WL4HTV117-8.00
Brand Werk-Brau Werk-Brau
Product Type High Tip/Roll-Out Bucket High Tip/Roll-Out Bucket
Cylinder Style Vertical Cylinder Vertical Cylinder
Loader Class 4 4
Bucket Width 117" 117"
Bucket Length 119" 119"
Struck Capacity 5.93 yd³ 6.75 yd³
Rated Capacity 7.00 yd³ 8.00 yd³
Bucket Weight 6,350 lbs 7,850 lbs
Hydraulic Flow 10–20 GPM 10–20 GPM
Dump Height Increase 24+ inches 24+ inches
Dump Angle 93°+ 93°+
Cylinder Configuration Dual Cushioned Vertical Cylinders Dual Cushioned Vertical Cylinders
Carriage Design Recessed Recessed
Applications Truck Loading, Backfilling, Re-Handling Truck Loading, Backfilling, Re-Handling
Maximum Material Load Up to 2,000 lbs Up to 2,000 lbs



Specification WL4HTV117-9.00 WL4HTV124-10.00
Brand Werk-Brau Werk-Brau
Product Type High Tip/Roll-Out Bucket High Tip/Roll-Out Bucket
Cylinder Style Vertical Cylinder Vertical Cylinder
Loader Class 4 4
Bucket Width 117" 124"
Bucket Length 119" 125"
Struck Capacity 7.70 yd³ 8.40 yd³
Rated Capacity 9.00 yd³ 10.00 yd³
Bucket Weight 7,885 lbs 9,453 lbs
Hydraulic Flow 10–20 GPM 10–20 GPM
Dump Height Increase 24+ inches 24+ inches
Dump Angle 93°+ 93°+
Cylinder Configuration Dual Cushioned Vertical Cylinders Dual Cushioned Vertical Cylinders
Carriage Design Recessed Recessed
Applications Truck Loading, Backfilling, Re-Handling Truck Loading, Backfilling, Re-Handling
Maximum Material Load Up to 2,000 lbs Up to 2,000 lbs



Specification WL5HTV124-8.00 WL5HTV124-10.00
Brand Werk-Brau Werk-Brau
Product Type High Tip/Roll-Out Bucket High Tip/Roll-Out Bucket
Cylinder Style Vertical Cylinder Vertical Cylinder
Loader Class 5 5
Bucket Width 124" 124"
Bucket Length 125" 125"
Struck Capacity 6.70 yd³ 8.40 yd³
Rated Capacity 8.00 yd³ 10.00 yd³
Bucket Weight 8,265 lbs 9,453 lbs
Hydraulic Flow 10–20 GPM 10–20 GPM
Dump Height Increase 24+ inches 24+ inches
Dump Angle 93°+ 93°+
Cylinder Configuration Dual Cushioned Vertical Cylinders Dual Cushioned Vertical Cylinders
Carriage Design Recessed Recessed
Applications Truck Loading, Backfilling, Re-Handling Truck Loading, Backfilling, Re-Handling
Maximum Material Load Up to 2,000 lbs Up to 2,000 lbs



Specification WL5HTV132-12.00 WL6HTV144-10.00
Brand Werk-Brau Werk-Brau
Product Type High Tip/Roll-Out Bucket High Tip/Roll-Out Bucket
Cylinder Style Vertical Cylinder Vertical Cylinder
Loader Class 5 6
Bucket Width 132" 144"
Bucket Length 134" 146"
Struck Capacity 10.10 yd³ 8.40 yd³
Rated Capacity 12.00 yd³ 10.00 yd³
Bucket Weight 10,000 lbs 10,498 lbs
Hydraulic Flow 10–20 GPM 10–20 GPM
Dump Height Increase 24+ inches 24+ inches
Dump Angle 93°+ 93°+
Cylinder Configuration Dual Cushioned Vertical Cylinders Dual Cushioned Vertical Cylinders
Carriage Design Recessed Recessed
Applications Truck Loading, Backfilling, Re-Handling Truck Loading, Backfilling, Re-Handling
Maximum Material Load Up to 2,000 lbs Up to 2,000 lbs



Specification WL6HTV144-12.00 WL6HTV144-14.00
Brand Werk-Brau Werk-Brau
Product Type High Tip/Roll-Out Bucket High Tip/Roll-Out Bucket
Cylinder Style Vertical Cylinder Vertical Cylinder
Loader Class 6 6
Bucket Width 144" 144"
Bucket Length 146" 146"
Struck Capacity 10.10 yd³ 11.50 yd³
Rated Capacity 12.00 yd³ 14.00 yd³
Bucket Weight 12,255 lbs 14,000 lbs
Hydraulic Flow 10–20 GPM 10–20 GPM
Dump Height Increase 24+ inches 24+ inches
Dump Angle 93°+ 93°+
Cylinder Configuration Dual Cushioned Vertical Cylinders Dual Cushioned Vertical Cylinders
Carriage Design Recessed Recessed
Applications Truck Loading, Backfilling, Re-Handling Truck Loading, Backfilling, Re-Handling
Maximum Material Load Up to 2,000 lbs Up to 2,000 lbs



Specification Details
Manufacturer Werk-Brau
Attachment Category Wheel Loader Attachments
Attachment Type High Tip/Roll-Out Bucket
Cylinder Style Vertical Cylinder Style
Hydraulic Requirement 10–20 GPM
Dump Height 24+ inches additional
Dump Angle 93°+
Cylinder System Dual Cushioned Cylinders
Carriage Recessed Carriage
Side Plates Performance Side Plates
Visibility Standard Visibility Slots
Primary Applications Backfilling, Truck Loading, Light Material Re-Handling
Material Handling Rating Light materials up to 2,000 lbs
Loader Classes 1, 2, 3, 3.5, 4, 5 and 6
Width Range 100"–144"
Length Range 102"–146"
Rated Capacity Range 3.00–14.00 yd³
Struck Capacity Range 2.15–11.50 yd³
Manufacturing Location Findlay, Ohio, USA
