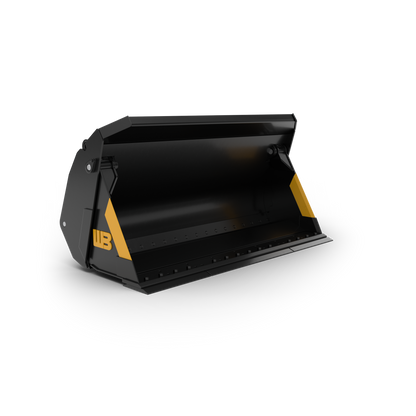

Werk-Brau Multi-Purpose Quad 4-in-1 Bucket | Width 82" To 132" | 10–20 GPM | For Wheel Loaders

Werk-Brau Multi-Purpose Quad 4-in-1 Bucket | Width 82" To 132" | 10–20 GPM | For Wheel Loaders

Regular price $1.00
Regular price Sale price $1.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Hydraulic Flow: 10–20 GPM for Wheel Loaders.
  • Bucket Width: 82–132" for Multiple Loader Classes.
  • Edge Length: 94–135" Across Available Models.
  • Rated Weight: 1,600–8,000 lbs. Depending on Model.
  • Intended Use: Grading, Grappling, Loading, Dozing, Material Handling.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Werk-Brau Multi-Purpose Quad 4-in-1 Bucket | Width 82" To 132" | 10–20 GPM | For Wheel Loaders

DESCRIPTION

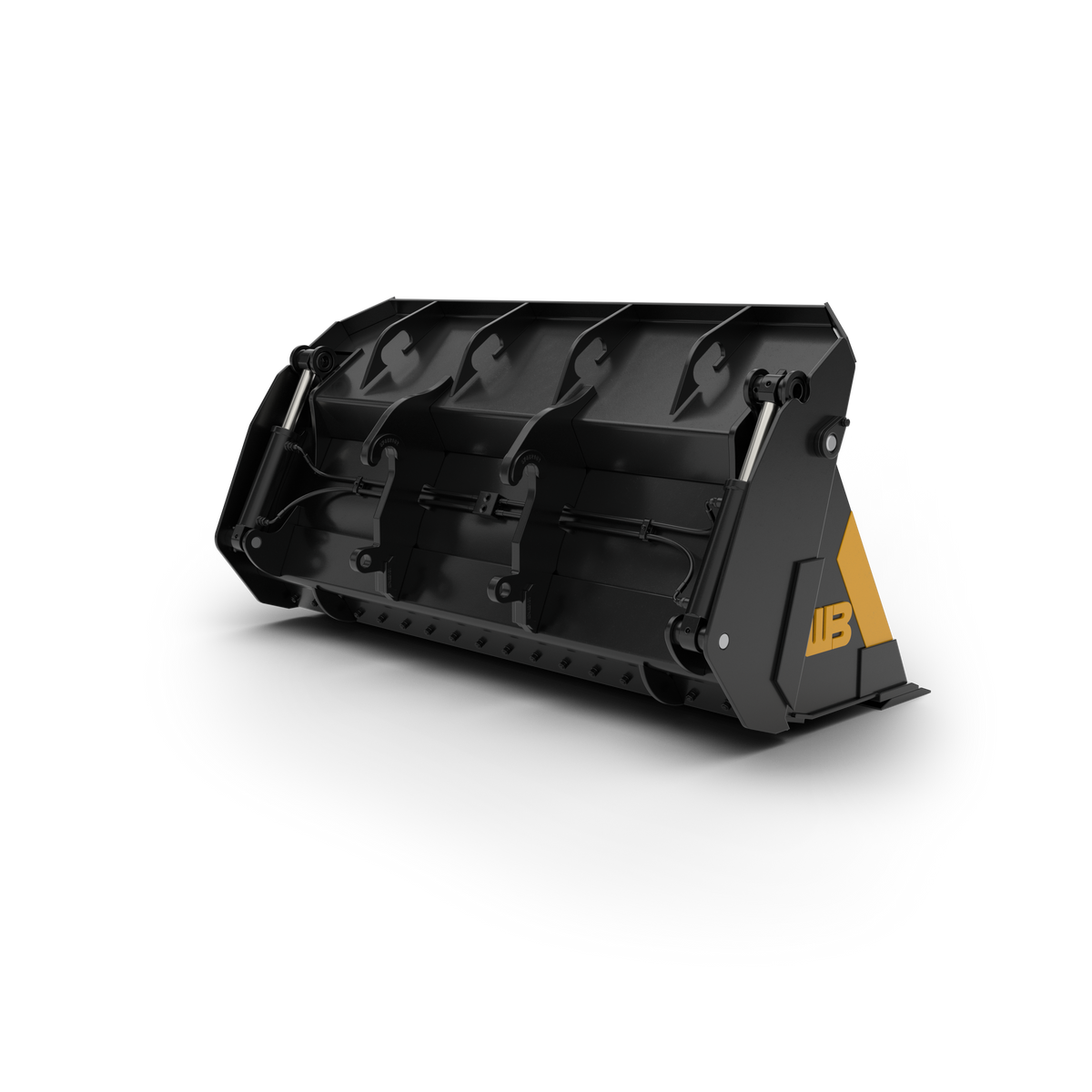

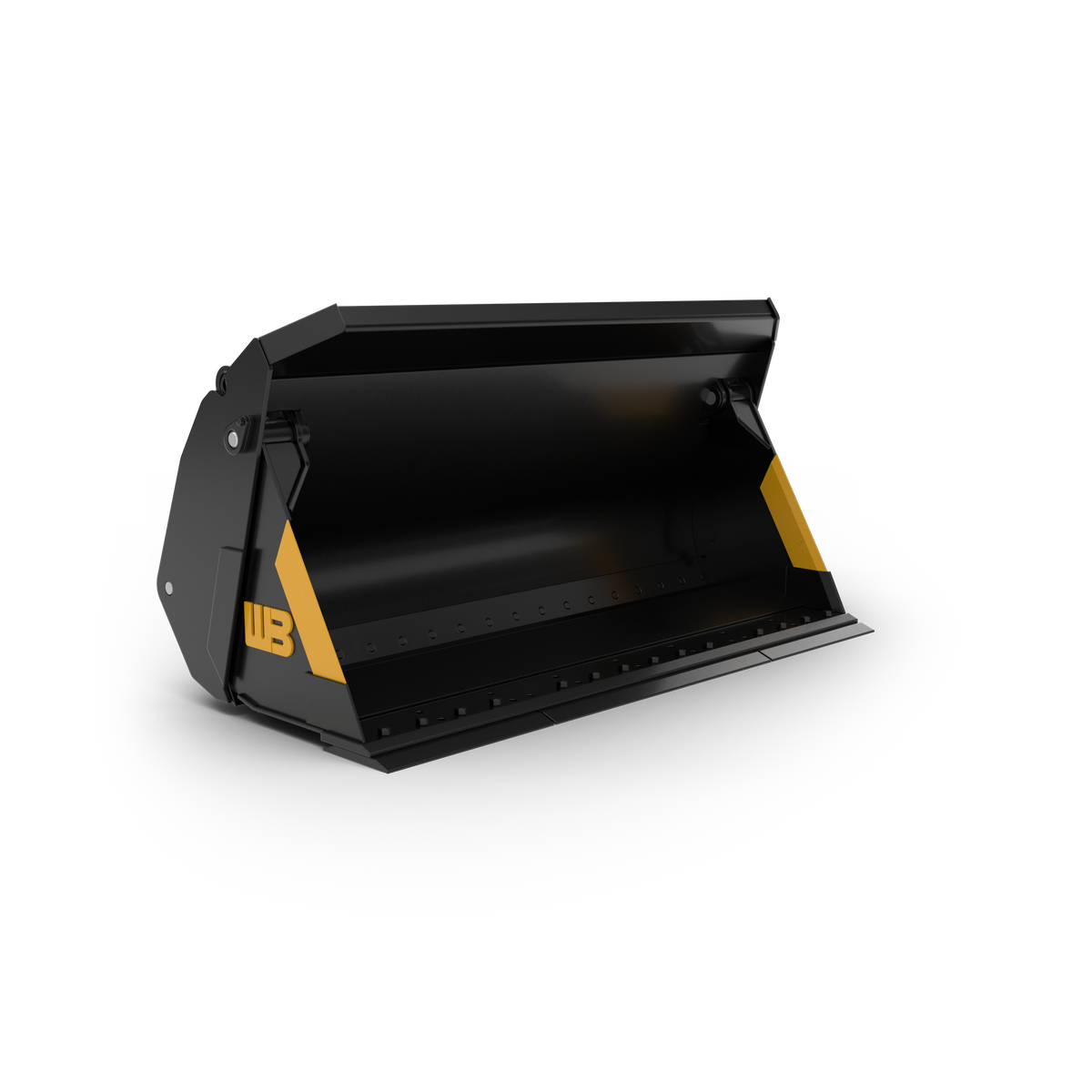

The Werk-Brau Multi-Purpose Quad Bucket adds true 4-in-1 versatility to standard wheel loaders, helping operators handle multiple jobsite tasks with a single attachment. Designed for digging/loading, grappling, dozing/pushing, grading, backfilling, and material handling, this hydraulic quad bucket reduces attachment change time and helps improve productivity. Its high-strength, wear-resistant steel cutting edges provide dependable performance, while high-quality hydraulic cylinders, greasable pivot points, and hardened bushings support long-term durability. Tapered side plates help reduce side wear and promote easier dumping. The bucket includes a replaceable bolt-on dozer edge, with cutting-edge options available for bolt-on teeth or a replaceable edge. Available in multiple widths and capacities to meet different wheel loader requirements. Not intended for heavy rock applications.

Key Features

  • True 4-in-1 Versatility Perform digging, loading, grappling, dozing, grading, backfilling, and material handling with one multi-purpose wheel loader attachment.
  • 10–20 GPM Hydraulic Flow Designed for hydraulic systems requiring 10 to 20 GPM, supporting reliable operation of the Quad Bucket's hydraulic functions.
  • Reduces Attachment Changes Handle multiple jobsite applications with one attachment, helping minimize changeover time and improve overall wheel loader productivity.
  • Heavy-Duty Steel Construction Built with high-strength, wear-resistant steel cutting edges for demanding construction, utility, and general site-work applications.
  • High-Quality Hydraulic Cylinders Hydraulic cylinders are used across the available models to provide dependable operation for the bucket's multi-function design.
  • Greasable Pivot Points Greasable pivot points and hardened bushings support durable articulation and help maintain smooth bucket movement during repeated operation.
  • Tapered Side Plates Engineered side plates help reduce side wear while allowing easier material dumping for efficient loader operation.
  • Replaceable Bolt-On Edge The dozer blade features a replaceable bolt-on cutting edge, allowing field replacement without welding.
  • Bolt-On Tooth Options Cutting edges can be drilled to accept bolt-on teeth or a replaceable bolt-on edge, providing configuration flexibility.
  • Multiple Bucket Widths Available widths range from 82" to 132", allowing selection based on loader configuration and application requirements.
  • Multiple Capacity Options Available struck capacities range from approximately 1.00 to 7.00 yd³, depending on the selected model.
  • Multi-Application Design Suitable for land clearing, light grading, back dragging, high dumping, dozing, grappling, and backfilling.
  • OEM-Compatible Attaching Ears Models are fitted with attaching ears designed to meet applicable OEM specifications for loader installation.
  • Loader-Specific Engineering Each Quad Bucket is engineered for wheel loader applications, with model configurations covering multiple loader classes.
  • Built for General Site Work A practical 4-in-1 loader bucket for construction, utility, material handling, grading, and other general jobsite applications.

Detailed Specifications

Specification Model 1 Model 2
Loader Class 1 1
Part Number QB821L QB921L
Bucket Width 82" 84"
Edge Length 94" 94"
Struck Capacity 1.00 yd³ 1.25 yd³
Rated Weight 1,600 lb 1,800 lb



Specification Model 3 Model 4
Loader Class 1 2
Part Number QB961L QB1WL100-1.25
Bucket Width 92" 100"
Edge Length 98" 103"
Struck Capacity 1.38 yd³ 1.25 yd³
Rated Weight 1,950 lb 2,175 lb



Specification Model 5 Model 6
Loader Class 2 2
Part Number QB1WL100-1.50 QB1WL100-1.75
Bucket Width 100" 100"
Edge Length 103" 103"
Struck Capacity 1.50 yd³ 1.75 yd³
Rated Weight 2,475 lb 2,775 lb



Specification Model 7 Model 8
Loader Class 2 2
Part Number QB2WL100-1.50 QB2WL100-2.00
Bucket Width 100" 100"
Edge Length 102" 102"
Struck Capacity 1.50 yd³ 2.00 yd³
Rated Weight 2,775 lb 3,275 lb



Specification Model 9 Model 10
Loader Class 2 3
Part Number QB2WL100-2.50 QB3WL100-2.50
Bucket Width 100" 100"
Edge Length 102" 102"
Struck Capacity 2.50 yd³ 2.50 yd³
Rated Weight 3,675 lb 3,850 lb



Specification Model 11 Model 12
Loader Class 3 3
Part Number QB3WL100-3.00 QB3WL100-3.25
Bucket Width 100" 100"
Edge Length 102" 102"
Struck Capacity 3.00 yd³ 3.25 yd³
Rated Weight 4,050 lb 4,350 lb



Specification Model 13 Model 14
Loader Class 3.5 3.5
Part Number QB3.5WL105-3.00 QB3.5WL105-3.25
Bucket Width 105" 105"
Edge Length 108" 108"
Struck Capacity 3.00 yd³ 3.25 yd³
Rated Weight 4,450 lb 4,850 lb



Specification Model 15 Model 16
Loader Class 4 4
Part Number QB4WL117-3.25 QB4WL117-3.50
Bucket Width 117" 117"
Edge Length 119" 119"
Struck Capacity 3.25 yd³ 3.50 yd³
Rated Weight 5,050 lb 4,900 lb



Specification Model 17 Model 18
Loader Class 4 5
Part Number QB4WL117-3.75 QB5WL124-3.50
Bucket Width 117" 124"
Edge Length 119" 126"
Struck Capacity 3.75 yd³ 3.50 yd³
Rated Weight 5,100 lb 5,400 lb



Specification Model 19 Model 20
Loader Class 5 5
Part Number QB5WL124-4.00 QB5WL124-4.50
Bucket Width 124" 124"
Edge Length 126" 126"
Struck Capacity 4.00 yd³ 4.50 yd³
Rated Weight 6,300 lb 7,600 lb



Specification Model 21 Model 22
Loader Class 6 6
Part Number QB6WL132-5.00 QB6WL132-6.00
Bucket Width 132" 132"
Edge Length 135" 135"
Struck Capacity 5.00 yd³ 6.00 yd³
Rated Weight 8,000 lb 5,?00 lb



Specification Model 23
Loader Class 6
Part Number QB6WL132-7.00
Bucket Width 132"
Edge Length 135"
Struck Capacity 7.00 yd³
Rated Weight 5.93?
