Werk Brau Oil Field Forks | 10,000 lb Capacity | 8–30+ GPM | For Wheel Loader

Werk Brau Oil Field Forks | 10,000 lb Capacity | 8–30+ GPM | For Wheel Loader

Regular price $1.00
Regular price Sale price $1.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Hydraulic Flow: 8–30+ GPM for Wheel Loaders.
  • Lift Capacity: 10,000 lbs at 24" Load Center.
  • Tine Design: Forged, tapered high-tensile steel construction.
  • Hanger Compatibility: Pin-On, ACS, Cat IT, ISO, TM, JRB.
  • Intended Use: Pallet handling and pipe moving.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Werk Brau Oil Field Forks | 10,000 lb Capacity | 8–30+ GPM | For Wheel Loader


DESCRIPTION

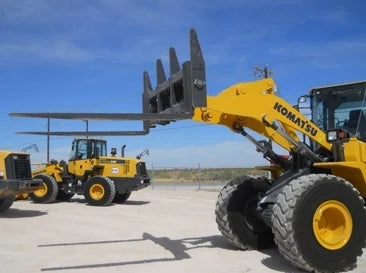

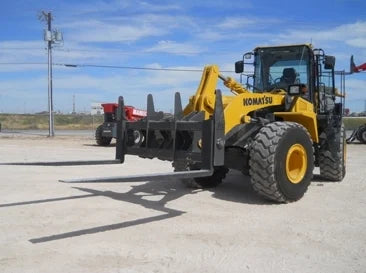

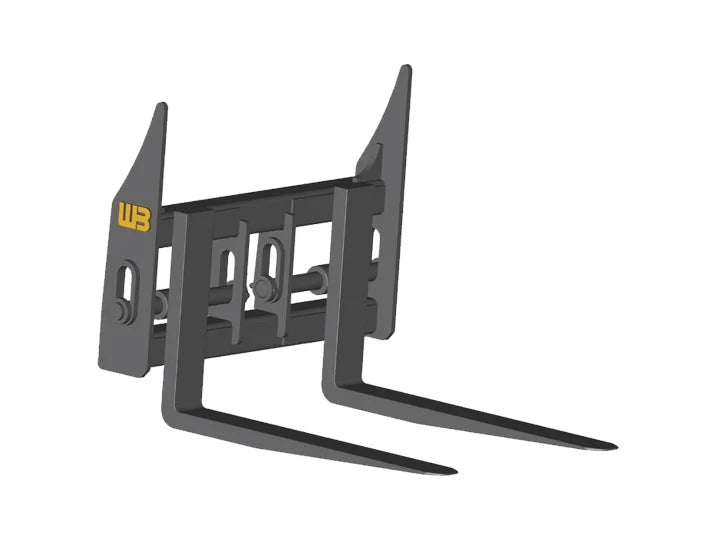

Built for demanding material-handling applications, the Werk Brau Oil Field Forks provide reliable performance for pallet removal, pallet displacement, loaded pallet handling, and pipe moving. The low-profile design delivers excellent visibility, helping operators position loads accurately and work efficiently. Heavy-duty forged high-tensile-strength steel tines are tapered for smoother loading and unloading while providing long-lasting durability. The manually adjustable tines allow flexible load positioning for different materials and pallet sizes. Engineered from high-strength, wear-resistant steel, these forks offer a 10,000 lb lift capacity at a 24-inch load center and exceed ISO 2330 and ASME standards. Designed for 8–30+ GPM hydraulic flow, they are compatible with Pin-On, ACS, Cat IT, ISO, TM, and JRB-style hangers, making them a versatile choice for wheel loaders and oil-field material-handling applications.

Key Features

  • Low-Profile Visibility Design Improves operator visibility around the attachment for more accurate pallet positioning, loading, unloading, and pipe-handling operations.
  • 8–30+ GPM Hydraulic Flow Designed for equipment operating within an 8 to 30+ GPM hydraulic flow range, supporting versatile wheel-loader applications.
  • 10,000 lb Lift Capacity Provides a substantial 10,000 lb lifting capacity at a 24-inch load center for demanding material-handling requirements.
  • Forged High-Tensile Tines Heavy-duty forged steel tines deliver excellent strength and durability for repeated pallet and pipe-handling applications.
  • Manually Adjustable Tines Adjustable fork positioning allows operators to accommodate different pallet widths, loads, and material-handling requirements.
  • Wear-Resistant Steel Construction Built from high-strength, wear-resistant steel to withstand demanding jobsite conditions and frequent material handling.
  • Tapered Fork Tines Tapered tine design helps simplify pallet entry and provides smoother loading and unloading operations.
  • Multiple Hanger Compatibility Compatible with Pin-On, ACS, Cat IT, ISO, TM, and JRB-style hangers for broad equipment versatility.
  • Oil Field Material Handling Designed for demanding applications including moving pipe and handling pallets in oil-field and industrial environments.
  • Pallet Handling Performance Supports efficient pallet removal, displacement, loading, and movement, with or without a load.
  • ISO 2330 Compliant Tines Tines exceed ISO 2330 standards, supporting dependable structural performance for material-handling applications.
  • ASME Standards Compliance Engineered to exceed applicable ASME standards, providing a robust design for professional equipment use.
  • Heavy-Duty Fork Construction Combines forged tines and high-strength steel construction for demanding, repetitive loader operations.
  • Flexible Load Positioning Manually adjustable tines help optimize fork spacing for different loads and pallet configurations.
  • Professional Loader Attachment A versatile wheel-loader fork attachment for contractors, industrial operators, oil-field work, and material-handling applications.

Detailed Specifications

Specification Details
Brand Werk Brau
Product Name Oil Field Forks
Attachment Type Oil Field / Wheel Loader Fork Attachment
Recommended Applications Pallet removal, pallet displacement, loaded pallet handling, pipe moving
Hydraulic Flow 8–30+ GPM
Lift Capacity 10,000 lbs
Load Center 24 inches
Tine Type Forged high-tensile-strength steel
Tine Adjustment Manually adjustable
Tine Design Tapered
Construction Material High-strength wear-resistant steel
Visibility Design Low-profile
Hanger Compatibility Pin-On, ACS, Cat IT, ISO, TM, JRB style
Standards Exceeds ISO 2330 and ASME standards
Primary Equipment Wheel Loaders
Material Handling Pallets and pipe
Application Environment Oil field, industrial, construction, material handling
