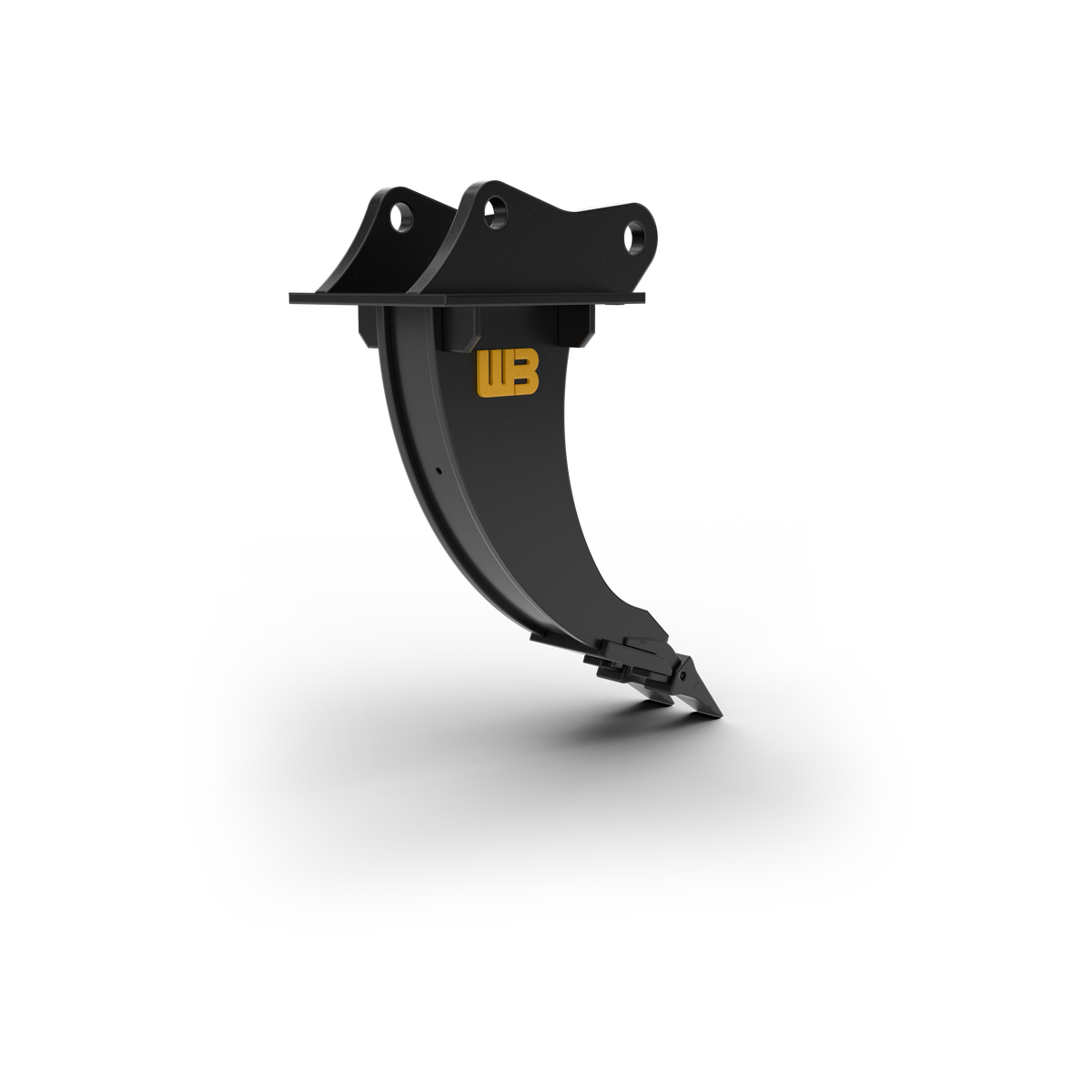

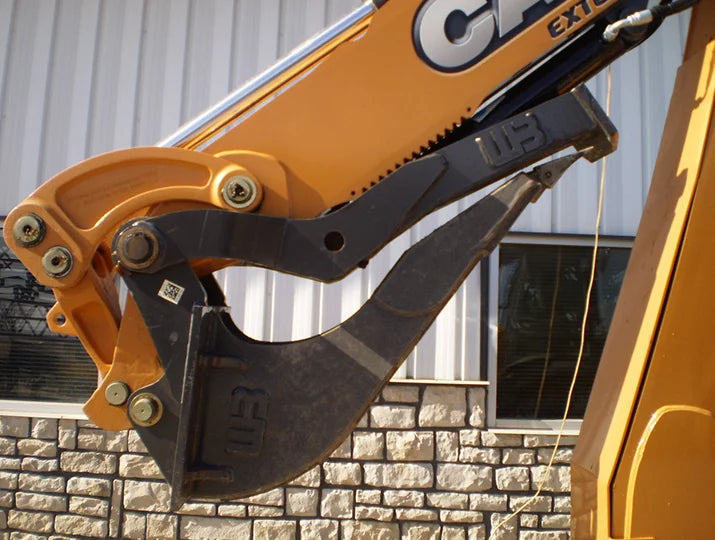

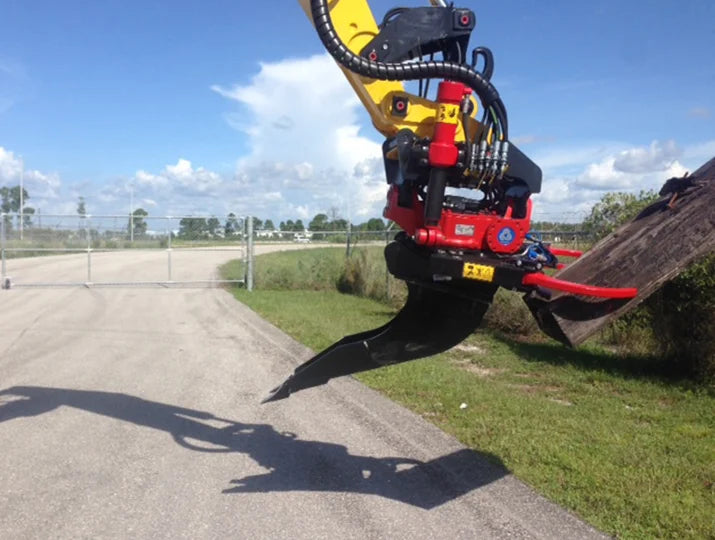

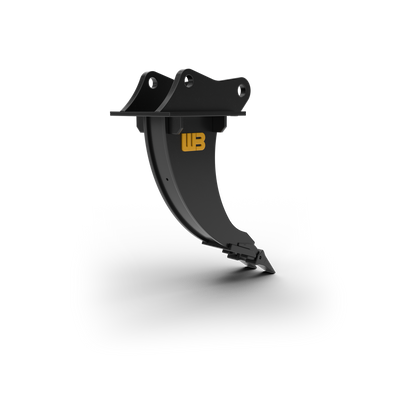

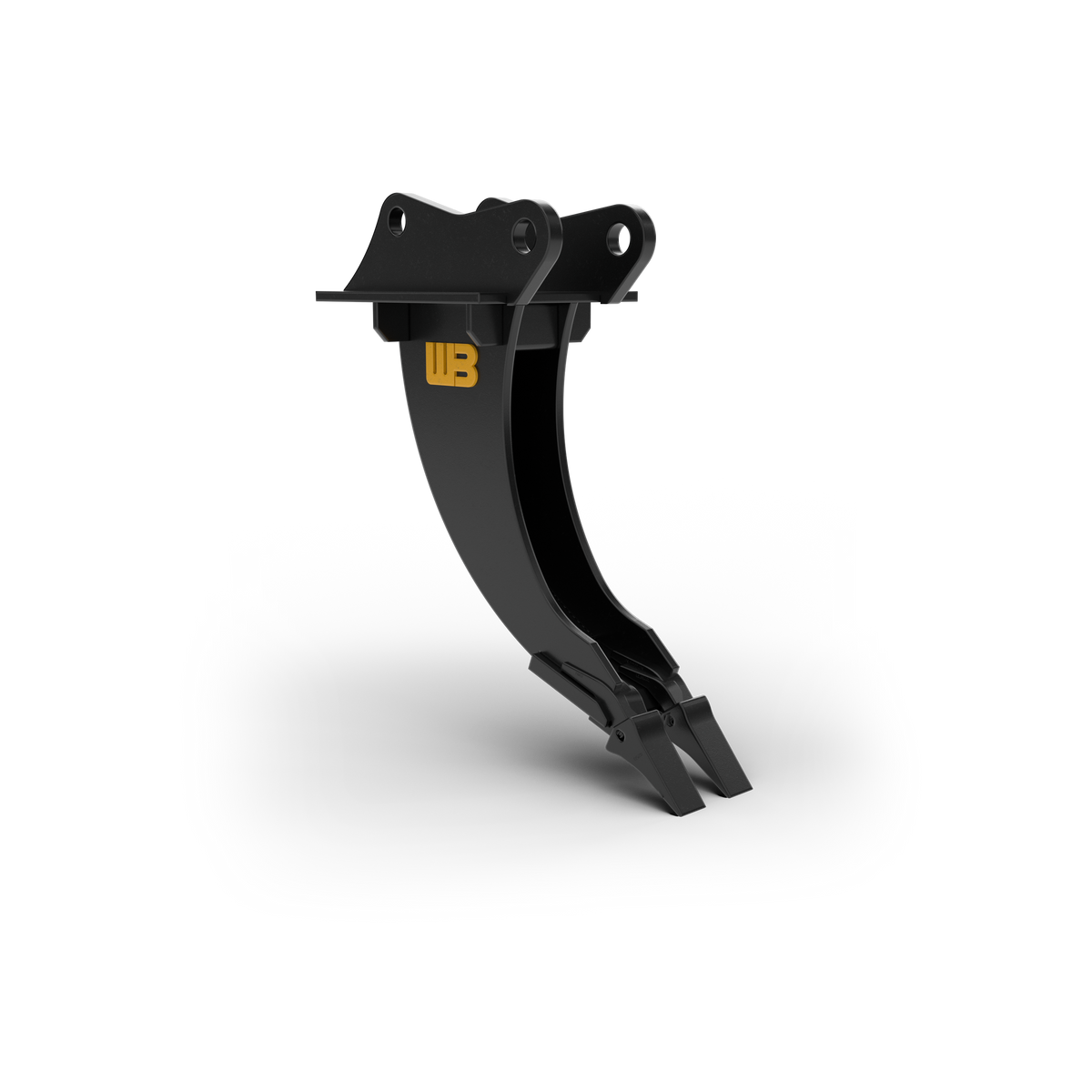

Werk-Brau Railroad Cribbing Bucket | Model HDCRIB Series | Width 8" | 1–5 Tons | For Mini Excavators & Backhoes

Werk-Brau Railroad Cribbing Bucket | Model HDCRIB Series | Width 8" | 1–5 Tons | For Mini Excavators & Backhoes

Regular price $1.00
Regular price Sale price $1.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Bucket Width: 8".
  • Weight: 200–350 lbs.
  • Machine Class: 1–5, U1 & U2.
  • For Mini Excavators, Backhoes, Railroad Maintenance.
  • Two Angled Teeth For Railroad Tie Removal.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Werk-Brau Railroad Cribbing Bucket | Model HDCRIB Series | Width 8" | 1–5 Tons | For Mini Excavators & Backhoes

DESCRIPTION

The Werk-Brau Railroad Cribbing Bucket is a specialized heavy-duty excavator attachment engineered for demanding railroad maintenance applications. Designed primarily for mini excavators and backhoes, this low-capacity bucket efficiently removes railroad ties and performs minor trenching in tight crib spaces. Its specialized geometry enables precise material removal between and beneath railroad ties while helping operators work within restricted track dimensions. Built from high-strength steel, the bucket features extra-heavy side plates, wear straps, a reinforced cutting edge, and gussets for enhanced durability and rigidity in high-stress areas. Two angled teeth provide effective material penetration and removal. The replaceable inserted shank helps extend service life, while the flat top accommodates hangers. OEM-approved pin-on teeth are available on the standard model, with cast teeth offered on the heavy-duty version. Special designs, capacities, and long-profile configurations are also available.

Key Features

  • Specialized Railroad Geometry Engineered specifically for railroad cribbing applications, allowing operators to efficiently remove material between and beneath railroad ties while working within the tight dimensional constraints of track structures.
  • Efficient Tie Removal Purpose-built for railroad tie removal, providing a practical attachment solution for maintenance crews performing specialized excavation work around existing tracks and tie structures.
  • Low-Capacity Design The low-capacity bucket profile is optimized for controlled cribbing work and minor trenching rather than conventional excavation, making it suitable for precise railroad maintenance applications.
  • Heavy-Duty Construction Manufactured using high-strength steel throughout critical components, providing the structural durability needed for demanding railroad maintenance and excavation environments.
  • Extra-Heavy Side Plates Reinforced side plates add structural strength and durability, helping the bucket withstand repeated contact and demanding working conditions around railroad infrastructure.
  • Reinforced Cutting Edge The extra-heavy cutting edge on the heavy-duty version is designed to withstand rugged use while supporting effective material penetration and removal.
  • Replaceable Inserted Shank A replaceable shank design helps extend attachment service life by allowing worn critical components to be replaced instead of requiring complete bucket replacement.
  • Two Angled Teeth Equipped with two angled teeth for effective material penetration and maximum removal performance during specialized cribbing and tie-removal operations.
  • Enhanced Structural Rigidity Strategic gussets reinforce high-stress areas, increasing rigidity and supporting reliable performance during demanding excavation and railroad maintenance tasks.
  • Flat Top for Hangers The flat-top bucket design accommodates hangers, providing a practical configuration for mounting and attachment requirements associated with compatible excavator equipment.
  • Multiple Tooth Options The standard model uses OEM-approved pin-on teeth, while the heavy-duty configuration uses cast teeth, with additional tooth options available for specific applications.
  • Mini Excavator Compatible Designed primarily for mini excavators, making it suitable for railroad maintenance work where compact equipment and precise maneuverability are required.
  • Backhoe Compatible The cribbing bucket is also commonly used with backhoes, providing equipment flexibility for contractors and railroad maintenance operations.
  • Standard & Long Profiles Available in standard and long-profile configurations, providing additional application flexibility for specialized railroad cribbing requirements.
  • Custom Configurations Available Special designs and capacities can be requested, allowing the attachment to be configured for specific railroad maintenance requirements and machine applications.

Detailed Specifications

Specification 8HDCRIB-2 8HDCRIB
Brand Werk-Brau Werk-Brau
Product Type Railroad Cribbing Bucket Railroad Cribbing Bucket
Part Number 8330 8340
Bucket Model 8HDCRIB-2 8HDCRIB
Bucket Style Mini Standard
Bucket Width 8 inches 8 inches
Machine Class 1 & 15 2, 3, 4, 5, U1 & U2
Recommended Equipment Mini Excavators Mini Excavators & Backhoes
Number of Teeth 2 2
Tooth Arrangement Angled Teeth Angled Teeth
Standard Tooth Type OEM-Approved Pin-On Teeth OEM-Approved Pin-On Teeth
Bucket Profile Standard Profile Standard Profile
Bucket Capacity Low Capacity Low Capacity
Primary Application Railroad Tie Removal Railroad Tie Removal
Secondary Application Minor Trenching Minor Trenching
Construction High-Strength Steel High-Strength Steel
Side Plate Design Extra-Heavy Side Plates Extra-Heavy Side Plates
Shank Replaceable Inserted Shank Replaceable Inserted Shank
Cutting Edge Heavy-Duty Cutting Edge Heavy-Duty Cutting Edge
Wear Straps Heavy-Duty Version Heavy-Duty Version
Structural Reinforcement Gussets Gussets
Top Design Flat Top for Hangers Flat Top for Hangers
Weight 200 lb 350 lb
Manufacturing Origin Findlay, Ohio, USA Findlay, Ohio, USA


Specification 8HDCRIBL
Brand Werk-Brau
Product Type Railroad Cribbing Bucket
Part Number 8340
Bucket Model 8HDCRIBL
Bucket Style Long
Bucket Width 8 inches
Machine Class 2, 3, 4, 5, U1 & U2
Recommended Equipment Mini Excavators & Backhoes
Number of Teeth 2
Tooth Arrangement Angled Teeth
Standard Tooth Type OEM-Approved Pin-On Teeth
Bucket Profile Long Profile
Bucket Capacity Low Capacity
Primary Application Railroad Tie Removal
Secondary Application Minor Trenching
Construction High-Strength Steel
Side Plate Design Extra-Heavy Side Plates
Shank Replaceable Inserted Shank
Cutting Edge Heavy-Duty Cutting Edge
Wear Straps Heavy-Duty Version
Structural Reinforcement Gussets
Top Design Flat Top for Hangers
Weight 350 lb
Manufacturing Origin Findlay, Ohio, USA
Special Designs Available Upon Request
Special Capacities Available Upon Request
Tooth Options Different Teeth Available
