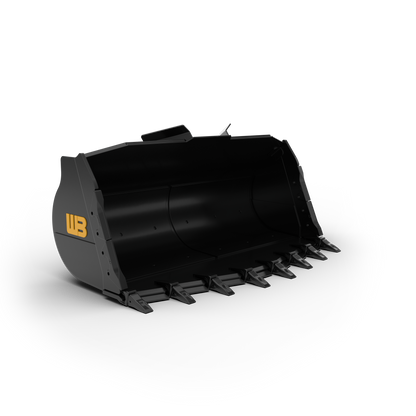

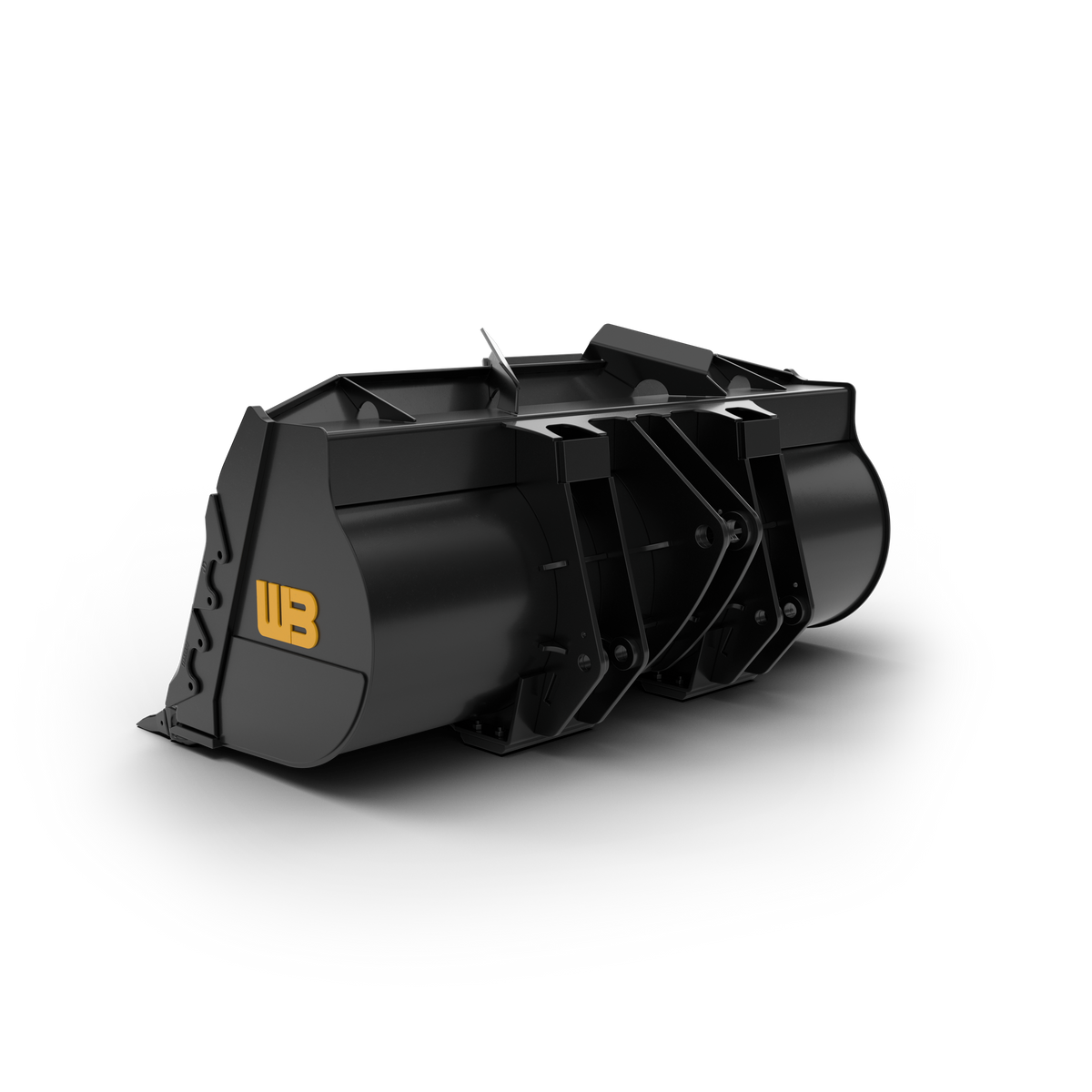

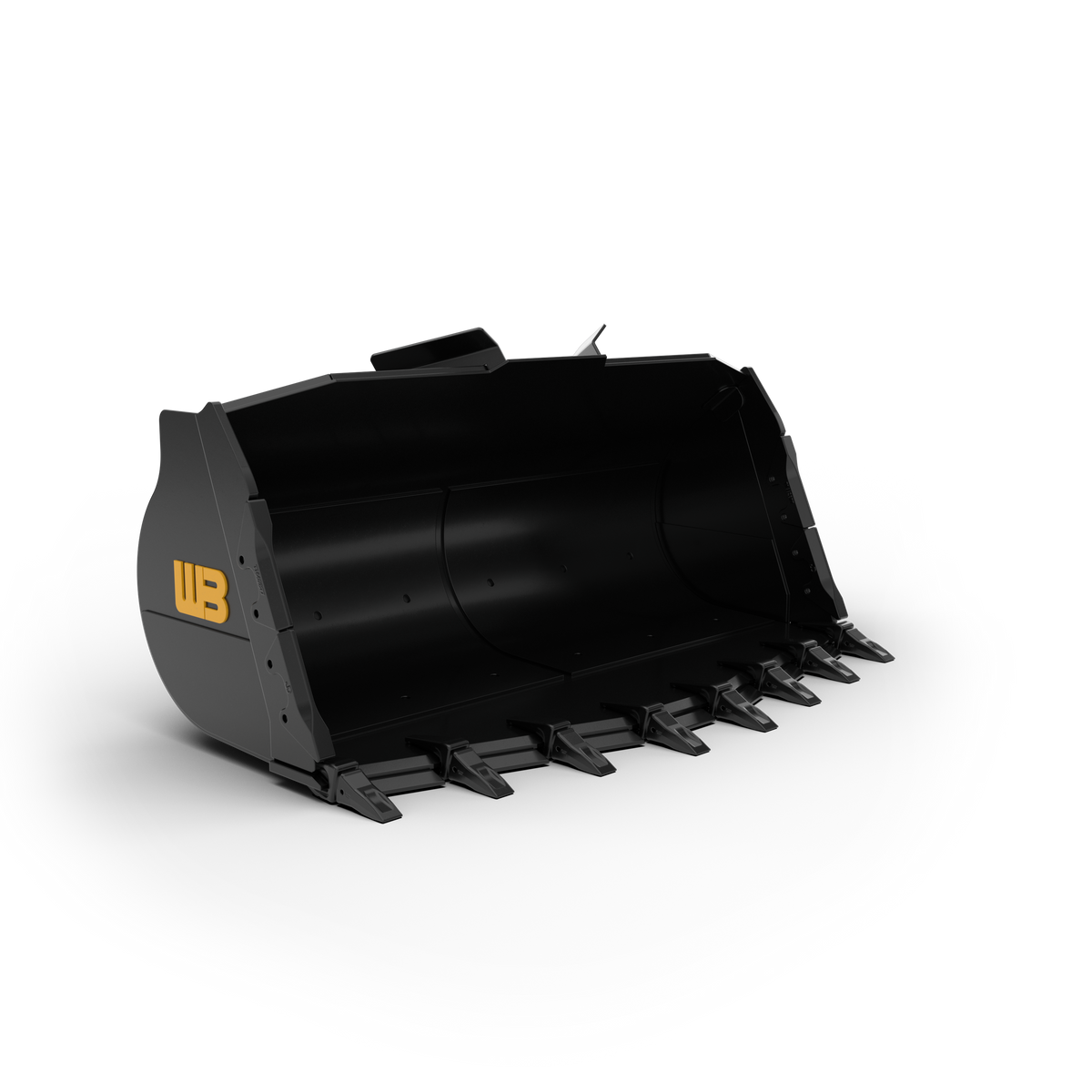

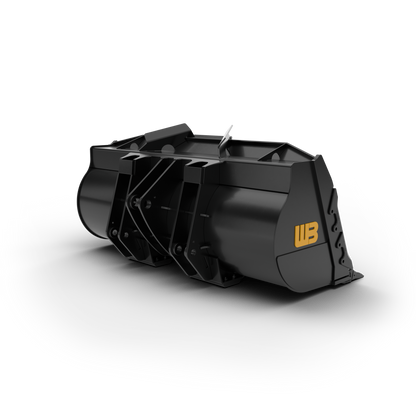

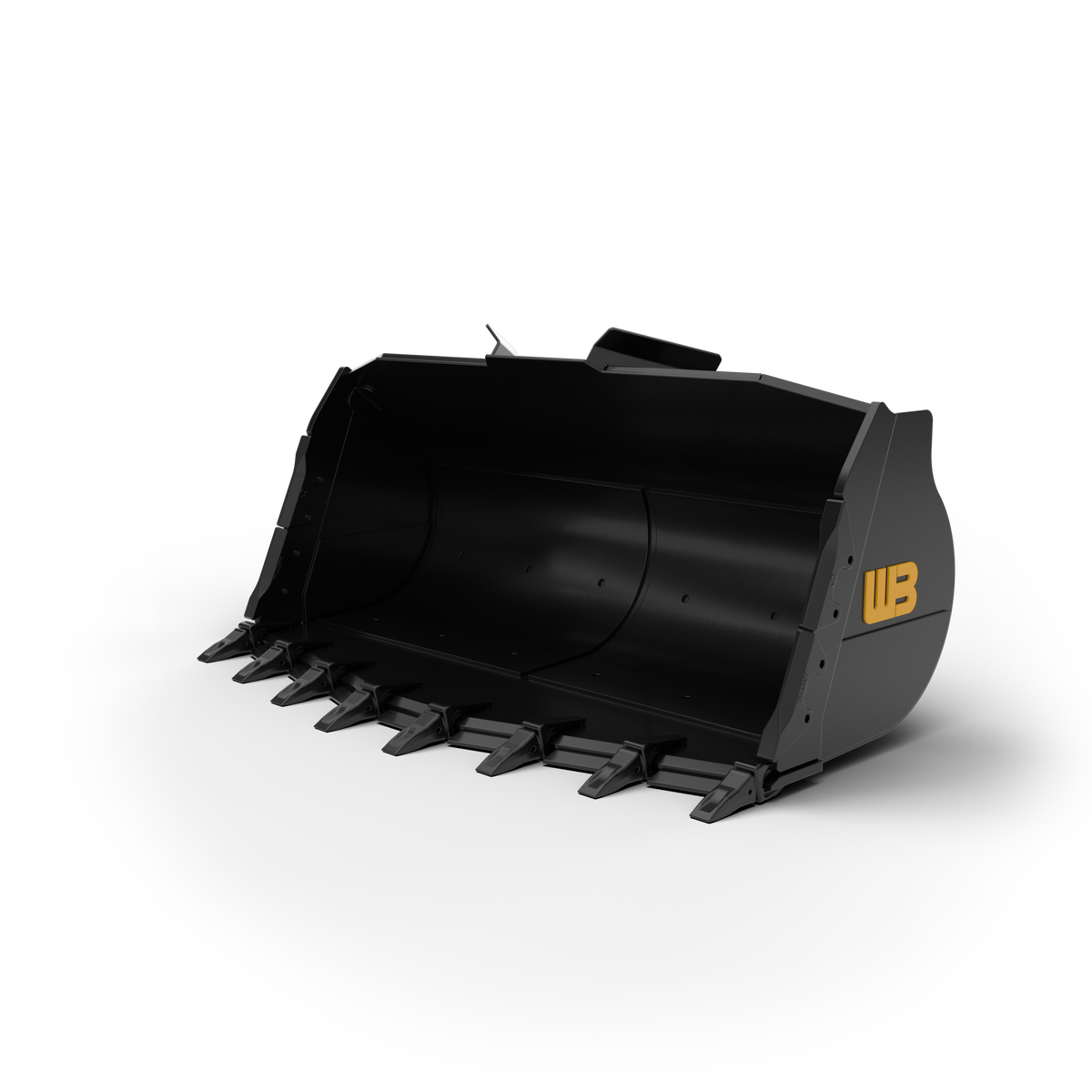

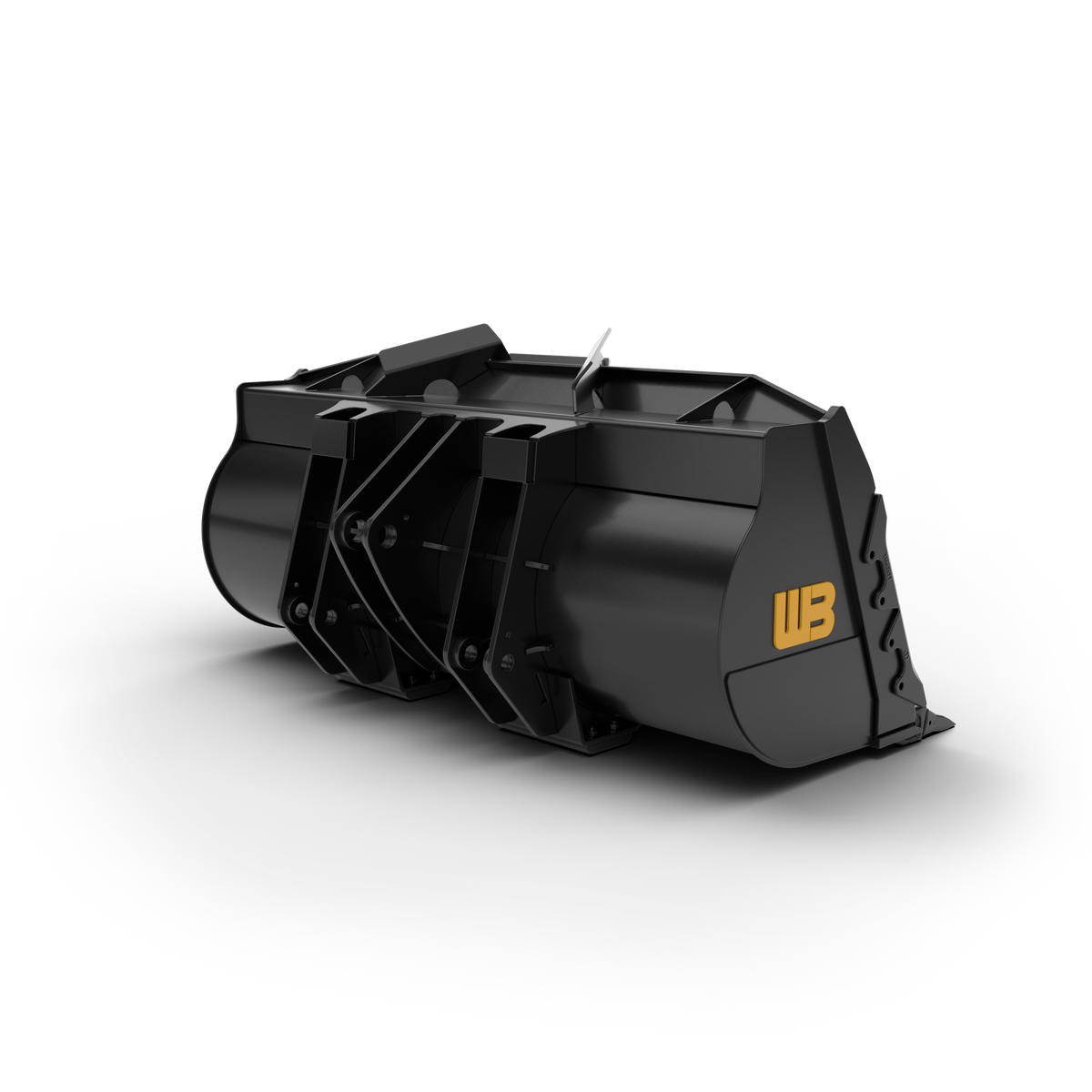

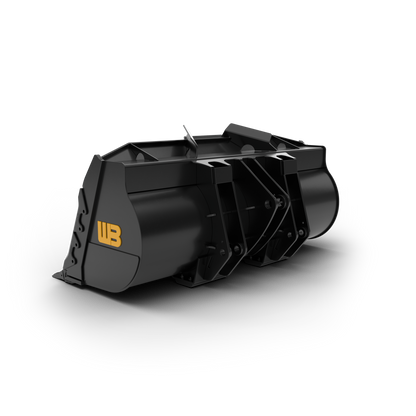

Werk-Brau Severe Duty Loader Rock Bucket | Width 100"–144" | 2–10 Cu Yd | 20–40 GPM | For Wheel Loaders

Werk-Brau Severe Duty Loader Rock Bucket | Width 100"–144" | 2–10 Cu Yd | 20–40 GPM | For Wheel Loaders

Regular price $1.00
Regular price Sale price $1.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Bucket Width: 100–144" for multiple loader sizes.
  • Bucket Length: 102–147" depending on selected model.
  • Loader Capacity: 2.0–10.0 cu yd rated capacity.
  • Hydraulic Flow: 20–40 GPM required for operation.
  • Intended Use: Severe digging, rock handling, and re-handling.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Werk-Brau Severe Duty Loader Rock Bucket | Width 100"–144" | 2–10 Cu Yd | 20–40 GPM | For Wheel Loaders

DESCRIPTION

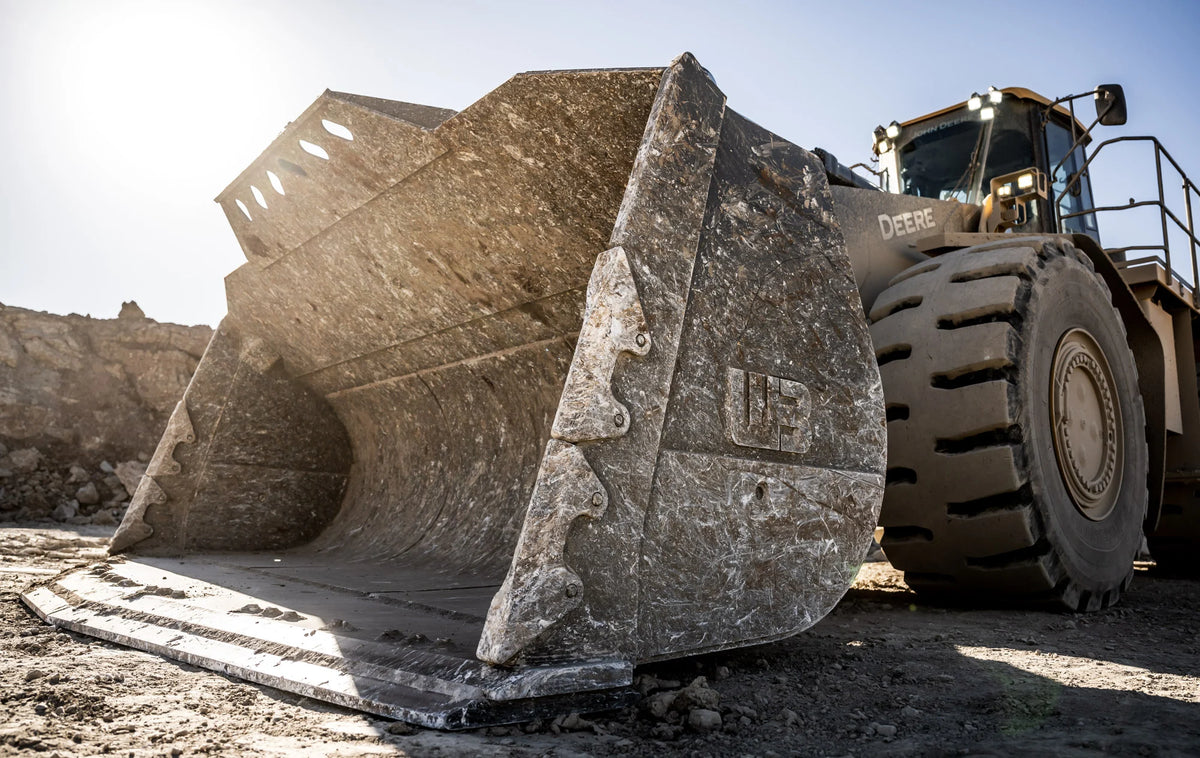

The Werk-Brau Severe Duty Loader Rock Bucket is engineered for demanding excavation, rock handling, quarry, and material re-handling applications where durability, digging performance, and abrasion resistance matter most. Constructed with high-strength T-1 steel at critical wear points and abrasion-resistant wear straps along the bucket floor, this heavy-duty loader bucket is built to withstand severe jobsite conditions. Hardox450 wear protection is incorporated in critical wear zones for enhanced resistance against abrasive materials. Tapered side plates help minimize friction and sidewall wear while promoting smoother material flow and efficient dumping. Standard weld-on teeth provide dependable digging performance, while optional replaceable bolt-on cutting edges and alternative tooth configurations allow the bucket to be adapted to specific applications. Available in multiple 100"–144" widths and 2.0–10.0 cu yd rated capacities, with multiple loader classes and connection options.

Key Features

  • Severe-Duty Construction: Engineered for high-impact excavation, severe digging, rock handling, quarry work, and demanding material re-handling applications.
  • High-Strength T-1 Steel: Uses T-1 high-strength steel at critical wear points to provide a robust structure for demanding loader applications.
  • Hardox450 Wear Protection: Hardox450 abrasion-resistant steel is incorporated into critical wear zones to help withstand harsh, abrasive materials.
  • Abrasion-Resistant Wear Straps: Reinforced bucket-floor wear straps provide additional protection in high-contact areas during rock and aggregate handling.
  • Replaceable Side Cutters: Replaceable side cutters help extend service life by allowing worn side cutting components to be replaced rather than replacing the entire bucket.
  • Multiple Tooth Options: Standard weld-on teeth deliver digging capability, while alternative tooth configurations are available for application-specific requirements.
  • Bolt-On Cutting Edge: Optional replaceable bolt-on cutting edge allows the cutting edge to be replaced when required for continued bucket performance.
  • Tapered Side Plates: Tapered side plates reduce material friction and sidewall wear while supporting smoother loading and dumping operations.
  • High-Capacity Loader Bucket: Available in 2.0–10.0 cu yd rated capacities, supporting efficient handling of rock, aggregate, and other bulk materials.
  • Wide Size Selection: Available widths from 100" to 144", allowing configuration according to loader size, application, and material-handling requirements.
  • Multiple Loader Classes: Models are available for Loader Classes 1, 2 & 3, 3.5, 4, 5, 6, and 7, depending on the selected configuration.
  • Spade Nose Option: Selected models are available with a spade nose configuration for demanding digging applications requiring enhanced penetration.
  • Straight Edge Option: Straight-edge configurations are available for applications requiring a conventional bucket edge and material-handling setup.
  • Flexible Connections: Designed to mount to a Werk-Brau front coupler or be supplied with a pin-up connection, depending on configuration.
  • Severe Rock Handling: Purpose-built for severe digging and loose-rock re-handling, providing a heavy-duty solution for demanding wheel-loader applications.

Detailed Specifications

Specification WL1R100-2.00 WL1R100-2.00SP
Loader Class 1 1
Part Number WL1R100-2.00 WL1R100-2.00SP
Bucket Type Severe Duty Rock Loader Bucket Severe Duty Rock Loader Bucket
Width 100" 100"
Length 102" 102"
No. of Teeth 7 7
Struck Capacity 1.69 cu yd 1.69 cu yd
Rated Capacity 2.00 cu yd 2.00 cu yd
Weight 2,500 lbs 2,800 lbs
Nose Configuration Standard Spade Nose
Construction High-Strength T-1 Steel High-Strength T-1 Steel
Wear Protection Abrasion-Resistant Wear Straps Abrasion-Resistant Wear Straps
Teeth Weld-On Weld-On
Cutting Edge Optional Bolt-On Optional Bolt-On


Specification WL1R100-2.50 WL1R100-2.50SP
Loader Class 1 1
Part Number WL1R100-2.50 WL1R100-2.50SP
Bucket Type Severe Duty Rock Loader Bucket Severe Duty Rock Loader Bucket
Width 100" 100"
Length 102" 102"
No. of Teeth 7 7
Struck Capacity 2.17 cu yd 2.17 cu yd
Rated Capacity 2.50 cu yd 2.50 cu yd
Weight 2,700 lbs 3,000 lbs
Nose Configuration Standard Spade Nose
Construction High-Strength T-1 Steel High-Strength T-1 Steel
Wear Protection Abrasion-Resistant Wear Straps Abrasion-Resistant Wear Straps
Teeth Weld-On Weld-On
Cutting Edge Optional Bolt-On Optional Bolt-On


Specification WL3R100-2.50 WL3R100-2.50SP
Loader Class 2 & 3 2 & 3
Part Number WL3R100-2.50 WL3R100-2.50SP
Bucket Type Severe Duty Rock Loader Bucket Severe Duty Rock Loader Bucket
Width 100" 100"
Length 102" 102"
No. of Teeth 7 7
Struck Capacity 2.17 cu yd 2.17 cu yd
Rated Capacity 2.50 cu yd 2.50 cu yd
Weight 2,700 lbs 3,000 lbs
Nose Configuration Standard Spade Nose
Construction High-Strength T-1 Steel High-Strength T-1 Steel
Wear Protection Abrasion-Resistant Wear Straps Abrasion-Resistant Wear Straps
Teeth Weld-On Weld-On
Cutting Edge Optional Bolt-On Optional Bolt-On



Specification WL3R100-3.00 WL3R100-3.00SP
Loader Class 2 & 3 2 & 3
Part Number WL3R100-3.00 WL3R100-3.00SP
Bucket Type Severe Duty Rock Loader Bucket Severe Duty Rock Loader Bucket
Width 100" 100"
Length 102" 102"
No. of Teeth 7 7
Struck Capacity 2.54 cu yd 2.54 cu yd
Rated Capacity 3.00 cu yd 3.00 cu yd
Weight 3,500 lbs 3,900 lbs
Nose Configuration Standard Spade Nose
Construction High-Strength T-1 Steel High-Strength T-1 Steel
Wear Protection Abrasion-Resistant Wear Straps Abrasion-Resistant Wear Straps
Teeth Weld-On Weld-On
Cutting Edge Optional Bolt-On Optional Bolt-On



Specification WL3.5R105-3.00 WL3.5R105-3.00SP
Loader Class 3.5 3.5
Part Number WL3.5R105-3.00 WL3.5R105-3.00SP
Bucket Type Severe Duty Rock Loader Bucket Severe Duty Rock Loader Bucket
Width 105" 105"
Length 108" 108"
No. of Teeth 8 8
Struck Capacity 2.54 cu yd 2.54 cu yd
Rated Capacity 3.00 cu yd 3.00 cu yd
Weight 4,200 lbs 4,600 lbs
Nose Configuration Standard Spade Nose
Construction High-Strength T-1 Steel High-Strength T-1 Steel
Wear Protection Abrasion-Resistant Wear Straps Abrasion-Resistant Wear Straps
Teeth Weld-On Weld-On
Cutting Edge Optional Bolt-On Optional Bolt-On



Specification WL3.5R105-3.50 WL3.5R105-3.50SP
Loader Class 3.5 3.5
Part Number WL3.5R105-3.50 WL3.5R105-3.50SP
Bucket Type Severe Duty Rock Loader Bucket Severe Duty Rock Loader Bucket
Width 105" 105"
Length 108" 108"
No. of Teeth 8 8
Struck Capacity 2.97 cu yd 2.97 cu yd
Rated Capacity 3.50 cu yd 3.50 cu yd
Weight 4,600 lbs 5,000 lbs
Nose Configuration Standard Spade Nose
Construction High-Strength T-1 Steel High-Strength T-1 Steel
Wear Protection Abrasion-Resistant Wear Straps Abrasion-Resistant Wear Straps
Teeth Weld-On Weld-On
Cutting Edge Optional Bolt-On Optional Bolt-On



Specification WL4R117-4.00 WL4R117-4.00SP
Loader Class 4 4
Part Number WL4R117-4.00 WL4R117-4.00SP
Bucket Type Severe Duty Rock Loader Bucket Severe Duty Rock Loader Bucket
Width 117" 117"
Length 119" 119"
No. of Teeth 8 8
Struck Capacity 3.30 cu yd 3.30 cu yd
Rated Capacity 4.00 cu yd 4.00 cu yd
Weight 4,600 lbs 5,200 lbs
Nose Configuration Standard Spade Nose
Construction High-Strength T-1 Steel High-Strength T-1 Steel
Wear Protection Abrasion-Resistant Wear Straps Abrasion-Resistant Wear Straps
Teeth Weld-On Weld-On
Cutting Edge Optional Bolt-On Optional Bolt-On



Specification WL4R117-4.50 WL4R117-4.50SP
Loader Class 4 4
Part Number WL4R117-4.50 WL4R117-4.50SP
Bucket Type Severe Duty Rock Loader Bucket Severe Duty Rock Loader Bucket
Width 117" 117"
Length 119" 119"
No. of Teeth 8 8
Struck Capacity 3.81 cu yd 3.81 cu yd
Rated Capacity 4.50 cu yd 4.50 cu yd
Weight 5,200 lbs 5,500 lbs
Nose Configuration Standard Spade Nose
Construction High-Strength T-1 Steel High-Strength T-1 Steel
Wear Protection Abrasion-Resistant Wear Straps Abrasion-Resistant Wear Straps
Teeth Weld-On Weld-On
Cutting Edge Optional Bolt-On Optional Bolt-On



Specification WL5R124-4.75 WL5R124-4.75SP
Loader Class 5 5
Part Number WL5R124-4.75 WL5R124-4.75SP
Bucket Width 124" 124"
Bucket Length 126" 126"
Number of Teeth 8 8
Struck Capacity 3.95 cu yd 3.95 cu yd
Rated Capacity 4.75 cu yd 4.75 cu yd
Unit Weight 6,100 lbs 6,500 lbs
Configuration Standard Spade Nose



Specification WL5R124-5.50 WL5R124-5.50SP
Loader Class 5 5
Part Number WL5R124-5.50 WL5R124-5.50SP
Bucket Width 124" 124"
Bucket Length 126" 126"
Number of Teeth 8 8
Struck Capacity 4.60 cu yd 4.60 cu yd
Rated Capacity 5.50 cu yd 5.50 cu yd
Unit Weight 6,500 lbs 6,900 lbs
Configuration Standard Spade Nose



Specification WL5R124-6.25 WL5R124-6.25SP
Loader Class 5 5
Part Number WL5R124-6.25 WL5R124-6.25SP
Bucket Width 124" 124"
Bucket Length 126" 126"
Number of Teeth 8 8
Struck Capacity 5.30 cu yd 5.30 cu yd
Rated Capacity 6.25 cu yd 6.25 cu yd
Unit Weight 7,400 lbs 7,900 lbs
Configuration Standard Spade Nose



Specification WL6R138-6.50 WL6R138-6.50SP
Loader Class 6 6
Part Number WL6R138-6.50 WL6R138-6.50SP
Bucket Width 138" 138"
Bucket Length 140" 140"
Number of Teeth 9 9
Struck Capacity 5.51 cu yd 5.51 cu yd
Rated Capacity 6.50 cu yd 6.50 cu yd
Unit Weight 8,000 lbs 8,500 lbs
Configuration Standard Spade Nose



Specification WL6R138-7.50 WL6R138-7.50SP
Loader Class 6 6
Part Number WL6R138-7.50 WL6R138-7.50SP
Bucket Width 138" 138"
Bucket Length 140" 140"
Number of Teeth 9 9
Struck Capacity 6.36 cu yd 6.36 cu yd
Rated Capacity 7.50 cu yd 7.50 cu yd
Unit Weight 9,300 lbs 9,800 lbs
Configuration Standard Spade Nose



Specification WL7SD144-8 WL7SD144-8SP
Loader Class 7 7
Part Number WL7SD144-8 WL7SD144-8SP
Bucket Width 144" 144"
Bucket Length 147" 147"
Number of Teeth 9 9
Struck Capacity 7.00 cu yd 7.00 cu yd
Rated Capacity 8.00 cu yd 8.00 cu yd
Unit Weight 13,500 lbs 14,000 lbs
Configuration Standard Spade Nose



Specification WL7R144-9.00 WL7R144-9.00SP
Loader Class 7 7
Part Number WL7R144-9.00 WL7R144-9.00SP
Bucket Width 144" 144"
Bucket Length 147" 147"
Number of Teeth 9 9
Struck Capacity 8.00 cu yd 8.00 cu yd
Rated Capacity 9.00 cu yd 9.00 cu yd
Unit Weight 14,200 lbs 14,700 lbs
Configuration Standard Spade Nose



Specification WL7R144-10 WL7R144-10SP
Loader Class 7 7
Part Number WL7R144-10 WL7R144-10SP
Bucket Width 144" 144"
Bucket Length 147" 147"
Number of Teeth 9 9
Struck Capacity 9.00 cu yd 9.00 cu yd
Rated Capacity 10.00 cu yd 10.00 cu yd
Unit Weight 15,000 lbs 15,500 lbs
Configuration Standard Spade Nose



Manuals & Documents

General Warranty Info:

  • Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
  • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
  • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
  • Please reach out to us for any specific warranty information needed about products and parts you can’t find!

Videos

Shipping

$1 Shipping Quote Info:

  • Contact Us For Shipping Quotes. All $1 products are listed as quote only because we can not display their pricing online.
  • Low shipping rates for customers. We have negotiated the best possible rates for customers from our trusted carriers (ODFL, ESTES, UPS, and FedEx) & Top Private Drivers
  • Negotiate shipping rates if you think we can do better please reach out. Keep in mind some shipping rates also include assembly & configuration as well!
  • Complimentary lift gate service on all freight shipments where it’s possible. We guarantee safe delivery!

Customer Reviews

Overall rating: 4.7 / 5 from 110 reviews.

Customer photo review of Ranew Outdoors Firminator G3 Planter 4ft, 5ft, 6ft & 8ft | 3 in 1 Food Plot Implement | 3pt Planter | Discs, Seeder & Cultipacker | For Tractor

The week before leaving for my mule deer hunt in Wyoming, I seeded the area surrounding the new runway at Wertheimer Airport in Norman. This past Tuesday, I returned to finish the job and was pleased to see that the seed I planted just two weeks earlier was already germinating and coming up nicely. These pictures show the freshly seeded areas alongside those planted two weeks ago. It’s a great comparison and a good example of what proper seedbed preparation and planting can accomplish. I used my Ferminator G-3, which is one impressive piece of equipment. It prepares the seedbed, plants the seed, smooths the soil, and firms everything up for good seed-to-soil contact—all in one efficient operation. I’ve owned and operated several no-till drills over the years, but I can say without hesitation that the Ferminator is the most efficient and versatile seeding machine I’ve ever owned. There’s something pretty satisfying about returning to a job and seeing those first green shoots coming through the ground. That’s when you know your hard work is paying off!

Ranew Outdoors Firminator G3 Planter 4ft, 5ft, 6ft & 8ft | 3 in 1 Food Plot Implement | 3pt Planter | Discs, Seeder & Cultipacker | For Tractor

Customer photo review of Forax Gas Powered Mulcher | Model GP40 | 40" Cutting Width | 14-15 HP | For Tractors

Seems to be in order delivery wasn't able to use lift gate but tractor was able to take pallet off the truck bed. No damage to machine after visual check. won't know how it runs until rain stops. Staff at RippingitOutdoors was very quick to call and double check the type of backet needed for the unit to ensure the online order matched( to fit my skid steer quick attachment on my l2501 Kubota). Explained the teeth & belt could be ordered through them directly over the phone when/if needed as well as selling other types of custom made brackets for Utv's ect. All around Great customer service and would purchase from again.

Forax Gas Powered Mulcher | Model GP40 | 40" Cutting Width | 14-15 HP | For Tractors

Customer photo review of Ferntree Mini Excavator Forestry Mulcher | Model FF-L Series | 22"-30" Cutting Width | Machine Size 2.5- 6 Ton | For Mini Excavator

easy buying process and great communication. Mulcher works great, easily clears overgrown brush and even mulched a 5" thick mulberry tree fairly easily. running it off of my old 331 bobcat with no problem powering the drum at all. Only small issue which isn't a big deal is that the supplied hoses are about 16" too short to operate a full range of motion.

Ferntree Mini Excavator Forestry Mulcher | Model FF-L Series | 22"-30" Cutting Width | Machine Size 2.5- 6 Ton | For Mini Excavator

Over all built well. I like it is all cast iron and metal and not plastic. Had to modify fertilizer disc mount to fit correctly, nothing major, a little grinding. I modified the center link hitch point to accommodate my John Deere quick hitch. Have yet to plant with it but I’m sure it will work perfect. Love the grease fittings everywhere. Reminds me of the old farm equipment I grew up on, and still use periodically.

Cole 12 MX Multiflex Planter | Model B46-664A / 0120103 | Width 13" | Size: One Row | 3PT Hitch Planter Attachment | Horsepower 25–45 HP | For Tractor

My firminator RT was delivered in good condition in ND. I will be using it next week. I have a 45 HP John Deere tractor that is supposed to lift 2000 lb but really struggles to lift this 6 foot firminator RT. I will just have to use in as a two pass operation for now. I do wish there was a better operating manual for this unit. Maybe that is something you can work on. I will give you an update once I start using it in a few days.

Ranew Outdoor Firminator Rototiller | RT Series | Working Width 4', 6' & 8' | Tiller, Seeder & Cultipacker | Horsepower 24–55 HP | For Tractors

It’s built solid. It handles Field grass hip high pretty well. With the maintaining the field grass after the first cut, the pasture field is starting to look like a lawn. The 84 inch with the best thing to get for 8 acres. It’s best to order belts for back up in the event if the belts were to break. But overall, I like the product quality is good.

Farm-Maxx Grooming Mower | FMR Series | Working Width 48", 60", 72" & 84" | 15-50 HP | For Tractors

When I think of ripping it outdoors something else comes to mind, but I digress. This spreader is awesome. Works like a champ. The hopper is big enough to do my 1 acre lot for my applications. Just load once and go. I would highly recommend this spreader. It saves a ton of time and is a quality product.

BEFCO | Baby-Hop Pull-Type Broadcast Spreader | Model 103 & 106 Series | 237–339 lb Capacity | 3′–20′ Spread Width | Horsepower 10 To 20 HP | For Lawn Tractors, ATVs & UTVs
