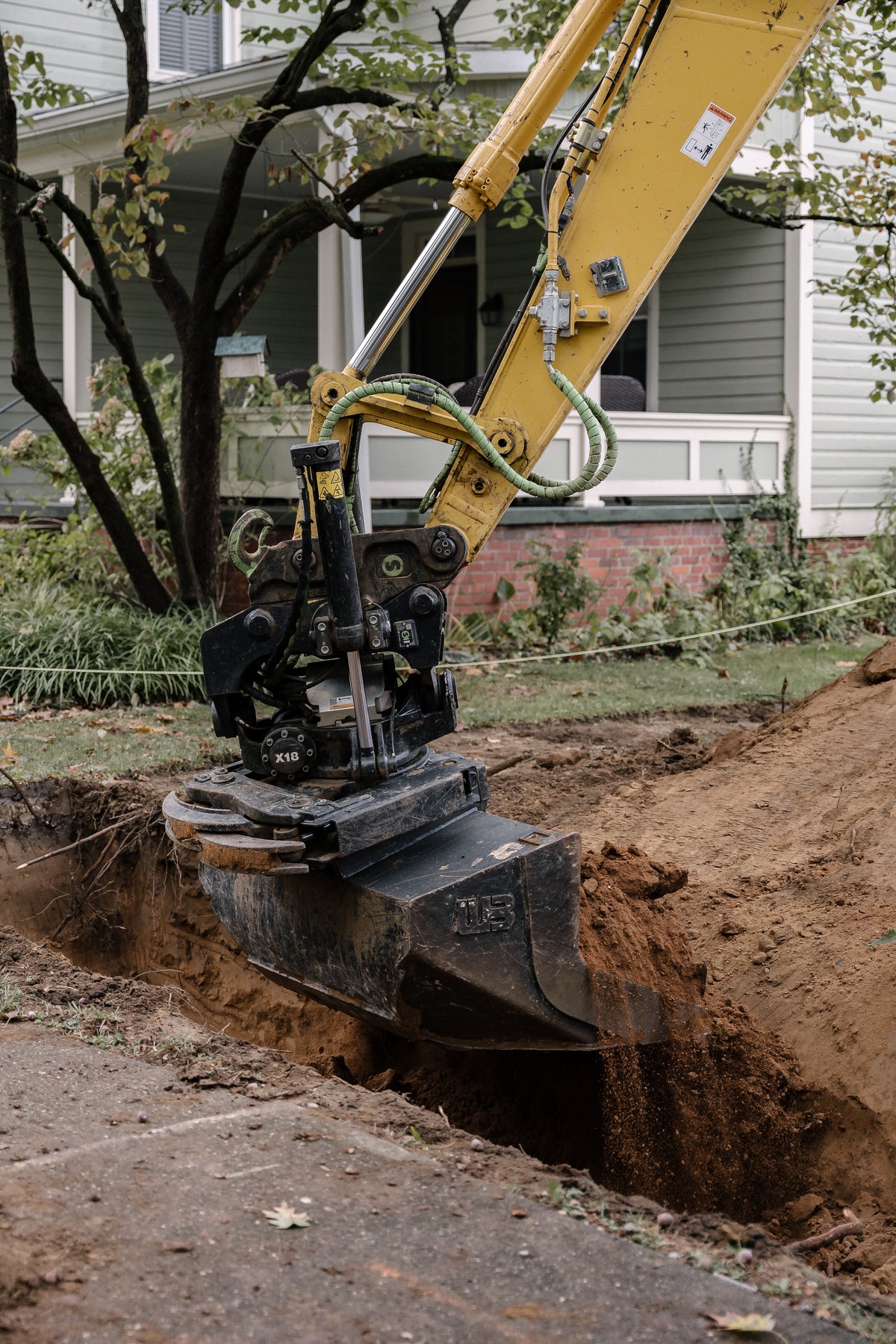

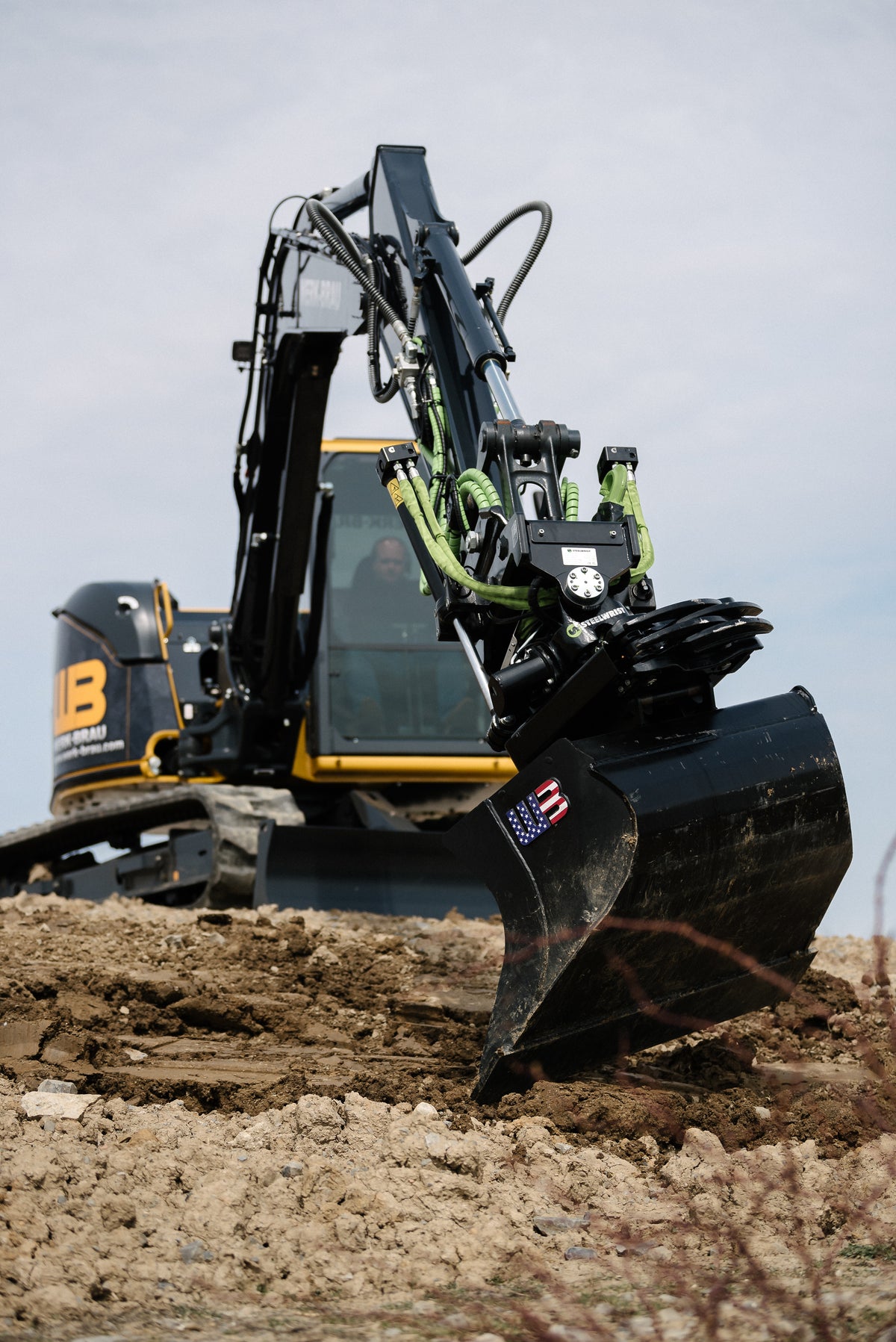

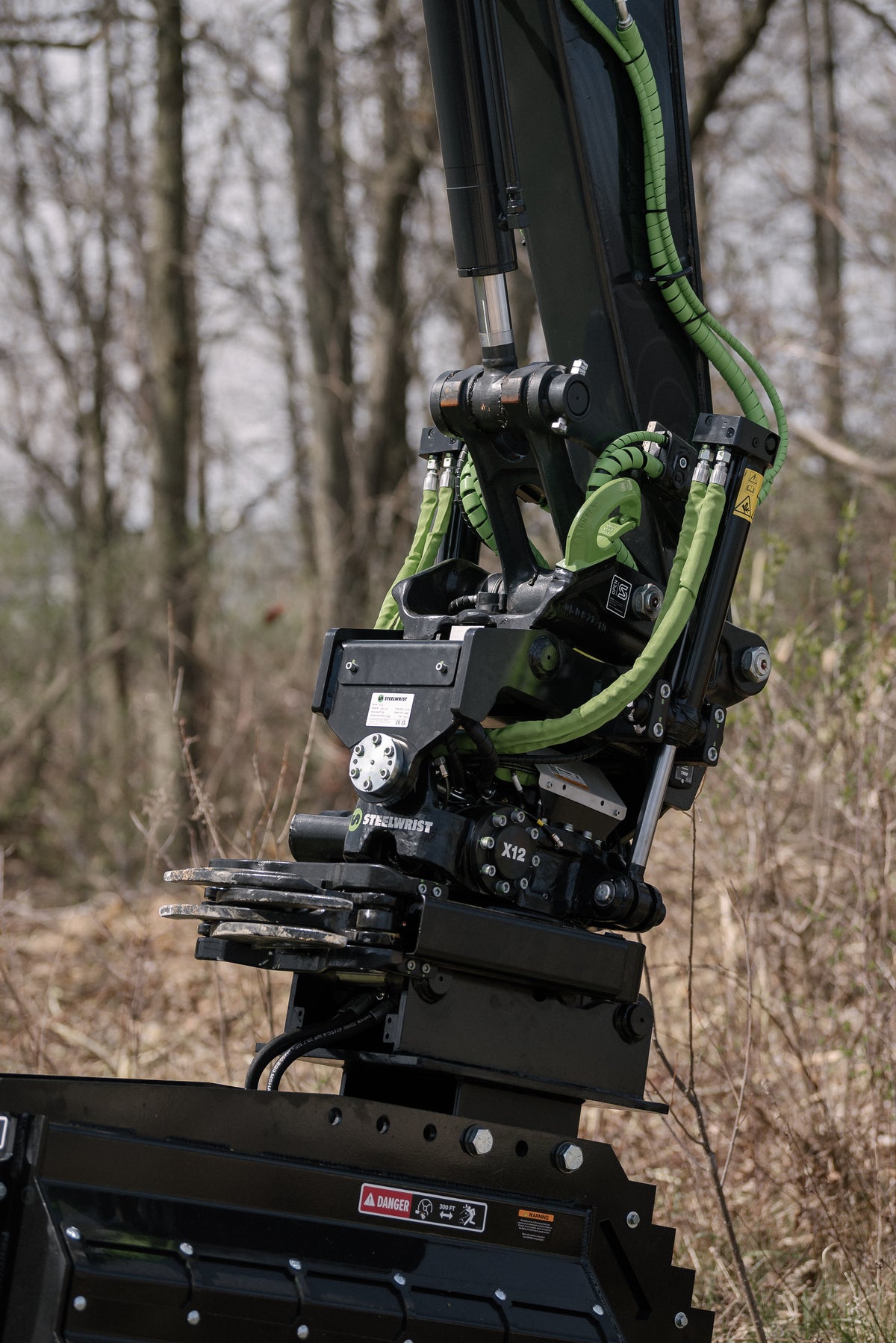

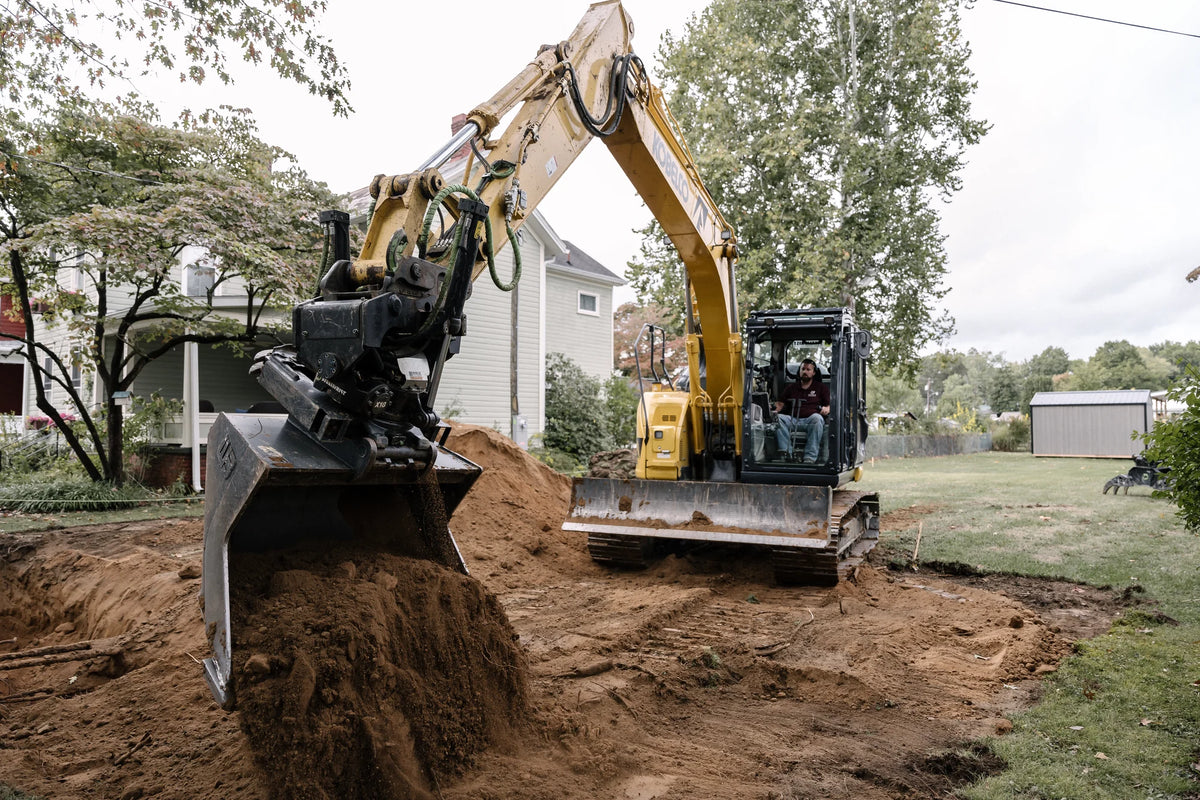

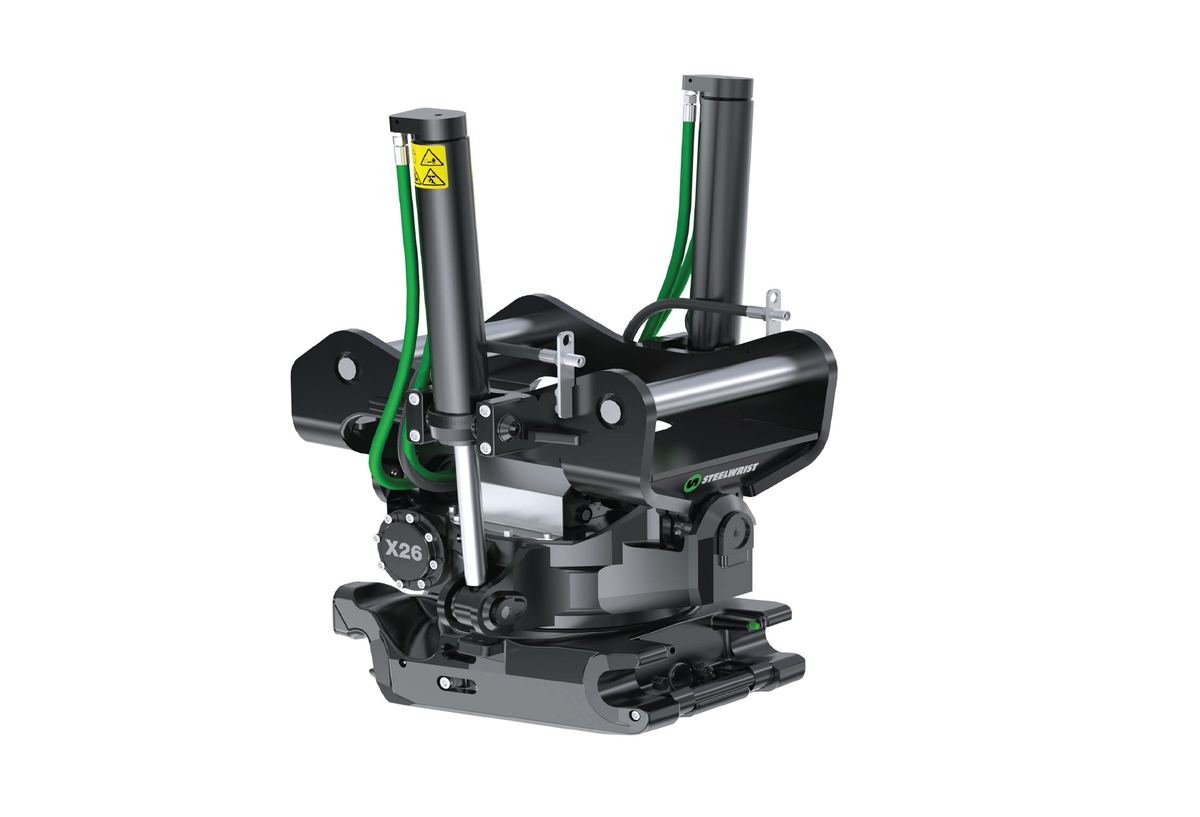

Werk-Brau Powered by Steelwrist Tiltrotator is a high-performance excavator attachment designed to transform an excavator into a versatile, multi-functional carrier machine. Its 360° continuous rotation and up to ±45° hydraulic tilt provide exceptional attachment positioning, helping operators complete grading, digging, trenching, landscaping, and utility work with less machine repositioning. The compact, lightweight design maintains efficient digging geometry while supporting excavators across a broad 1–37 ton machine range. Available in multiple X02–X32 models, the tiltrotator offers compatible coupler configurations, centralized lubrication, and safety-focused attachment changes. With 4–37 GPM hydraulic flow requirements and pressure ratings up to 3,050 PSI, it delivers dependable performance for demanding excavation applications. Its optimized design can help reduce repositioning, manpower requirements, attachment wear, and operating time.
| Specification | X02 | X04 |
|---|---|---|
| Model | X02 | X04 |
| Excavator Machine Weight | 2,200–4,400 lbs | 4,400–8,800 lbs |
| Approx. Machine Weight | 1–2 tons | 2–4 tons |
| Maximum Tilt Angle | ±40° | ±45° |
| Required Hydraulic Oil Flow | 4–6 GPM | 6–11 GPM |
| Maximum Hydraulic Pressure | 2,538 PSI | 3,050 PSI |
| Hydraulic Extra Functions | 1 | 1 |
| Width – A | 16.9" | 12.4" |
| Length – B | 10.2" | 20.7" |
| Building Height – C | 10.2" | 13.5" |
| Cylinder Width – D | 12.8" | 19.6" |
| Weight | 132 lbs | 254 lbs |
| Reach | 16.7" | 16.7" |
| Tilt Force | 3.9 kNm | 4.9 kNm |
| Rotation Force | 1.9 kNm | 1.9 kNm |
| Upper Coupler | DF / S30 | DF / S40 |
| Attachment Coupler | S30 | S40 / HS03 / CW05 |
| Rotation | 360° continuous | 360° continuous |
| Central Lubrication | Available | Available |
| Specification | X06 | X07 |
|---|---|---|
| Model | X06 | X07 |
| Excavator Machine Weight | 8,800–13,200 lbs | 11,000–15,400 lbs |
| Approx. Machine Weight | 4–6 tons | 5–7 tons |
| Maximum Tilt Angle | ±45° | ±45° |
| Required Hydraulic Oil Flow | 8–13 GPM | 18–24 GPM |
| Maximum Hydraulic Pressure | 3,050 PSI | 3,050 PSI |
| Hydraulic Extra Functions | 1 (0) | 2 (1) |
| Width – A | 12.4" (18.1") | 14.4" (22.4") |
| Length – B | 20.8" (25.3") | 24.3" (31.1") |
| Building Height – C | 13.5" | 15.6" |
| Cylinder Width – D | 19.6" | 20.1" |
| Weight | 298 lbs (377 lbs) | 430 lbs (553 lbs) |
| Reach | 20.2" | 20.0" |
| Tilt Force | 5.2 kNm | 5.4 kNm |
| Rotation Force | 1.9 kNm | 1.9 kNm |
| Upper Coupler | DF / S40 / HS03 | DF / S40 / S45 / S50 / HS03 |
| Attachment Coupler | S40 / HS03 / CW05 | S40 / S45 / S50 / HS08 / CW10 |
| Rotation | 360° continuous | 360° continuous |
| Central Lubrication | Available | Available |
| Specification | X12 | X14 |
|---|---|---|
| Model | X12 | X14 |
| Excavator Machine Weight | 15,400–26,500 lbs | 22,000–30,900 lbs |
| Approx. Machine Weight | 7–12 tons | 10–14 tons |
| Maximum Tilt Angle | ±45° | ±45° |
| Required Hydraulic Oil Flow | 21–26 GPM | 21–26 GPM |
| Maximum Hydraulic Pressure | 3,050 PSI | 3,050 PSI |
| Hydraulic Extra Functions | 2 (1) | 2 (1) |
| Width – A | 22.3" (22.7") | 24.3" (25.0") |
| Length – B | 24.6" (30.1") | 28.5" (32.0") |
| Building Height – C | 16.7" | 17.9" |
| Cylinder Width – D | 26.6" | 27.0" |
| Weight | 628 lbs (767 lbs) | 838 lbs (977 lbs) |
| Reach | 32.3" | 32.3" |
| Tilt Force | 7.8 kNm | 7.8 kNm |
| Rotation Force | 1.9 kNm | 1.9 kNm |
| Upper Coupler | DF / S45 / S50 / SQ50 / HS08 | DF / S45 / S50 / SQ50 / S60 / SQ60-5 / HS10 |
| Attachment Coupler | S45 / S50 / SQ50 / HS08 / CW10 | S45 / S50 / SQ50 / S60 / SQ60-5 / HS10 / CW20 |
| Rotation | 360° continuous | 360° continuous |
| Central Lubrication | Available | Available |
| Specification | X18 | X20 |
|---|---|---|
| Model | X18 | X20 |
| Excavator Machine Weight | 26,500–39,700 lbs | 35,300–44,100 lbs |
| Approx. Machine Weight | 12–18 tons | 16–20 tons |
| Maximum Tilt Angle | ±45° | ±45° |
| Required Hydraulic Oil Flow | 26–32 GPM | 26–32 GPM |
| Maximum Hydraulic Pressure | 3,050 PSI | 3,050 PSI |
| Hydraulic Extra Functions | 2 (1) | 2 (1) |
| Width – A | 24.3" (28.2") | 27.2" (28.2") |
| Length – B | 28.6" (37.5") | 32.1" (39.5") |
| Building Height – C | 18.0" | 20.0" |
| Cylinder Width – D | 29.0" | 28.9" |
| Weight | 882 lbs (1,130 lbs) | 981 lbs (1,228 lbs) |
| Reach | 37.8" | 37.8" |
| Tilt Force | 8.8 kNm | 8.8 kNm |
| Rotation Force | 1.9 kNm | 1.9 kNm |
| Upper Coupler | DF / S60 / SQ60-5 / SQ65* / HS10 | DF / S70 / SQ70 / SQ70/55 / HS21 |
| Attachment Coupler | S70 / SQ70 / S70/55 / HS21 / CW30 | S70 / SQ70 / S70/55 / SQ70/55 / CW40 |
| Rotation | 360° continuous | 360° continuous |
| Central Lubrication | Available | Available |
| Specification | X26 | X32 |
|---|---|---|
| Model | X26 | X32 |
| Excavator Machine Weight | 39,700–57,300 lbs | 55,100–72,700 lbs |
| Approx. Machine Weight | 18–26 tons | 25–33 tons |
| Maximum Tilt Angle | ±45° | ±45° |
| Required Hydraulic Oil Flow | 32–37 GPM | 32–37 GPM |
| Maximum Hydraulic Pressure | 3,050 PSI | 3,050 PSI |
| Hydraulic Extra Functions | 2 (1) | 2 (1) |
| Width – A | 27.2" (31.8") | 28.7" (31.8") |
| Length – B | 32.6" (43.9") | 34.3" (45.9") |
| Building Height – C | 21.1" | 24.6" |
| Cylinder Width – D | 32.5" | 36.9" |
| Weight | 1,257 lbs (1,515 lbs) | 1,852 lbs (2,110 lbs) |
| Reach | 37.8" | 37.8" |
| Tilt Force | 9.8 kNm | 9.8 kNm |
| Rotation Force | 1.9 kNm | 1.9 kNm |
| Upper Coupler | DF / S70 / SQ70 / SQ70/55 / S80 / SQ80 | DF / S70 / SQ70 / SQ70/55 / S80 / SQ80 |
| Attachment Coupler | S70 / SQ70 / S70/55 / SQ70/55 / CW40 | S80 / SQ80 |
| Rotation | 360° continuous | 360° continuous |
| Central Lubrication | Available | Available |
