Wifo Equipment Harley Rake Power Rake | Model RA Series | Working Width 60"-84" | For Skid Steer
DESCRIPTION

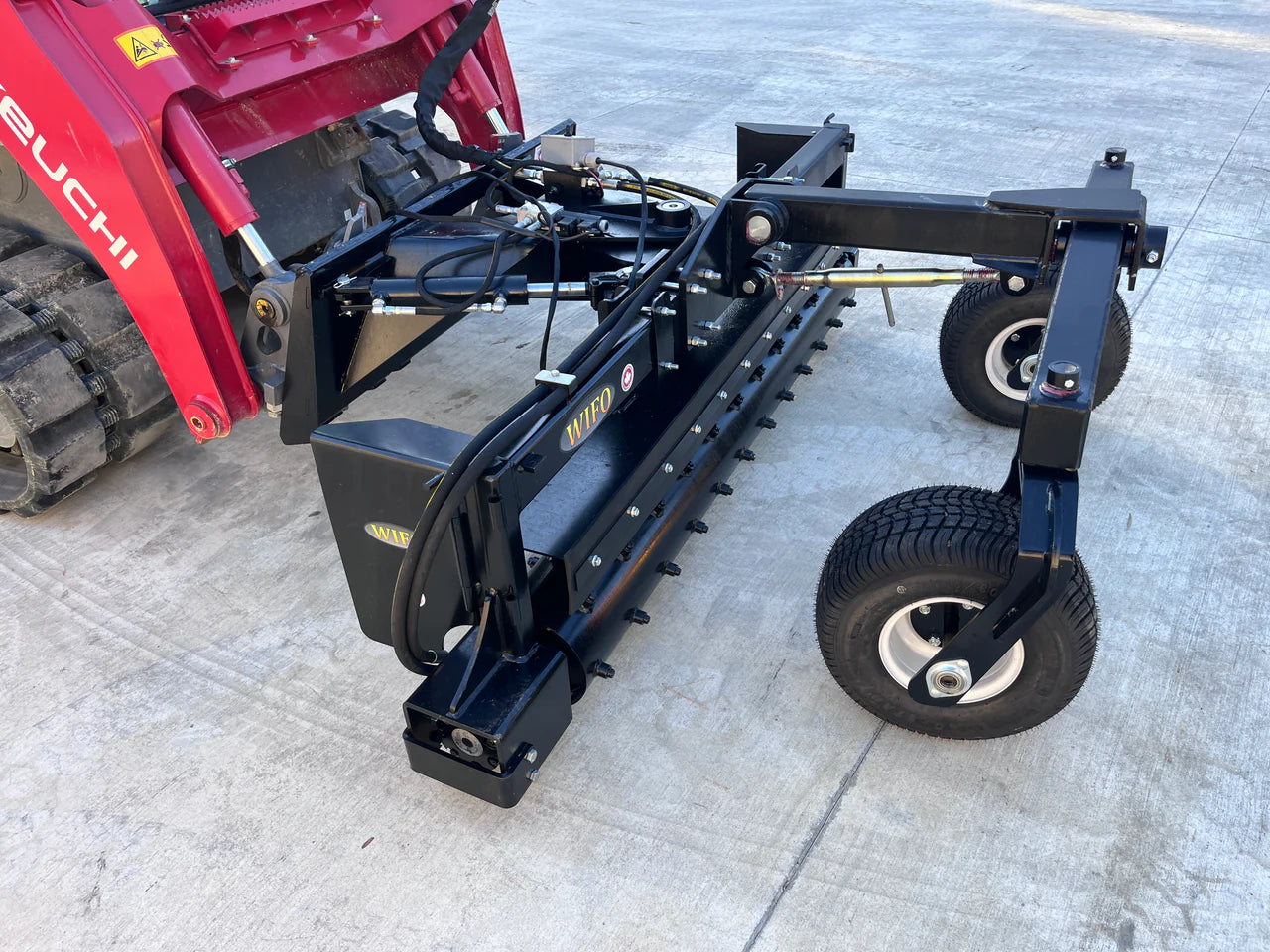

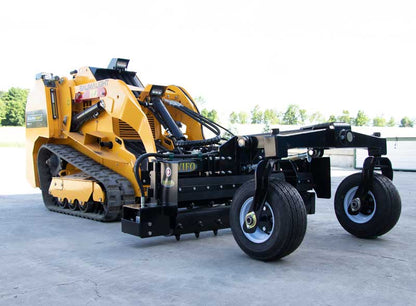

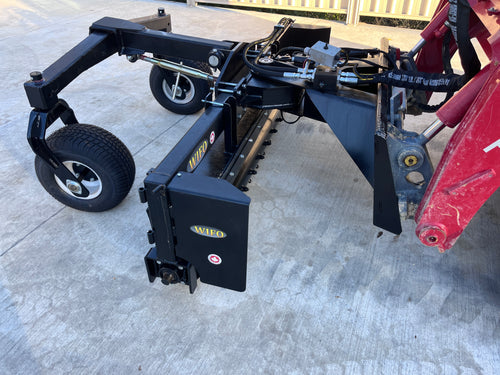

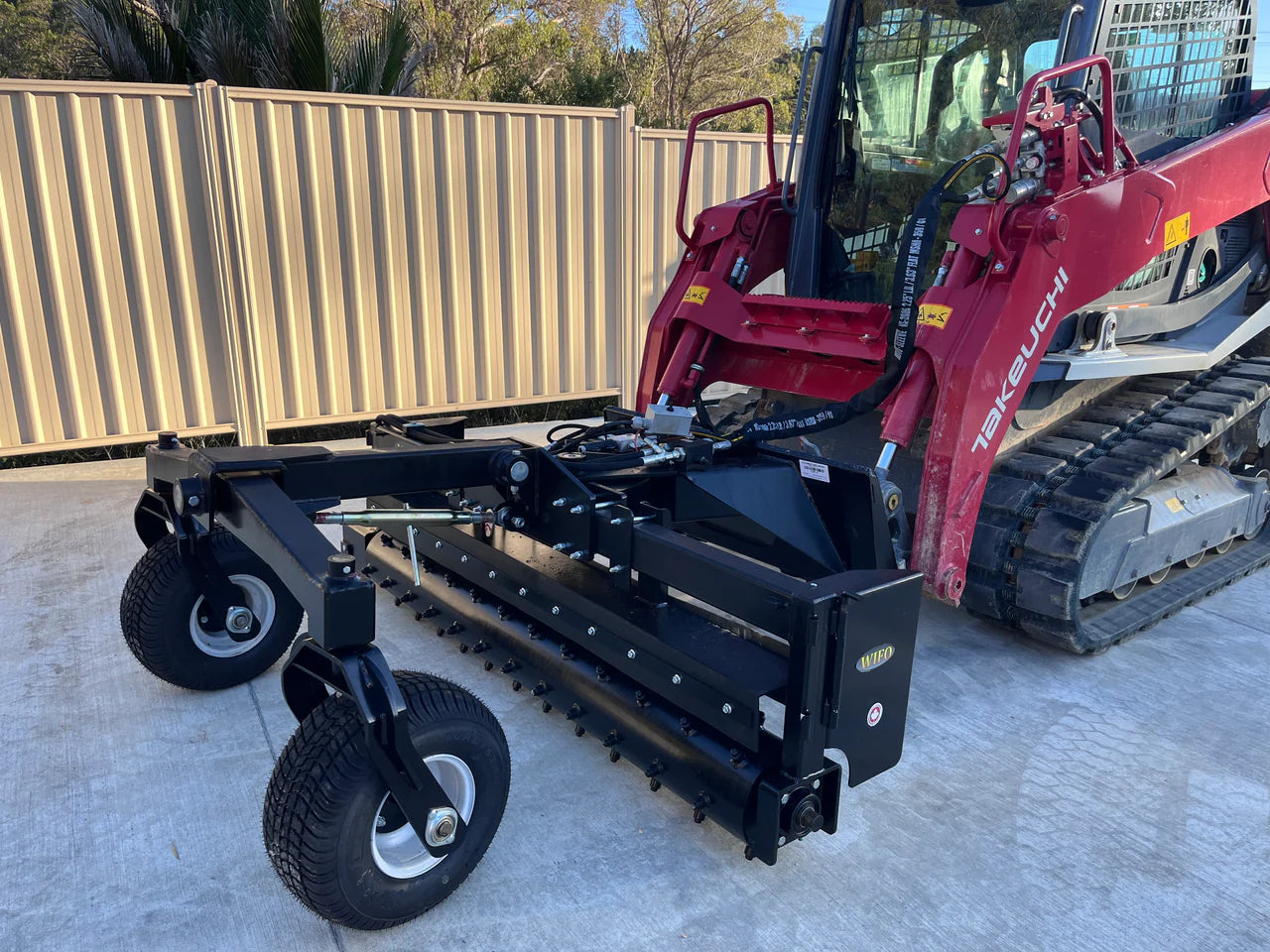

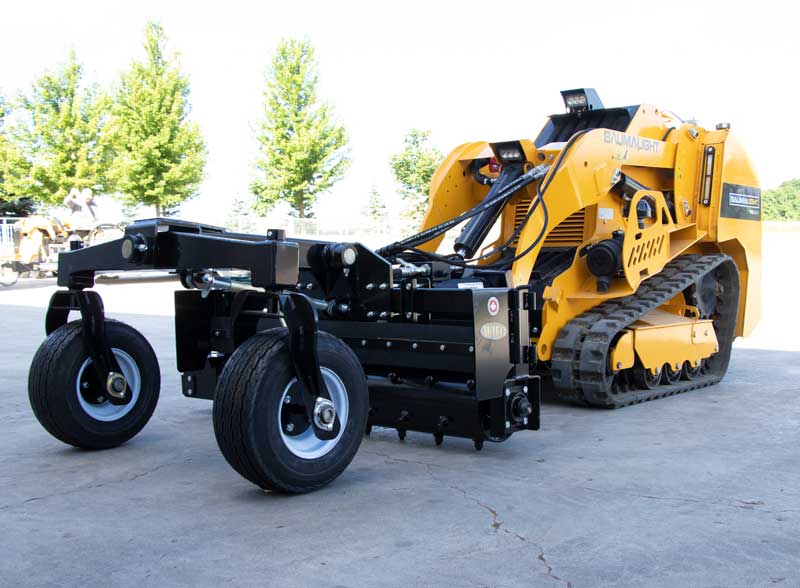

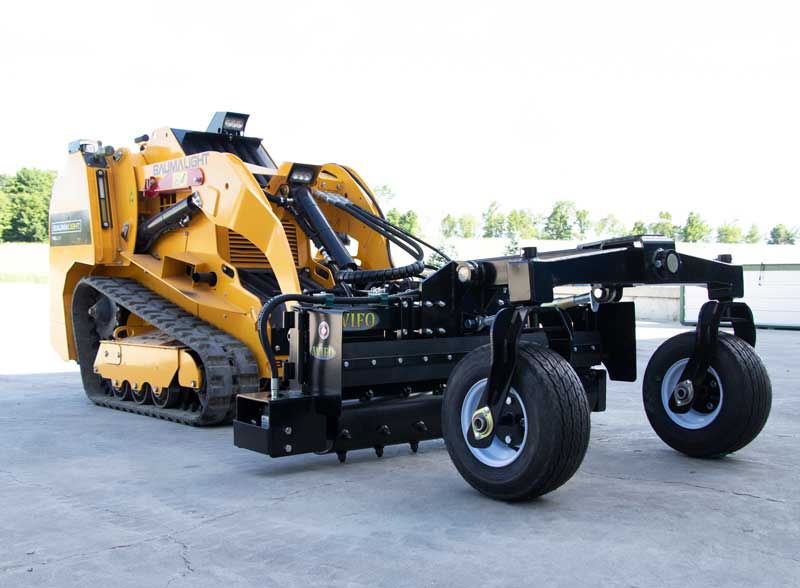

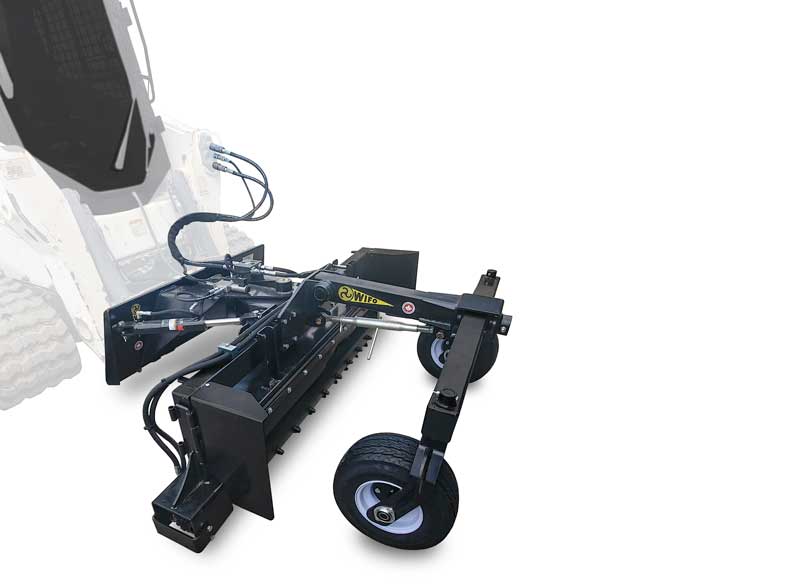

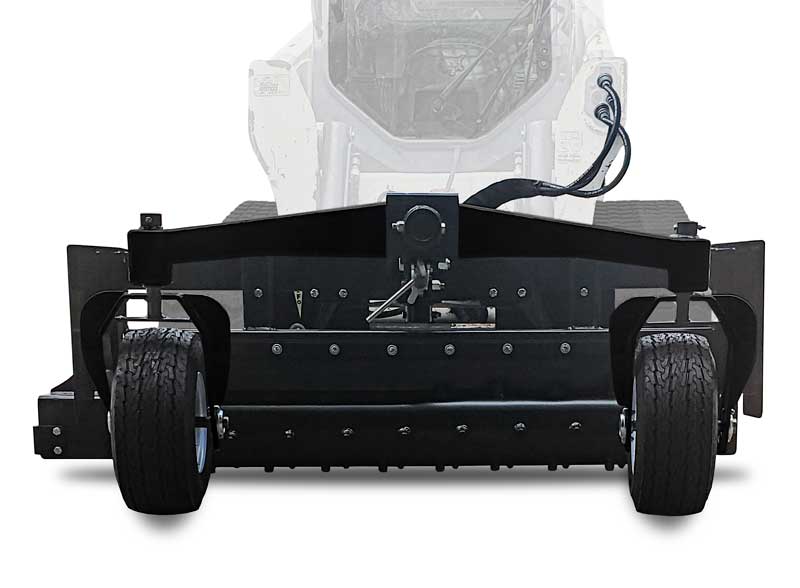

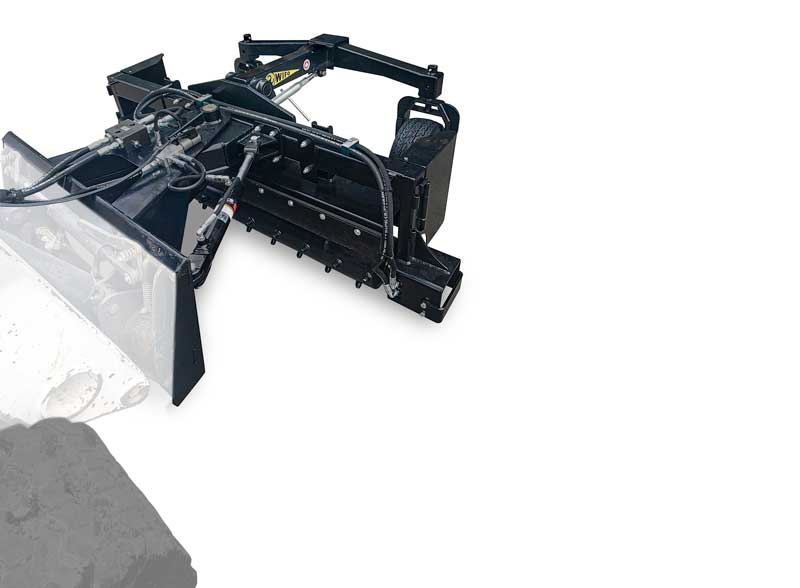

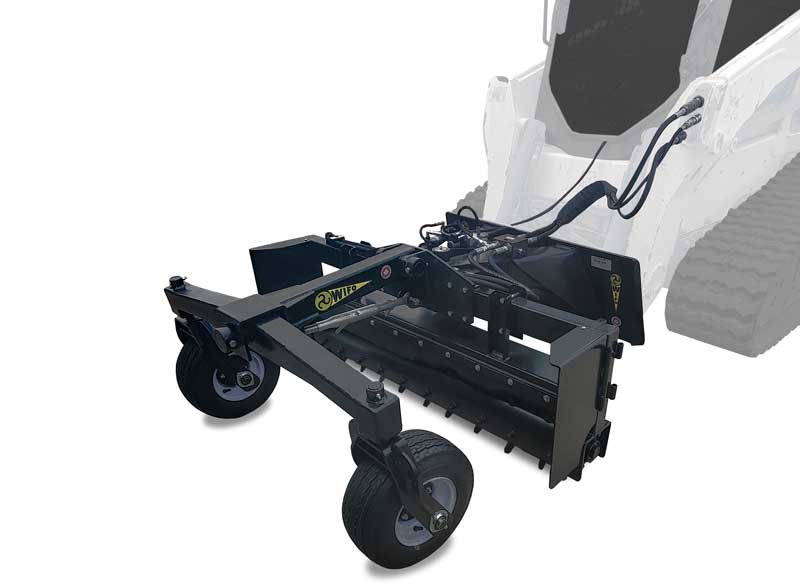

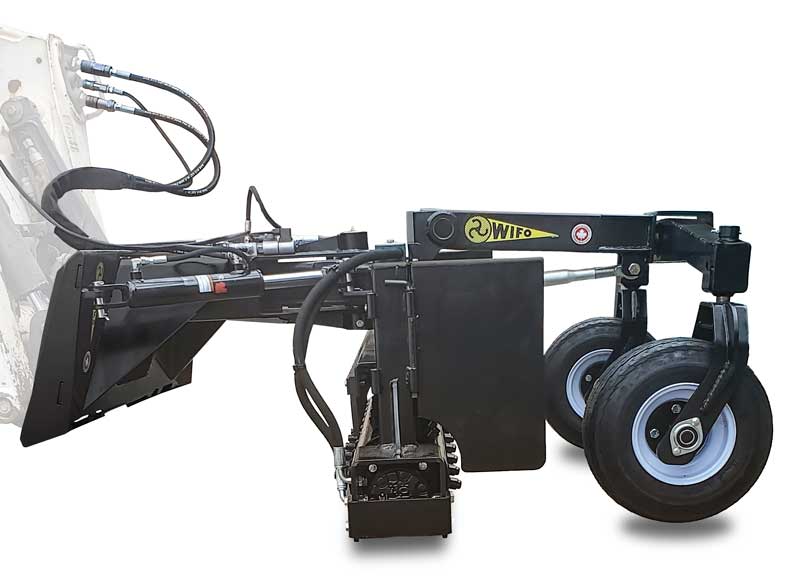

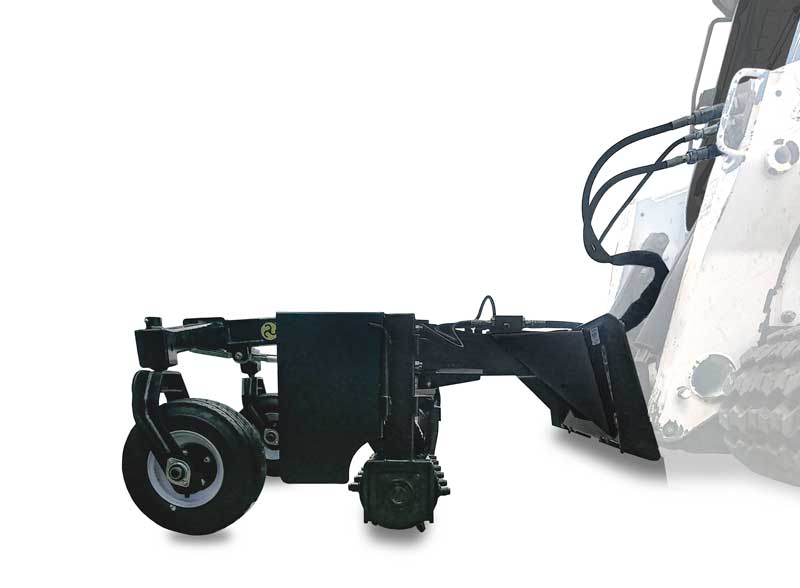

The Wifo Equipment Power Rake series is designed for efficient land preparation, soil leveling, and landscape finishing, providing skid steer operators with powerful raking capabilities. Available in widths of 84”, 72”, and 60”, these power rakes cater to different job requirements, from large-scale commercial projects to smaller, precise applications. Each model features a 9” drum with 1.25” teeth, which can be upgraded with optional carbide teeth for enhanced durability and cutting strength.
Choose between hydraulic angle models for easy adjustment from the cab or manual angle options for straightforward, hands-on angling. The front wheels and 12-volt system support superior angling control, while the 12 to 22 GPM hydraulic requirement ensures consistent performance across models. With its rugged design and efficient functionality, the Wifo Power Rake is an indispensable tool for construction, landscaping, and soil preparation.
Key Features
- Versatile Rake Options: Available in 60", 72", and 84" widths to accommodate a range of skid steer applications.
- Powerful Hydraulic Angle: Hydraulic models allow for efficient angling adjustments, enhancing maneuverability and control.
- High-Quality Drum Design: 9" drum equipped with durable teeth (84 on the RA-84, 72 on the RA-72, and 60 on the RA-60) provides precise soil preparation and cleanup.
- Optional Carbide Teeth: Enhanced carbide teeth available for added strength, durability, and longevity.
- Heavy-Duty Construction: Built with robust materials to handle challenging construction, landscaping, and agricultural tasks.
- Easy Skid Steer Compatibility: Universal Skid Steer Loader (UQA SSL) attachment hookup for easy integration.
- Adjustable Front Wheel Support: 18x8.5 air-filled wheels provide stable support and optimal performance.
- 12V Electrical Requirement: Hydraulic angle models require a 12V power source for angling functions, ensuring quick setup and use.
- Precise Depth Control: Drum teeth measure 1.25" in length, providing precise ground leveling and soil preparation.
- Reliable Hydraulic Flow: Requires a hydraulic flow of 12 to 22 GPM, with case drain requirements for enhanced operation efficiency.
Detailed Specifications
Power Rake Models and Key Features
| Specification | Details |
|---|---|
| Width | 84" |
| Weight | 1200 lbs |
| Drum Size | 9" |
| Teeth on Drum | 84 |
| Teeth Length | 1.25” |
| Hydraulic Angle | Yes |
| Case Drain | Required |
| Front Wheel Size | 18x8.5 Air |
| 12V Angling | Yes |
| Specification | Details |
|---|---|
| Width | 72" |
| Weight | 1000 lbs |
| Drum Size | 9" |
| Teeth on Drum | 72 |
| Teeth Length | 1.25” |
| Hydraulic Angle | No |
| Case Drain | Required |
| Front Wheel Size | 18x8.5 Air |
| 12V Angling | No |
| Specification | Details |
|---|---|
| Width | 72" |
| Weight | 1000 lbs |
| Drum Size | 9" |
| Teeth on Drum | 72 |
| Teeth Length | 1.25” |
| Hydraulic Angle | Yes |
| Case Drain | Required |
| Front Wheel Size | 18x8.5 Air |
| 12V Angling | Yes |
| Specification | Details |
|---|---|
| Width | 60" |
| Weight | 850 lbs |
| Drum Size | 9" |
| Teeth on Drum | 60 |
| Teeth Length | 1.25” |
| Hydraulic Angle | Yes |
| Case Drain | Required |
| Front Wheel Size | 18x8.5 Air |
| 12V Angling | Yes |
Part Numbers and Additional Specs
| Specification | Details |
|---|---|
| Part # | RA84CR |
| Model | RA-84 |
| Category | Skid Steer Attachments |
| SubCategory | Harley Rake Skid Steer |
| Machine Size | SSL |
| Attachment Size | 84" Working Width |
| Specification | Details |
|---|---|
| Part # | RA72CR-M |
| Model | RA-72 Manual |
| Category | Skid Steer Attachments |
| SubCategory | Harley Rake Skid Steer |
| Machine Size | SSL |
| Attachment Size | 72" Working Width |
| Specification | Details |
|---|---|
| Part # | RA72CR |
| Model | RA-72 Hydraulic |
| Category | Skid Steer Attachments |
| SubCategory | Harley Rake Skid Steer |
| Machine Size | SSL |
| Attachment Size | 72" Working Width |
| Specification | Details |
|---|---|
| Part # | RA60CR |
| Model | RA-60 |
| Category | Skid Steer Attachments |
| SubCategory | Harley Rake Skid Steer |
| Machine Size | SSL |
| Attachment Size | 60" Working Width |
