Product Description
Wolfpack 3DCP | LabEx | 2m x 2m Footprint | Expandable Modular Platform | R&D and Construction Printing
DESCRIPTION

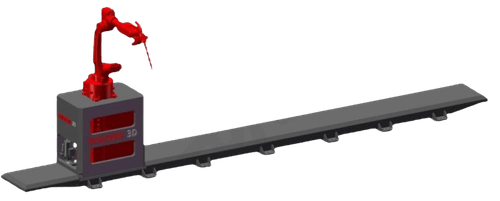

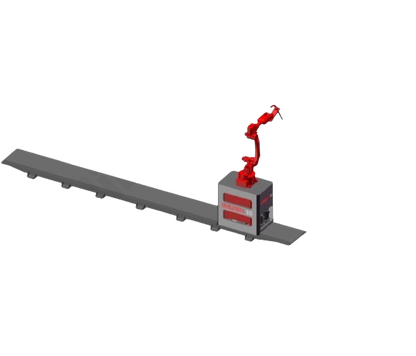

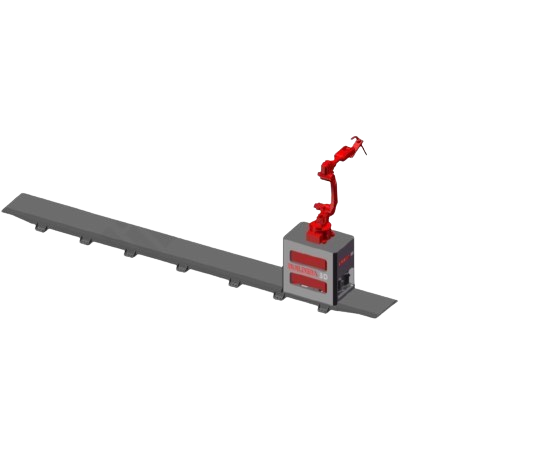

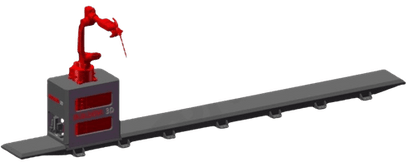

Introducing the Wolfpack 3DCP LabEx a compact, plug-and-play research-grade 3D concrete printer built for rapid experimentation, prototyping, and material testing in advanced lab settings. Whether you're in a university research lab, a material science department, or an innovation center pushing the boundaries of construction technology, LabEx empowers your team with high-precision results and remarkable flexibility right out of the box.
Occupying just a 2m x 2m footprint, LabEx fits into tight R&D environments without compromising performance. It’s designed for mobility with a track-based system option and pallet-jack portability, making it easy to relocate between labs, workshops, or field test sites. With customizable nozzle sizes, pump settings, and motion configurations, you can fine-tune your setup for everything from small-scale cement trials to early-stage metal 3D printing research.
Even better? LabEx is retrofittable with CNC heads, transforming it into a hybrid fabrication platform capable of both additive and subtractive manufacturing. Combined with built-in safety systems, expandable print volume, and a streamlined geometry-to-g-code workflow, LabEx is the ultimate experimental tool for tomorrow’s builders.
Key Features
- Compact 2m x 2m Footprint Optimized for laboratories and R&D spaces where every inch of floor space counts.
- Plug-and-Play Simplicity No installation required. Start printing straight out of the box ideal for fast-paced research environments.
- Mobile and Track-Mounted Ready Move LabEx easily with a pallet jack or upgrade to a 10m track system for larger experiments.
- Expandable Print Volume Add 1 meter to each axis (X, Y, Z) to increase build capacity and accommodate bigger prototypes.
- Multi-Functional Platform Supports a wide range of materials and applications including CNC retrofitting and metal 3D printing.
- Advanced Software Interface Built-in geometry-to-g-code translation for seamless integration with slicing workflows.
- Fully Customizable Performance Adjust pump speed, nozzle size, and motion precision to suit your test parameters or project requirements.
- Robust Safety Architecture Simulated motion paths and full safety integration ensure peace of mind during operation.
Detailed Specifications
| Specification | Details |
|---|---|
| Brand / Model | Wolfpack 3DCP LabEx |
| Primary Use | R&D, Prototyping, Experimental 3DCP |
| Footprint | 2m x 2m (expandable by 1m per axis) |
| Print Volume (Standard) | Compact lab-scale volume (expandable to larger experimental sizes) |
| Track System | Optional 10-meter track-based configuration |
| Mobility | Pallet-jack portable; no fixed install required |
| Nozzle Customization | Yes – Adjustable sizes for different print materials and resolutions |
| Pump Speed Adjustment | Yes – For precision material control |
| Software Interface | Advanced geometry-to-g-code translator with browser-based controls |
| Material Compatibility | Cementitious mixes; retrofittable for CNC and metal printing applications |
| Power Requirements | Standard lab-compatible electrical input (110V or 220V, 50/60 Hz) |
| Model Variants | Stationary base or track-mounted version available |
| Applications | Academic R&D, experimental material science, additive/subtractive testing |
