Wolfpack 3DCP | Worm iPump | 7–40 L/min Flow | 5.5 kW Motor | 680mm Width | 5.5kW Variable Flow | For Mortar & Concrete Printing
Wolfpack 3DCP | Worm iPump | 7–40 L/min Flow | 5.5 kW Motor | 680mm Width | 5.5kW Variable Flow | For Mortar & Concrete Printing
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Wolfpack 3DCP | Worm iPump | 7–40 L/min Flow | 5.5 kW Motor | 680mm Width | 5.5kW Variable Flow | For Mortar & Concrete Printing
DESCRIPTION
Engineered for the evolving needs of modern construction and 3D concrete printing, the Wolfpack 3DCP Worm iPUMP redefines versatility in a compact, powerful form. Whether you're pumping dry mix from silos or wet mortar from bags, the iPUMP delivers pulse-free, consistent material flow all with the smooth precision professionals rely on.
Crafted with European-grade components and designed in California, this modular worm pump system gives you complete control over output, whether you’re applying adhesive bridges, masonry mortars, or fiber-reinforced materials. With stepless flow adjustment, intuitive tool-free maintenance, and an optional integrated mixer for enhanced material preparation, the iPUMP transforms your workflow from the ground up.
Compact, mobile, and easy to operate, the Worm iPUMP is a powerhouse of precision, making it an essential tool for contractors, plastering professionals, and 3DCP teams demanding high-efficiency mortar and concrete application.
Key Features
- Versatile Pumping System Ideal for wet and dry mortars, including insulating plaster, render, screed, adhesives, fiber mixes, and more.
- Precision Control Stepless variable delivery from 7–40 L/min and up to 25 bar pressure for consistent output.
- Tool-Free Maintenance Push-on rotor and slide-on Cardan shaft allow for fast part changes without tools, saving critical jobsite time.

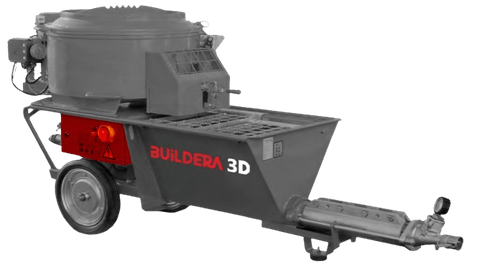

- Optional Integrated Mixer Add a pan mixer (2.2kW) for homogeneous blending of materials before pumping.
- Smooth, Pulse-Free Delivery Maintains flow consistency across vertical and horizontal applications.
- Built for Portability Lightweight design with optional wheelset for easy mobility around tight job sites.
- Safety-First Design Hinged grille with integrated safety switch ensures safe operation while loading or maintaining the hopper.
- Built to Last Constructed from rugged metal plating and premium components for long-term reliability under tough jobsite conditions.
Detailed Specifications
| Specification | Details |
|---|---|
| Brand | Wolfpack 3DCP |
| Model Name | Worm iPUMP |
| Pump Type | Modular Worm Pump System |
| Power | 5.5 kW Electric Motor, 380V |
| Flow Rate | 7–40 L/min (stepless adjustment) |
| Max Pressure | 25 bar |
| Material Compatibility | Dry/wet mortars, plaster, screed, fiber mixes |
| Max Aggregate Size | Up to 6 mm |
| Delivery Range | 20–30 m (horizontal), 5–15 m (vertical) |
| Hopper Capacity | 100 L |
| Optional Mixer | Integrated pan mixer (2.2 kW motor) |
| Dimensions (Basic Unit) | 2,290 x 680 x 650 mm |
| Dimensions (With Mixer) | 2,505 x 680 x 1,150 mm |
| Weight | 190 kg (basic), 400 kg (with mixer) |
| Designed In | California, USA |
| Assembled In | China (with European motors/gears) |
