Product Description
Woody Equipment 10′ Forestry Trailer Model 10-66 LP with Log Loader 125 LP | For Tractors
Description

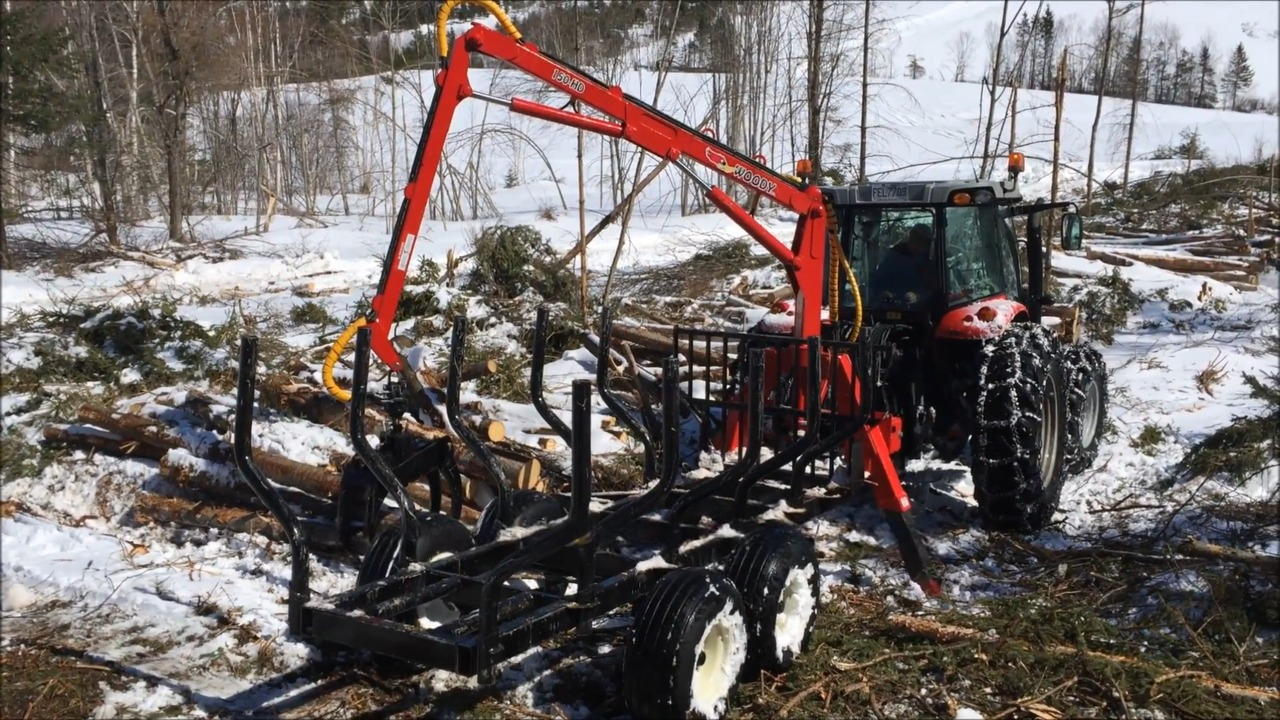

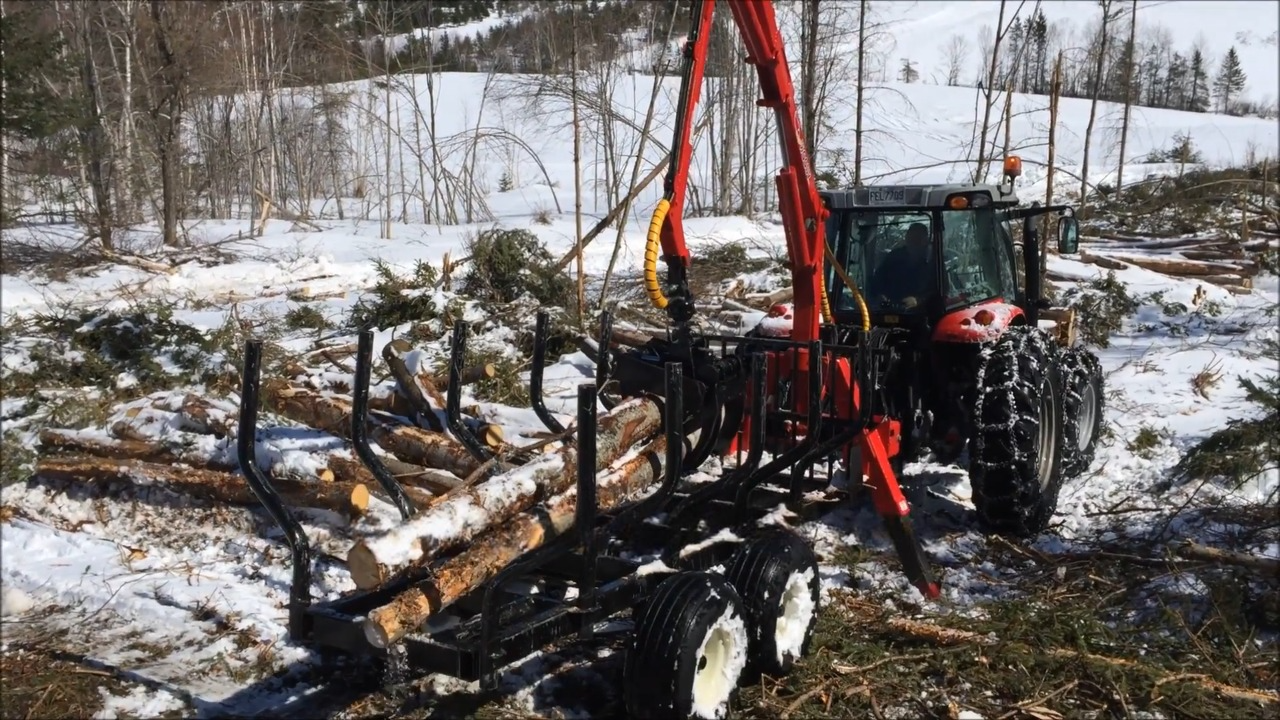

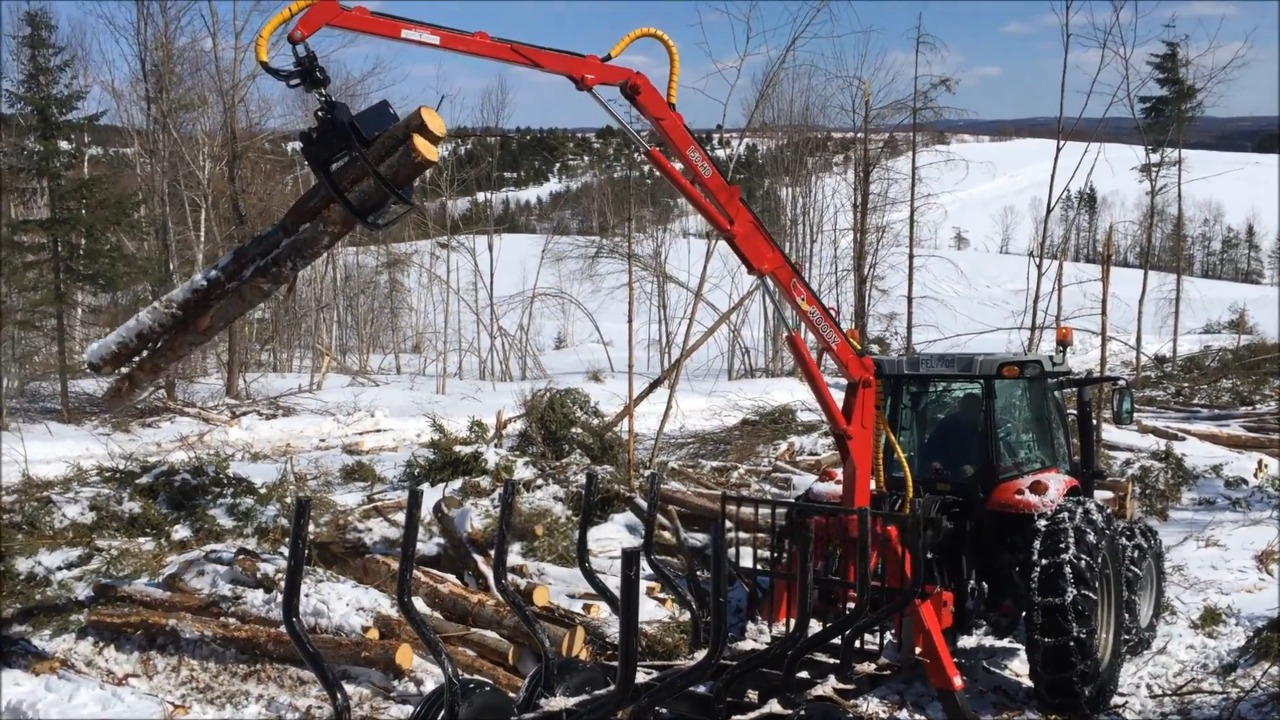

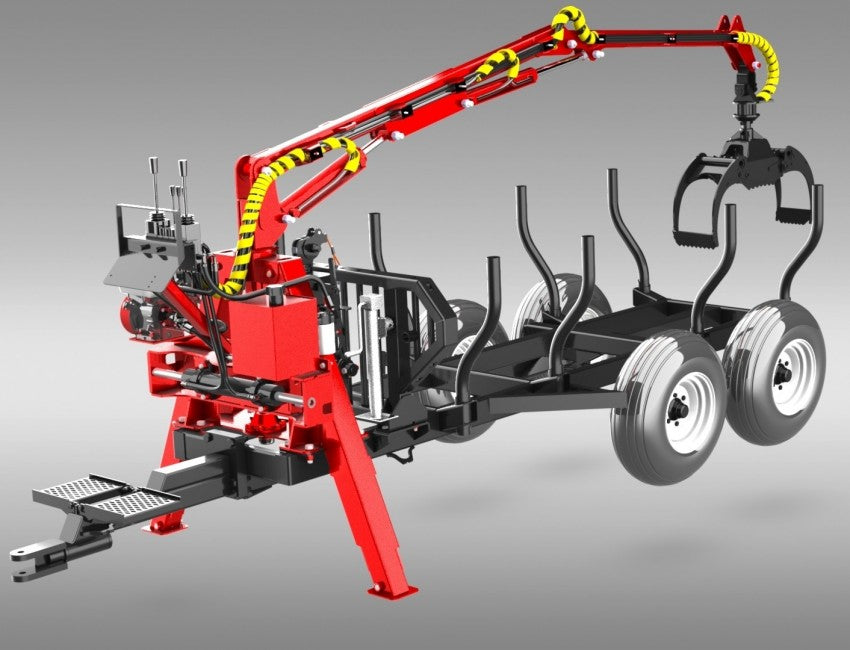

Introducing the Woody Equipment 10′ Forestry Trailer Model 10-66 LP with Log Loader 125 LP – a versatile and efficient solution for your forestry needs. This newly redesigned trailer offers a lower center of gravity, allowing you to handle more loads with enhanced stability. Ideal for maple syrup farms, the 10-66 LP trailer is compatible with the 125 LP loader model.

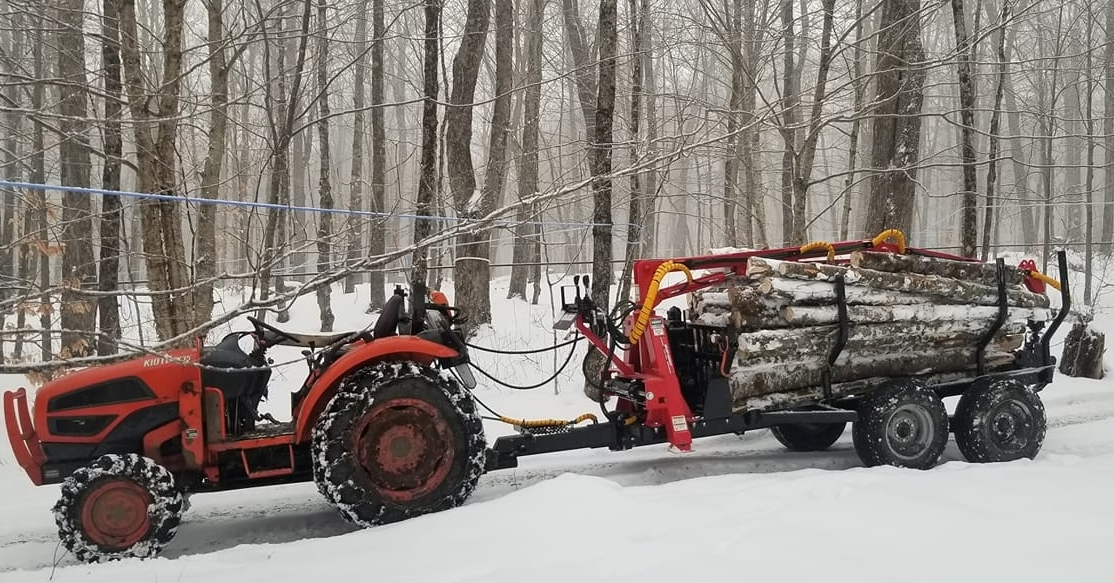

The 125-LP low profile loader is specifically designed for the sugar bush, enabling you to pass under the tubes with ease. Its low profile boom makes it perfectly suited for this environment.
Experience the efficiency and reliability of the Woody Equipment 10-66 LP trailer and 125 LP log loader, designed to meet the demands of modern forestry operations
Key Features
- Compatibility: Designed for compact tractors ranging from 35 HP to 65 HP.
- Load Length: 10 feet, providing ample space for forestry tasks.
- Overall Dimensions: Length: 15’ 6’’, Width: 67.5’'
- Gross Trailer Weight: 6 tons (12,000 lb), ensuring it can handle substantial loads.
- Axle Capacity: Each axle can support up to 5,000 lb.
- Volume: 93 cubic feet, suitable for various forestry applications.
- Protective Grid: Included for added safety.
- Number of Posts: Equipped with 8 posts for secure load handling.
- Tires: Standard 11L15, 8 ply tires, with optional 12.5L15, 10 ply tires available.
- Directional Hydraulic Drawbar: Available as an option for enhanced maneuverability.
This trailer and log loader combination is ideal for forestry operations, offering a balance of durability, capacity, and versatility.
This forestry trailer and log loader combination is ideal for those needing a robust and versatile solution for their forestry tasks.
Product Specifications

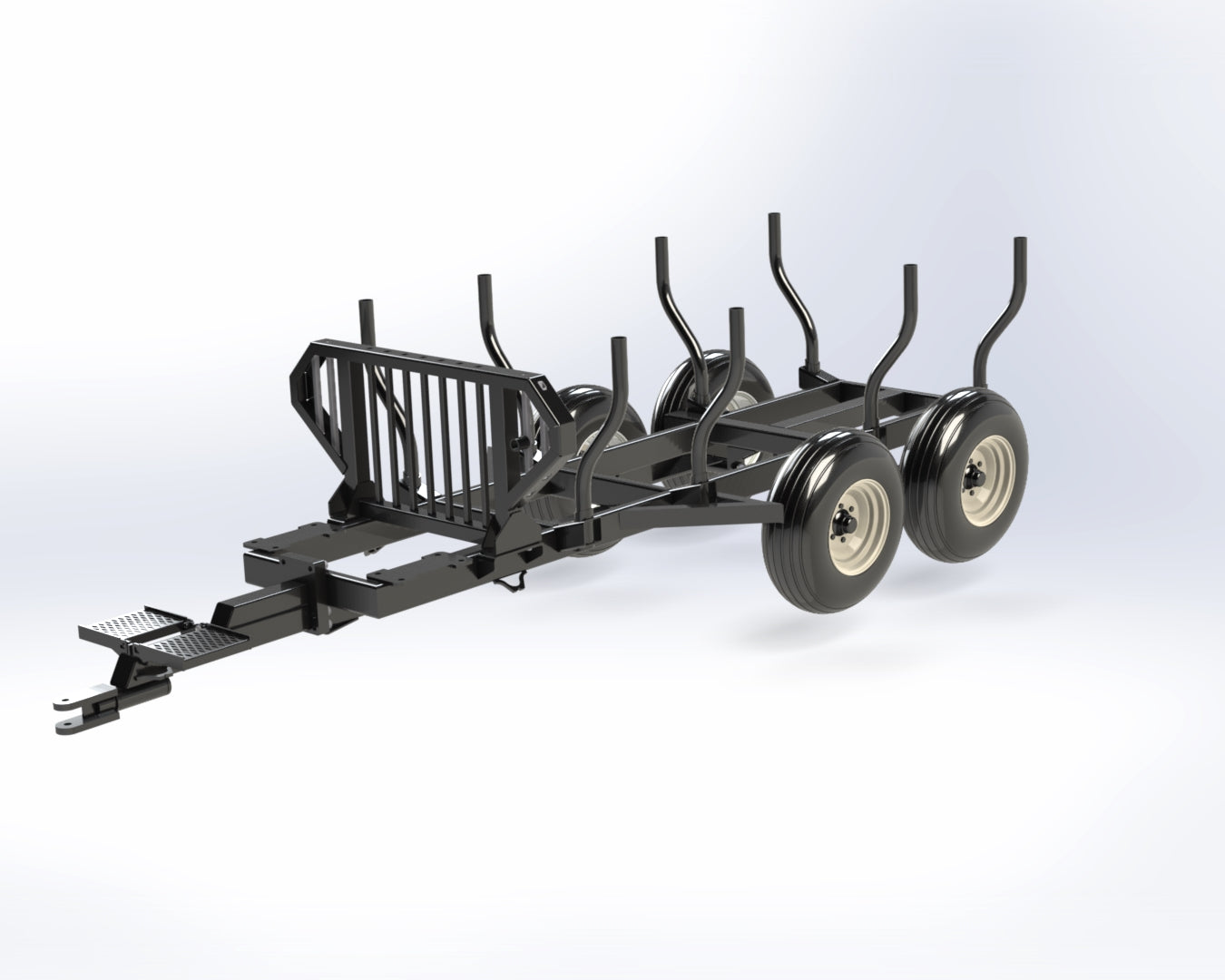

Forestry Trailer
| Category | Details |
|---|---|
| Compatible with log loader | log loaders 60-033 125 LP |

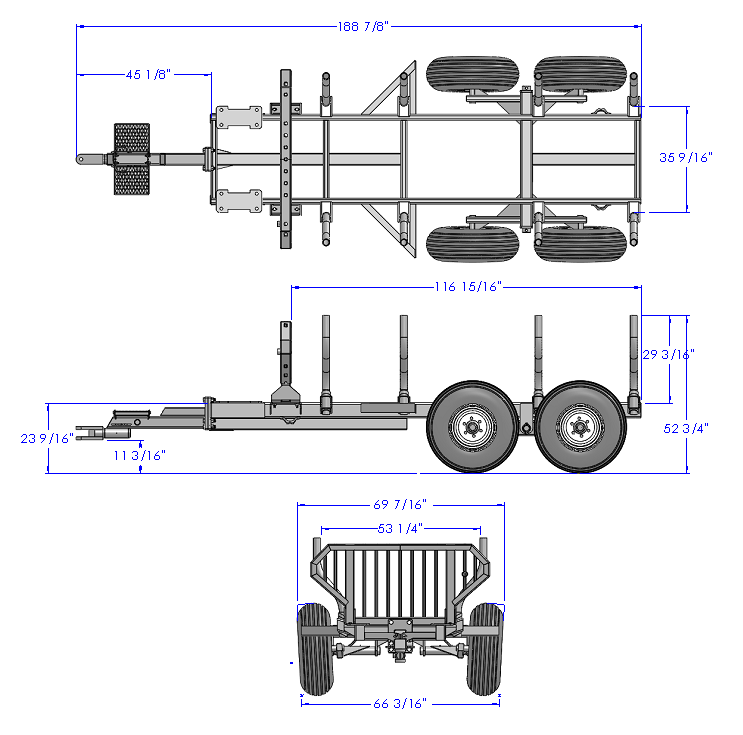

| DIMENSIONS | |
| Load length | 116’’ (9’ 9’') |
| Overall length | 188’’ (15’ 7’') |
| Overall Width | 69’’ |
| Gross trailer weight | 1615 lb |
| CAPACITY | |
| Axle capacity | 5000 Lb / chacun |
| Trailer tonnage | 5 Tons / 10000 Lb |
| Volume | 93 Cubic Feets |
| Surface | 9.54 Pieds Carrés |
| Surface Wood Cords (8’ Large X 4’ High) | 0.30 Cordes |
| CHARACTERISTICS | |
| Protective Grid | inclusive |
| Number of posts | 8 |
| Tires | 8 ply, 11L15 |
| OPTION | |
| Directional Hydraulic Drawbar | 59-076-05 |
| Tires | 12.5 L15 |
Log Loader
| Feature | 115-HD |
|---|---|
| Recommended Vehicle | Tractors 35 hp - 65 hp |
| Boom Length | 12′ 6″ |
| Boom Rotation Swing | 300° |
| Loader Column Height | 48″ |
| Lifting Capacity at Max Reach | 1,000 lb. |
| Lifting Capacity at Mid Range | 1,800 lb. |
| Recommended Flow | 4 - 6 gpm |
| Stabilizers | Telescopic |
| Grapple Open | 36″ |
| Grapple Close | 3″ |
| Grapple Rotation (Continuous) | 360° |
| Rotator Maximum Capacity | 3,000 kg. |
| Total Weight (Without Trailer) | 1,295 lb. |

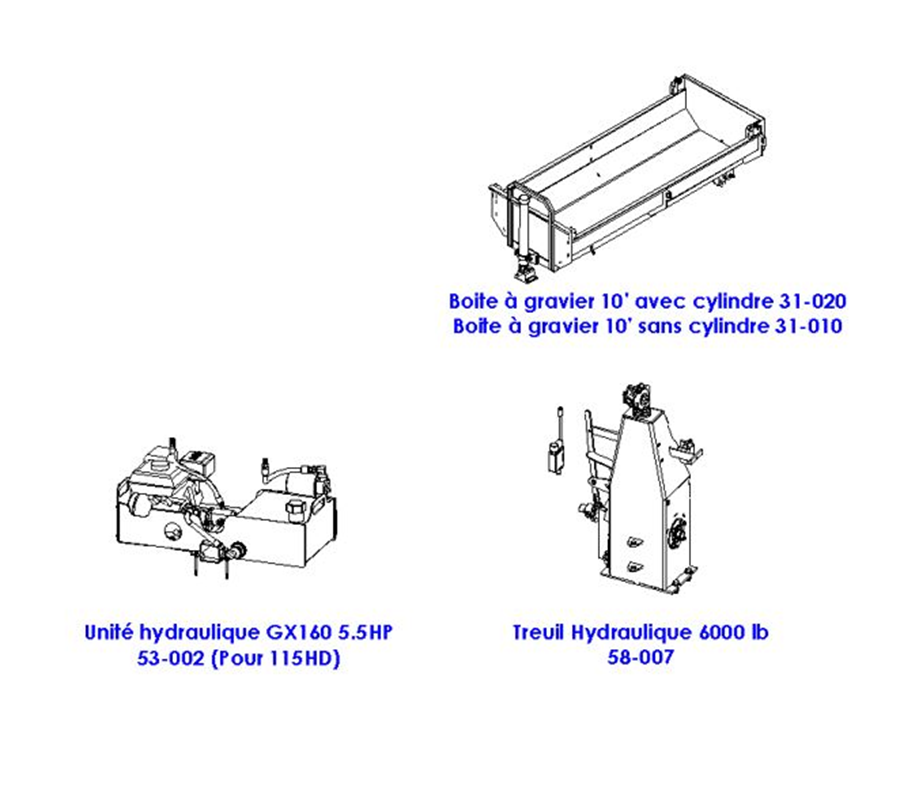

| Loader Options | |
| Telescopic Boom | n/a |
| Hydraulic Winch | 6,000 lb. |
| Power Unit (Honda) | 5.5 hp. |
| Bucket | 14″ or 18″ |
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

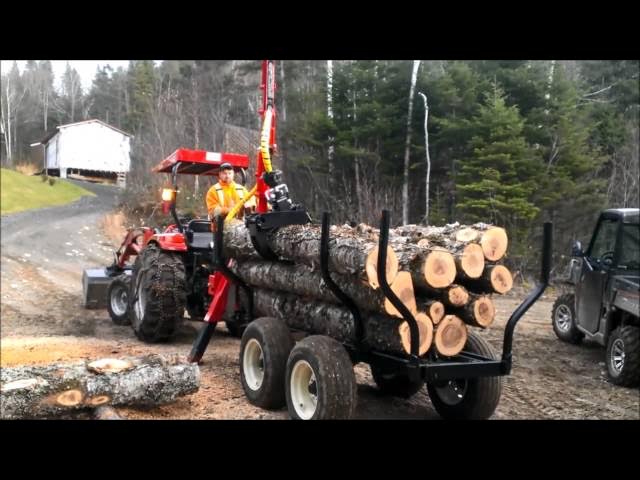

Videos
