Product Description
Woody Equipment 10′ Forestry Trailer Model 10-66 LP with Log Loader 125 LP | For Tractors
Description

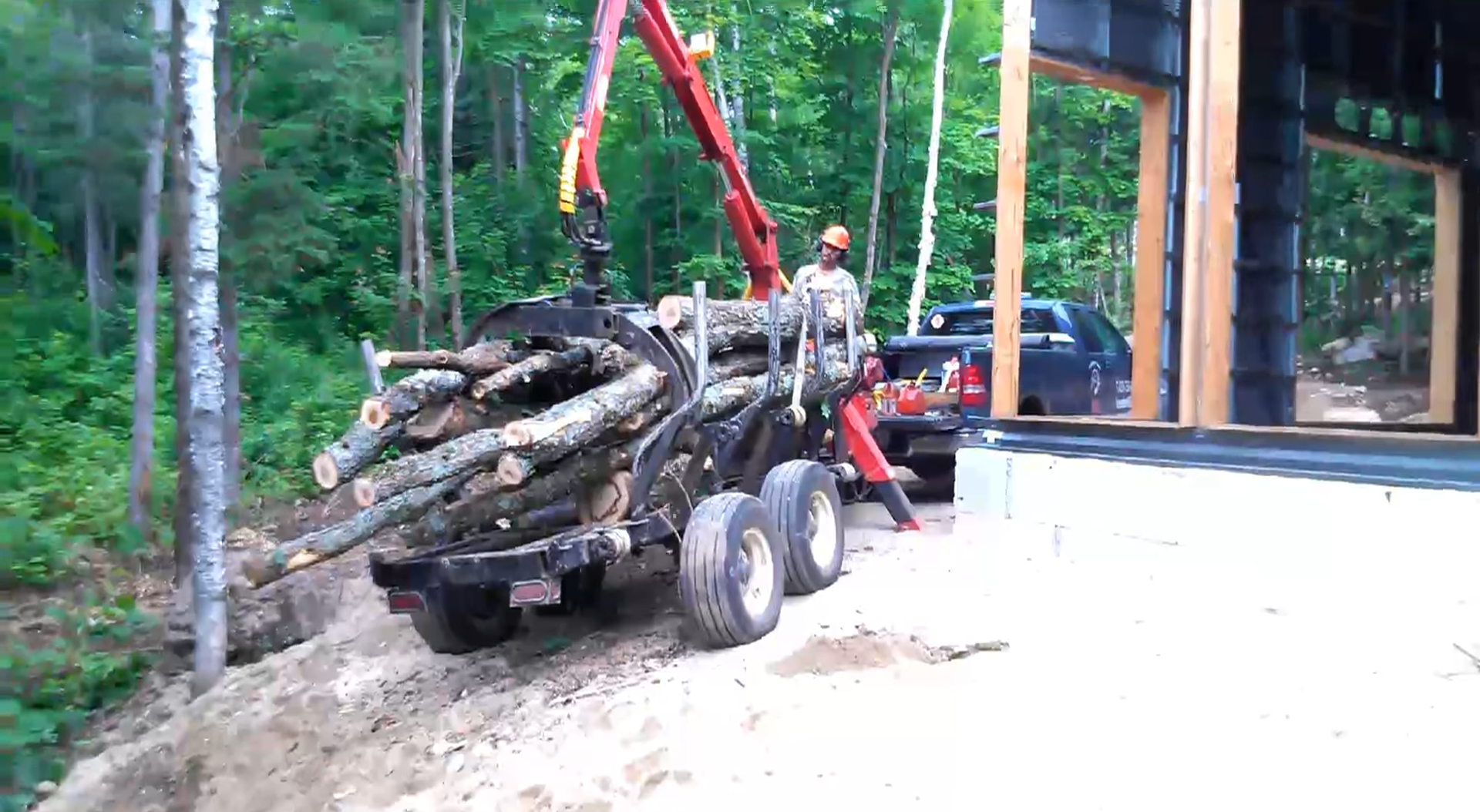

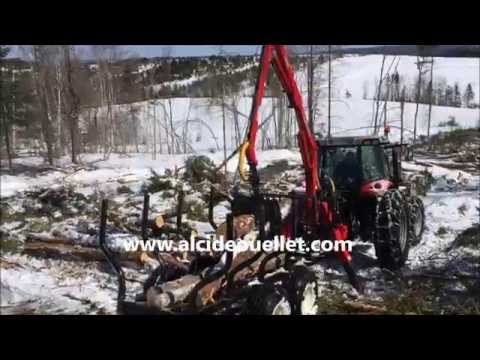

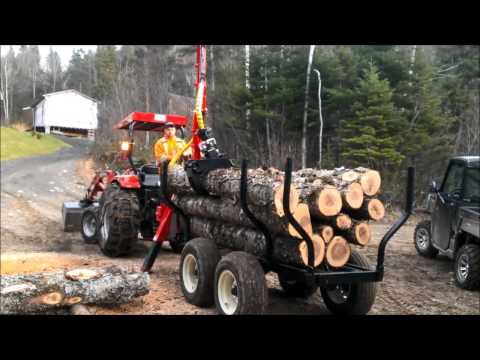

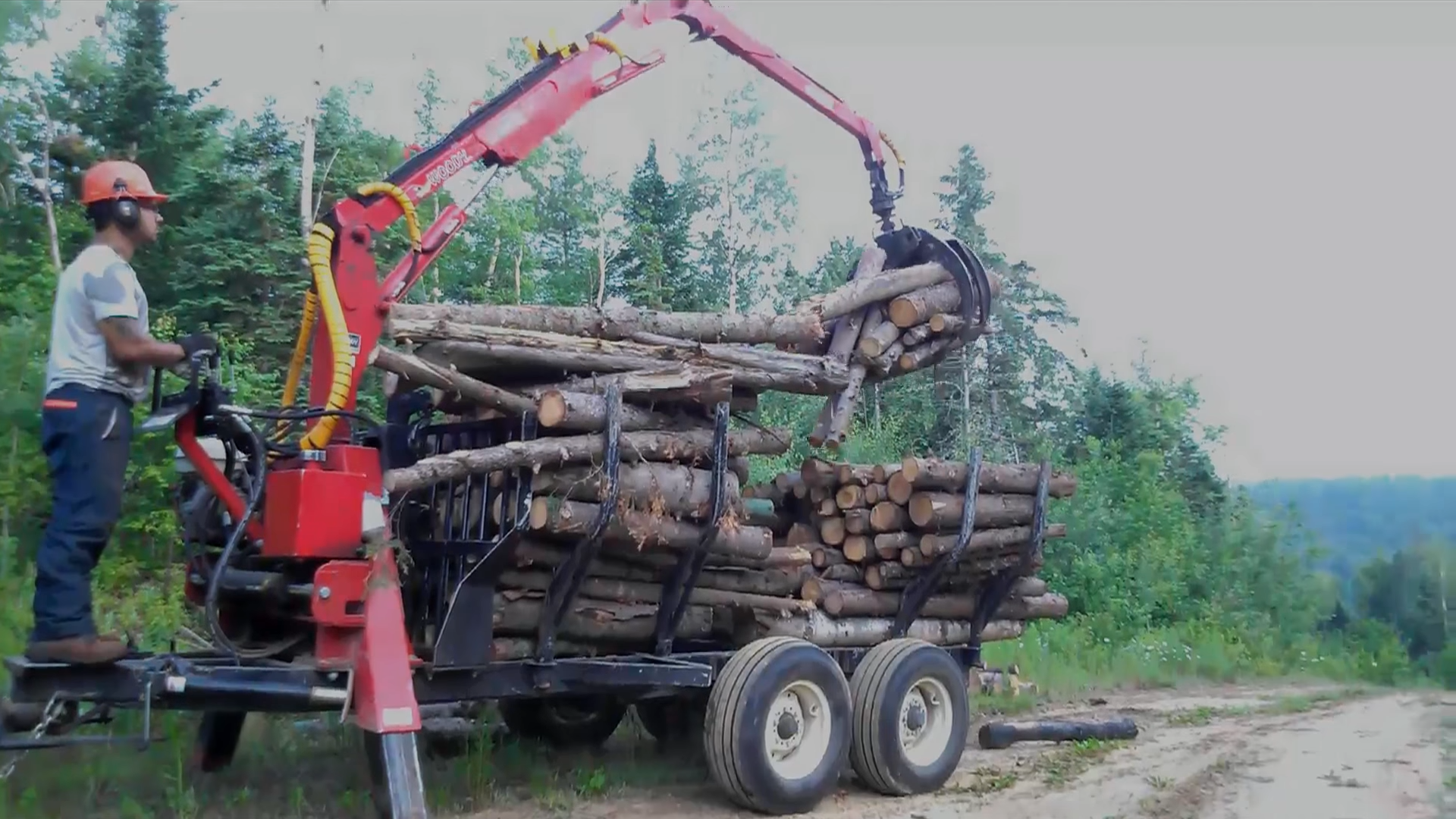

The 130-HD Woody Log Loader model is ideal for 40 - 60 HP tractors, “caterpillars,” and small trucks. Rugged and versatile, this loader offers the best quality/price ratio in its class, with a reach of 13’. Developed to meet the requirements of large-scale projects, the Woody Log Loader Industrial Pignon Series is made of high-quality steel and the highest quality components.
The Woody 130-HD Log Loader model, part of the Industrial series, is perfect for tractors from 40 HP to 60 HP, caterpillars, and small trucks. It is known for its ruggedness and versatility, providing the best quality/price index in its class. The 130-HDT model includes a 3’ telescopic boom extension, enhancing its functionality. For optimal performance, we recommend pairing this loader with the 10-78 HV trailer.
The 130-HDT Telescopic Log Loader model equipped with 13' boom a 3’ telescopic hydraulic boom extension makes it ideal for 40 - 60 HP tractors, “caterpillars” and small trucks. Rugged and versatile, this loader has the best quality / price ratio in its class.
Key Features
- Compatibility: Designed for 40 - 60 HP tractors, caterpillars, and small trucks.
- Load Length: 10 feet, providing ample space for forestry tasks.
-
Overall Dimensions:
- Length: 15’ 7’’
- Width: 69’’
- Gross Trailer Weight: 1615 lb, ensuring it can handle substantial loads.
- Axle Capacity: Each axle can support up to 5000 lb.
- Trailer Tonnage: 5 tons (10000 lb), suitable for various forestry applications.
- Volume: 93 cubic feet, providing significant capacity.
- Surface Area: 9.54 square feet.
- Surface Wood Cords: 0.30 cords (8’ large x 4’ high).
- Protective Grid: Included for added safety.
- Number of Posts: Equipped with 8 posts for secure load handling.
- Tires: Standard 11L15, 8 ply tires, with optional 12.5L15, 10 ply tires available.
- Directional Hydraulic Drawbar: Available as an option for enhanced maneuverability.
This trailer and log loader combination is ideal for forestry operations, offering a balance of durability, capacity, and versatility.
Note: Each trailer model is interchangeable with each loader model.
Detailed Specifications
Forestry Trailer
| Category | Details |
|---|---|
| Compatible with log loaders | log loader 60-018 130 HD, log loader 60-019 150 HD, log loader 60-020 170 HD |
| DIMENSIONS | |
| Load length | 115’’ (9’ 6’') |
| Overall length | 196’’ (16’ 5’') |
| Overall Width | 84’’ |
| Gross trailer weight | 2572 lb |
| CAPACITY | |
| Axle capacity | 8000 Lb / each |
| Trailer tonnage | 8 Tons / 16000 Lb |
| Volume | 172 Cubic Feet |
| Surface | 17.65 Square Feet |
| Surface Wood Cords (8’ Large X 4’ High) | 0.55 Wood Cords |
| CHARACTERISTICS | |
| Protective Grid | inclusive |
| Number of posts | 8 |
| Tires | 400-60-15.5 |
| OPTION | |
| Gravel bin 7’ with hydraulic cylinder | 31-030 |
| Tires | 12.5 L15 |
| Articulation Hydraulique | 59-076-025 |
Log Loader
| Category | 130-HD / HDT |
|---|---|
| RECOMMENDED VEHICLE | Tractors 40 hp - 60 hp |
| Boom length | 13’ |
| 36” Telescopic boom on teflon strip | Standard on HDT model |
| Boom rotation swing | 300° |
| Loader column height | 70" |
| Lifting capacity at maximum reach | 1400 lb. / 1300 lb. |
| Lifting capacity at mid range | 2800 lb. / 2700 lb. |
| Recommended flow | 4 - 8 gpm |
| Stabilizers | Telescopic |
| Grapple open | 36" |
| Grapple close | 3" |
| Grapple rotation (continuous) | 360° |
| Rotator maximum capacity | 3000 kg. |
| Total weight (without trailer) | 1800 lb. / 1900 lb. |
| LOADER OPTION | |
| Hydraulic winch | 6000 lb. |
| Power unit (Honda) | 9 hp or 13 hp |
| Work station | Available |
| Bucket | 14" or 18" |
