Woody Equipment Brush Cutter Flex Series | Size 4', 5' & 6' | 40 HP To 80 HP | For Tractor

Woody Equipment Brush Cutter Flex Series | Size 4', 5' & 6' | 40 HP To 80 HP | For Tractor

$1.00
$1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • 3-Point Hitch Mounting: Easily mounted on a 3-point hitch.
  • Robust Construction: Made entirely of 1/4” HSS 50W and 3/16” & 1/4” 50W plates.
  • High Capacity: Can cut bushes, shrubs, and small trees up to 3” in diameter.
  • Hydraulic Telescope: Extends the maximum cutting range.
  • Hydraulic Pivot: Positions the mower horizontally or at an angle.
View full details

How To Get A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
“Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

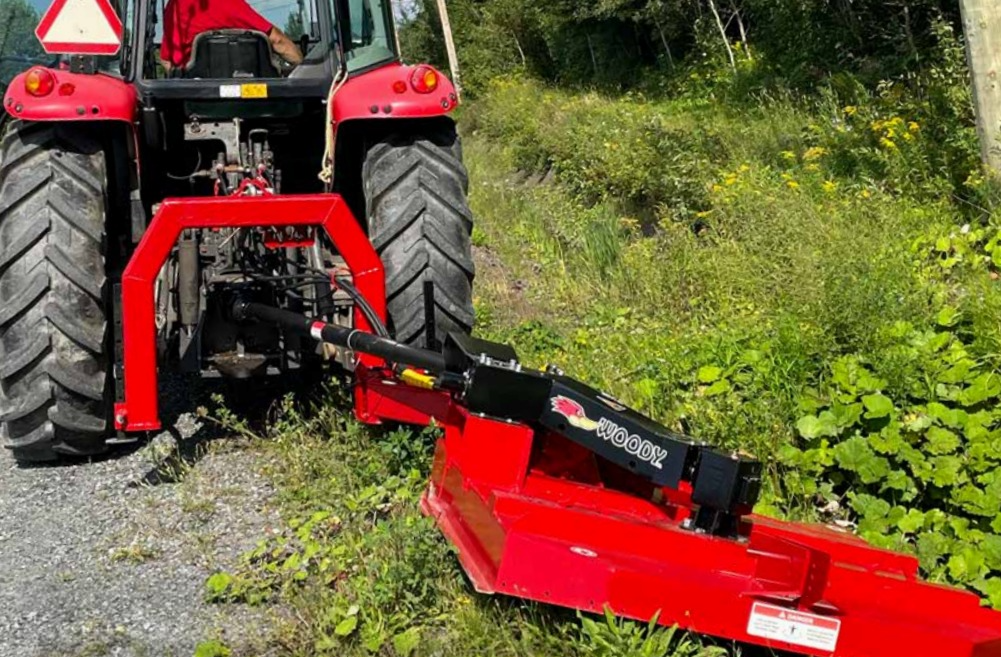

Woody Equipment Brush Cutter Flex Series | Size 4', 5'  & 6' | 40 HP To 80 HP | For Tractor

Description

Engineered for excellence, the Woody Side Brush Cutters boast a proven mechanical system. Equipped with two Category 40 P.T.O.s—one featuring a strategically positioned integrated clutch for system protection. The dual 50hp gearboxes with ratios of 1:1.5 and 1:1.12 ensure top-notch performance. Each end of the rotating plate is outfitted with a pivoting knife, easing the workload on the clutch.

Step into the future with the FLEX Brush Cutters! Featuring a robust hydraulic system with double-action hydraulic lifts and a safety ball valve for maintenance. The hydraulic arm extends the cutting range to its max, while the hydraulic pivot allows versatile positioning at different angles.

Notably, the Woody Brush Cutter excels at producing small debris—ideal for maintaining large areas. Perfect for clearing the edges of agricultural fields and forest paths, it stands out for its exceptional performance and efficiency.

Key Features

  • Robust Hydraulic System: Includes a robust hydraulic system for efficient operation.
  • Double-Action Hydraulic Lifts: Equipped with double-action hydraulic lifts for enhanced performance.
  • Safety Ball Valve: Features a safety ball valve for maintenance safety.
  • Extended Cutting Range: The hydraulic arm extends the maximum cutting range.
  • Versatile Positioning: The hydraulic pivot allows the mower to be positioned at various levels and angles.
  • Proven Mechanical System: Engineered for excellence with a reliable mechanical design.
  • Dual Category 40 P.T.O.s: Equipped with two Category 40 P.T.O.s, including an integrated clutch for system protection.
  • Dual 50hp Gearboxes: Features dual 50hp gearboxes with ratios of 1:1.5 and 1:1.12 for top-notch performance.
  • Pivoting Knives: Each end of the rotating plate has a pivoting knife, reducing the clutch's workload.
  • Efficient Debris Management: Produces small debris, ideal for maintaining large areas.
  • Versatility: Perfect for clearing the edges of agricultural fields and forest paths.

Detailed Specifications

Feature 4' FLEX 5' FLEX 6' FLEX
Model 4' FLEX 5' FLEX 6' FLEX
Vehicle 52-032 52-030 52-033
Recommended Vehicle 40 HP 60 HP 80 HP
Minimum Tractor Weight (Recommended) 4000 lb 7000 lb 8000 lb
Cutter Width Dimensions 48" 60" 72"

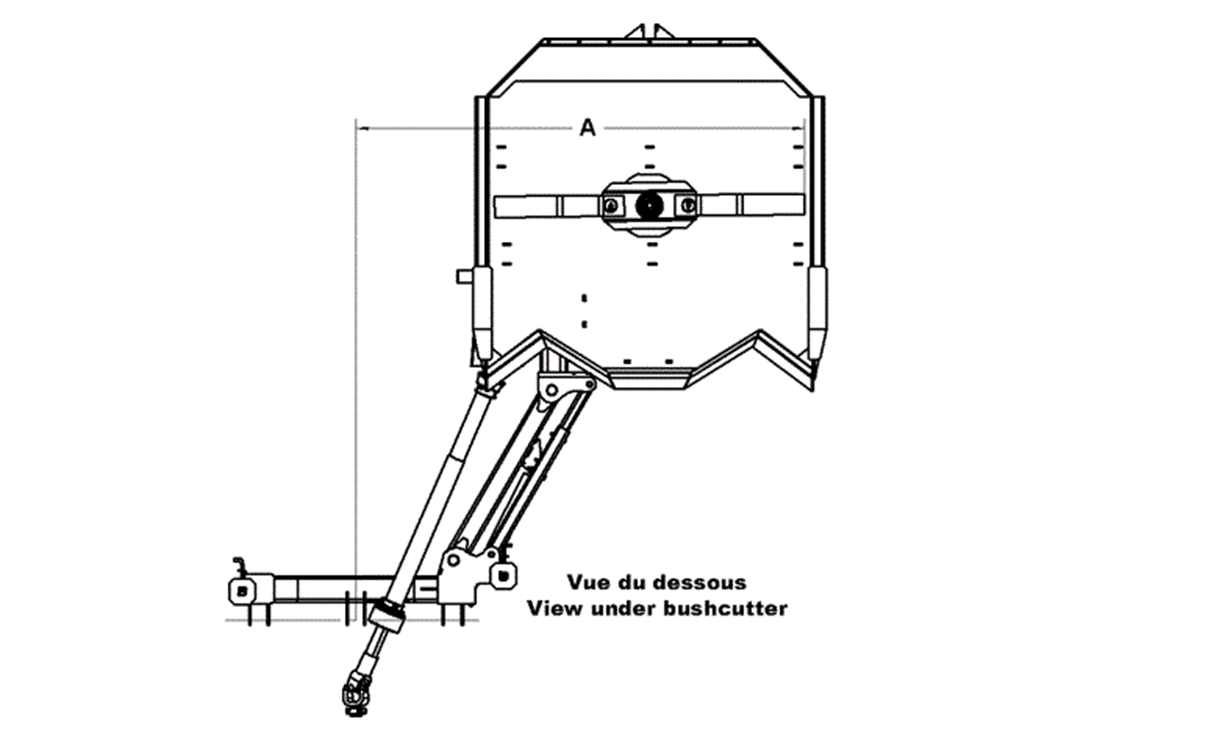

Lateral Extension (A) 73"(A) 86"(A) 101"(A)
Blade Rotation +/- 910 rpm 910 rpm 910 rpm
P.T.O. 540 540 540
P.T.O. Clutch Standard Standard Standard
P.T.O. Category 40 50 50
Gearbox (Capacity) 40 HP 60 HP 60 HP
Trigger Protection System Standard Standard Standard
Anti-Projection for Backward Protection (3/8 chain) Optional Optional Optional
Optional Rear Wheel Standard Optional Optional
Weight of the Brush Cutters 1050 lb 1470 lb 2180 lb
