Product Description
Woody Equipment Tilting Dump Trailer Model 510, 610, 612, 712, 814 & 816 | V Series | 35-100 HP | Pull Type | For Tractors
Description
The Woody Equipment Tilting Dump Trailer V Series models 510, 610, 612, 712, 814, and 816 are designed for tractors with 35-100 HP. These pull-type trailers are built to handle a variety of agricultural and forestry tasks, offering robust performance and versatility.
These trailers are designed to be sturdy and reliable, making them an excellent choice for transporting materials around your property with ease. Their efficient design and robust construction ensure they can handle a variety of tasks, making them valuable additions to your equipment lineup.
Key Features
-
Power Range: Suitable for tractors with 35-100 HP.
-
Load Capacity: Ranges from 8 tons to 20 tons, depending on the model.
-
Axle Capacity: Equipped with tandem axles, with capacities ranging from 3500 lb to 16000 lb.
-
Hydraulic System: Features hydraulic cylinders for smooth tilting and dumping operations.
-
Manual Trailer Hitch: Standard manual hitch for easy attachment to tractors.
-
Volume: Varies from 19 cubic feet to 80 cubic feet, depending on the model and configuration.
-
Automatic Rear Panel Opening: Ensures easy unloading of materials.
-
Grain Doors: Optional for additional functionality.
-
Standard Tires: Equipped with durable tires suitable for various terrains.
- Weight: Ranges from 900 lb to 7500 lb, depending on the model.

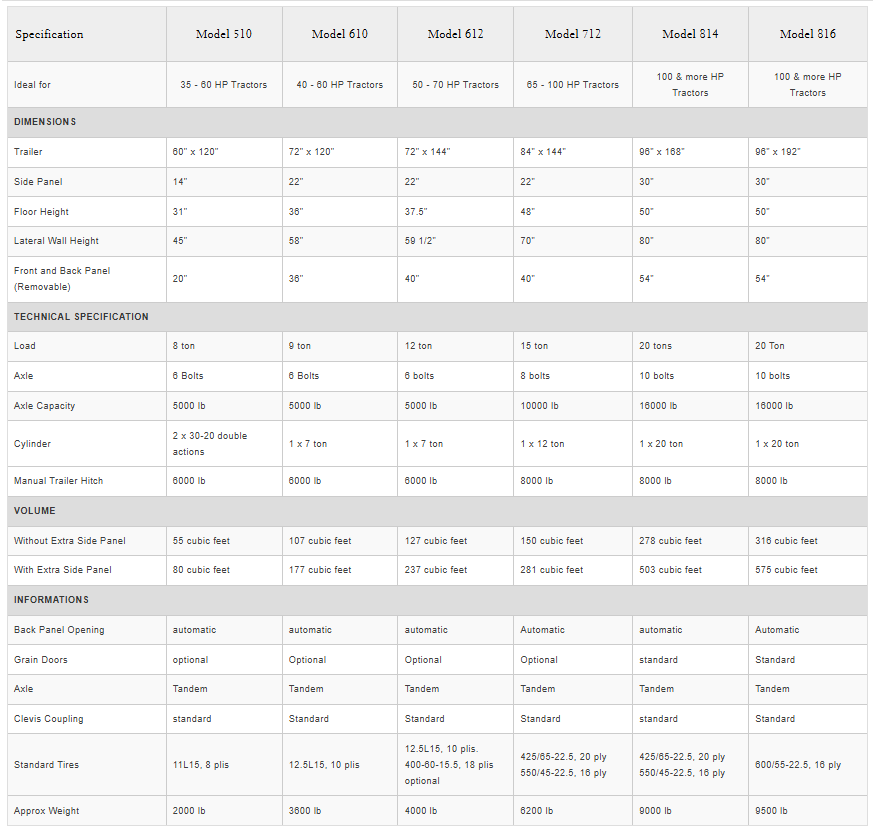

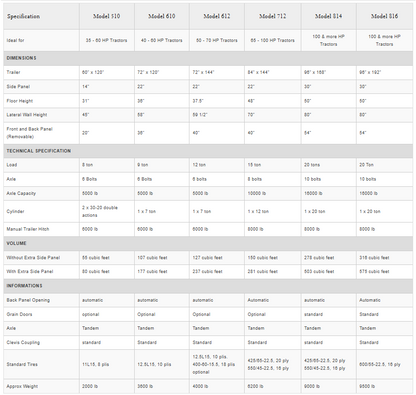

Detailed Specifications
| Specification | Model 510 | Model 610 | Model 612 | Model 712 | Model 814 | Model 816 |
|---|---|---|---|---|---|---|
| Ideal for | 35 - 60 HP Tractors | 40 - 60 HP Tractors | 50 - 70 HP Tractors | 65 - 100 HP Tractors | 100 & more HP Tractors | 100 & more HP Tractors |
| DIMENSIONS | ||||||
| Trailer | 60" x 120" | 72" x 120" | 72" x 144" | 84" x 144" | 96" x 168" | 96" x 192" |
| Side Panel | 14" | 22" | 22" | 22" | 30" | 30" |
| Floor Height | 31" | 36" | 37.5" | 48" | 50" | 50" |
| Lateral Wall Height | 45" | 58" | 59 1/2" | 70" | 80" | 80" |
| Front and Back Panel (Removable) | 20" | 36" | 40" | 40" | 54" | 54" |
| TECHNICAL SPECIFICATION | ||||||
| Load | 8 ton | 9 ton | 12 ton | 15 ton | 20 tons | 20 Ton |
| Axle | 6 Bolts | 6 Bolts | 6 bolts | 8 bolts | 10 bolts | 10 bolts |
| Axle Capacity | 5000 lb | 5000 lb | 5000 lb | 10000 lb | 16000 lb | 16000 lb |
| Cylinder | 2 x 30-20 double actions | 1 x 7 ton | 1 x 7 ton | 1 x 12 ton | 1 x 20 ton | 1 x 20 ton |
| Manual Trailer Hitch | 6000 lb | 6000 lb | 6000 lb | 8000 lb | 8000 lb | 8000 lb |
| VOLUME | ||||||
| Without Extra Side Panel | 55 cubic feet | 107 cubic feet |
127 cubic feet |
150 cubic feet |
278 cubic feet | 316 cubic feet |
| With Extra Side Panel | 80 cubic feet | 177 cubic feet | 237 cubic feet | 281 cubic feet | 503 cubic feet | 575 cubic feet |
| INFORMATIONS | ||||||
| Back Panel Opening | automatic | automatic | automatic | Automatic | automatic | Automatic |
| Grain Doors | optional | Optional | Optional | Optional | standard | Standard |
| Axle | Tandem | Tandem | Tandem | Tandem | Tandem | Tandem |
| Clevis Coupling | standard | Standard | Standard | Standard | standard | Standard |
| Standard Tires | 11L15, 8 plis | 12.5L15, 10 plis | 12.5L15, 10 plis. 400-60-15.5, 18 plis optional |
425/65-22.5, 20 ply 550/45-22.5, 16 ply |
425/65-22.5, 20 ply 550/45-22.5, 16 ply |
600/55-22.5, 16 ply |
| WEIGHT | ||||||
| Approx Weight | 2000 lb | 3600 lb | 4000 lb | 6200 lb | 9000 lb | 9500 lb |
