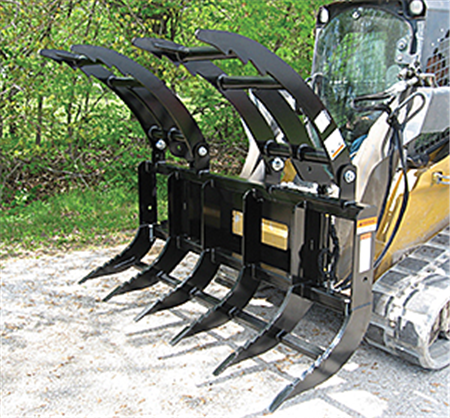

Worksaver | Brush Grapple With Dual Hydraulic Clamps | Model SSGR-84 | Width 84" | Hydraulic Flow 12 To 18 GPM | For Skid Steer Loaders

Worksaver | Brush Grapple With Dual Hydraulic Clamps | Model SSGR-84 | Width 84" | Hydraulic Flow 12 To 18 GPM | For Skid Steer Loaders

Regular price $5,719.00
Regular price Sale price $5,719.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Low-Profile Design: Easy access to the operator’s seat, even with a cab door.
  • Durable Construction: Lower tines made of 1" material with weld-on tine points for effective debris pick-up.
  • Dual Upper Grapples: Open a full 59 inches to maximize debris handling capacity.
  • Integrated Hydraulic Cylinders: Two 2” x 10” cylinders protected behind the mainframe, operating at 3000 psi.
  • Secure Material Handling: Gripping notches in upper grapples and lower tines retain materials effectively.
View full details

Product Description

Worksaver | Brush Grapple With Dual Hydraulic Clamps | Model SSGR-84 | Width 84" | Hydraulic Flow 12 To 18 GPM | For Skid Steer Loaders



DESCRIPTION

The Worksaver 84" Brush Grapple with Dual Grapples is designed to give skid steer operators ultimate control and efficiency when handling brush, logs, rocks, and debris. Whether you're working on landscaping projects, clearing wooded areas, or cleaning up construction sites, this powerful grapple attachment delivers unparalleled performance and reliability. Featuring a split-top design for secure clamping on irregular loads and 15.5" tine spacing for precise material handling, it’s the tool you need to get the job done quickly and efficiently.

Built for demanding applications, this brush grapple can be attached seamlessly to your skid steer with its universal mount, making it ideal for heavy-duty tasks that require stability and versatility. Rated for up to 150 horsepower, this high-performance grapple helps you tackle tough jobs with ease, while its lower profile design ensures easy access to the operator station for better control and comfort.

Key Features

  • Dual Grapples for Maximum Control: The 84" design features dual grapples that provide secure clamping on tough, irregular loads, perfect for tackling brush, logs, and more.
  • Efficient Tine Spacing: 15.5" tine spacing ensures better grip and efficient handling of materials, even in tight spaces.
  • Universal Skid Steer Mount: This grapple comes with a universal skid steer mount, making it compatible with most skid steer models for easy attachment and use.
  • Split Top Design: The innovative split top design provides superior clamping strength, ideal for handling awkward or heavy materials without slippage.
  • Heavy Duty Construction: Weighing in at approximately 925 lbs, this brush grapple is built tough to withstand demanding workloads while providing exceptional durability.
  • Hydraulic Ready: Comes complete with hydraulic cylinders, so you’re all set to start working without needing additional components.
  • Rated for High Horsepower: Designed for tractors and skid steers with up to 150 horsepower, it ensures peak performance even during the toughest tasks.
  • Versatile Use: Perfect for brush clearing, landscaping, debris removal, and even light demolition work, making it an ideal tool for a wide range of jobs.
  • Improved Operator Access: The low profile design ensures that operators have easy access to the skid steer station, allowing for improved maneuverability and comfort.
  • Durable & Reliable: Built to endure rigorous use in a variety of environments, this grapple is designed to deliver long-lasting performance in all weather conditions.

Detailed Specifications

Specification Details
Overall Width 84 in / 2134 mm
Overall Depth 25 in / 635 mm
Overall Height (Closed) 42 in / 1067 mm
Grapple Opening 59 in / 1499 mm
Upper Grapple Width 19.5 in / 495 mm
Tine Spacing 15.5 in / 394 mm
Number of Lower Tines 6
Reinforcing Tubes Between Tines Yes
Hydraulic Cylinders 2
Cylinder Bore/Stroke 2 x 10 in / 51 x 254 mm
Cylinder Pressure Rating 3000 psi / 206.9 bar
Mounting Type Universal Skid Steer
Horsepower Rating (Max) 150 PTO
Weight 836 lbs / 379 kg
Product Number 812500
