DESCRIPTION

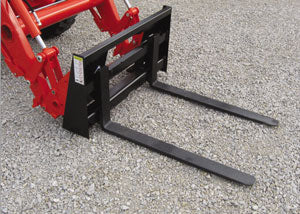

The WORKSAVER INC. Pallet Forks offer an exceptional lifting solution for John Deere tractors, available in a range of models designed to fit different tractor series. Whether you’re using a John Deere 200/300 series, 400/500 series, or a sub-compact tractor, these heavy-duty forks make your lifting and transporting tasks faster, safer, and more efficient.
The range includes the 832420 (4,000 LB), 832435 (4,000 LB), 832530 (2,400 LB), 833320 (1,250 LB), and 833340 (1,250 LB) models, with fork lengths ranging from 36" to 48". With a maximum capacity of up to 4,000 lbs, you can trust these forks to handle a wide variety of loads, including hay bales, construction materials, and heavy equipment.
Designed for durability and ease of use, these forks are built with integrated frames for superior strength, and quick attach mechanisms for fast installation. Each model is specifically engineered for compatibility with the John Deere 200/300/400/500 series loaders, ensuring a seamless fit and allowing you to get to work with minimal setup.
Key Features
Heavy-Duty Construction: Capable of lifting up to 4,000 lbs, these forks are built to handle the toughest lifting tasks on the farm or job site.
Versatile Fork Lengths: Available in 36" to 48" fork lengths, providing flexibility for different applications and load sizes.
Optimized for John Deere Loaders: Compatible with John Deere 200/300/400/500 series loaders, including models like H120, H130, and 200CX for a perfect fit.
Integrated Frame Design: Ensures better strength and durability, allowing for efficient lifting and improved performance under heavy load.
Multiple Model Options: Choose from 832420 (4,000 LB), 832435 (4,000 LB), 832530 (2,400 LB), 833320 (1,250 LB), and 833340 (1,250 LB) models, depending on your tractor and load requirements.
Quick Attach Mechanism: Fast and easy attachment to your loader, saving you time and effort.
Ideal for Various Applications: Great for lifting hay bales, lumber, pallets, construction materials, and more.
Detailed Specifications
Feature
Pallet Forks 832420-JD400/500
Pallet Forks 832435-JD400/500
Pallet Forks 832530-JD200/300
Model
832420
832435
832530
Fork Length
42"
48"
42"
Max Capacity
4,000 lbs
4,000 lbs
2,400 lbs
Fork Dimensions
1.18" x 3" x 42"
1.18" x 3" x 48"
1.18" x 3" x 42"
Compatibility
John Deere 400/500 Series Loaders
John Deere 400/500 Series Loaders
John Deere 200/300 Series Loaders
Frame Type
Integrated Frame
Integrated Frame
Integrated Frame
Weight
250 lbs
275 lbs
210 lbs
Material
Steel
Steel
Steel
Fork Type
Solid Steel Forks
Solid Steel Forks
Solid Steel Forks
Attachment Type
Quick Attach
Quick Attach
Quick Attach
Fork Height
4.5"
5"
4.5"
Length of Tines
42"
48"
42"
Feature
Pallet Forks 833320-JD200
Pallet Forks 833340-JD200
Model
833320
833340
Fork Length
36"
42"
Max Capacity
1,250 lbs
1,250 lbs
Fork Dimensions
1" x 3" x 36"
1.18" x 3" x 42"
Compatibility
John Deere 200 Series Loaders
John Deere 200 Series Loaders
Frame Type
Integrated Frame
Integrated Frame
Weight
150 lbs
160 lbs
Material
Steel
Steel
Fork Type
Solid Steel Forks
Solid Steel Forks
Attachment Type
Quick Attach
Quick Attach
Fork Height
3.5"
4"
Length of Tines
36"
42"
