Product Description

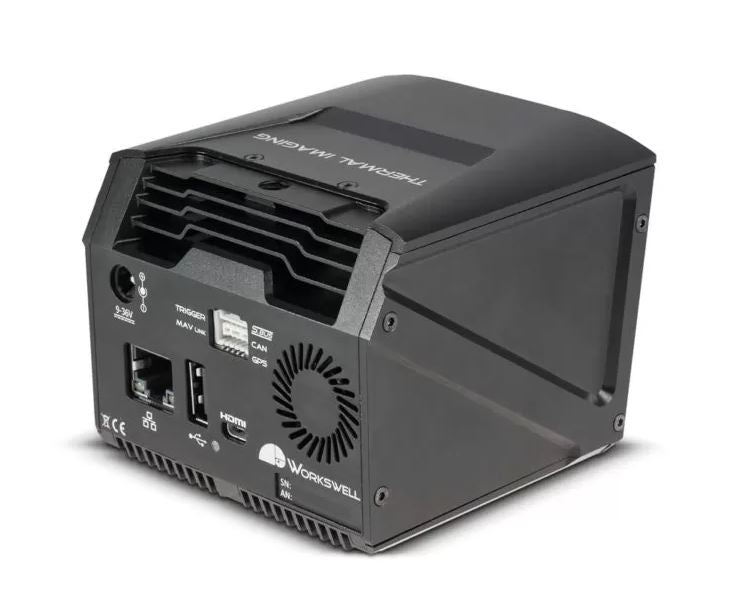

Workswell Wiris Pro 30HZ 128GB 45FOV
DESCRIPTION
The Workswell WIRIS Pro Thermal Camera is a fully radiometric thermodiagnostic device tailored for demanding applications such as industrial inspections, archaeology, and precision agriculture. Designed for UAV and drone platforms, this camera delivers exceptional thermal and RGB imaging capabilities.
The thermal sensor offers a resolution of 640x512 px, with Super Resolution Mode enabling thermograms at an impressive 1266x1010 px. The RGB camera supports Full HD resolution with a real-time 10x optical zoom, ensuring unrivaled versatility for detailed inspections.
Built for rugged use, the WIRIS Pro features a lightweight aluminum casing and a protective germanium lens cap to safeguard against wear and tear. Its integrated 128GB SSD ensures secure and reliable data storage, with options for offloading data to USB or microSD. Compatible with various drone platforms, including DJI Matrice 300, the WIRIS Pro is a must-have for professionals seeking top-tier thermographic solutions.
Key Features
- High-Resolution Thermal Imaging: 640x512 px sensor with Super Resolution Mode for enhanced image quality.
- Real-Time Zoom: 10x optical zoom for precise visual inspections.
- Versatile Storage Options: 128GB SSD with additional support for USB and microSD data transfers.
- Durable Construction: Lightweight aluminum body and protective lens cap for rugged environments.
- Wide Compatibility: Works seamlessly with DJI Matrice 300 and other custom drone platforms.
STATE-OF-THE-ART BISPECTRAL CAMERA
The Workswell WIRIS Pro is a specially designed thermodiagnostic device. Its thermal camera is equipped with an LWIR microbolometric sensor with 640×512 px resolution (in the 7.5 – 13.5 μm range), and its ‘Super Resolution Mode’ functionality can deliver a final thermogram in 1266×1010 px resolution. The RGB camera comes with Full HD (1920 x 1080 px) resolution and provides an absolutely unrivalled optical ultrazoom 10x in real-time (6.9° to 58.2° field of vision). The highest possible temperature that the thermal camera can measure is 1,500 °C (2 732 °F).
THREE RECORDING OPTIONS
Since the WIRIS Pro records a large amount of radiometric data over the course of a single inspection, we decided that it should be the only drone-mounted camera to have its own internal SSD. The WIRIS Pro comes in two storage capacities – 128 and 256 GB – and its data can be offloaded to an external USB drive or micro SD card as well.
RUGGED CONSTRUCTION
Industrial inspections are often carried out in demanding environments. As a result, there is a high risk that inspection cameras will be damaged during the course of their normal use. That’s why the WIRIS Pro is ensconced in a rugged case of lightweight aluminum. What’s more, the most sensitive component of the entire system, the thermal camera lens, is protected by a replaceable protective cap made of germanium.
COMPATIBLE WITH MANY DRONE PLATFORMS
Its many interfaces make the Workswell WIRIS Pro a truly versatile system that can be placed for example on:
Custom drone solutions:
- Acecore
- Clogworks
- Italdron
- Hexadrone
- Inspired Flight
DJI solutions:
- M300
- M200
- M600
Detailed Specifications
| Feature | Specification |
|---|---|
| Thermal Sensor | LWIR Microbolometric |
| Super Resolution | 1266x1010 px |
| RGB Camera Resolution | Full HD (1920x1080 px) |
| Optical Zoom | 10x (6.9°–58.2° FOV) |
| Temperature Range | Up to 1,500°C (2,732°F) |
| Storage Options | 128GB SSD |
| Material | Lightweight Aluminum |
| Lens Protection | Replaceable Germanium Lens Cap |
| Compatibility | DJI Matrice 300, Acecore, Hexadrone, Custom Platforms |
| SKU | WIRISPRO30HZ45FOV |
| Manufacturer | DroneNerds |
| Open Box Status | No |
In Package
- Workswell WIRIS Pro Thermal Camera (128GB SSD)
- Replaceable Germanium Lens Cap
- Mounting Accessories
- User Guide and Installation Manual
- 1-Year Limited Warranty
