XAG AutoPilot Console empowers small-to-large agricultural equipment with capability to conduct high-precision farming operations. An automated steering system with access to signals from RTK Base Station, simply connected to mobile app and primed by easy tabs. From tillage, seeding, crop management to harvest, APC1 can ease you from long hours of concentration.
XAG APC1 Auto Pilot Agricultural Machinery Self-Driving Instrument (No Tablet Included)
XAG APC1 Auto Pilot Agricultural Machinery Self-Driving Instrument (No Tablet Included)
Regular price
$4,500.00
Regular price
Sale price
$4,500.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
XAG APC1 Auto Pilot Agricultural Machinery Self-Driving Instrument (No Tablet Included)
DESCRIPTION
Key Features
-
Autonomous, precise operation
RTK navigation technology enables agricultural vehicles to operate automatically in 2.5 cm accuracy. -
Cost-effective Performance
Auto driving on designated straight path that avoids skip and overlap to save time and reduce cost. -
Easy to Operate
Select target area and pre-program route on mobile app to enable hands-free operation with ease. - One System for Multiple Machines, Never been Easier
-

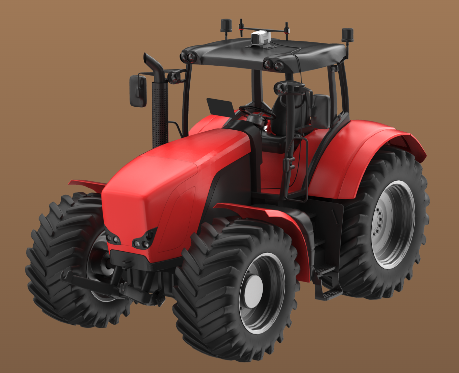

XAG AutoPilot Console can be flexibly transferred between various types of agricultural machinery. Quick assemble within 20 minutes that turns your tractor, sprayer or rice transplanter into a smart, automated machine
Detailed Specifications
General Specifications
| Feature | Details |
|---|---|
| Steering Control | Automatic |
| Positioning Accuracy | ±2.5 cm |
| Fixed Base Station Signal Range | 30 km |
| Power Input | DC12 V ~ 24 V |
| Satellite System | Beidou, GPS, GLONASS |
| Operating Temperature | -20°C ~ 50°C |
| Storage Temperature | -40°C ~ 70°C |
| Radio Transmitter Power | 3 W |
| Torque (Steering Wheel) | Rated: 10 NM, Maximum: 20 NM |
On-Board Computer Specifications
| Feature | Details |
|---|---|
| Processor | MT6873 |
| RAM | 6 GB |
| Storage | 64 GB |
| OS | Android 7.0 |
| Display Size & Resolution | 6.5 inches, 2400x1080 |
| Connectivity | Wi-Fi protocol |
| Port | Type-C |
Satellite Receiver Specifications
| Feature | Details |
|---|---|
| Receiver Type | Multi-band navigational receiver |
| Channels | 432 channels |
| Differential System | RTCMV2, RTCMV3 |
| Update Rate | 5 Hz |
| Antenna | Helix antenna |
Dimensions and Weight
| Component | Dimensions (mm) |
|---|---|
| Console | 220x616x267 |
| Motor | 220x210x87 |
| Steering Wheel Diameter | 410 mm |
In Package
- 1x XAG APC1 AutoPilot Console.

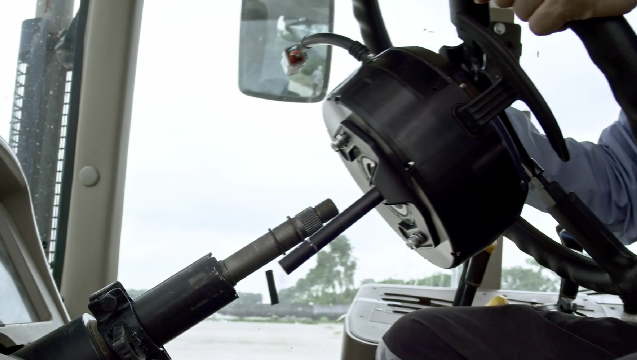

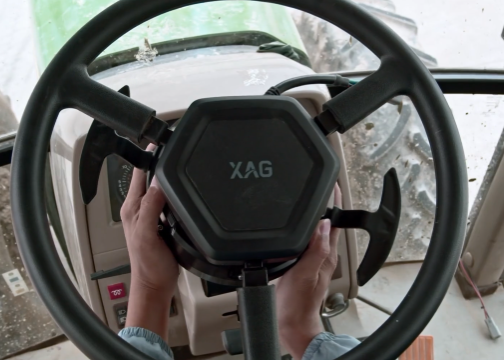

- Electric steering wheel and controller.

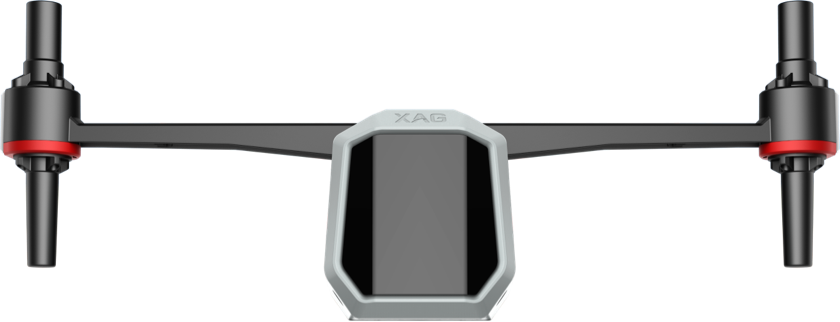

- Satellite antennas and receiver.
- Radio station module for RTK integration.
