Product Description
XAG Agricultural Drone | Model XAG P-150 | Payload Capacity 70 Kg | Maximum Flow Rate 30 Liters/min | 5-10 Meter Effective Spray
Description

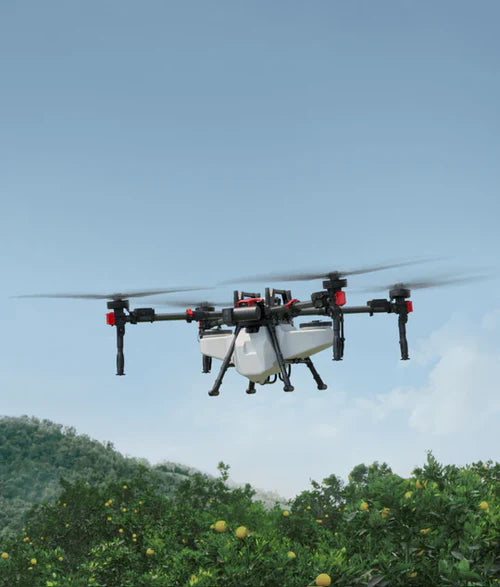

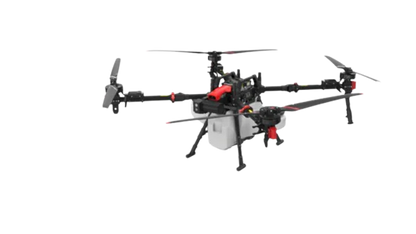

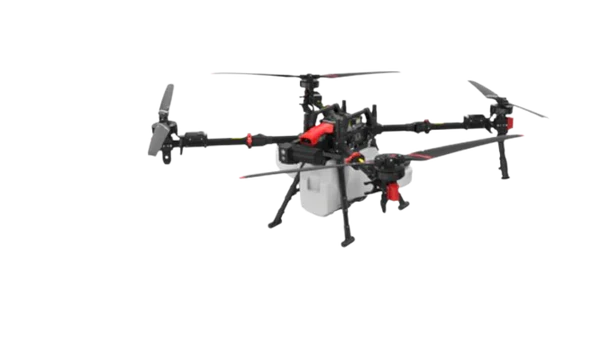

The XAG P150 is a next-generation, heavy-duty agricultural drone engineered for large-scale farms that demand maximum efficiency, precision, and automation. Featuring an 18.5-gallon spray tank, industry-leading RevoTransport, RevoSpray 4, and RevoCast 4 systems, and lightning-fast 8-minute charging, the P150 helps growers cover more acres with fewer labor requirements.
Capable of flying at 40 mph, delivering up to 8 GPM spray flow, spreading a full bag of fertilizer in 11 seconds, and generating real-time 3D maps, the P150 is built to boost productivity across spraying, seeding, fertilizing, transport, and mapping operations.

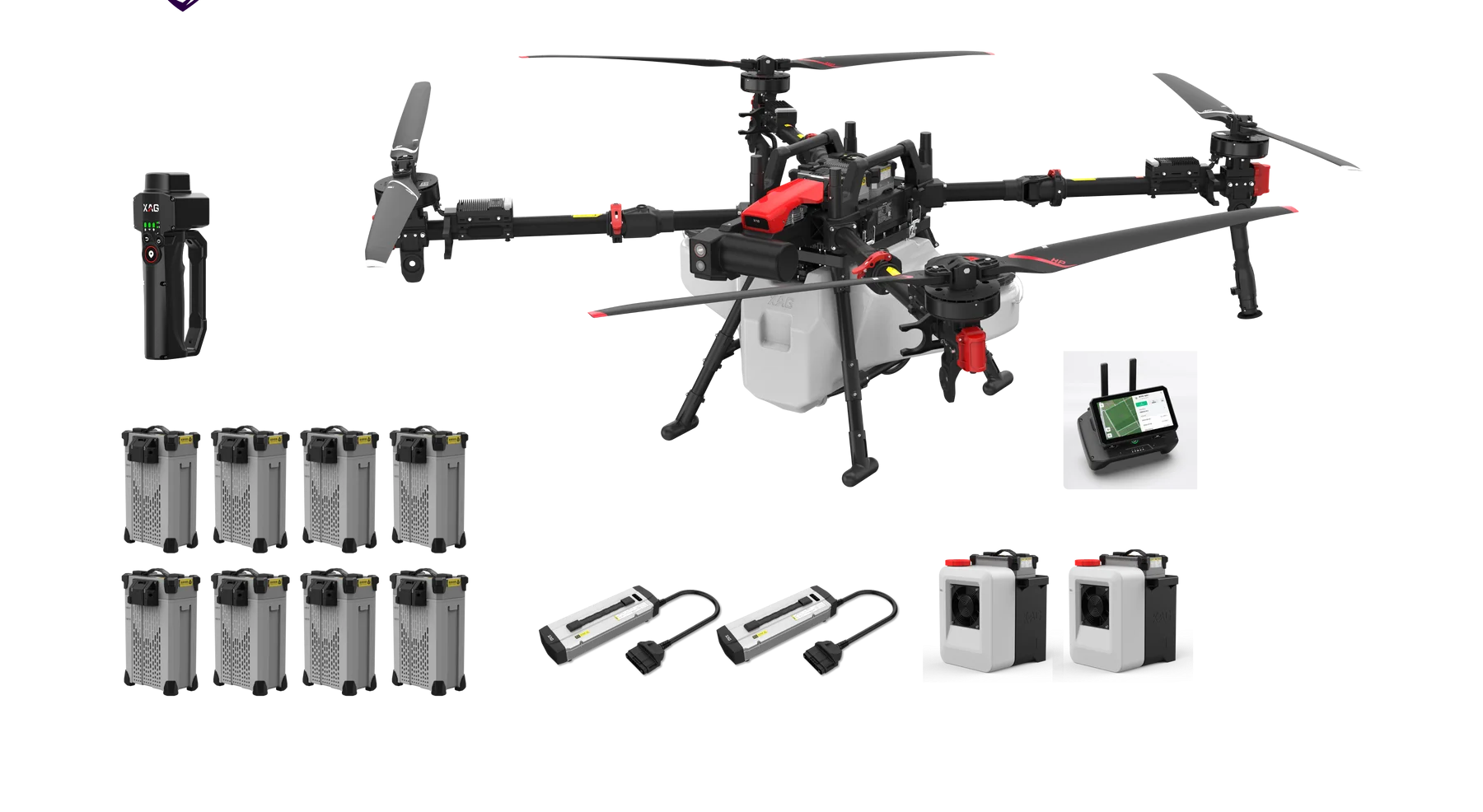

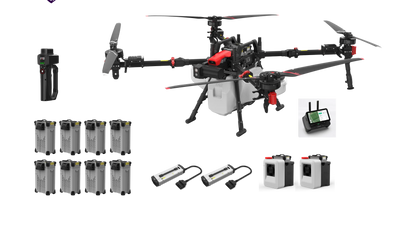

What's Included:
- XAG P150 2024 Agriculture Drone
- 1x RevoSpray 4
- 1x SRC4 Remote Controller
- 8x B13970S Smart Battery
- 2x CM13600 Charger
- 2x Mist Cooling Tower
- 1x XRTK6 Pro
- 1x DL1 Data Link
Key Features

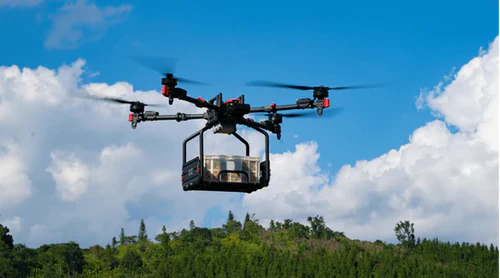

- RevoTransport System: Dual sling/cargo transport modes move loads up to 143 lbs across long distances and steep terrain with fast loading/unloading.

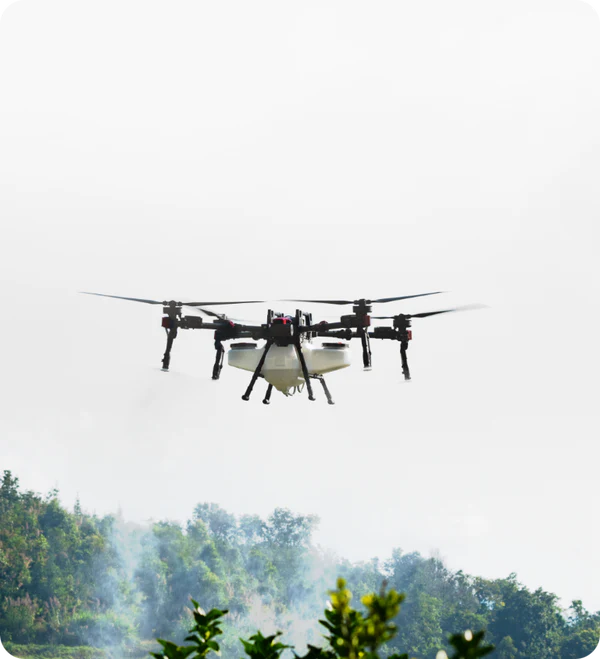

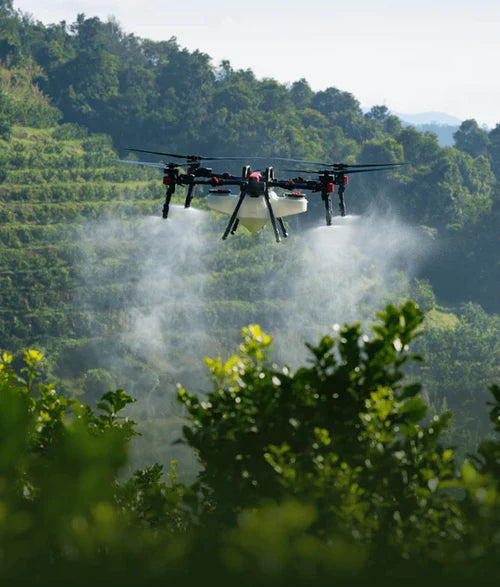

- RevoSpray 4 High-Performance Spraying: Delivers up to 7.9 GPM with uniform atomization and a wide 16.4–32.8 ft spray width for high-speed, high-precision crop coverage.
- Centrifugal Atomizing Nozzles: 2–4 nozzles generate 60–400 μm droplets, enabling deep penetration into tall or dense crop canopies.

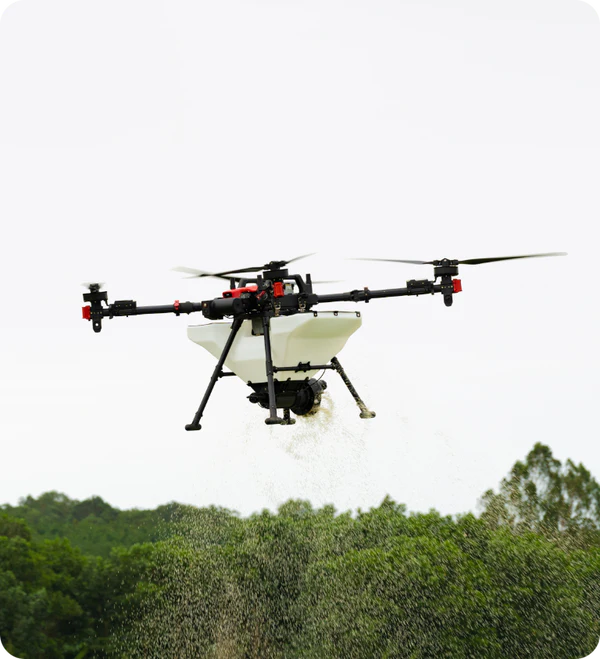

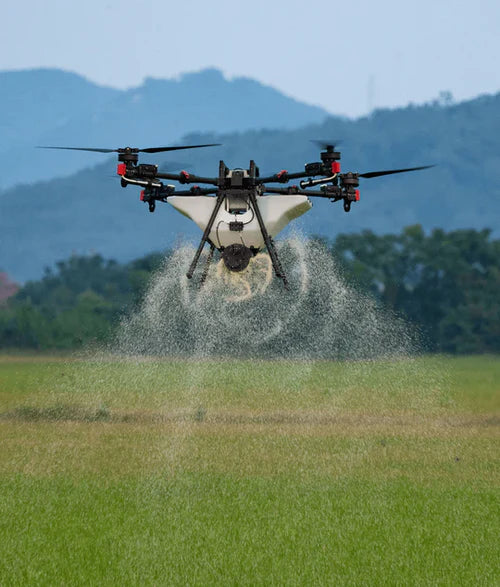

- RevoCast 4 Ultra-Fast Spreading: Spreads a full fertilizer bag in 11 seconds with up to 617 lbs/min discharge rate and interchangeable augers.
- RealTerra 3 One-Click Mapping: Captures 1200 MP images and auto-generates real-time 3D maps; covers up to 32 acres per mission.
- SuperX 5 Pro Flight Controller: Advanced computing power, precise RTK navigation, and intelligent environmental sensing for highly stable, autonomous operations.
- Multi-Drone Control: Operate two drones simultaneously for parallel spraying or spreading to dramatically increase field efficiency.
- Smart Route Automation: Auto-plans optimal flight paths, auto-returns on low battery/chemical, and resumes exactly where operations stopped.
- RevoMapping & Multi-Field Support: Map multiple adjacent fields in one mission and execute seamless multi-field spraying or spreading routes.
- High-Speed Flight Capability: Reaches up to 40.3 mph for rapid coverage on large farms.

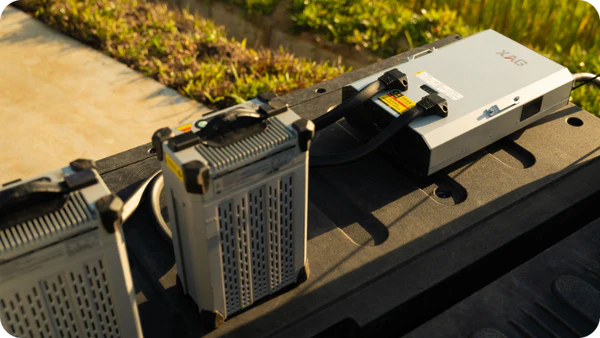

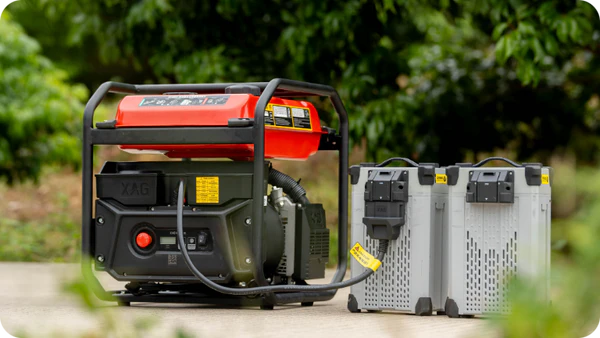

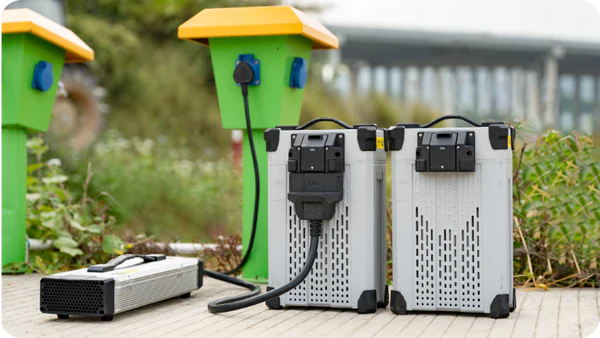

- Supercharge Battery System: Eight B13970S smart batteries with 8-minute supercharging and water-mist cooling for continuous all-day operation.
- 4D Imaging Radar Safety: Provides obstacle detection, terrain following, and stable hovering with precise RTK–based positioning.
- Heavy-Duty Payload Design: Supports 18.5-gallon spraying, 30-gallon spreading, or 143-lb transport loads with durable IPX6K protection.
- Dual FPV Cameras: 1080p forward and downward cameras enable precise visual awareness and safe operation.

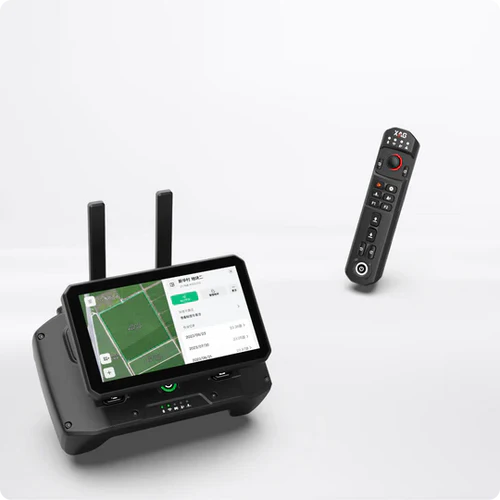

- Long-Range Communication: SRC4 controller and DL1 Data Link provide strong, low-latency signal transmission up to 1.24 miles.
Detailed Specifications

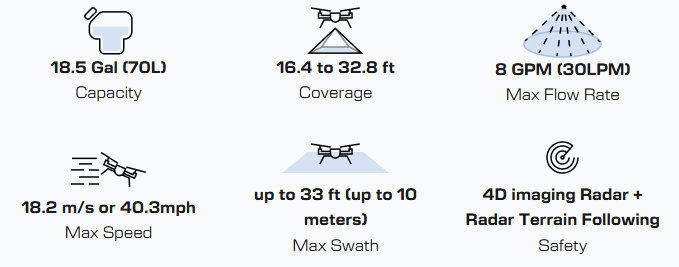

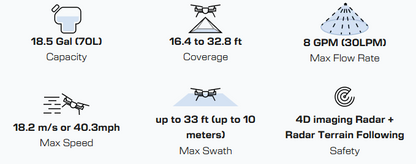

| Category | Specification |
|---|---|
| Tank Capacity | 18.5 gal (70 L) |
| Spray Flow Rate | Up to 7.9 GPM (30 LPM) |
| Spray Width | 16.4–32.8 ft |
| Droplet Size | 60–400 µm |
| Mapping Coverage | Up to 32 acres per mission |
| Spreading Rate | Up to 617 lbs/min |
| Transport Payload | 143.3 lbs |
| Max Takeoff Weight | 249–282 lbs (depending on module) |
| Max Flight Speed | 40.3 mph (18.2 m/s) |
| Max Height | 98.4 ft |
| RTK Hover Accuracy | Horizontal: 4 in / Vertical: 4 in |
| Obstacle Avoidance | 4D Imaging Radar + Terrain Following Radar |
| Battery Model | B13970S Supercharge Battery |
| Battery Capacity | 48.75 V / 20 Ah |
| Fastest Charging Time | 8 minutes |
| Signal Range (SRC4) | 6561 ft |
| Ingress Protection | Drone: IPX6K |
| FPV Camera | 1080p / 30 fps |
| Mapping Camera | 1200 MP mechanical shutter |
| Operating Temperature | 32–104°F (spray/cast) |
| Dimensions (Deployed) | 122.4 × 122.8 × 31.7 in |
| Weight (with Battery) | 116.8–127.9 lbs |
