XAG R150 Autonomous Tractor (Hauler) Ground Vehicle | For Agriculture

XAG R150 Autonomous Tractor (Hauler) Ground Vehicle | For Agriculture

Regular price $31,500.00
Regular price Sale price $31,500.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Multi-Use Autonomous Hauler: Efficiently delivers materials with intelligent round-trip routes.

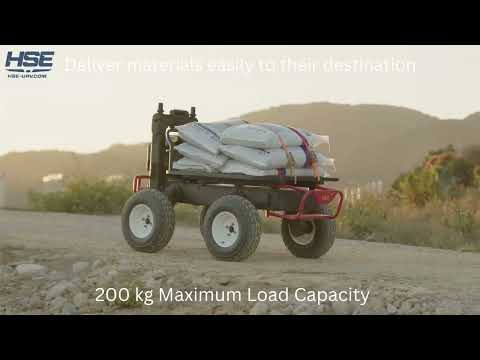

  • High Load Capacity: Can haul up to 200 kg of materials with ease.
  • Precise Navigation: SuperX 4 Pro control system enables smooth, autonomous operation.
  • Rugged Design: Built to handle tough agricultural environments with a maximum climbing angle of 15°.
  • Advanced Powertrain: Powered by a Permanent Magnet Synchronous Motor (PMSM) with lithium polymer battery system.
View full details

Product Description

XAG R150 Autonomous Tractor (Hauler) Ground Vehicle | For Agriculture

DESCRIPTION

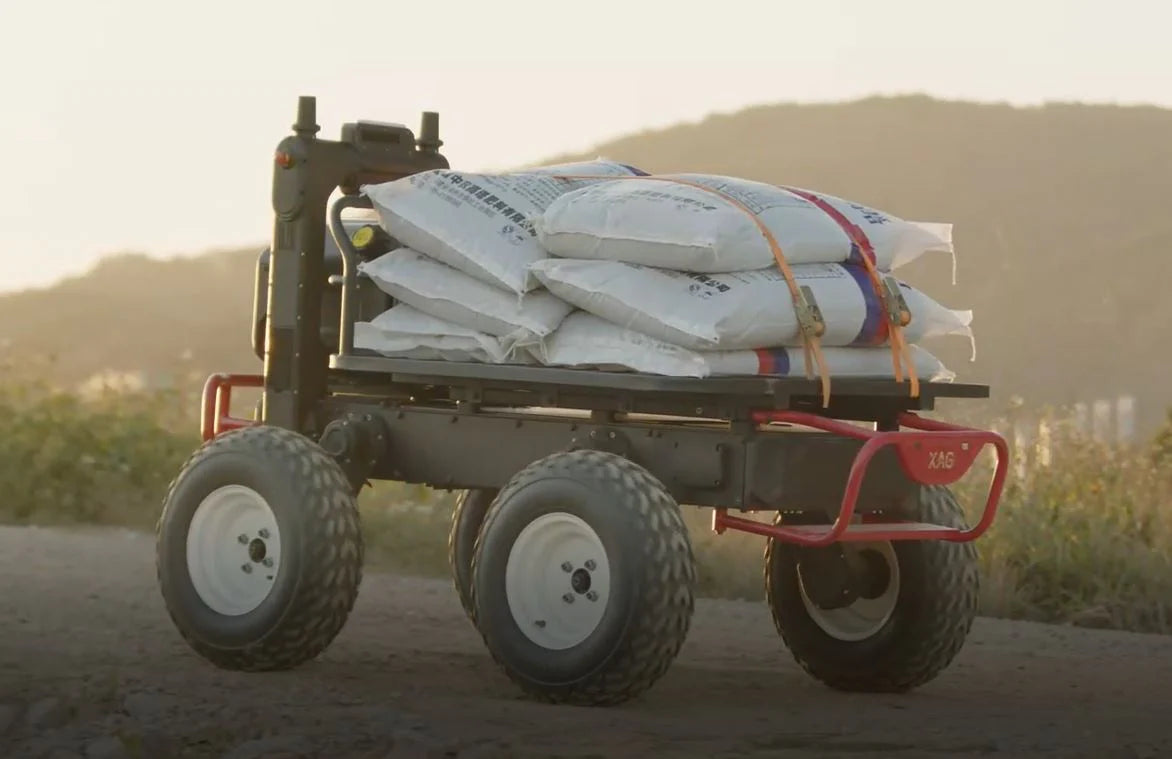

The XAG R150 Autonomous Tractor is a versatile ground vehicle designed to optimize agricultural workflows. With its ability to autonomously transport materials across fields, the R150 saves time and effort, allowing you to focus on more critical farming tasks. The tractor can carry a load of up to 200 kg, making it ideal for hauling supplies, harvested crops, or other materials.

Powered by the advanced SuperX 4 Pro control system, the R150 navigates intelligently along pre-set routes. Its rugged construction, coupled with a powerful PMSM motor and dual lithium polymer batteries, ensures reliable performance even in challenging conditions. Designed for ease of use and maximum efficiency, the R150 is a game-changer in agricultural automation.

Key Features

  • Autonomous Operation: Intelligent round-trip routes reduce manual labor.
  • Durable Construction: Built to withstand demanding agricultural environments.
  • High Load Capacity: Supports up to 200 kg of materials, excluding payload system.
  • Compact and Maneuverable: Features a minimum turning diameter of just 1 meter.
  • Advanced Power System: Dual lithium polymer batteries provide reliable energy for extended use.

Detailed Specifications

Basic Parameters

Feature Details
Control System SuperX 4 Pro
Dimensions 1695 × 1205 × 1205 mm
Net Weight 188 kg
Load Capacity 200 kg
Max Speed 1.2 m/s
Max Climbing Angle 15°
Min Turning Diameter 1 m
Tires 16" TL rubber tires

Transport Rack

Feature Details
Max Weight Load Capacity 200 kg

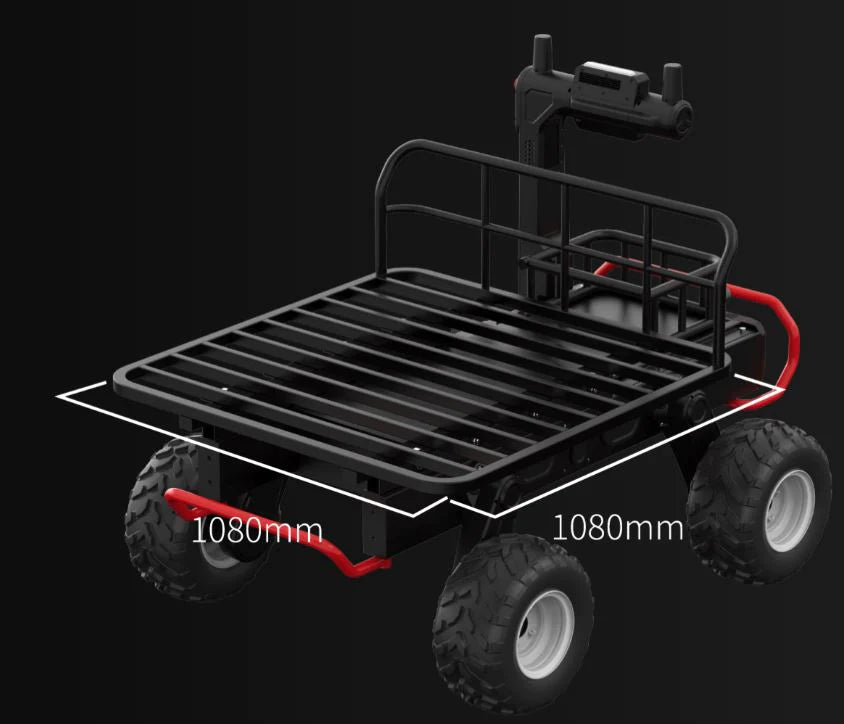

Dimensions 1080 × 1080 mm

Powertrain

Feature Details
Motor Type Permanent Magnet Synchronous Motor (PMSM)
Rated Voltage 48 V
Rated Power 1500 W
Rated Speed 1450 RPM
Rated Torque 7 N·m
Cooling Method Natural Cooling
Insulation Class Class E

Power System / B13960S Smart Battery

Feature Details
Battery Type Lithium Polymer Battery
Battery Quantity 2
Rated Capacity 20,000 mAh (962 Wh)
Rated Output Voltage 48.1 V
Rated Output Current 120 A

Communication & Control System

Feature Details
Remote Control Model XAG Agricultural Remote Controller 3
EIRP 2.4 GHz, SRRC ≤ 20 dBm
Operating Frequency 2.4000–2.4835 GHz (SRRC)
Charging Voltage/Current 5 V/2 A, 9 V/1.5 A, 12 V/1.5 A
RTK Frequency Band GPS: L1C/A, L2C; GLONASS: G1, G2; BDS-2: B1I, B2I, B3I; BDS-3: B1I, B3I; Galileo: E1, E5bI; QZSS: L1C/A, L2C
