Product Description
XL Specialized | 110HDE Extendable Lowboy Trailer | 53' Length | 110,000 lbs Capacity | 102" Width | For Extreme Heavy-Haul Transport
Ripping It is Partnered with Western Truck to provide the best pricing and service for XL Specialized.
DESCRIPTION

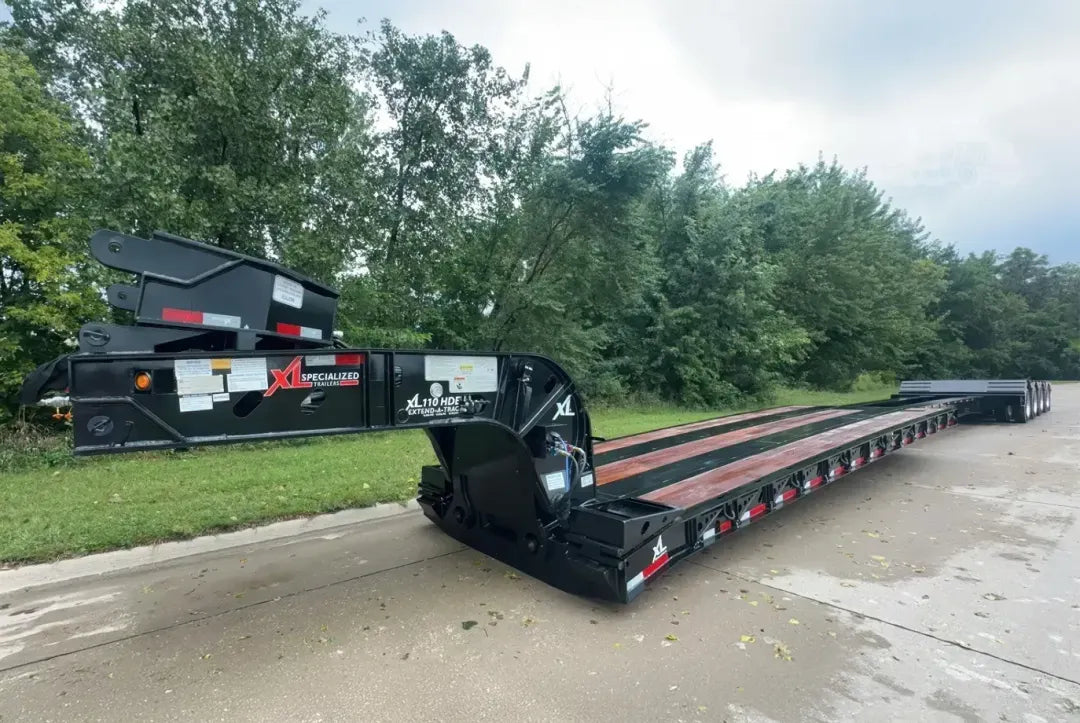

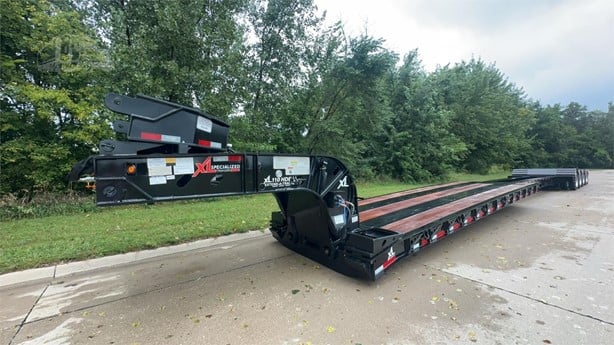

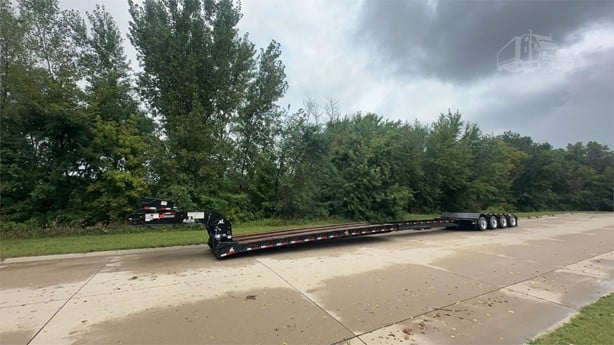

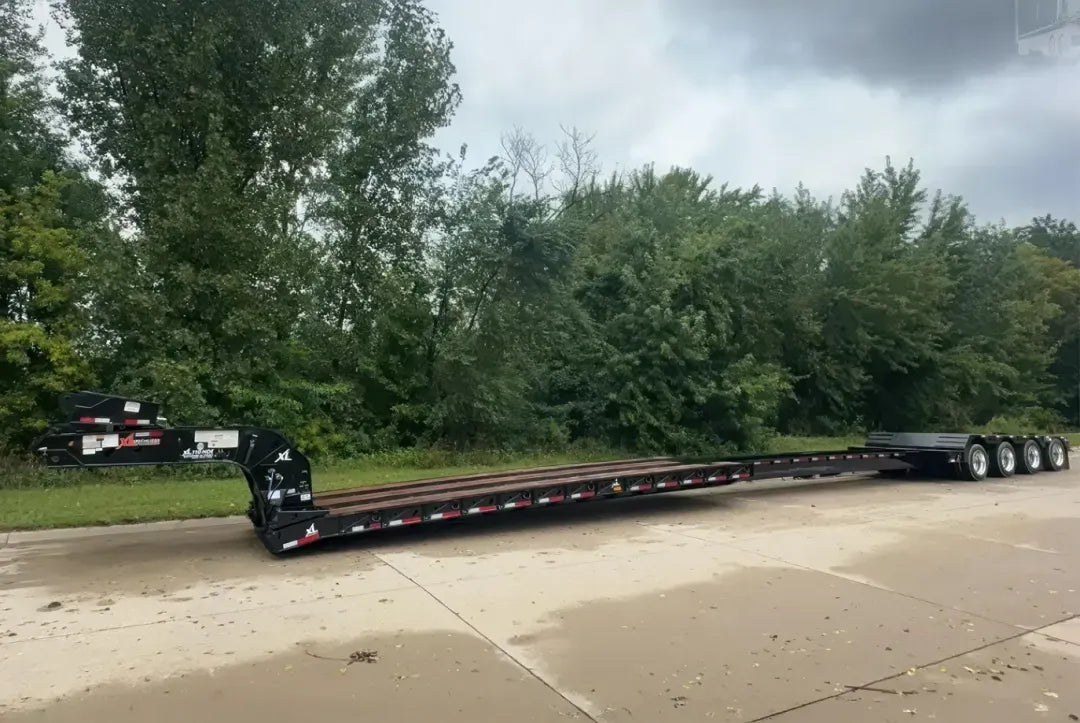

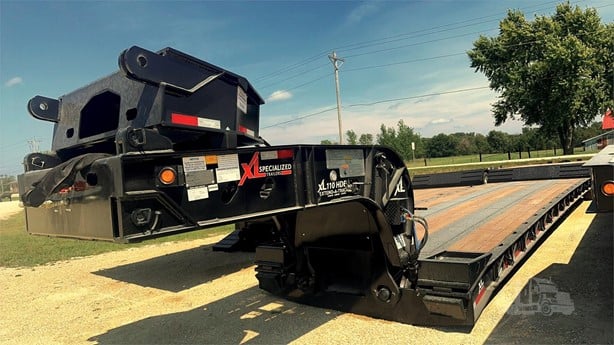

The XL Specialized 110HDE Extendable Lowboy Trailer is a high-performance, heavy-haul trailer built for the most demanding transport needs. Designed with a low-profile scraper neck, extendable main deck, and tri-axle air ride suspension, this trailer ensures optimal strength, flexibility, and road compliance for oversized and high-weight cargo.

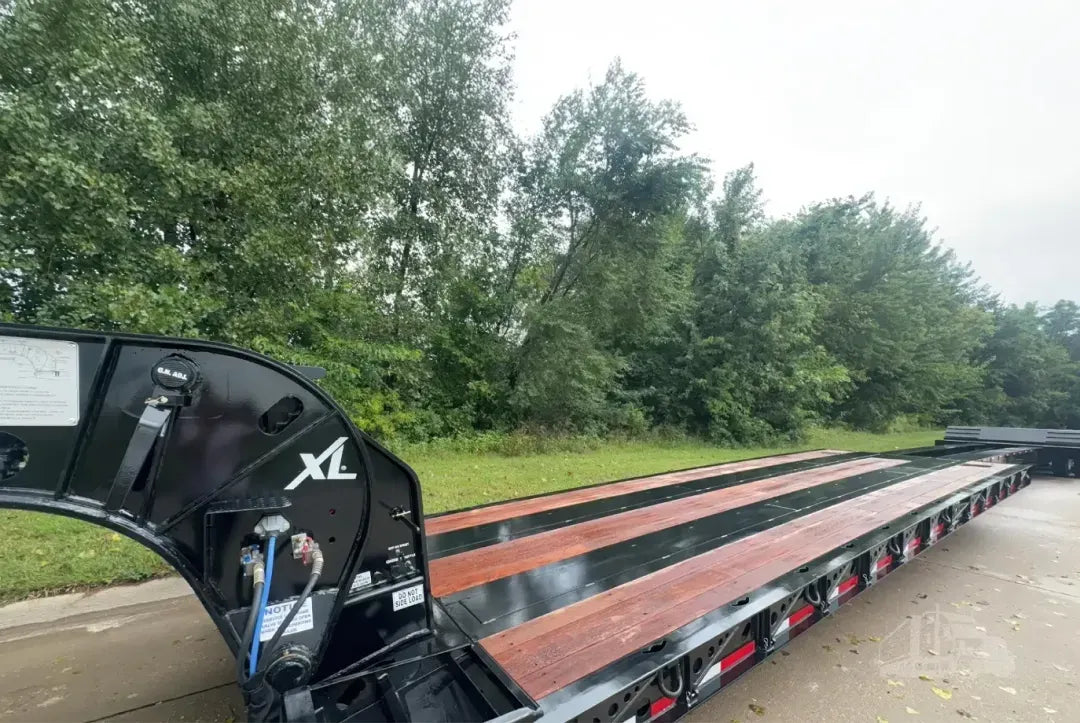

With an exceptional hauling capacity of 110,000 lbs distributed, and 90,000 lbs in 10 feet closed, it stands as a true workhorse for construction, mining, and industrial freight operators. The main deck extends up to 49 feet 11 inches, allowing easy adjustment to accommodate various equipment sizes, while 1-1/8" flush Apitong decking adds superior durability for repeated loading and offloading.
The integrated 13 HP (approx. 9.7–10.5 kW) hydraulic power unit ensures smooth neck operation and ride height adjustments, while air lift on the 3rd axle adds maneuverability and compliance. Fully prepped for a flip neck and single-axle booster, this trailer offers long-term adaptability for specialized hauls.
Whether you're handling oversize loads or need flexible deck length on-the-go, the XL 110HDE is engineered to deliver maximum uptime, strength, and control making it the perfect addition to any serious heavy-duty fleet.
Key Features
- Heavy-Haul Capacity: Rated for 110,000 lbs distributed and 90,000 lbs in 10' closed built for oversized and extreme-duty applications.

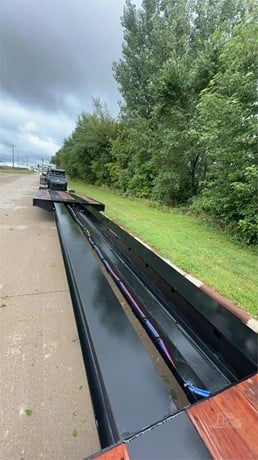

- Extendable Main Deck: 28' 6" deck extends to 49' 11" with a 30" stationary platform and 1,000 lb capacity.

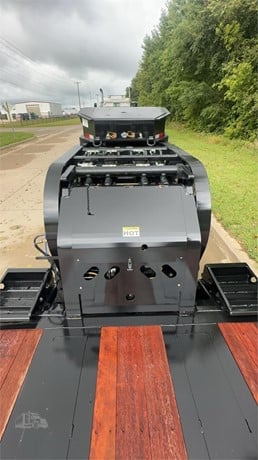

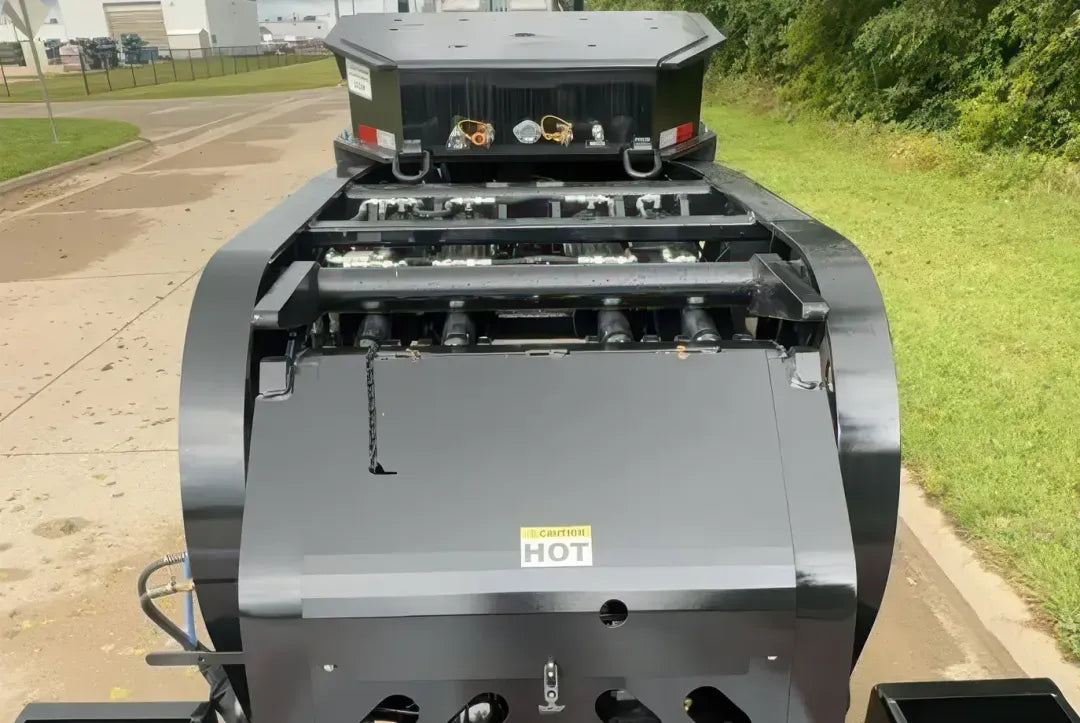

- Optimized Power Requirements: 13 HP (approx. 9.7–10.5 kW) Honda SCU with dual hydraulics for neck lift and ride height control.

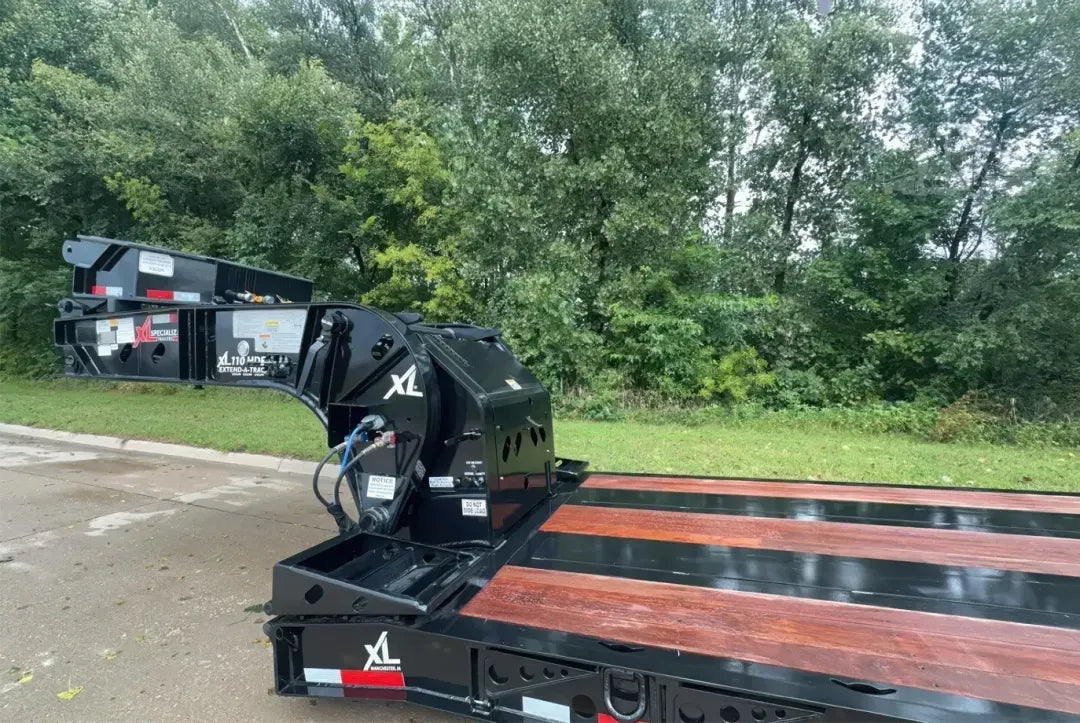

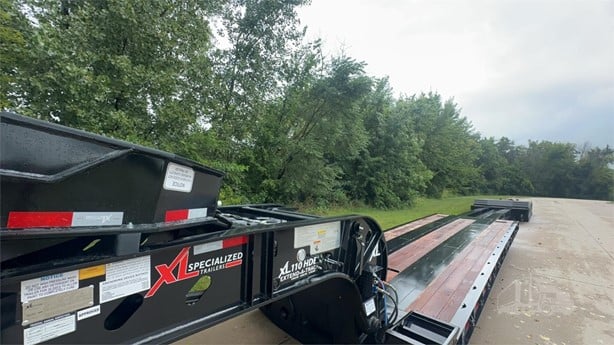

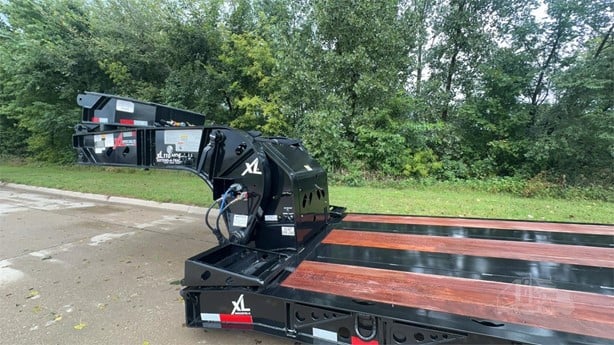

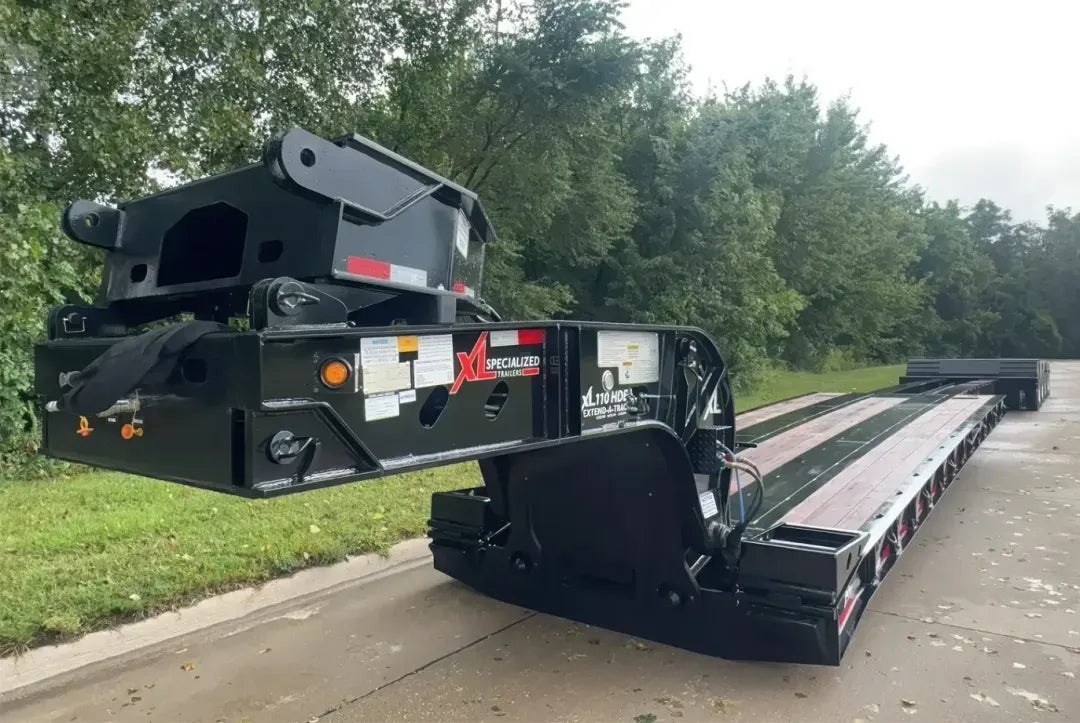

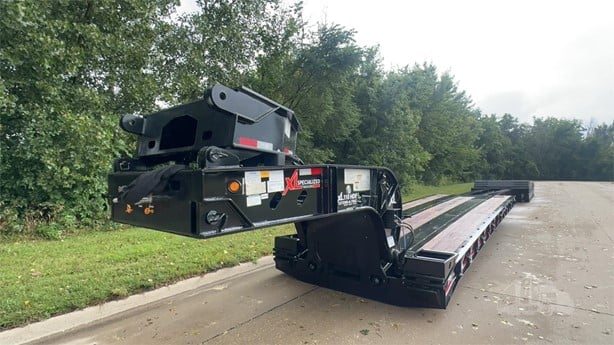

- Low-Profile Scraper Neck: 11' long, narrow neck with 16" kingpin setting and 5 ride height positions for ground clearance flexibility.
- Durable Suspension System: Hendrickson air ride tri-axle system with 25,000 lb nominal per axle rating for smooth, stable hauling.
- Air Lift & Manual Ride Control: Liftable 3rd axle and manual ride height valve for enhanced maneuverability and compliance.

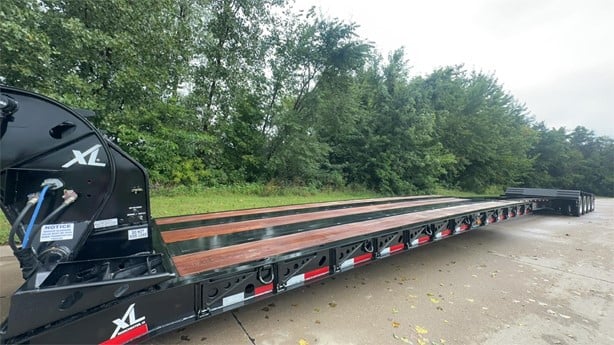

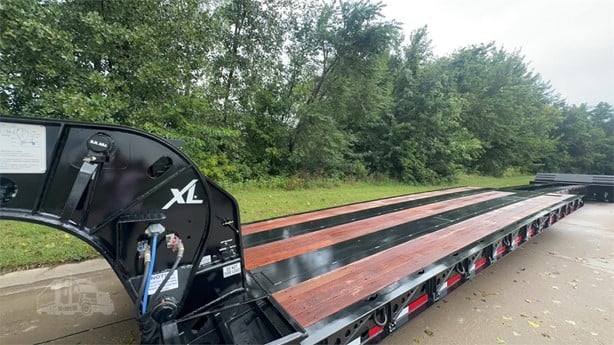

- Decking & D-Ring Options: Flush-mounted Apitong wood, bent D-rings (8/side), and removable swing-out outriggers every 24".
- Ready for Add-Ons: Prepped for flip neck, flip axle, and single-axle booster for future expansion.
- Reliable Braking & Tires: Outboard drum brakes and 255/70R22.5 (H) tires on polished aluminum outer wheels.
- Advanced Lighting & Battery Backup: 12V sealed Grote system with strobes, tail lights, and dedicated battery backup for remote operation.
Detailed Specifications
| Category | Details |
|---|---|
| Model | XL Specialized 110HDE |
| Trailer Type | Extendable Lowboy Trailer |
| Condition | New |
| Overall Length | 53' (Extends to 49' 11" Main Deck) |
| Overall Width | 102" |
| Main Deck Length | 28' 6" (Opening to 49' 11" with 30" stationary deck) |
| Main Deck Height | 24" loaded height with 6" ground clearance |
| Rear Deck Length | 13' 6" |
| Rear Deck Height | 40" |

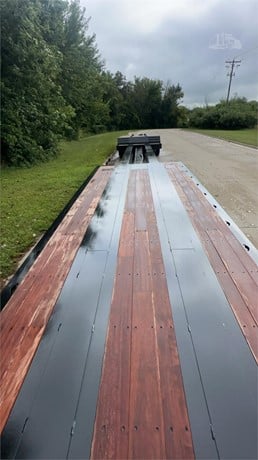

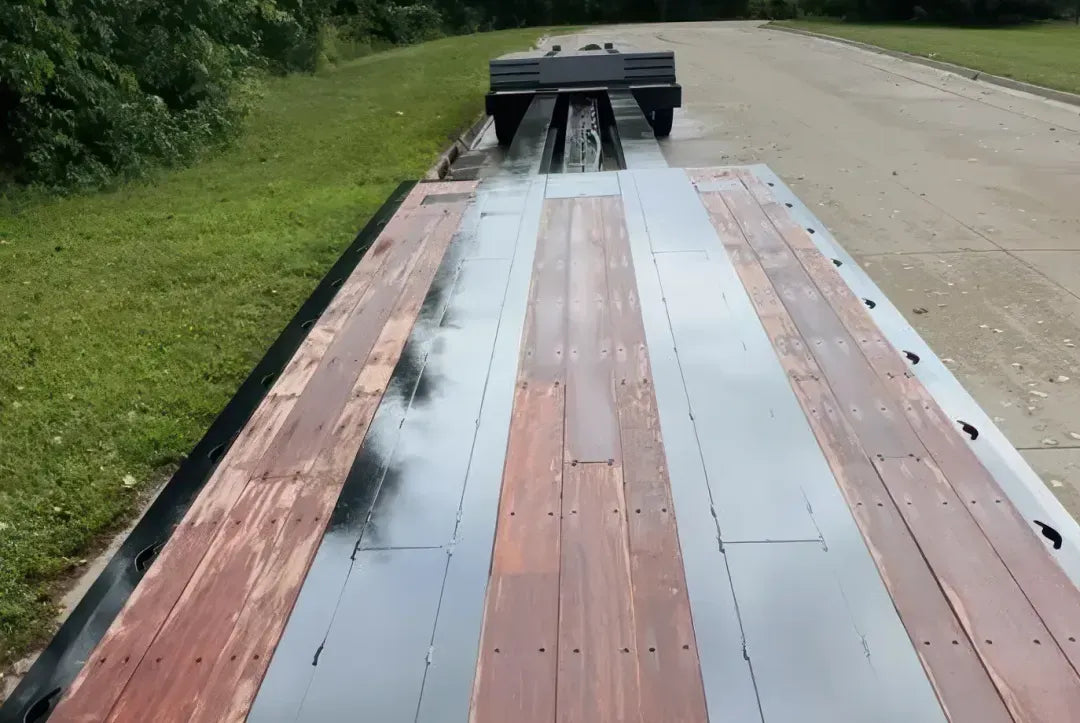

| Decking | 1 1/8" Apitong (Flush) |
| Capacity | 110,000 LB Distributed / 90,000 LB in 10’ Closed |
| Weight (Approx.) | 27,300 LB ±3% / 26,800 LB Gooseneck |
| Neck Style | Low-Profile Scraper Neck – Narrow |
| Neck Length | 11' |
| Kingpin Setting | 16" |
| Swing Clearance | 86" |
| 5th Wheel Height | 51" with 5 variable ride positions |
| Hydraulic System | 13 HP Honda SCU (Approx. 9.7–10.5 kW) with steel cover |
| Flip Neck Prep | Yes (Prepped for 36" Extension) |
| Axles | (3) 25,000 LB Nominal / 5/8" Wall |
| Axle Spacing | 54" |
| Suspension | Hendrickson 25,000 LB Air Ride |
| Brakes | 16.5" x 7" Drum, Spring Brakes on one axle |
| Tires | 255/70R22.5 (H) |
| Wheels | 8.25 x 22.5, Polished Aluminum (Outer), Steel (Inner), Disc-180 |
| Electrical | 12V Sealed Grote System with 3 tail lights |
| Additional Lighting | 4" Amber Strobe (3rd Tail Light) |
| Battery Backup | Included (Supports 4-Way Flip Strobe Plug) |
| Outriggers | Removable Swing-Out on 24" Centers |
| Chain Drops | Every 24" |
| D-Rings | 1 Pan-Style Per Corner, 2 in Tail Channel, 8 Bent Per Side |
| Flip Axle/Neck Prep | Yes (Sold Separately) |
| Front Flip Ramps | 31" |
| Ride Height Control | Manual Valve |
| Air Lift | On 3rd Axle |
| Extension Stops | 24" Centers |
| Paint | Black Finish |
| Power Requirement | Approx. 9.7–10.5 kW (13–14 HP) |
